Sullair 300HH 375 375H 425 Portable Air Compressor Operator Manual and Parts List

Description

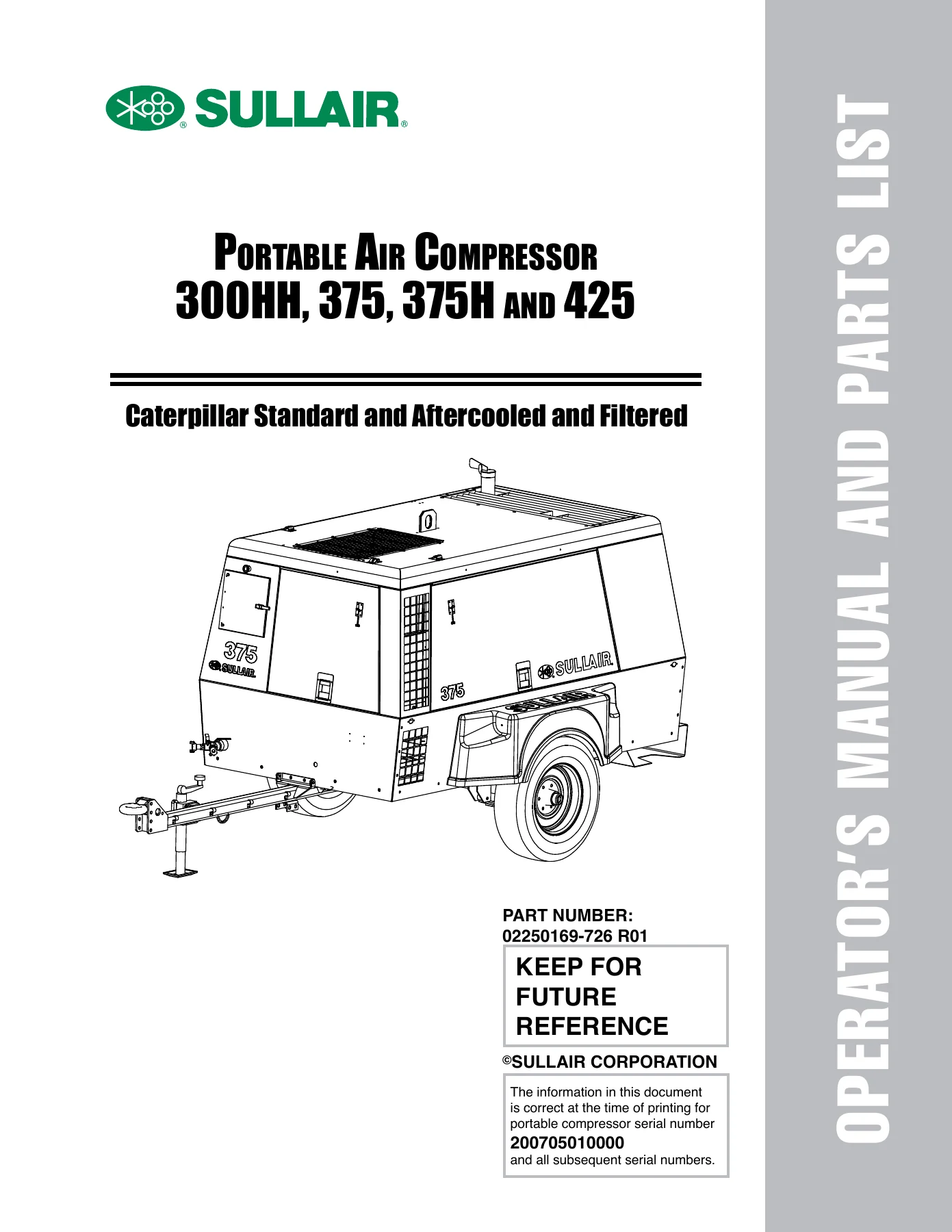

Sullair 300HH, 375, 375H and 425 Portable Air Compressor Operator Manual and Parts List

This is the complete operator manual and illustrated parts list for the Sullair 300HH, 375, 375H and 425 portable air compressors, document number 02250169-726 R01. It is written for the machines carrying serial number 200705010000 and all subsequent serial numbers, and it pairs the day-to-day operating instructions with the full illustrated parts breakdown for the same four models. Everything a owner, operator or service technician needs to run, tow, maintain and rebuild these Caterpillar-powered portable compressors is contained in this one file.

File Details

• Manual type: Operator Manual and Parts List
• Brand: Sullair Corporation
• Models covered: 300HH, 375, 375H, 425
• Engine: Caterpillar C4.4 diesel (4 cylinder)
• Document number: 02250169-726 R01
• Serial number applicability: 200705010000 and all subsequent serial numbers
• Language: English
• Page count: 142 pages
• File format: PDF

Chapters Covered

The Sullair 300HH 375 375H 425 operator manual and parts list is organized into seven sections, with the safety and technical content up front and the complete parts illustrations at the back:

• Section 1 – Safety: general precautions, towing and preparing to tow, parking or locating the compressor, pressure release, fire and explosion, moving parts, hot surfaces and sharp edges, toxic and irritating substances, electrical shock, lifting, entrapment, jump starting, California Proposition 65, lockout/tagout implementation and explosive atmosphere warnings.

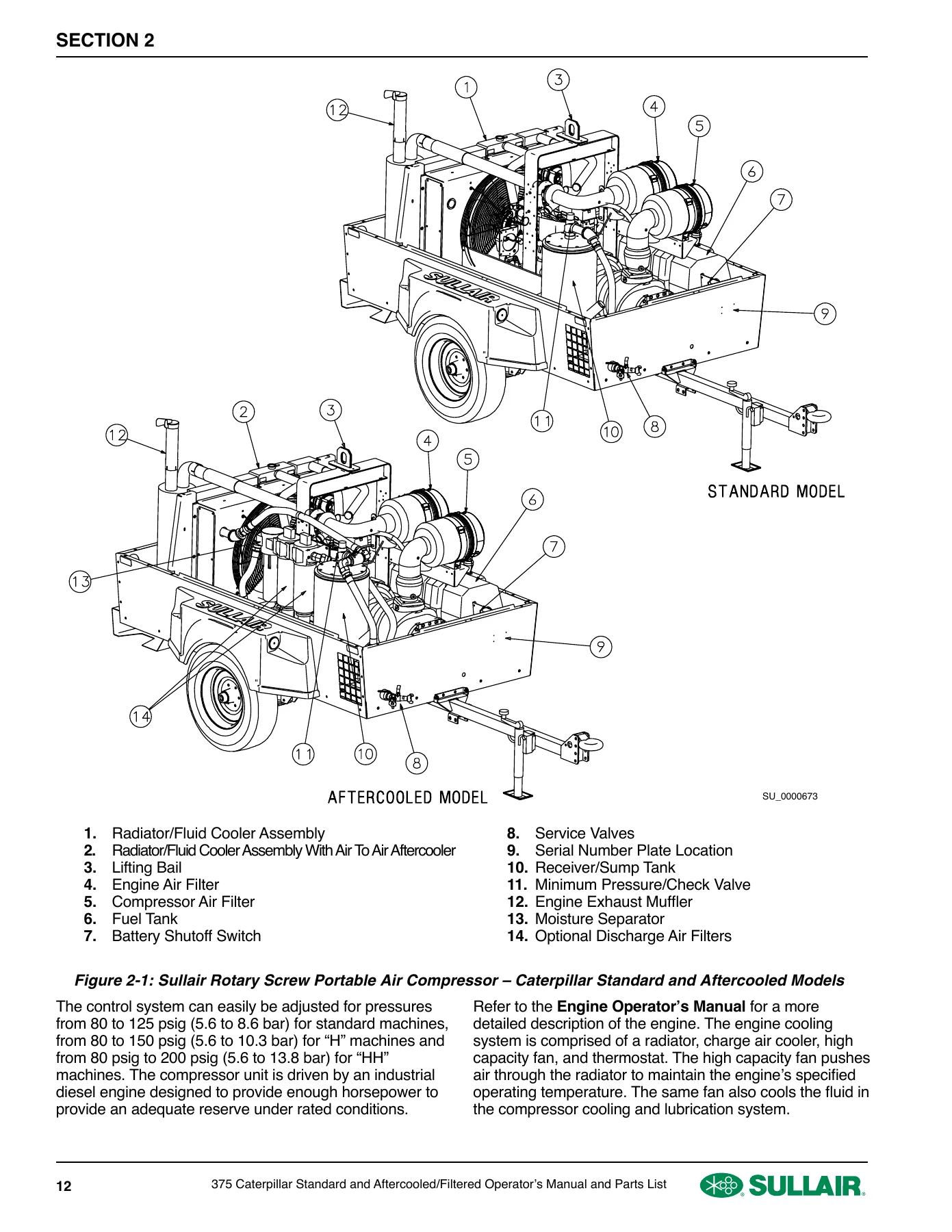

• Section 2 – Description: introduction, description of components, Sullair compressor unit functional description, compressor cooling and lubrication system, compressor discharge system, capacity control system, cold start and normal operation, modulation, shutdown, air inlet system and instrument panel group.
• Section 3 – Specifications: dimensional and weight specifications for 300HH and 375 Caterpillar, specifications for 375H and 425 Caterpillar, compressor and engine data, lubrication guide for the compressor, application guide and engine lubrication guide.
• Section 4 – General: purpose of controls, control and indicator purpose, initial startup and shutdown procedure, startup, shutdown and restart procedure.
• Section 5 – Maintenance: daily maintenance, maintenance after the initial 50 hours, every 50, 100, 250 and 1500 hours, part replacement and adjustment procedures, compressor fluid change, fluid filter element replacement, air filter maintenance and replacement, separator element replacement, setting speed and pressure controls on compressors with poppet valves, bearing lubrication, first and second stage discharge air filter maintenance and troubleshooting.
• Section 6 – Noise Control: noise emissions warranty, tampering with the noise control system, noise emission maintenance and maintenance record log.

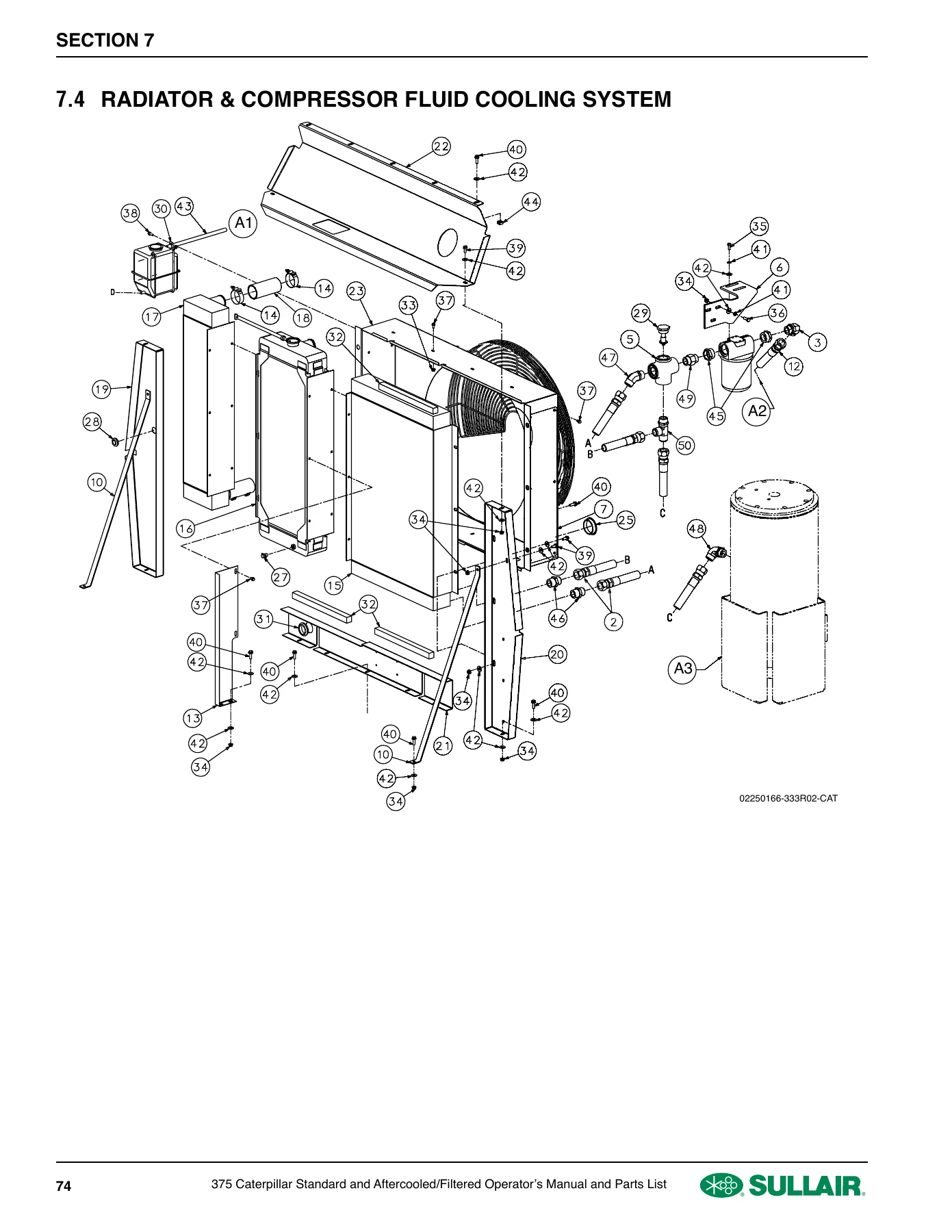

• Section 7 – Illustrations and Parts List: procedure for ordering parts, recommended spare parts list, engine, compressor and parts, radiator and compressor fluid cooling system, air inlet and exhaust system, control and discharge parts for 375/425 and for 300HH/375H, regulator/blowdown valve, control parts orifice, service valves, optional aftercooler/filter and parts, electrical parts, instrument panel and parts, fuel tank and connections, frame, axle and axle assembly, canopy and acoustical panels, decals and decal locations.

In practice, this means the manual walks a technician through the entire machine: how the rotary screw compressor unit, fluid cooler, thermal valve, minimum pressure device and separator element work together; how the capacity control system regulates air intake from cold start through modulation and shutdown; how the instrument panel, SSAM annunciator and flash codes report a fault; and how the aftercooled and filtered air option is plumbed and serviced. The parts half of the book then turns each of those systems into exploded illustrations with keyed part numbers, so a component identified as faulty in the troubleshooting charts can be ordered and replaced without guesswork.

Operating and Diagnostic Detail

The description section explains the four distinct phases of compressor operation – cold start from 0 to 40 psig, normal operation at 80 to 100 psig (or 80 to 150 psig on H models and 80 to 200 psig on HH models), modulation as demand falls off, and shutdown – so an operator understands exactly what the machine is doing as the inlet valve, pressure regulator, speed control module and blowdown valve cycle. Pressure selector valves on H and HH machines allow low and high range operation, and the manual documents the specific pressure bands for each.

Fault reporting is covered through the Shutdown System and Annunciator Module, which flashes one to five codes on the panel for high compressor discharge temperature, high engine coolant temperature, low engine oil pressure, low engine speed and low fuel level. A full listing of diagnostic codes, J1939 SPN references, trouble codes and the operation of the indicator lamps is included, along with the flash code sequence for reading active and logged codes without a scan tool.

Maintenance Scheduling and Procedures

Maintenance intervals are laid out in a clear ladder: daily checks, the initial 50-hour service, then every 50, 100, 250 and 1500 hours. The manual spells out the compressor fluid change procedure, fluid filter element replacement, air filter primary and secondary element service, separator element replacement with torque values for the sump cover bolts, and the detailed process for setting engine low and high idle speed and pressure regulator settings on poppet-valve machines. Bearing lubrication for the E-Z Lube axle is illustrated step by step, and the first and second stage discharge air filter elements on aftercooled and filtered models are covered with their part numbers.

Who This Manual Is For

This Sullair 300HH 375 375H 425 operator manual and parts list suits anyone responsible for a fleet of portable air compressors, a single towable unit on a jobsite, or a workshop that services them. Towing and parking instructions, safe pressure release, correct lifting points and jump-starting sequences are all documented for the operator, while the parts illustrations and troubleshooting charts support the mechanic rebuilding or re-sealing a machine.

Get the Manual and Parts List

IMAGES PREVIEW

With this download you can identify and order the correct filter elements, separator elements, repair kits, hoses, valves, gaskets and decals for a 300HH, 375, 375H or 425 by part number; set and verify engine idle and operating pressures; read and interpret SSAM flash codes; and follow the correct fluid, coolant and lubrication specifications instead of guessing. The Sullair 300HH 375 375H 425 portable air compressor operator manual and parts list is delivered as an instant PDF download after payment – no shipping, no waiting, and it can be opened on any phone, tablet, laptop or desktop and printed for the shop or the cab.
