Suzuki VL1500 Intruder (1998-2000) Service Manual PDF Download

Description

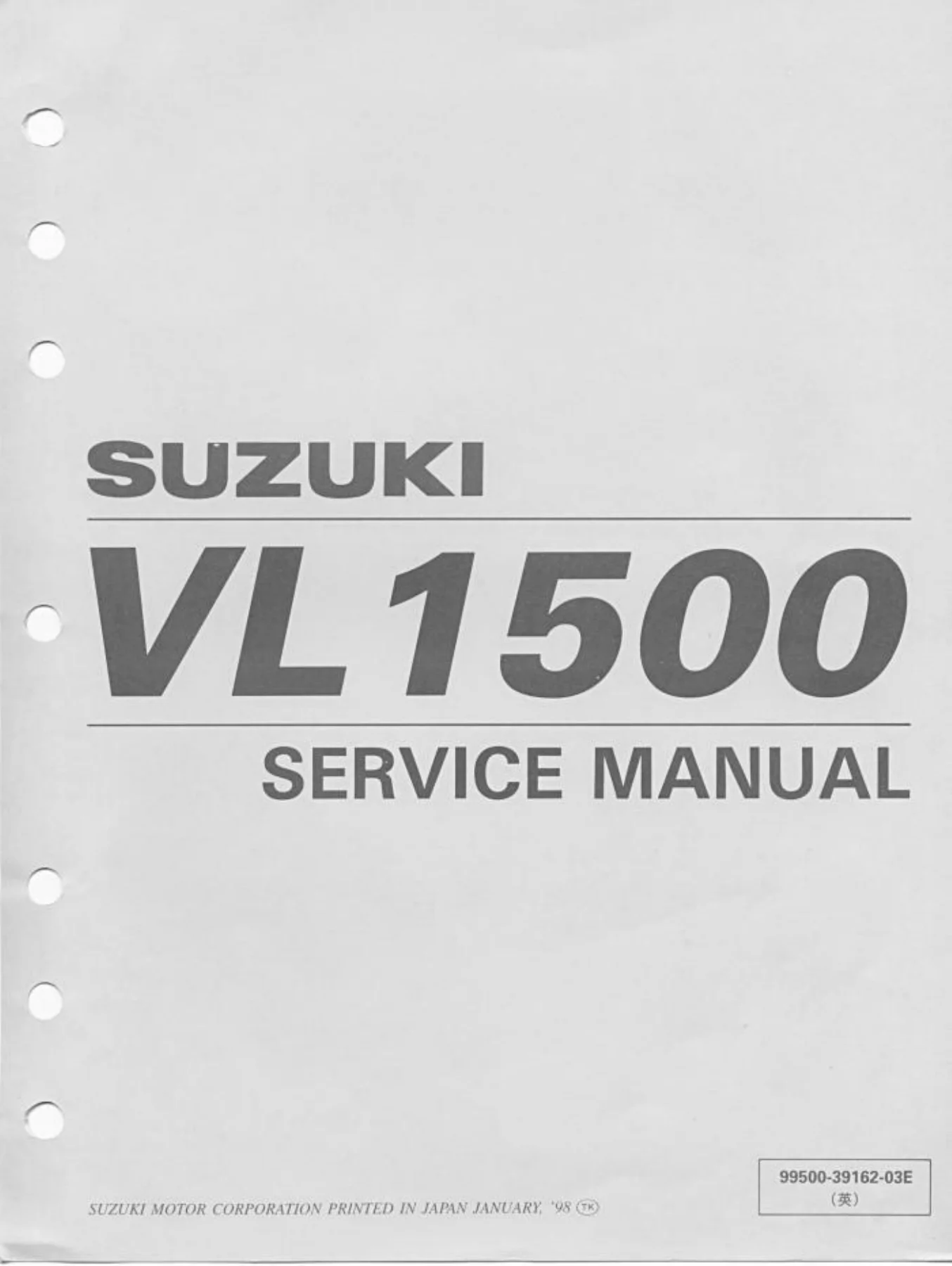

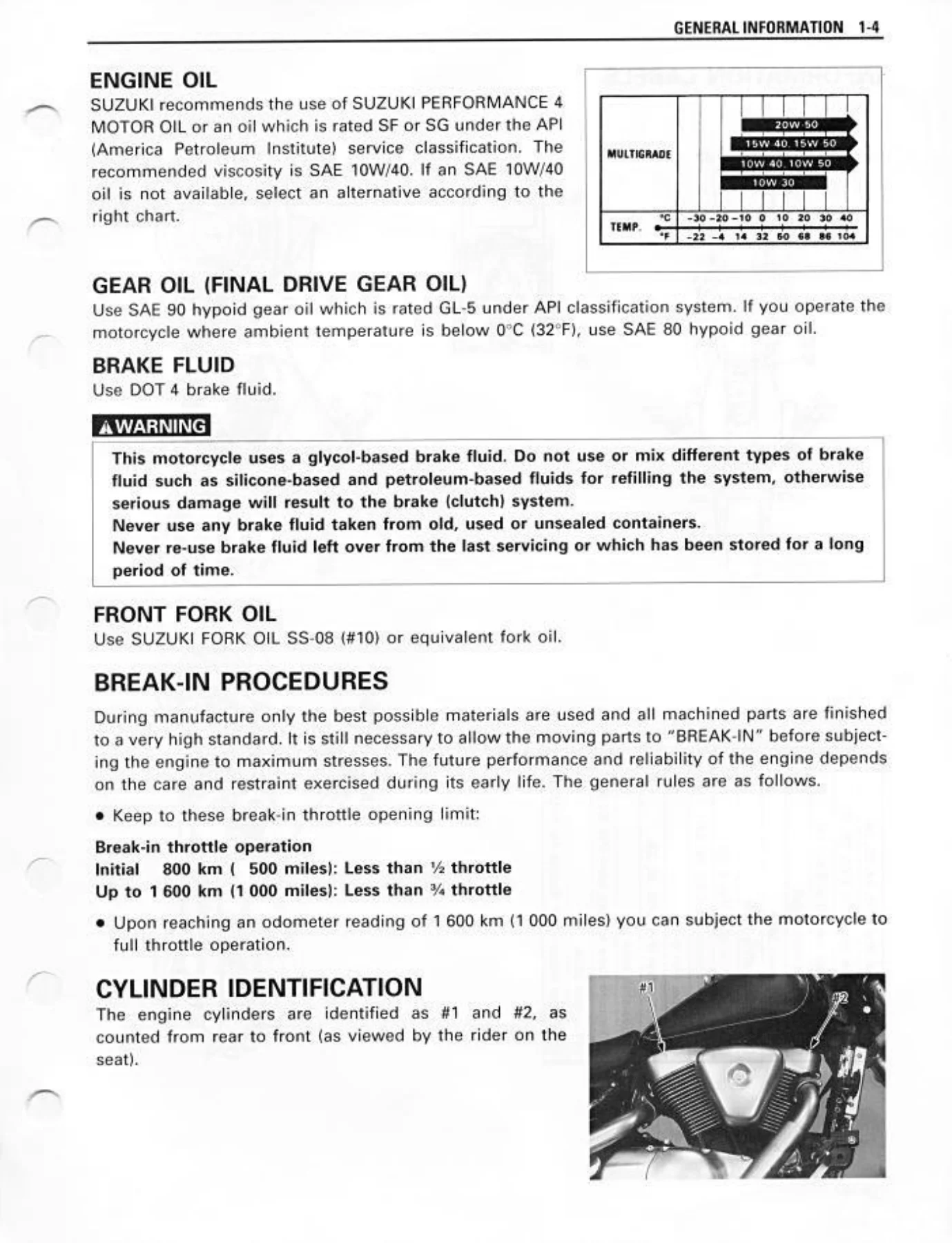

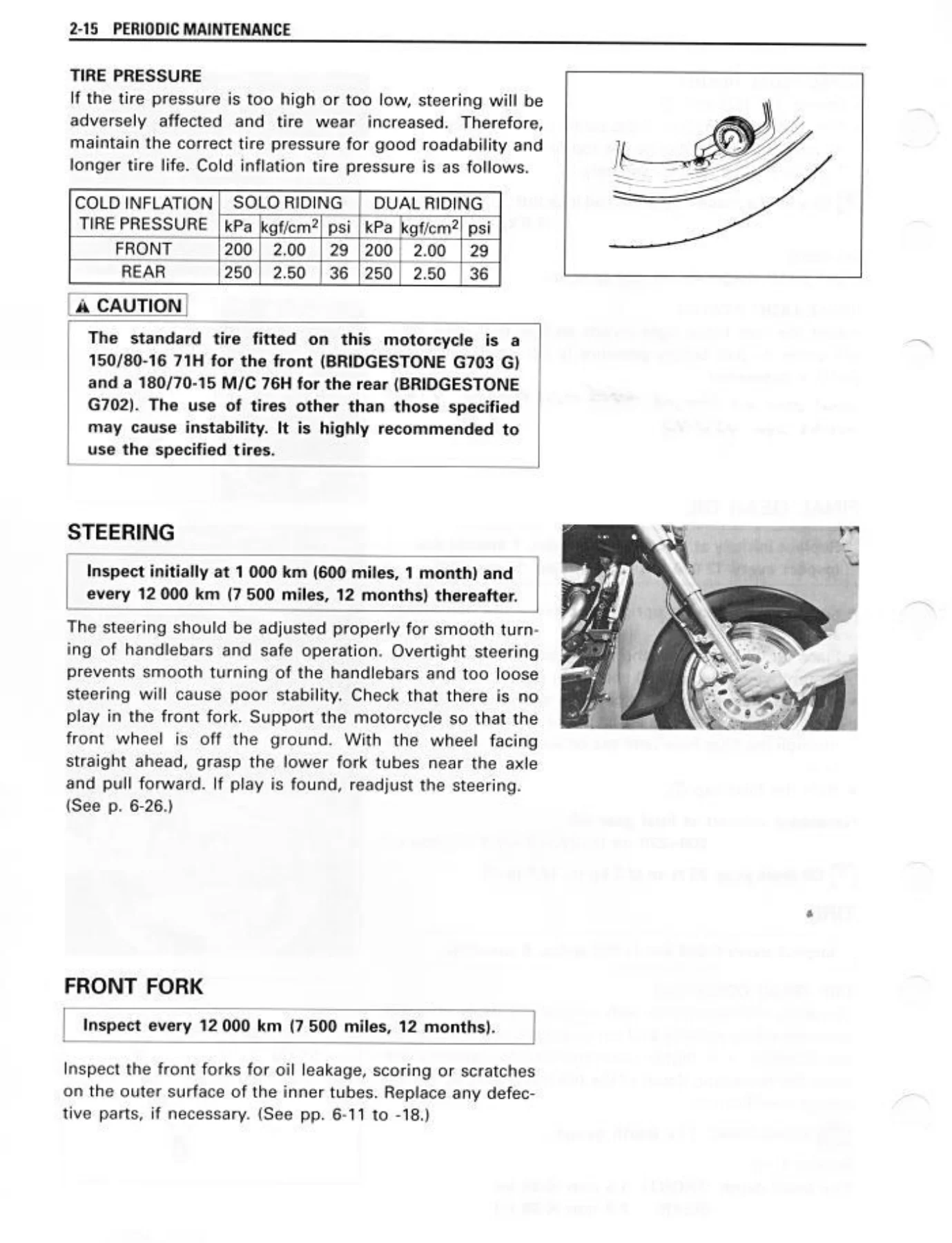

Suzuki VL1500 Intruder Repair & Service ManualThis service manual provides detailed technical instructions for inspecting, maintaining, troubleshooting, and overhauling Suzuki VL1500 Intruder motorcycles. Covering 409 pages, it delivers step-by-step procedures, technical specifications, fluid requirements, and exploded assembly diagrams required for complete machine care.Models & Coverage IncludedSuzuki VL1500W (’98-Model / 1998)Suzuki VL1500X (’99-Model / 1999)Suzuki VL1500Y (2000-Model / 2000)Engine Covered: 1,462 cm³ (89.2 cu. in) 4-stroke, air-cooled with SACS, OHC 3-valve 45-degree V-twinRegional & Country Specification Codes: E-02 (U.K.), E-03 (U.S.A. except California), E-04 (France), E-17 (Sweden, Finland, Norway), E-18 (Switzerland, Austria), E-22 (Germany), E-24 (Australia), E-25 (Netherlands), E-28 (Canada), E-33 (California), and E-34 (Italy, Belgium, Spain).Main Manual SectionsGeneral Information: Serial number locations, fuel/oil recommendations, break-in limits, area codes, and general specifications.Periodic Maintenance: Maintenance schedules, lubrication points, spark plug heat ranges, air cleaner servicing, engine oil/filter change, compression test, and oil pressure checks.Engine & Transmission: In-frame component removal, sequential engine removal/installation, cylinder head cover, camshafts, cylinders/pistons, clutch overhaul, gearshift linkage, crankcase splitting, crankshaft/conrod inspection, and lubrication system servicing.Shaft Drive: Secondary bevel gear case disassembly, driven gear setup, and drive shaft universal joint assembly.Fuel System: Mikuni BDSR36 twin carburetors, fuel strainer inspection, automatic de-compression cable adjustment, and carburetor synchronization.Chassis & Suspension: Front wheel, telescopic front fork overhaul, steering head bearing setup, rear swingarm link-type suspension, and wheels/tires.Brake System: Front dual disc and rear single disc brake caliper service, master cylinder maintenance, pad limit checks, and hydraulic circuit air bleeding.Electrical System: Transistorized ignition timing, charging generator, starter motor and torque limiter, lighting circuits, switches, and wiring routing.Emission Control: PAIR air supply system and evaporative emission controls for E-33 California models.Key Technical Specifications & Maintenance DataTightening Torques: Fastener specifications including oil drain plug (21 N·m / 15.0 lb-ft), oil pressure regulator (28 N·m / 20.0 lb-ft), final drive gear oil drain plug (28 N·m / 16.5 lb-ft), exhaust pipe bolts (23 N·m / 16.5 lb-ft), and front axle (65 N·m / 47.0 lb-ft).Fluid Capacities & Types: SAE 10W/40 SF/SG engine oil (3.7 L oil change / 4.3 L with filter / 5.0 L overhaul), SAE 90 GL-5 hypoid final gear oil (200–220 ml), DOT 4 brake fluid, and Suzuki Fork Oil SS-08 (439 ml per leg).Clearances & Adjustments: Spark plug gap (0.8–0.9 mm), engine idle speed (1,000 ± 100 r/min), throttle cable play (2.0–4.0 mm), automatic de-compression cable slack (1.0 mm), tire cold inflation pressures, and service wear limits.Practical Service ValueWhether conducting routine maintenance like oil changes and carburetor tuning or undertaking a full engine tear-down, this manual gives you clear instructions, torque values, and component illustrations. Based entirely on authentic Suzuki technical data, it ensures accurate repairs and eliminates guesswork in the workshop.Instant PDF DownloadGet instant access to your PDF manual as soon as payment is complete. Save the file to your computer, tablet, or smartphone for immediate use in the shop or garage.
