Takeuchi TB290 Hydraulic Excavator Workshop Manual – Full Service & Repair Guide

Description

File Details

• Manual Type: Workshop Manual
• Brand: Takeuchi
• Model: TB290 (also covers TB285 in selected sections)
• Publication Number: CM0E006
• Serial Number: 190000001~
• Language: English
• Page Count: 592
• File Format: PDF

Chapters Covered

• 1. Safety – Safety alert symbols, safety labels, safety precautions, cautions when working, handling of seals and hydraulic units

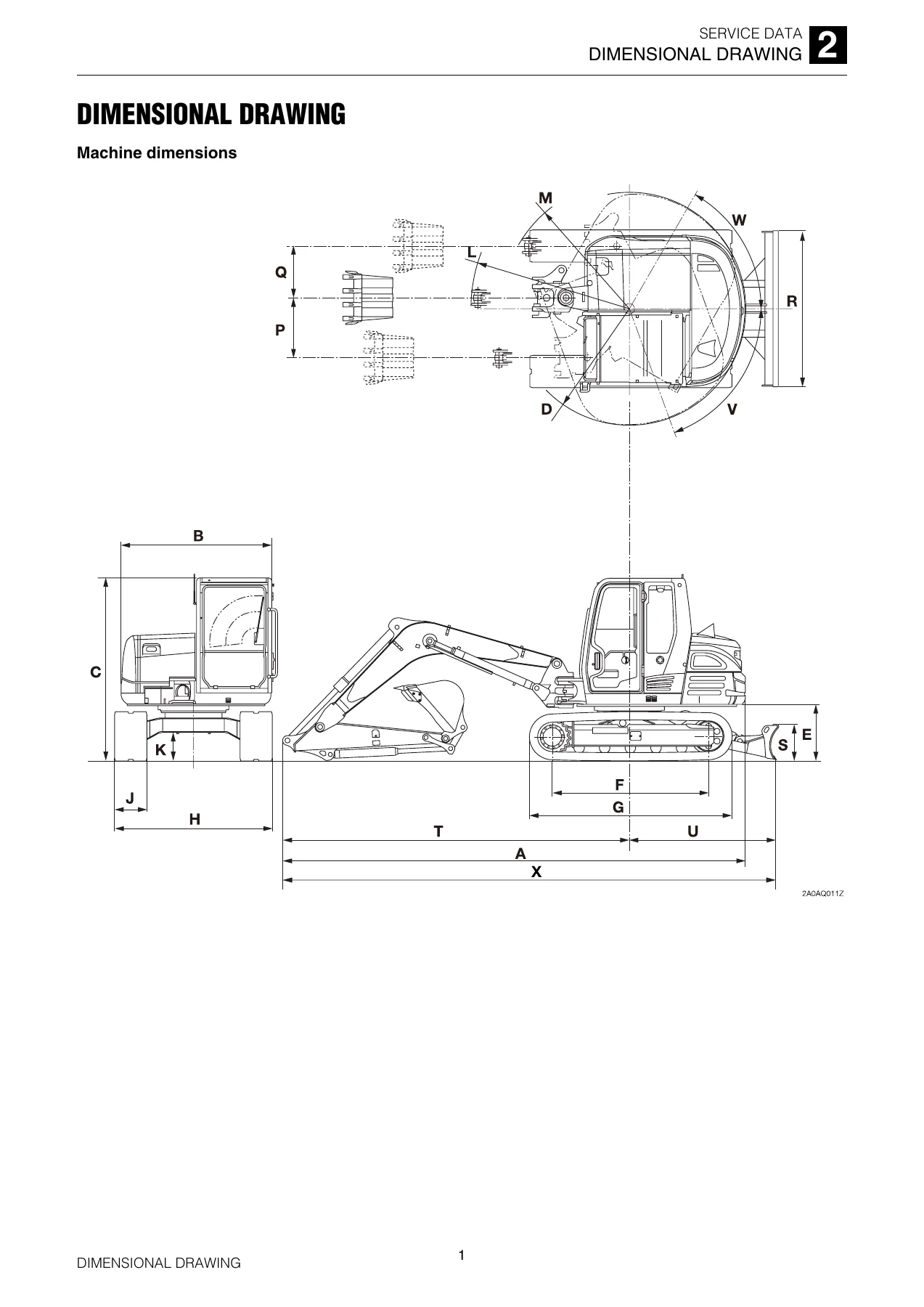

• 2. Service Data – Dimensional drawings, specification tables, lubricant and fuel chart, performance criteria (standard and allowable values), tightening torque for hydraulic hoses, piping joints, bolts and nuts

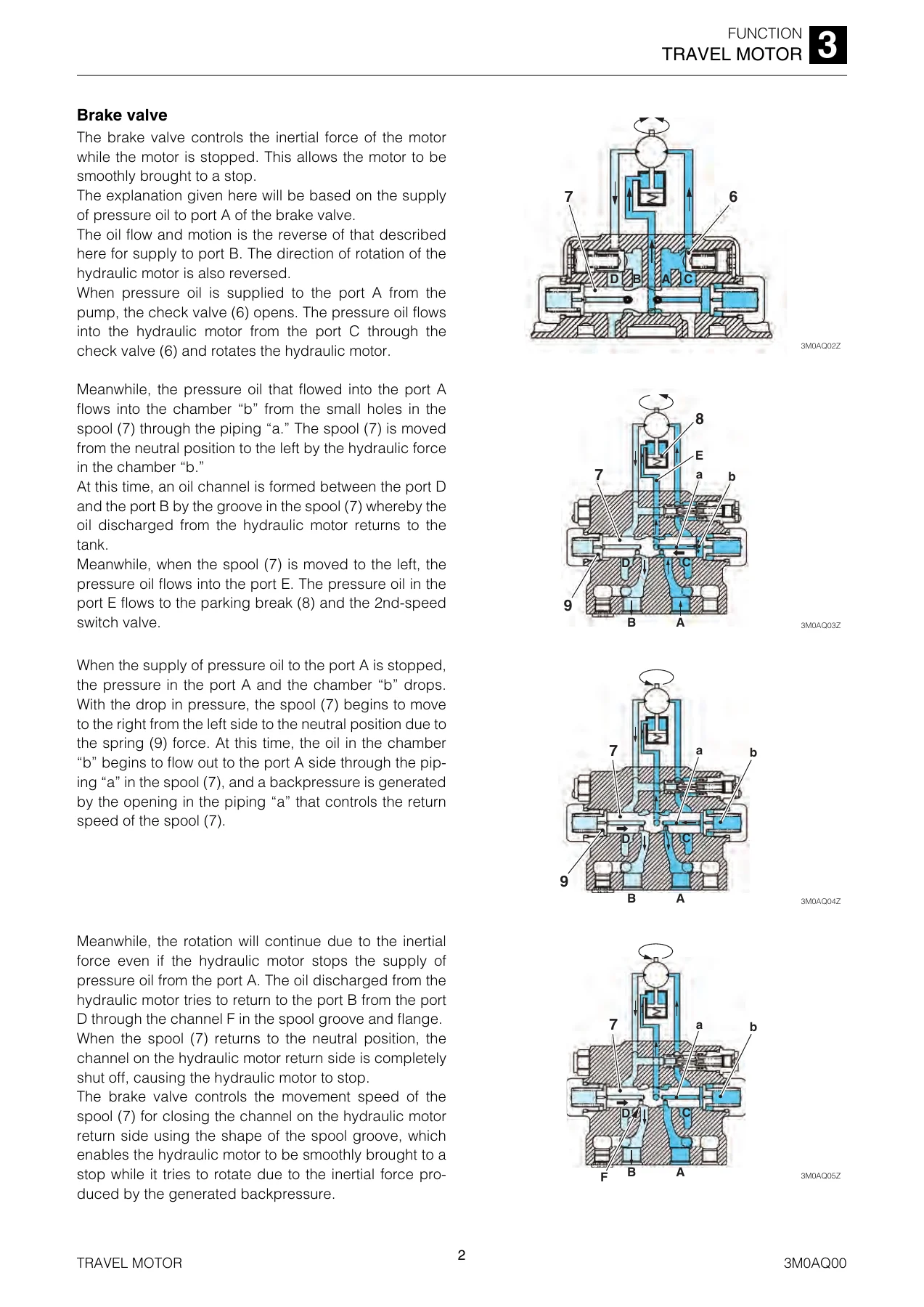

• 3. Function – Hydraulic pump (piston pump, gear pump), control valve (unload valve, spool sections, signal circuit), control valve for slew, pilot valves (control lever, swing, blade, travel), proportional control solenoid valve, emergency shut-off valve, solenoid valve, selector valve, reducing valve, cylinders, travel motor (hydraulic motor, brake valve, relief valve, 2-speed switching, parking brake, reduction gears), slew motor (hydraulic motor, relief valves, make-up valve, parking brake, timer valve, reduction gears), swivel joint
• 4. Disassembly and Assembly – Service standards, engine, hydraulic pump, fuel tank, fuel filler pump, battery, travel system (crawler, carrier roller, track roller, idler, track adjuster, travel motor), slew equipment (slew motor, slew bearing, swivel joint), upper frame, cab, operating device (control lever, hydraulic pilot unit, pilot valves, lever stand, control boxes), attachments (hoe attachment, arm, bucket, boom, blade), hydraulic tank, hydraulic pump (piston pump, gear pump), control valve, pilot valve, proportional control solenoid valve, emergency shut-off valve, solenoid valves, selector valve, reducing valve, cylinders, tensioning cylinder, travel motor, slew motor
• 5. Troubleshooting – Overall machine, traveling, shoe tension, slewing, boom, arm, bucket, boom swing, blade, auxiliary hydraulics, angle blade, piston pump, gear pump, control valve, pilot valve, solenoid valve, cylinders, travel motor, slew motor
• 6. Other – Air conditioner (construction, specifications, operation, inspection, maintenance, refrigerant charging, troubleshooting), auto tank function, auto pressure release, intermediate harness, maintenance software manual (installation, management functions, maintenance functions, amplifier functions, hydro pump functions, lift alarm functions, monitor functions)

This Takeuchi TB290 Hydraulic Excavator Workshop Manual is the complete technical reference for the TB290 machine, covering every major system from the engine and hydraulic pump through to the travel motor, slew motor, control valve, and attachment circuits. With 592 pages of detailed procedures, specifications, and troubleshooting charts, it gives technicians and owners the information needed to perform everything from routine maintenance to full component overhauls.

Hydraulic & Electrical Systems

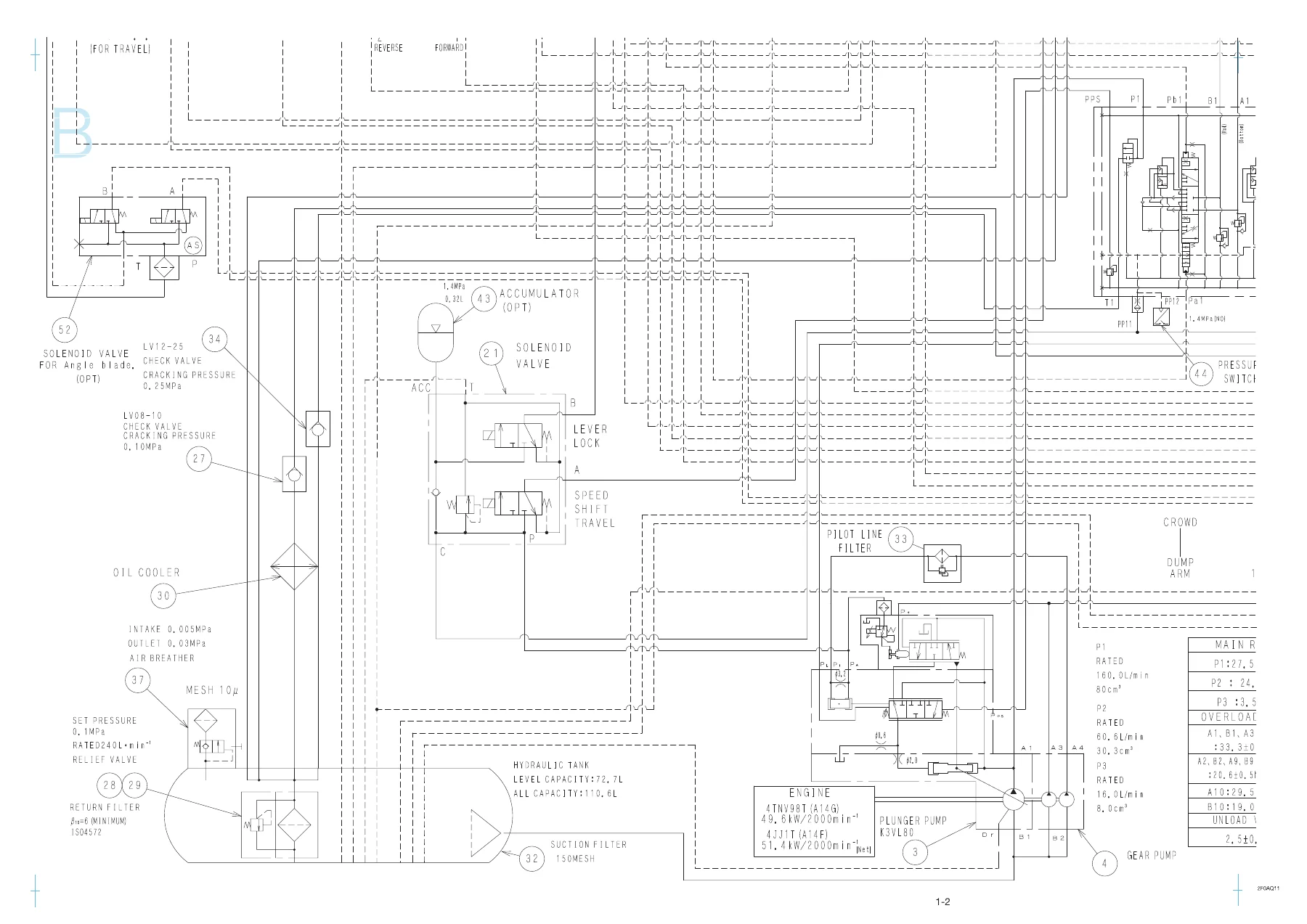

The manual dedicates extensive coverage to the hydraulic system, beginning with the piston pump and gear pump construction, operation, and control mechanisms. Detailed explanations of horsepower control, load-sensing control, power shift control, and gain change control are provided with position-by-position diagrams. The control valve section covers the unload valve, spool sections for arm, bucket, boom, swing, travel, blade, and auxiliary circuits, along with the signal circuit and travel switching logic. The slew control valve, pilot valves for control lever, swing, blade, and travel operations, proportional control solenoid valve, emergency shut-off valve, selector valve, reducing valve, and the complete travel motor and slew motor assemblies are all documented with construction diagrams, disassembly procedures, and inspection criteria. The electrical wiring diagrams, wire harness diagrams, and connector pinouts for the TB290 are included in the service data chapter, covering the ECM, controller, cluster, and all sensor and solenoid connections.

Disassembly & Assembly

Every major component removal and installation procedure is described with step-by-step instructions, required tools, tightening torques, and safety warnings. The engine removal and installation, hydraulic pump removal and installation, fuel tank, battery, travel system components including crawler tensioning and track roller replacement, slew motor, slew bearing, swivel joint, upper frame, cab, operating devices, hoe attachment, arm, bucket, boom, blade, hydraulic tank, control valve, pilot valve, proportional control solenoid valve, emergency shut-off valve, solenoid valves, selector valve, reducing valve, all cylinder assemblies including boom, arm, bucket, dozer blade, swing, and tensioning cylinder, travel motor, and slew motor are all covered in detail. Each section includes construction diagrams with numbered parts lists, special tool requirements, and inspection and adjustment procedures after assembly.

Troubleshooting

The troubleshooting chapter uses flow-chart style diagnostics to guide technicians through fault finding for the entire machine. Starting with overall machine symptoms such as no operation possible or insufficient power, it moves through traveling issues including no travel, veering, and 2nd-speed problems, shoe tension faults, slewing problems including no slew, overrun, and spontaneous drop, boom, arm, bucket, boom swing, blade, auxiliary hydraulic, and angle blade faults. The pump, gear pump, control valve, pilot valve, solenoid valve, cylinder, travel motor, and slew motor troubleshooting sections provide specific causes and remedies for each symptom, along with pressure measurement procedures and component inspection criteria.

Air Conditioning & Maintenance Software

The air conditioner section covers the TB290 and TB285 systems with construction details, specifications, operating controls, cooling and heating cycle descriptions, compressor assembly, condenser, receiver dryer, air conditioner unit, expansion valve, pressure switches, inspection and maintenance schedules, refrigerant charging procedures, and troubleshooting using a gauge manifold. The maintenance software manual provides instructions for installing the maintenance cable driver and software, selecting functions, setting the model and communication port, reading and deleting error logs, reading and writing parameters for the proportional amplifier, hydraulic pump, and lift alarm, and using the monitor function to view controller I/O status and ECM data.

Your Complete TB290 Workshop Resource

IMAGES PREVIEW

This Takeuchi TB290 Hydraulic Excavator Workshop Manual gives you the capability to perform routine maintenance, diagnose hydraulic and electrical faults, remove and reinstall major components, disassemble and reassemble the hydraulic pump, control valve, pilot valves, travel motor, slew motor, and cylinders, and carry out complete machine overhauls. Having the correct procedures, tightening torques, service limits, and troubleshooting charts matters because incorrect repairs on hydraulic excavators can lead to component damage, safety hazards, and costly downtime. The Takeuchi TB290 workshop manual provides the specifications and guidance needed to get the job done right. Delivered as an instant PDF download, no shipping required, printable, and accessible on any device.
