Tata Daewoo Novus MCV Chassis Service Manual – Euro 5 PDF Download

Description

Tata Daewoo Novus MCV Chassis Service Manual – Euro 5

This Tata Daewoo Novus MCV Chassis Service Manual is the comprehensive workshop guide for Euro 5 heavy-duty truck chassis systems. Prepared for TATA Daewoo commercial vehicle mechanics, it delivers the maintenance techniques, specifications, and repair procedures needed to service the full chassis equipment lineup. Whether you are diagnosing a clutch fault, overhauling a rear axle, or adjusting front wheel alignment, this Novus MCV service manual provides the step-by-step guidance and technical data required to complete the job accurately.

File Details

• Manual Type: Chassis Service Manual
• Brand: Tata Daewoo
• Model: Novus MCV
• Emission Standard: Euro 5
• Language: English
• Page Count: 325
• File Format: PDF
• Coverage: Full chassis systems

Chapters Covered

• General — vehicle specifications, engine/transmission specs, recommended lubricants, PTO types, periodic inspection chart
• Clutch — clutch design and function, control system, clutch disc, straps, release bearing, specifications, inspection and maintenance, clutch assembly disassembly and reassembly, clutch cover, clutch control, clutch pedal assembly, clutch booster, troubleshooting, special tools
• Transmission — general description, main specifications, ZF Ecolite, ZF ASLite, special tools, tightening torque
• Propeller Shaft — introduction, main data and specifications, installation and tightening torque, recommended grease, disassembly, inspection and repair, diagnosis, cardan shaft, special tools
• Front Axle — introduction, specifications, torque specifications, servicing, recommended lubricants, hub and drum, front axle assembly, tandem front axle, special tools
• Rear Axle — general, specifications, tightening torque, servicing, disassembly, inspection and repair, reassembly, differentials, removal and installation, diagnostic
• Suspension — introduction, specifications, torque specifications, recommended lubricants, lubrication points, front suspension, rear suspension, troubleshooting
• Steering — introduction, specifications, tightening torque, servicing, recommended lubrications, steering column and shaft, steering unit, steering linkage, troubleshooting
• Brake — general, main data and specifications, tightening torque, inspection and adjustment, wheel brake assembly, brake control parts, power chamber, spring chamber, auto slack adjuster, ABS brake, miscellaneous systems, brake piping diagram, troubleshooting
• Cab Tilt System — general, important operations, guide for operating electric pump, hand pump usage, air bleeding, cab suspension, cab tilt system, cab tilt cylinder, hand pump, electric pump, hydraulic pressure flow, troubleshooting
• Air Conditioner — specifications, heater, air conditioning system, A/C cooling cycle, manual air conditioner, auto air conditioner, inspection, refrigerant charging method, troubleshooting

This Tata Daewoo Novus MCV Chassis Service Manual is far more than a basic overview. It is a working reference that covers every major chassis system on the Euro 5 Novus MCV platform. Each chapter opens with specifications and torque values before walking through disassembly, inspection, repair, and reassembly procedures with clear illustrations and diagrams. The inclusion of troubleshooting sections for each system means you can diagnose complaints and correct them using the manufacturer’s own diagnostic logic, not guesswork.

Vehicle and Engine Coverage

The manual covers the following Tata Daewoo Novus MCV model codes and configurations:

• CC4CT — 4.5 Ton Long Cargo
• CC6CT — 4.5 Ton Cargo U/Long Plus

Engine coverage includes the DL06K and F4AE3681 power plants. The DL06K is a water-cooled, 4-cycle, in-line turbocharged and intercooled 6-cylinder engine with 100mm bore × 125mm stroke and 5,890cc displacement. The F4AE3681 is also a water-cooled, 4-cycle, in-line turbocharged and intercooled 6-cylinder unit with 102mm bore × 120mm stroke and 5,880cc displacement. Maximum power for the DL06K is 280PS at 2,500 RPM with 100 kg·m torque at 1,400 RPM, while the F4AE3681 produces 260PS at 2,500 RPM and 107 kg·m torque at 1,250 RPM.

Transmission and Driveline

The transmission chapter covers the T8S6, Allison 2500, and ZF Ecolite and ASLite units including the ZF6S1000TO, ZF6AS1000TO, and ZF9S1110TO. Gear ratios, oil capacities, PTO specifications, and tightening torques are all documented. The propeller shaft section details the H2035, H1610 coupling and drive shaft assemblies with universal joint specifications, flange yoke dimensions, and spline data. Installation and tightening torques are provided for both ZF and non-ZF transmission configurations.

Axles, Suspension, and Steering

The front axle chapter covers the reverse Elliot I-beam configuration rated at 6,700kg with 2,050mm tread. It includes wheel alignment specifications — toe-in, camber angle, kingpin inclination, and kingpin diameter — along with hub bearing preload values and grease capacities. A dedicated tandem front axle section covers additional procedures for heavier configurations. The rear axle section documents the banjo full-floating type with hypoid gear, gear ratios of 3.636/3.909/4.333, ring gear pitch diameter of 394mm, backlash specifications, and bearing preload values. Differential disassembly, inspection, and reassembly are covered in detail, including tooth contact pattern diagnosis.

The suspension chapter provides specifications for front and rear taper leaf springs, torque values for U-bolts and shackle pins, and recommended lubricants for grease fittings and spring slide pads. The steering section covers the integral-type steering gear with 22.4 gear ratio, sector shaft operating angle, maximum oil pressure, and steering wheel free play. Power steering bleeding, oil pressure measurement, and troubleshooting are all included.

Brake and Cab Systems

The brake chapter is a complete guide to the full air brake system. It includes drum inside diameters, lining dimensions, power chamber and spring chamber specifications, brake lining clearance, push rod stroke values, air pressure settings, and safety valve opening pressures. The auto slack adjuster section covers installation, lining clearance control, and operation checks. ABS brake coverage includes configuration, warning lamp diagnosis, component disassembly and reassembly for wheel speed sensors, modulator valves, and ASR valves. A full brake piping diagram is provided along with a comprehensive troubleshooting chart.

Cab tilt system coverage includes both mechanical and hydraulic type systems, with procedures for the cab tilt cylinder, hand pump, and electric pump. Hydraulic pressure flow during cab ascend and descend operations is explained. The air conditioning chapter covers heater and A/C specifications, manual and automatic air conditioner operation, sensor locations, refrigerant charging, and a detailed troubleshooting section with diagnosis diagram.

Why This Manual Matters

Having the correct Tata Daewoo Novus MCV chassis service manual means every repair, adjustment, and diagnostic procedure is backed by the manufacturer’s own specifications. Torque values, clearances, pressures, and capacities are all documented, removing the guesswork that leads to premature failures or unsafe repairs. The troubleshooting sections alone save hours of diagnostic time by guiding you through symptoms to root causes and corrections.

Whether you are a fleet maintenance technician, an independent workshop, or an owner-operator maintaining your own vehicle, this manual gives you the information needed to keep the Novus MCV chassis in correct working order. From clutch replacement to axle overhaul, from brake adjustment to cab tilt repair, every procedure is described with the level of detail required for professional results.

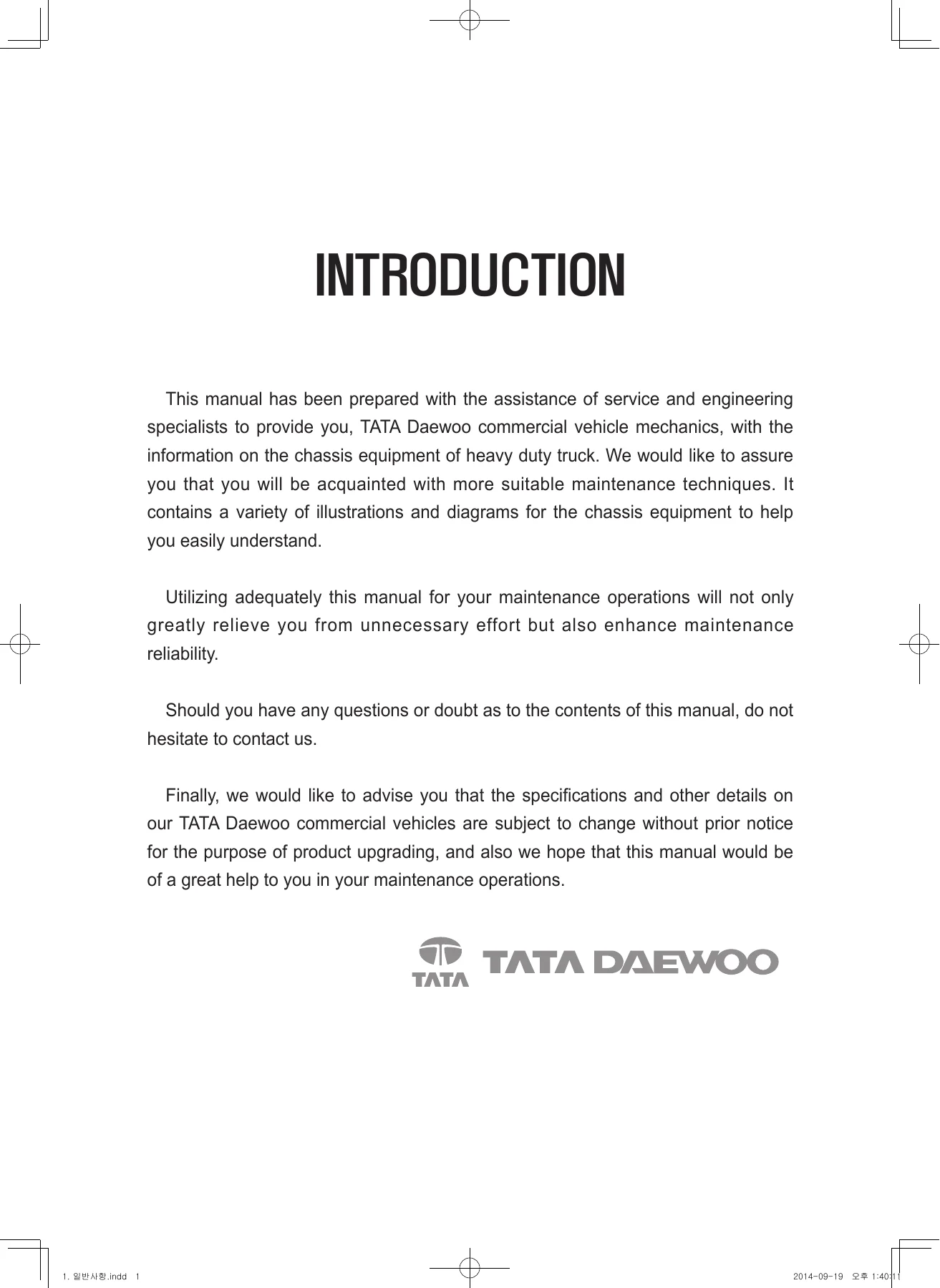

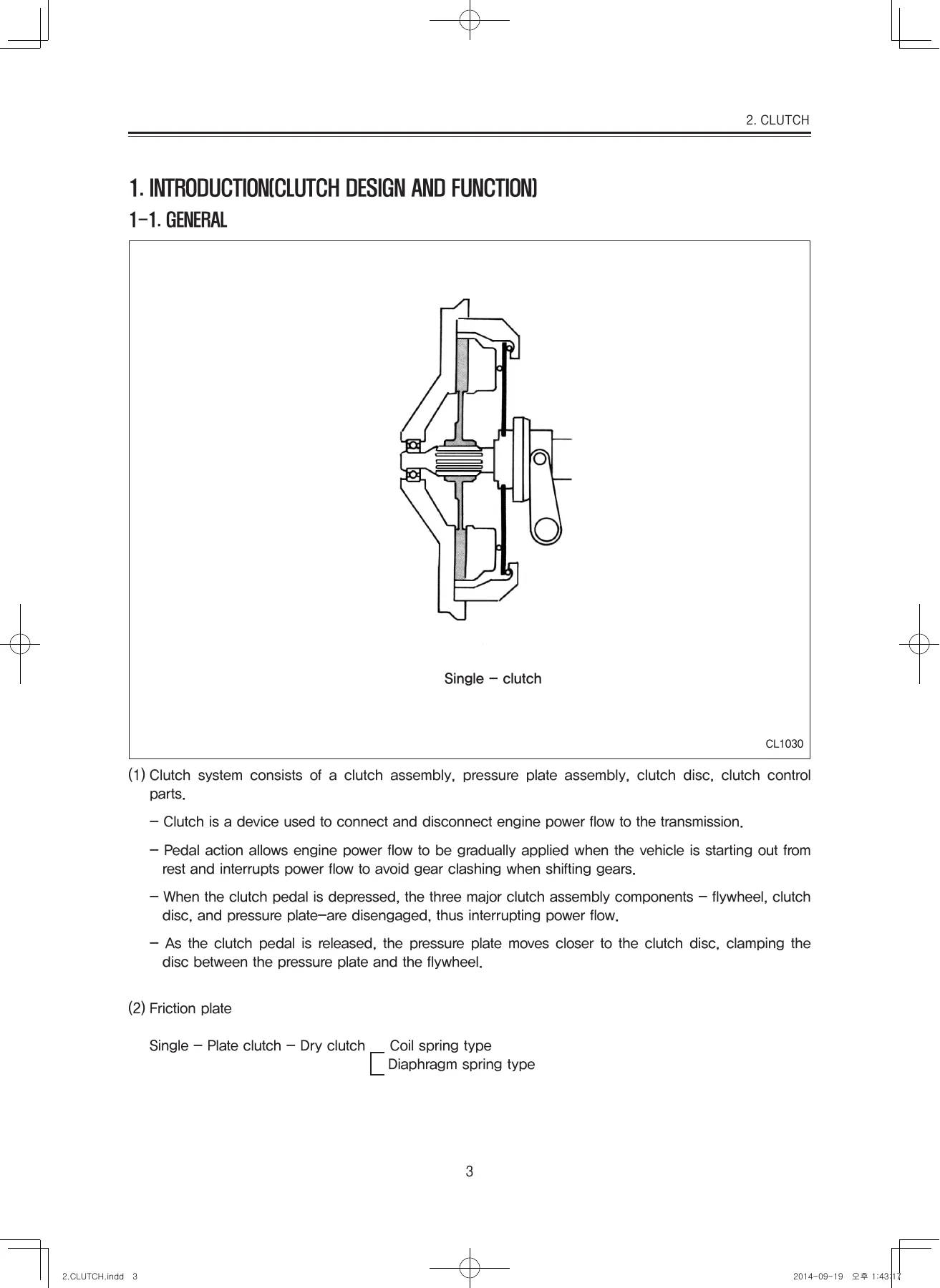

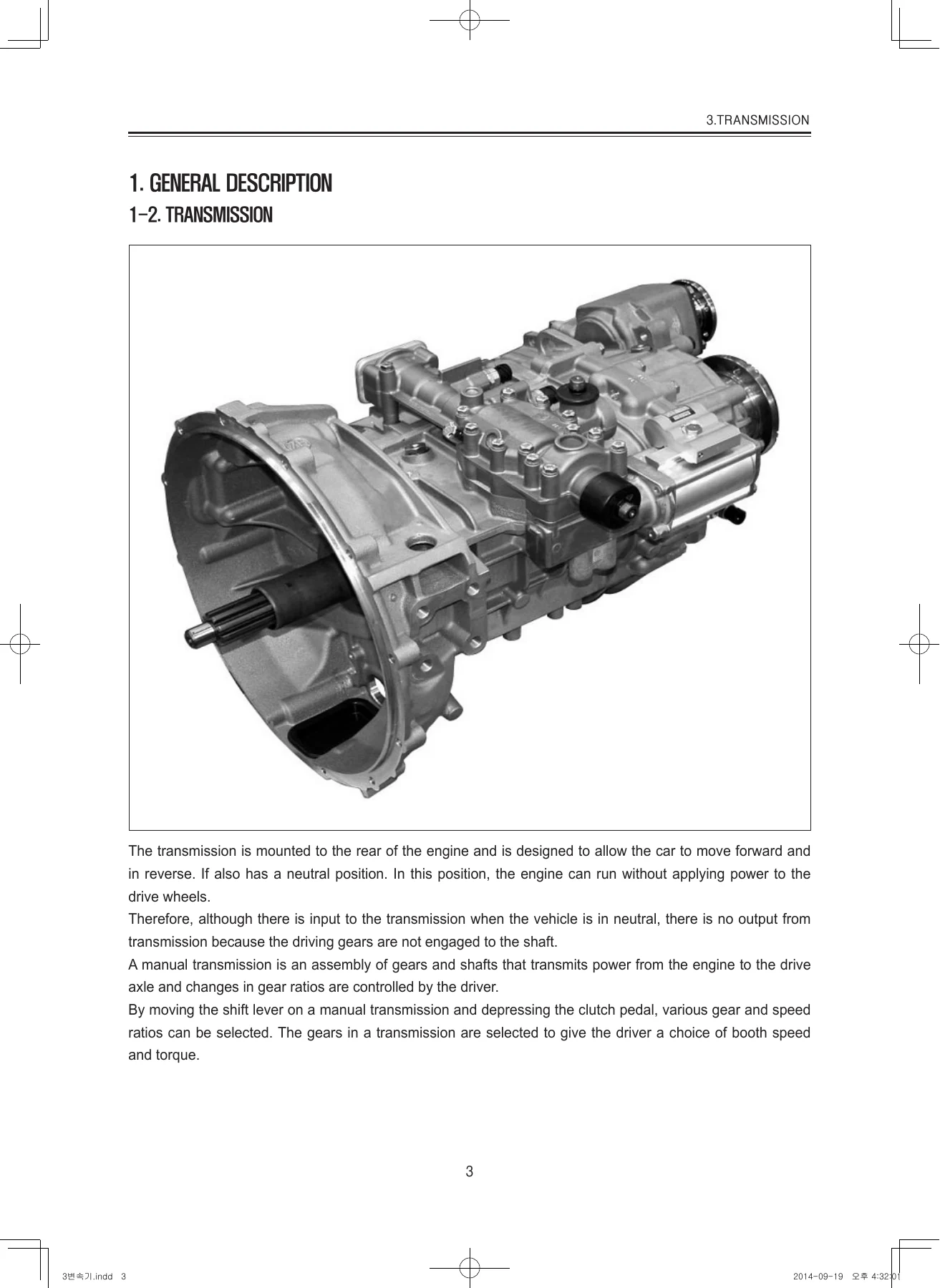

IMAGES PREVIEW

Instant PDF Delivery

This Tata Daewoo Novus MCV Chassis Service Manual is delivered as an instant PDF download. No shipping, no waiting, no physical media. Once payment is complete you can access the file immediately and use it on any device — desktop, laptop, tablet, or smartphone. The PDF format allows you to zoom into detailed illustrations, print individual pages for use in the workshop, and keep the entire manual stored for quick reference whenever a service or repair job arises.
