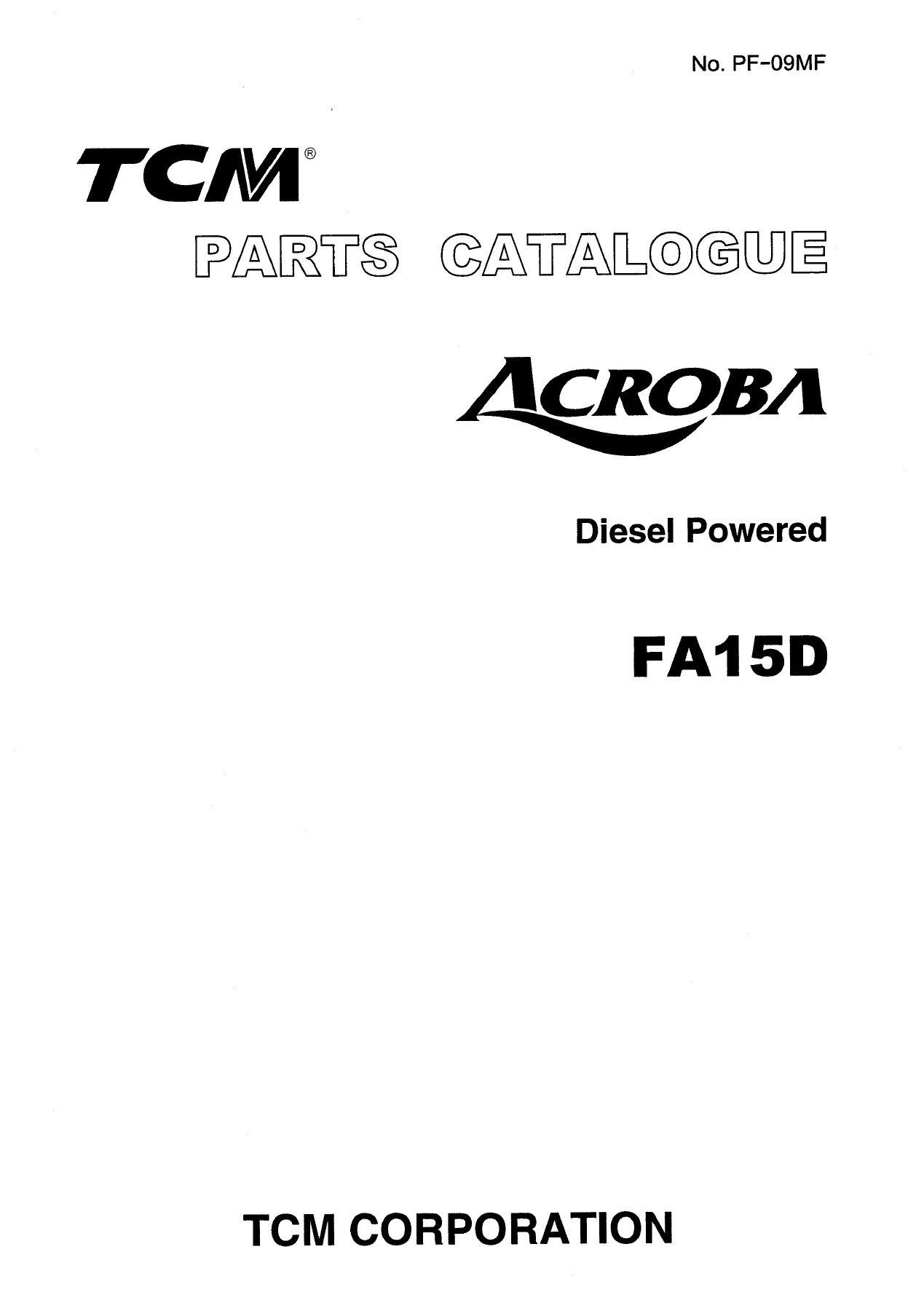

TCM Acroba FA15D Diesel Forklift Chassis Parts Catalogue PF-09MF – PDF Download

Description

File Details

• Manual Type: Illustrated Parts Catalogue – Chassis Section
• Brand: TCM
• Series: Acroba
• Model: FA15D
• Engine: C240PKJ-22 diesel
• Document No.: PF-09MF
• Language: Japanese and English (bilingual)
• File Format: PDF
• Pages: 691

Chapters Covered

• Engine Mount – FIG.1, 1A
• Air Cleaner – FIG.2

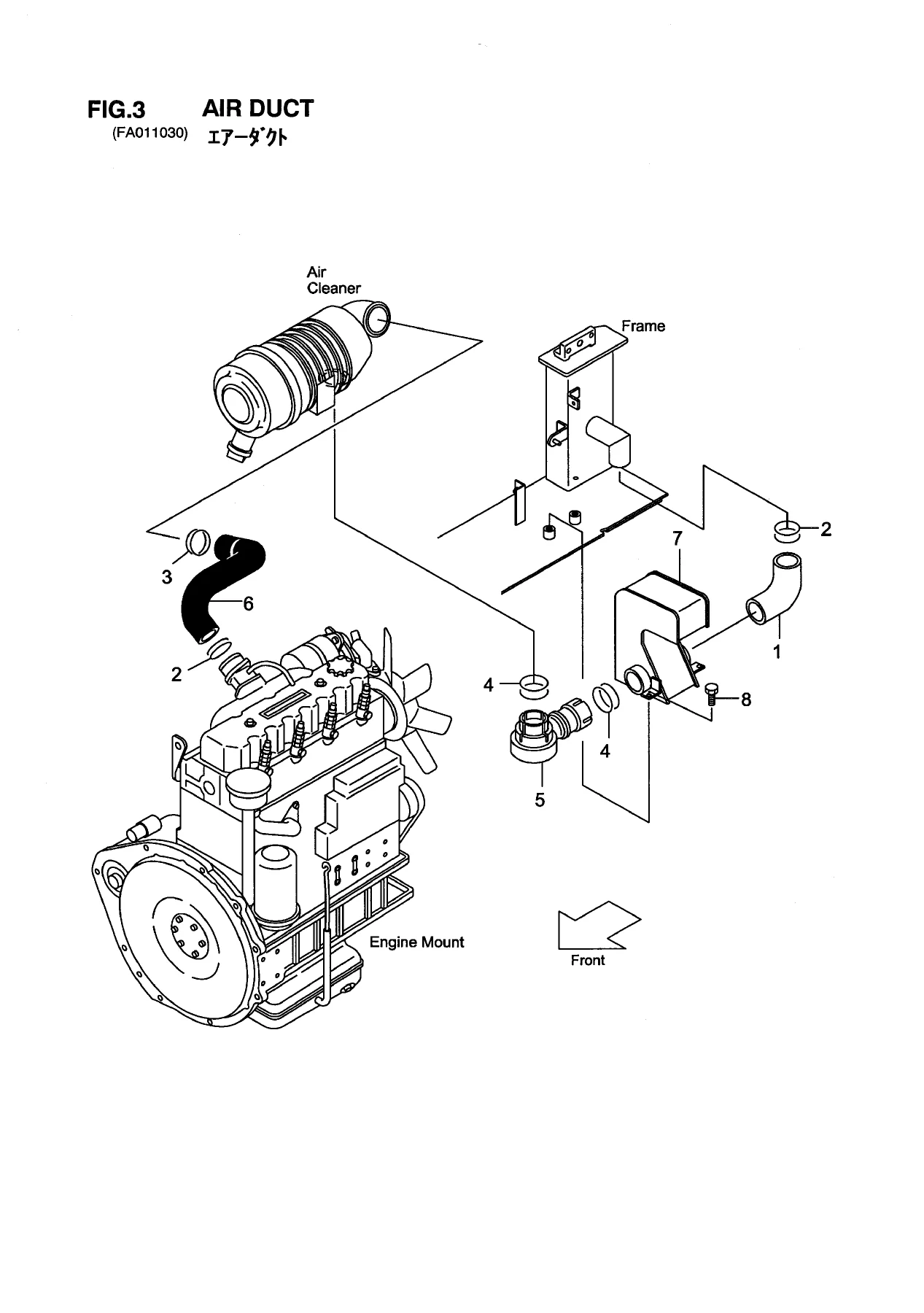

• Air Duct – FIG.3, 3A
• Pre-Cleaner [CAKB] – FIG.4
• Cooling Unit – FIG.5
• Fuel System – FIG.6
• Exhaust System – FIG.7, 7A
• Exhaust System [DPF] – FIG.8
• Exhaust System [TUE][TUE/RRE] – FIG.9
• Exhaust System [TUE][TUE/RRE][TUE/RRM] – FIG.9A
• Combination Meter – FIG.10
• Electric Parts (Main) – FIG.11, 11A, 11B, 11C
• Electric Parts (Steering Shaft Cover) – FIG.12, 12A
• Electric Parts (Bracket) – FIG.13
• Light Unit – FIG.14
• License Lamp [RRE][RRE/TUE][CAKB/RRE] – FIG.15
• License Lamp [RRE][RRM][TUE/(RRE,RRM)][CAKB/(RRE,RRM)] – FIG.15A
• Rear Working Light [RWL] – FIG.16
• Revolving Light [RLY][RLR] – FIG.17, 17A
• Revolving Light [AW061/RLY][AW061/RLR] – FIG.18
• Side Working Light [SWL] – FIG.19, 19A
• Back Buzzer [BBA] – FIG.20, 20A
• Speed Alarm [SASB05,SASB10,SASB15] – FIG.21, 21A
• Speed Alarm [SASR05,SASR10,SASR15] – FIG.22, 22A
• Car Heater [HR] – FIG.23, 23A
• Wire-Harness [OKM] – FIG.24, 24A

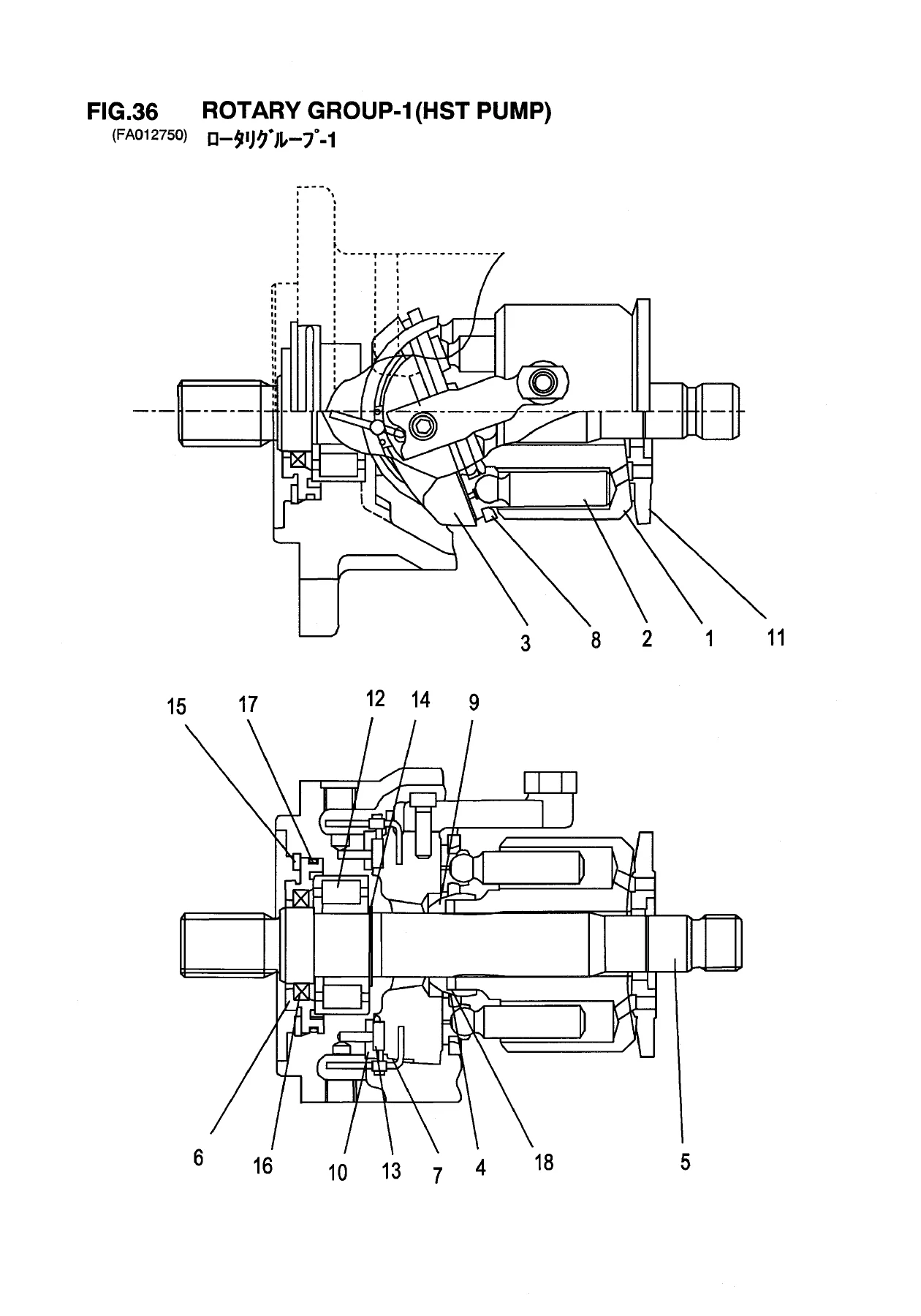

• HST Pump – FIG.35, 36, 42, 46, 48, 50, 53, 54
• HST Pump Mount – FIG.55, 55A
• HST Motor – FIG.56 to 60
• Drive Axle – FIG.61, 61A, 61B, 62
• Axle Cylinder – FIG.63, 63A
• Steering Wheel Unit – FIG.64, 64A
• Orbitrol – FIG.65, 65A, 65B, 66, 66A, 67
• Steering Axle – FIG.68, 68A, 68B
• Axle Support – FIG.69, 69A
• Hub Nut – FIG.70, 71
• Front Wheel – FIG.71A
• Rear Wheel – FIG.72, 72A
• Power Cylinder – FIG.73, 73A
• Side Shift Cylinder – FIG.74, 74A
• Overhead Guard – FIG.75, 75A
• Overhead Guard Parts – FIG.76, 76A
• Control Valve Fitting [4SV] – FIG.97A
• Control Valve Fitting [5SV][ADD1SV] – FIG.98, 98A
• Control Valve Fitting [ADD2SV] – FIG.99, 99A
• Joy Stick [4SV] – FIG.100, 100A
• Joy Stick [5SV][ADD1SV][ADD2SV] – FIG.101, 101A
• Joy Stick Mount – FIG.102, 102A
• Hydraulic Line (Main) – FIG.103 to 106A
• Hydraulic Line (HST) – FIG.107 to 111A
• Tilt Cylinder – FIG.112, 112A
• Decal – FIG.113 to 115A
• Service Tools – FIG.116, 116A
• Front Glass [AW061][AW071] – FIG.117, 117A

This TCM Acroba FA15D diesel forklift chassis parts catalogue is the illustrated reference used to identify and order every component that makes up the chassis side of the truck. It is presented as a complete section of the PF-09MF parts catalogue and is written bilingually in Japanese and English throughout, so part names, figure titles and abbreviations are all shown in both languages side by side. The catalogue covers the C240PKJ-22 diesel engine’s mounting hardware, the air cleaner and ducting, the cooling and fuel systems, the full exhaust system family including DPF and TUE variants, the combination meter, the main and steering-shaft electrical parts, all exterior lighting (license lamp, rear working light, revolving light, side working light), the back buzzer and both SASB and SASR speed alarm versions, the car heater, the OKM wire harness, and the complete HST powertrain – HST pump, HST pump mount, HST motor, drive axle and axle cylinder. Steering is fully covered with the steering wheel unit, orbitrol variants, steering axle and axle support. Wheel-end and lift hardware is included with hub nuts, front and rear wheels, power cylinder and side shift cylinder. The overhead guard and its parts, control valve fittings, joy stick and mount, hydraulic line sets, tilt cylinder, decal sets, service tools and front glass complete the coverage. Every figure is presented as an exploded illustration with ballooned item numbers that cross-reference directly to the parts list on the facing page, giving part number, description, required quantity and the serial-number break or option code that applies.
