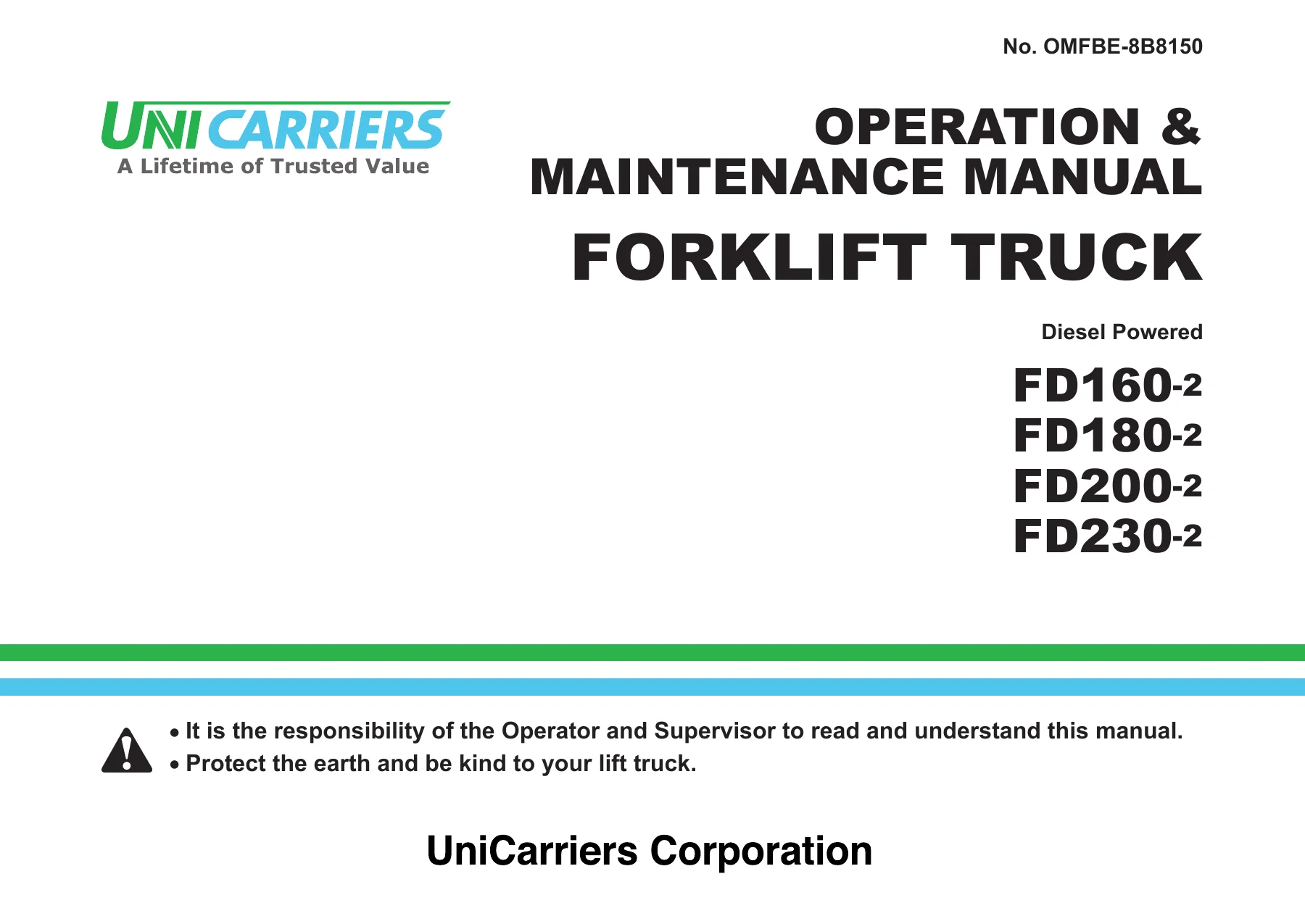

UniCarriers FD160-2 FD180-2 FD200-2 FD230-2 Forklift Operation & Maintenance Manual – Diesel – PDF Download

Description

The UniCarriers FD160-2, FD180-2, FD200-2 and FD230-2 Operation & Maintenance Manual is the complete reference for these diesel-powered heavy forklift trucks. Published under document number OMFBE-8B8150, this 158-page manual walks operators, supervisors and service technicians through every stage of the truck’s life — from pre-operation safety checks and correct load handling through to scheduled maintenance and full specifications. It applies to the 16,000 kg, 18,000 kg, 20,000 kg and 23,000 kg rated-capacity models in the FD160-2 through FD230-2 range.

File Details

• Manual Type: Operation & Maintenance Manual
• Brand: UniCarriers
• Models Covered: FD160-2, FD180-2, FD200-2, FD230-2
• Power Source: Diesel
• Document Number: OMFBE-8B8150
• Language: English
• Page Count: 158
• File Format: PDF

Chapters Covered

• 1. Safety
• 2. Operating Controls
• 3. Operation
• 4. Maintenance
• 5. Specifications & Service Data

1. Safety

The safety chapter is the foundation of the manual and is written for both operators and supervisory personnel. It opens with the signal-word classification system — DANGER, WARNING, CAUTION and NOTE — used throughout the document, then moves into the responsibilities of supervisors: training operators to stack safely, recognising fatigue or intoxication, providing protective gear, maintaining emergency equipment, and planning operating areas. The chapter details proper and improper uses of the lift truck, the relationship between vehicle type and load, inspection and transport procedures, and rules for travelling on public roads. Load handling, parking and inspection/service safety complete the section, along with a full guide to the caution plates fitted to the truck. This is the chapter to read before anything else, and it is referenced repeatedly by every later section.

2. Operating Controls

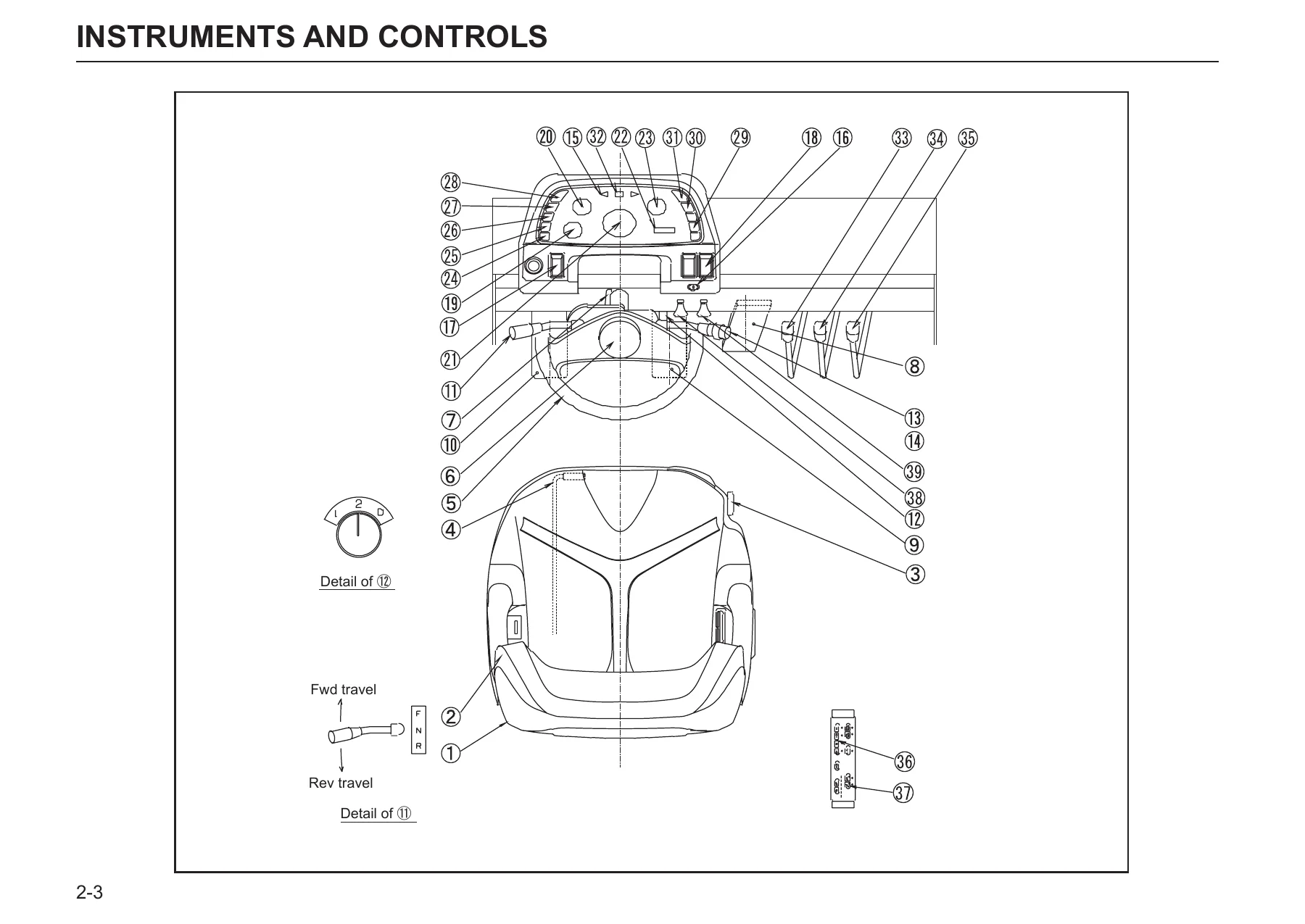

Every control on the FD160-2 through FD230-2 is identified and explained here. The chapter covers the starter switch with its OFF, ON, START and PREHEAT positions; the combination lamp switch; turn signals; horn; shift-hold selection switch; parking brake switch; automatic transmission mode selector; and the emergency travel switch. Instruments and warning lights are covered in detail — speedometer, fuel gauge, cooling water temperature gauge, brake air pressure gauge, hour meter, and the full set of warning lights for air cleaner, parking brake, charge, brake air pressure, engine oil pressure and torque converter oil temperature. Levers and pedals (shift, lift, tilt, attachment, inching, brake and accelerator) are each described with their operating ranges and precautions. The truck body section covers the fuse box, overhead guard, safety step and hand grip, lights and lamps, sideview mirrors, drawbar, fuel tank cap, hydraulic oil tank cap, brake oil reservoir and radiator reservoir. The cabin (optional) and optional equipment sections round out the chapter.

3. Operation

This is the operator’s working guide. It begins with break-in procedures for the first 200 hours and then explains the relationship between load and truck stability, the basic load center and rated load concept, and the stability triangle. Inching pedal use, travelling and starting on slopes, and the special handling requirements of a turbo-charged engine are all covered. Transporting the lift truck, mounting and dismounting, starting the engine, warming up, and cold-start procedures follow. Practical operating technique is spelled out: gear shifting, slowing down, turning, parking, travelling on snowy or frozen roads, and ground condition awareness. Cold-weather and hot-weather measures — fuel, cooling system, battery care, and what to do if the engine overheats — are given in dedicated sections. The load-handling portion covers pick-up, stacking, unstacking, and storage, including daily and long-term storage procedures and what to do when returning a truck to service after extended storage.

4. Maintenance

The maintenance chapter is the largest in the manual and is organised around a clear schedule. It starts with preoperational checks — a 35-point inspection covering general condition, oil and water leaks, tire inflation and condition, wheel nut tightness, overhead guard, brake oil level, cooling water level, fan belt, engine oil level, hydraulic oil level, hydraulic piping and cylinders, battery electrolyte level, lamps, operator’s seat adjustment, mirrors, shift lever, load handling levers, parking brake, warning lights, meters, fuel level, steering, brakes, torque converter oil level, mast operation, lift chain tension, exhaust gas condition, brake and steering tests, parking brake test, and back-up light and alarm. General inspection rules and safety precautions are given before the checks begin. Preventive maintenance procedures follow: engine room checks, air bleeding the fuel system, replacing fuses (with a full fuse capacity chart), replacing tires and repairing flat tires, replacing lamp bulbs, and starting with an auxiliary battery. Periodic inspection tables are provided for monthly (200 hours), 3-month (600 hours), 6-month (1200 hours) and annual (2400 hours) intervals, plus a schedule of periodical replacement for safety parts such as master cylinder cups, brake hoses, power steering hoses, fuel hoses, lift chains and load handling hoses. A preventive maintenance schedule summarising all service items and their intervals closes the chapter.

5. Specifications & Service Data

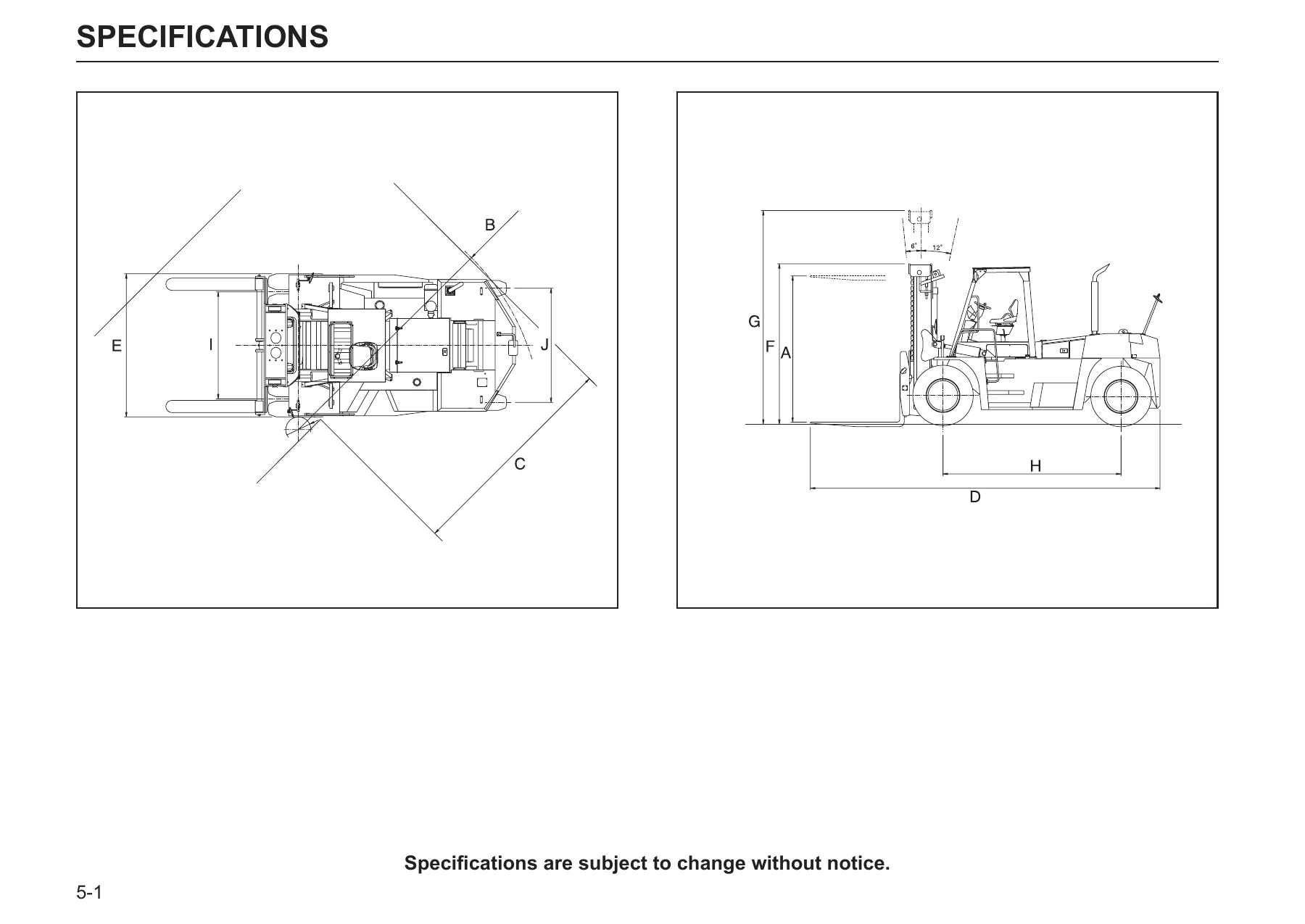

The final chapter collects the hard numbers. It opens with leading particulars for each model — rated load, basic load center, maximum height, fork lifting speed (no load and loaded), traveling speed in forward and reverse for 1st, 2nd and 3rd gears, gradeability, minimum turning radius, minimum stacking aisle width, overall length, width and height, wheelbase, tread, fork sizes, fork spacing, truck weight, tire sizes, inflation pressures and rim sizes. Standard and optional equipment lists are provided. Load charts for each model show the relationship between load center and rated load. Service data includes engine specifications (idling rpm, non-load maximum rpm, fuel injection order, injection timing, injection start pressure, compression pressure, valve clearance), lift chain deflection, steering wheel play, and bolt and nut torque values for engine mounts, transmission mounts, axle mounts, mast support cap bolts, wheel lug nuts and propeller shaft joints. Refill capacities for hydraulic oil tank, brake oil tank, reduction gear/differential, final reduction gear, transmission/torque converter, radiator, fuel tank, engine crankcase and grease fittings are given with recommended lubricant grades and ambient temperature ranges. Truck and engine serial number locations, genuine parts and lubricants information, and a truck data record page complete the chapter.

Why This Manual Matters for the FD160-2 Through FD230-2

These are not light trucks. The FD230-2 alone weighs over 30,700 kg and carries a rated load of 23,000 kg at a 900 mm load center. At those figures, an error in load handling, a neglected brake check or a lift chain that has stretched unevenly does not just cost money — it risks lives and equipment. The manual’s stability triangle explanation, load chart tables, and the relationship between load center and rated load are the difference between a safe lift and a tipped truck. The maintenance schedules are equally practical: the 200-hour, 600-hour, 1200-hour and 2400-hour checklists, the periodical replacement intervals for safety-critical parts, and the refill capacities and lubricant grades are all here so that service work is done to UniCarriers’ specification rather than by guesswork. Whether you are an operator doing the daily pre-operation inspection, a supervisor planning a maintenance programme, or a technician servicing a turbo-charged diesel engine, the procedure you need is in these pages.

Get the Complete UniCarriers Forklift Manual Instantly

This UniCarriers FD160-2, FD180-2, FD200-2 and FD230-2 Operation & Maintenance Manual is supplied as a PDF file that downloads immediately after purchase. There is no shipping, no waiting for a physical book, and no restriction on where you use it. Open it on a laptop in the workshop, a tablet on the shop floor, or a phone at the machine — the file works on any device with a PDF reader. Print the pages you need for a particular job, whether that is the pre-operation checklist, a load chart for the truck in front of you, or the torque values for a wheel installation. Keep a copy on every service computer. For anyone responsible for the safe operation and maintenance of these diesel forklifts, this is the reference that stays useful from the first inspection to the last overhaul.

IMAGES PREVIEW
