UniCarriers FRB10-8C to FRHB30-8 Reach Truck Operation & Maintenance Manual – 8-Series Electric Forklift PDF

Description

This UniCarriers Operation & Maintenance Manual documents the full 8-Series reach truck line — from the FRB10-8C through the FRHB30-8. Issued under document number OB-7A0EE, it is the English-language reference for anyone who operates, supervises, inspects, or services these electric reach trucks. Every procedure, load chart, and maintenance interval in the manual is the one the truck was delivered with: the same safety alert system, the same caution plates, the same periodical check schedule.

File Details

• Manual type: Operation & Maintenance Manual
• Brand: UniCarriers
• Model coverage: FRB10-8C through FRHB30-8 — 24 reach truck models across the FRB and FRHB 8-Series
• Document number: OB-7A0EE
• Language: English
• Page count: 131
• File format: PDF
• Issued: September 2008
• Latest revision: September 2013

Chapters Covered

• 1. Safety
• 2. Operating Controls
• 3. Operation
• 4. Maintenance
• 5. Specifications & Service Data

1. Safety

The manual opens with a full supervisory and operator safety chapter. It sets out who is qualified to operate, how to plan and mark a working area, speed limits, keeping pedestrians and unauthorized vehicles out of the handling area, lighting, and floor condition. It draws the line between proper and improper uses of the truck — no riding on the forks, no towing, no pushing loads with the forks — and then moves into how the lift truck actually balances: the triangle of stability, rated load versus load center, and the effect of acceleration, deceleration, and turning on stability. Traveling, load handling, parking, inspection and service, vehicle fire prevention, and the caution plate schedule all sit inside this chapter.

2. Operating Controls

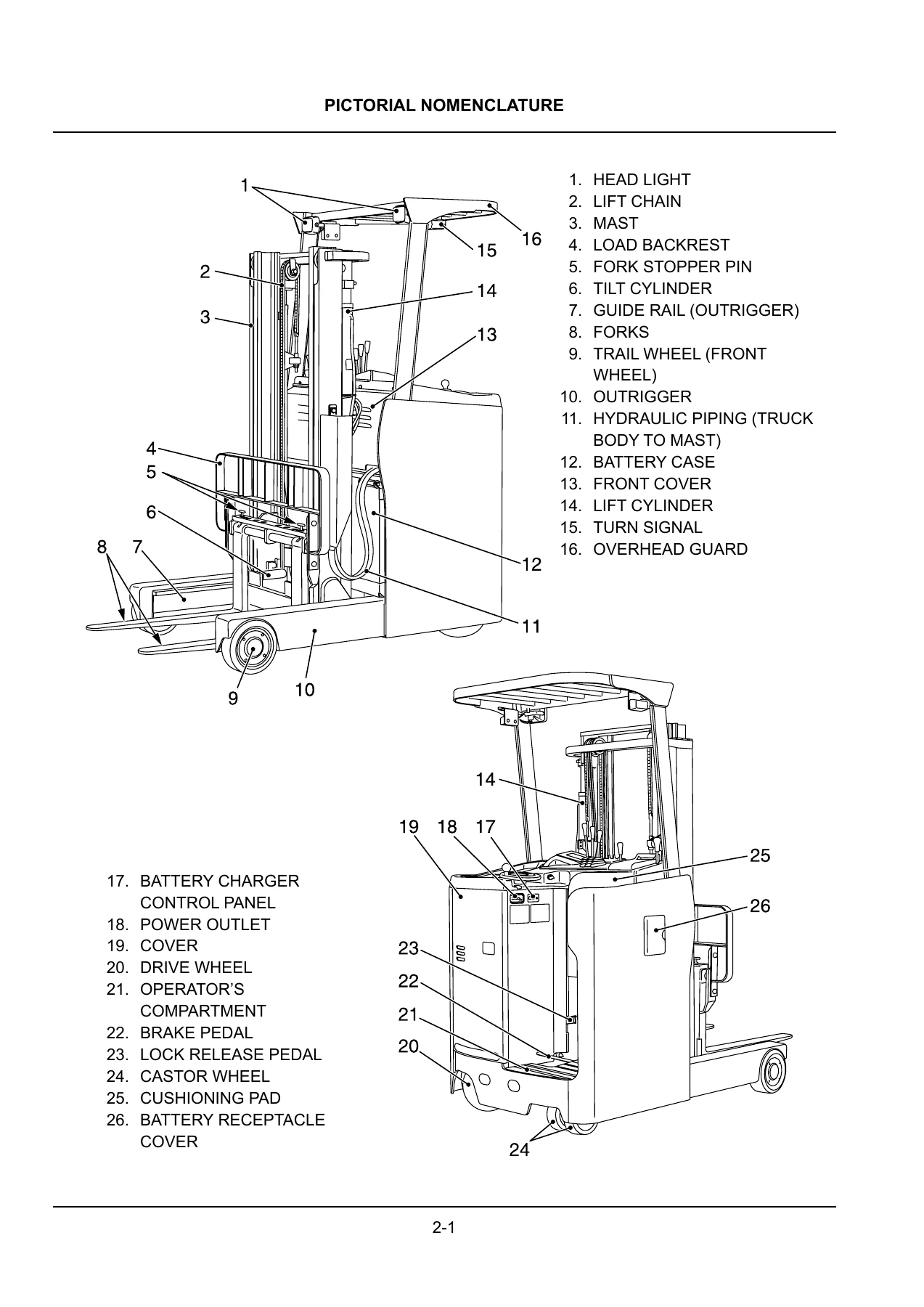

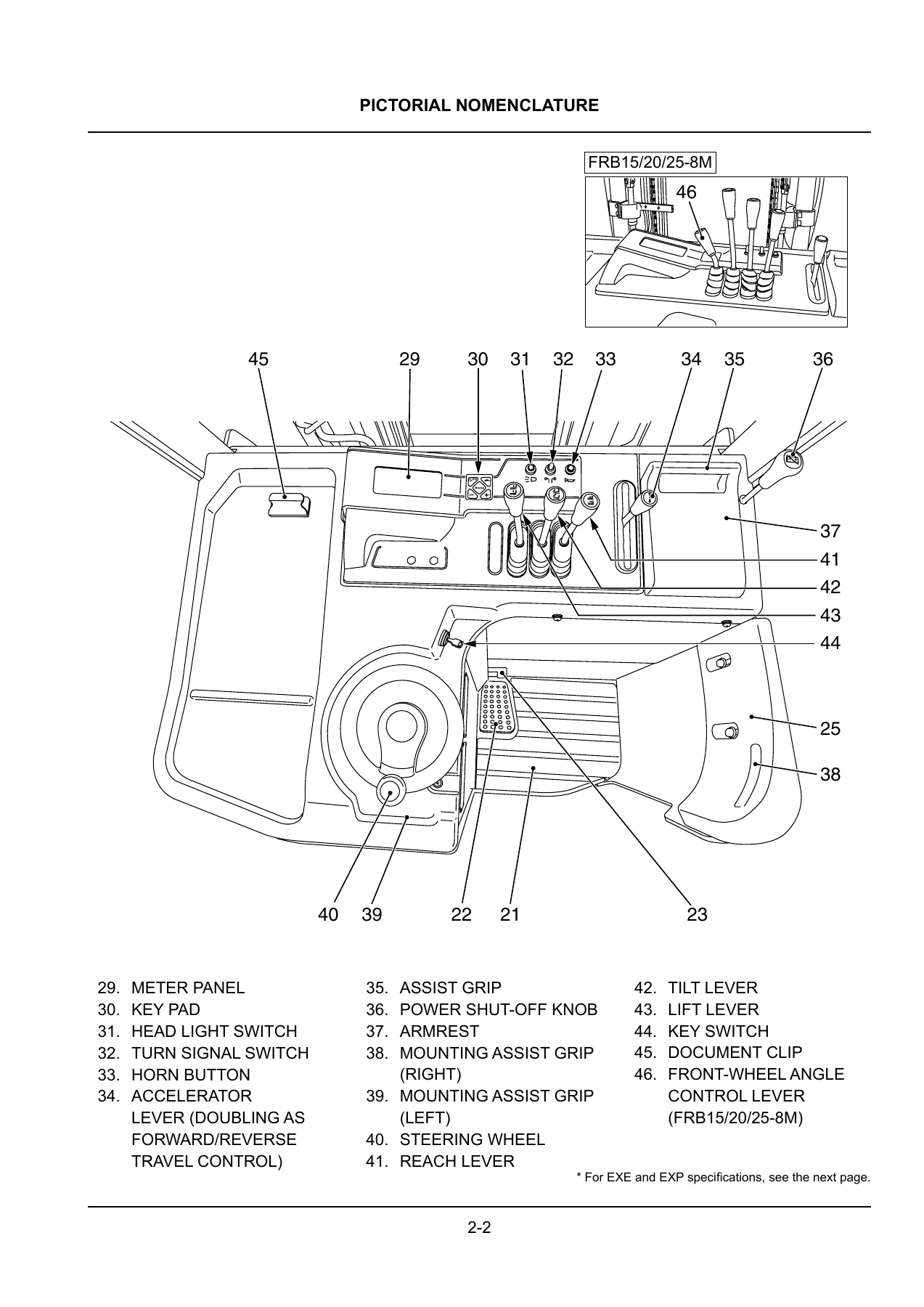

Pictorial nomenclature with labelled illustrations of the truck body, mast, forks, outriggers, battery case, and overhead guard. The instruments and controls section describes the meter panel, key pad with S/P/E power modes and turtle speed, switches, levers and pedals, armrest and assist grip, cushioned pad adjustment, hydraulic oil tank cap and dipstick, and battery electrolyte level indicator. The interlock system — how the floor switch shuts down travel and load handling when the operator leaves the compartment — is fully documented. Optional equipment, including stop and back-up lights, rear work light, beacon, forward travel chime, centre mirror, fire extinguisher, load meter, and the fork positioning laser unit with its Class 3R safety notes, is covered separately.

3. Operation

How to start the truck, travel forward and reverse, turn with rear steer, brake, and park. Battery removal and reinstallation using the reach lever and lock release pedal, truck-mounted and stationary battery chargers, cycle charging, equalizing charge, auxiliary charge, and charging before long-term storage. Battery electrolyte care and level, specific gravity conversion, and the centralized water fill option. Pick-up, stacking, unstacking, and storing procedures, plus daily and long-term storage guidance.

4. Maintenance

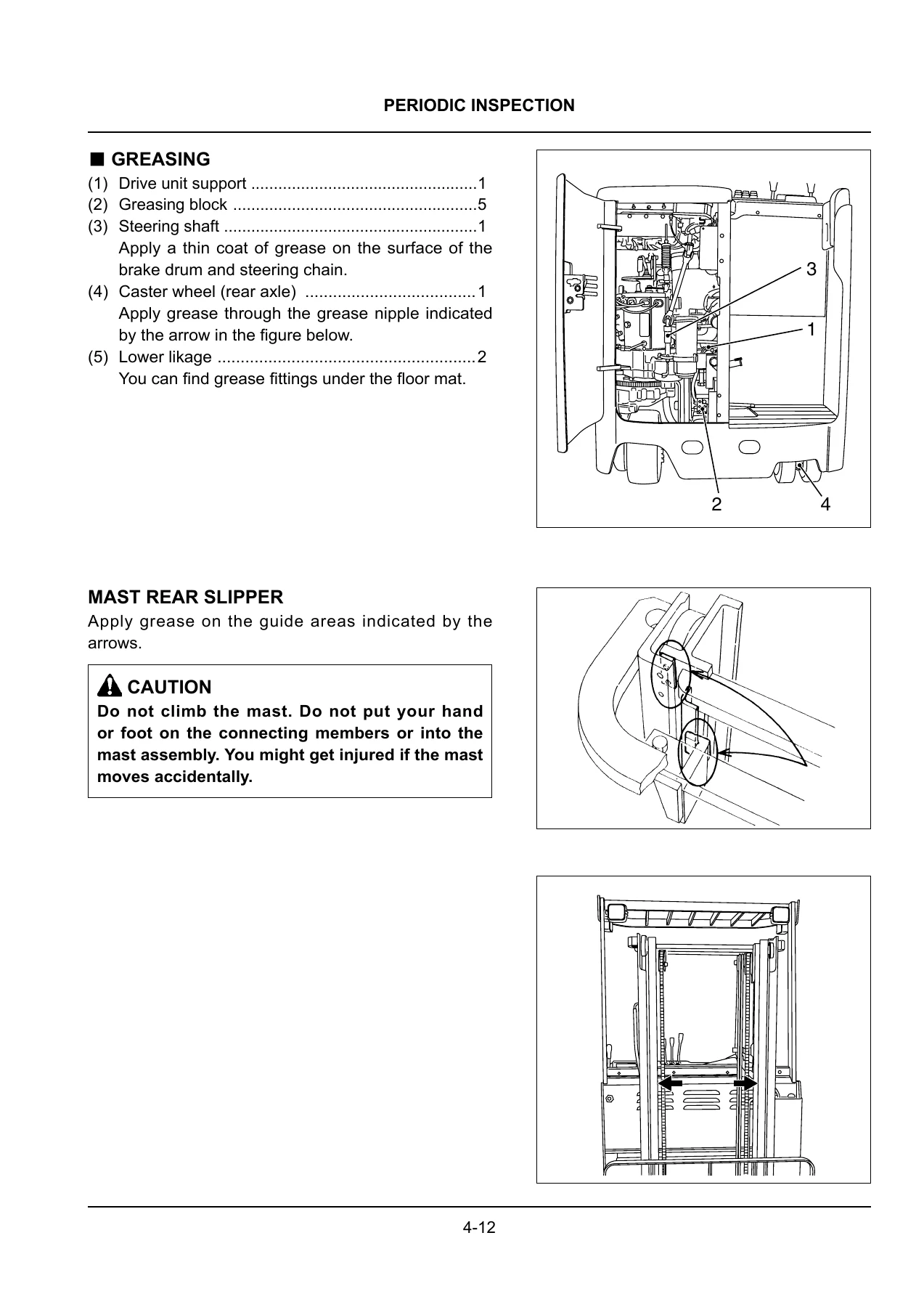

Preoperational checks, periodic inspection, and the periodical replacement of safety parts — hydraulic hoses at 1–2 years, lift chain at 2–4 years, steering wheel chain at 2–4 years. Weekly (50-hour), monthly (200-hour), 3-month (600-hour), 6-month (1200-hour), and annual (2400-hour) check lists. Greasing points for the drive unit support, greasing block, steering shaft, caster wheel, and lower linkage. Mast rear slipper greasing and the periodical check schedule.

5. Specifications & Service Data

Specifications for the FRB and FRHB 8-Series. Load charts for the standard masts (under 5 m lift), including the W1 and 8M variants. Service data such as lift chain deflection, steering chain deflection (3–8 mm), brake pedal height (50–55 mm), brake disk rotor to pad clearance (0.5–0.6 mm), and steering wheel play (30–70 mm). Lamp capacity, fuse capacity, refill capacity, truck serial number location, and serial numbers of major components.

What This UniCarriers Reach Truck Manual Covers

The FRB and FRHB 8-Series reach trucks are compact electric machines, and this manual addresses their specific architecture — the reach mechanism, the rear steer, the 48 V battery system, the interlock floor switch, and the front-wheel angle control on the 8M variants. Whether the truck in front of you is an FRB15-8 or an FRHB18-8W1, the relevant operating controls, inspection points, and maintenance intervals are all in the same document.

If you are buying this manual alongside a used truck, it gives you the tool to verify that the truck was serviced to spec: the weekly and monthly check lists, the safety part replacement intervals, and the load chart data for each mast variant. If you are supervising operators, it gives you the safety chapter to enforce and the caution plate schedule to check against the decals still on the truck. If you are a technician, it gives you the service data, the relief valve and hydraulic piping notes, the brake checks, and the motor and controller inspection points.

Get the UniCarriers FRB / FRHB 8-Series Manual Today

IMAGES PREVIEW

This is the full 131-page UniCarriers Operation & Maintenance Manual for the FRB10-8C through FRHB30-8 reach truck range, document OB-7A0EE, in English. It is delivered as an instant PDF download — no shipping, no waiting. Read it on a laptop, tablet, or phone, or print the pages you need for the workshop. Keep it with the truck so the next operator, supervisor, or technician has the same reference you did.
