US Army M983A4 LET 8×8 Tractor Operator Manual TM 9-2320-341-10

Description

US Army M983A4 LET 8×8 Tractor Operator Manual TM 9-2320-341-10

The US Army M983A4 LET (Light Equipment Transporter) 8×8 Tractor Operator Manual TM 9-2320-341-10 is the complete operator-level technical manual for the M983A4 LET, NSN 2320-01-534-2229, EIC BG4. Every cab control, every gauge, every PMCS step, every recovery procedure and every safety warning the Army issued for this HEMTT-series tractor is in here, laid out as a single working reference the crew can actually use.

File Details

• Manual type: US Army Operator’s Manual (Technical Manual)
• Document number: TM 9-2320-341-10
• Equipment: Truck, Tractor, Light Equipment Transporter (LET), 8×8, M983A4 LET
• NSN: 2320-01-534-2229 (EIC BG4)
• Published by: Headquarters, Department of the Army
• Publication date: 15 October 2008
• Language: English
• Page count: 962
• File format: PDF

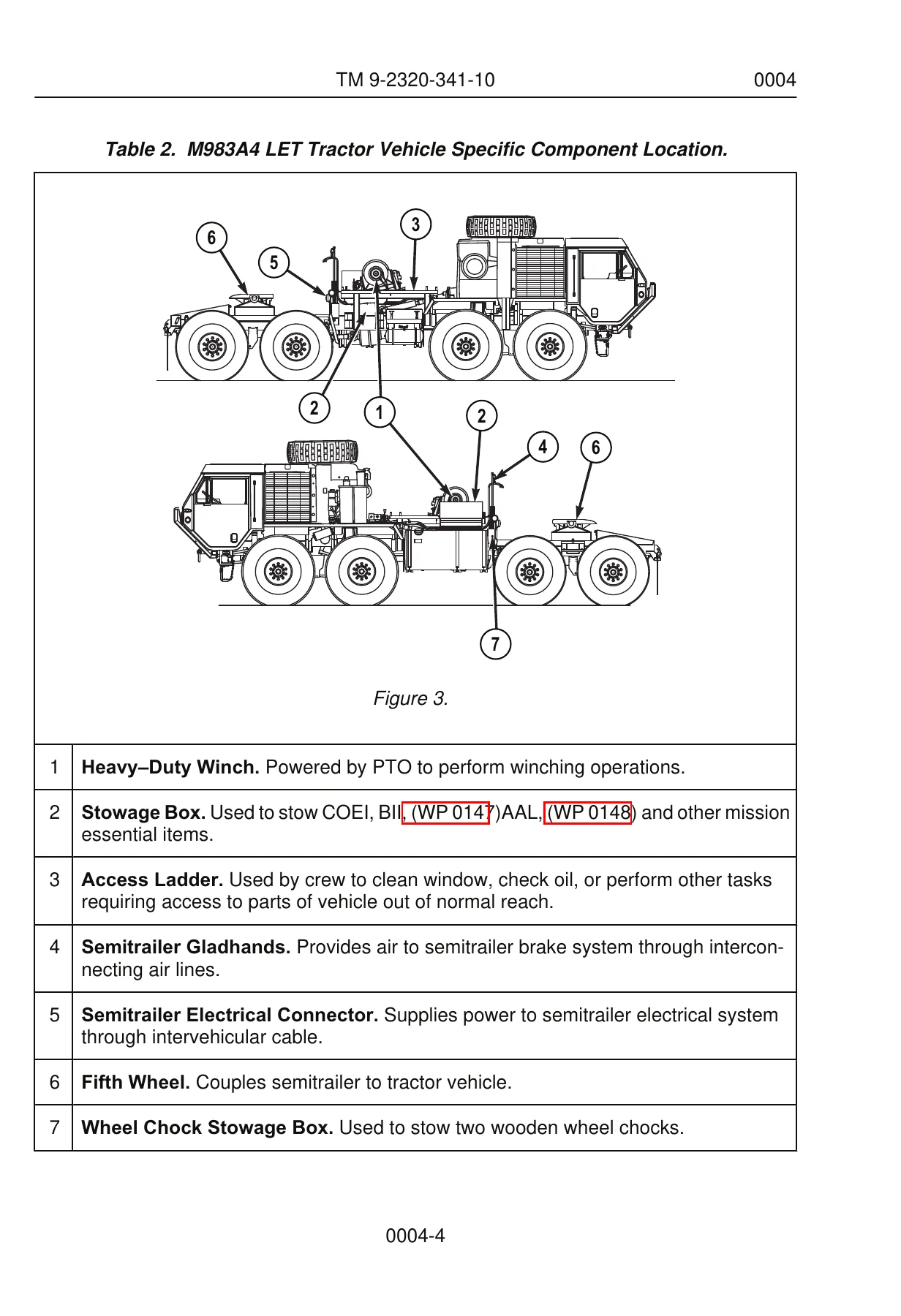

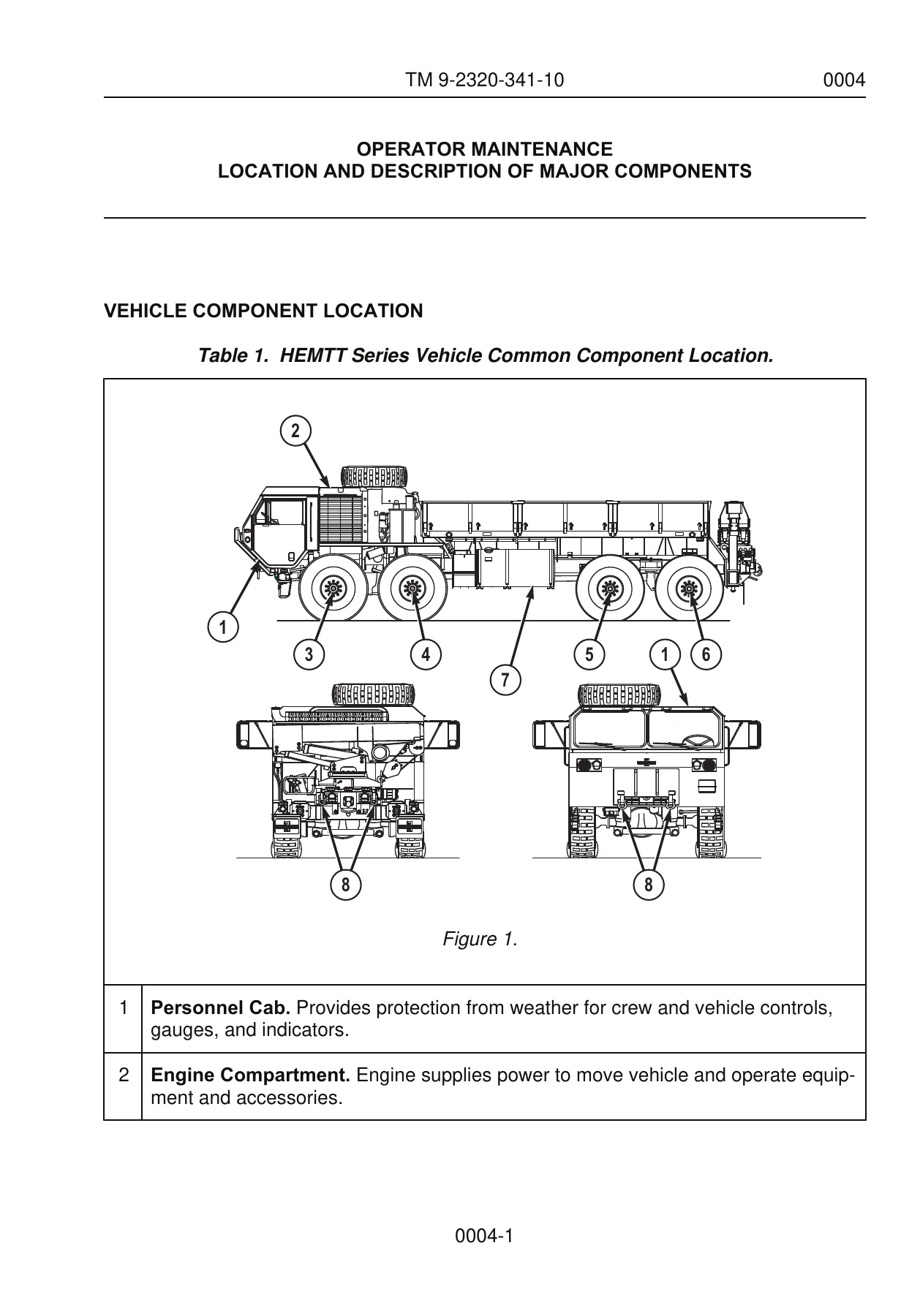

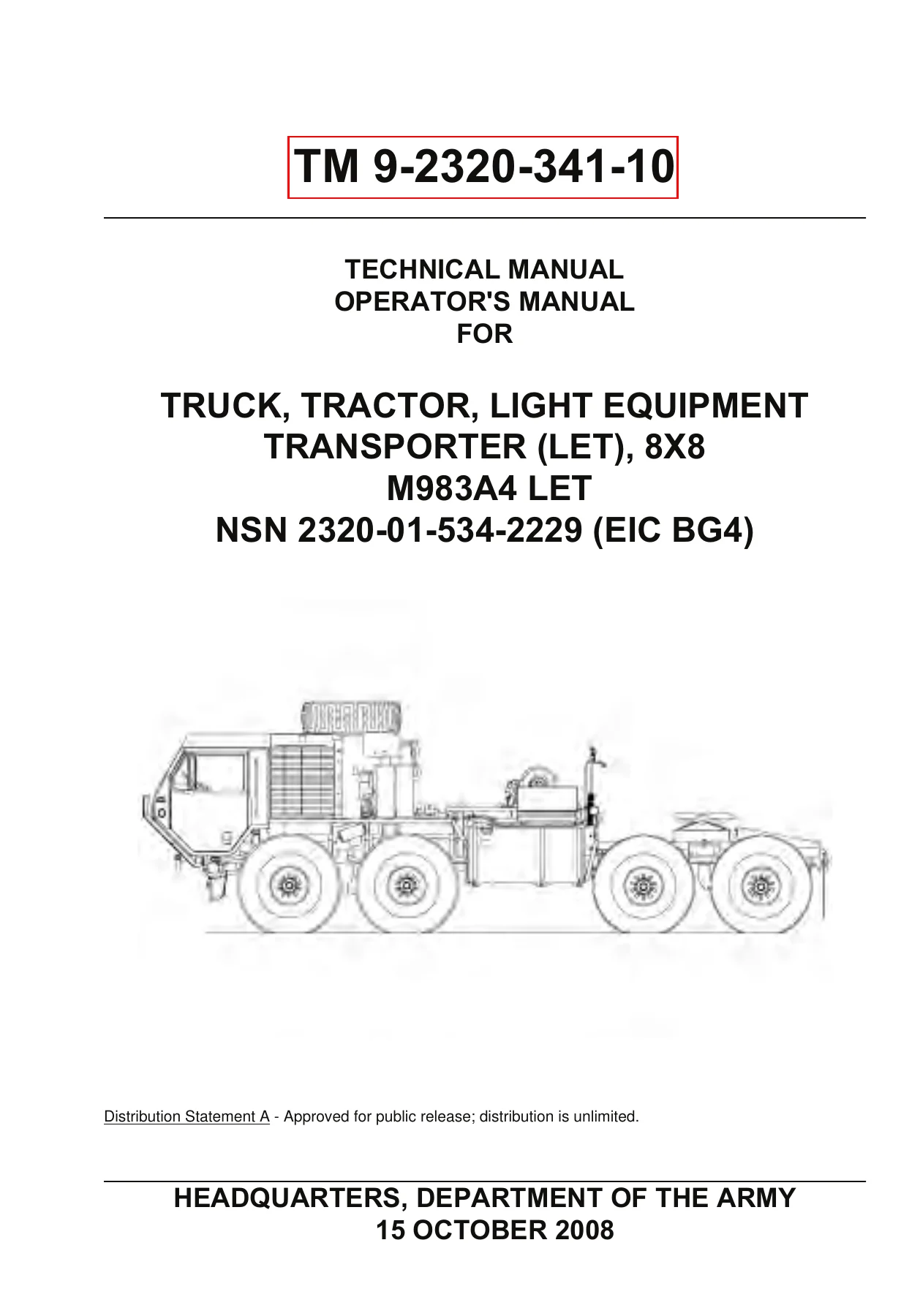

IMAGES PREVIEW

Chapters Covered

• Chapter 1 – Operator Maintenance Introduction: Overview, Warranty Program, Equipment Characteristics, Capabilities and Features, Location and Description of Major Components, Differences Between HEMTT A4 Models, Equipment Data, Self-Recovery Winch, Electrical System, Air System, Main Hydraulic System, Steering System, Power Train, Engine Systems, Cab, Wheels and Tires, Heavy-Duty Winch
• Chapter 2 – Operator Instructions: Cab-Mounted Foot Controls, Cab-Mounted Hand Controls, Steering Column Mounted Controls, Instrument Panel Controls and Indicators, Heater Compartment Controls and Indicators, Center Dash Panel Controls, Four-Point Seatbelt and Air-Ride Seat Adjustment, 24V Battery Disconnect Switch, Hydraulic Selector Valve Control, Tire Carrier Pump Controls, Suspension Dump Valve Control, Heavy-Duty Winch Controls, Rifle Stowage Mount, Fifth Wheel Controls, Windshield Wipers and Washer, Cab Temperature Controls, Fire Extinguisher, Access Ladder, Drain Plug, Air Suspension Dump Valve, Heavy-Duty Winch Operation Using Vehicle Mounted (Manual) Controls, Tire Carrier Operation, Instrument Panel Operation, Air Suspension Ball Valves, Connect/Disconnect M870/M870A1 Semitrailer, Connect/Disconnect M870A3 Semitrailer, Start Engine, Operate Parking Brakes, Operate Service Brakes, Operate Trailer Brakes, Operate Transmission and Transfer Case, Operate Engine Brake, Drive Vehicle Forward, Drive Vehicle in Reverse, Drive Vehicle in City Traffic and on Highway, Drive Vehicle in Off-Road Conditions, Drive Vehicle Up/Down Steep Grade, Drive Vehicle in Slippery Conditions, Park Vehicle, Shut Off Engine, Portable Work Lamp Operation, Dome Light, Panel Lights, Parking Lights, Service Drive Lights, Stoplights, Clearance Lights, Blackout Drive Light, Blackout Markers, Work Lights, Portable Beacon Light Operation, Turn Signals, Emergency Flashers, Install/Remove Wheel Chocks, Change Vehicle Weight Indicator, Adjust Air-Ride Seat, Operate Four-Point Seatbelt, Limp Home/Flat Tire With No Spare, Immediate Action for Loss of Air Supply System Pressure, Install/Remove Tire Chains, Ford Water Obstacle, Interim NBC Decontamination Procedures, Tire Carrier Using Hand Pump, Tire Carrier Using Outside Air Source, Self-Recover Vehicle Using Self-Recovery Winch, Snatch Block Installation/Removal, Connect/Disconnect Self-Recovery Winch Cable to Another Vehicle, Tow Disabled Vehicle, Connect/Disconnect Tow Bar, Operate Vehicle in Extreme Heat, Operation in Extreme Dust, Operate Vehicle in Sand or Mud, Operate Vehicle in Desert Environment, Operate Vehicle in Cold Environment, Operation in Extreme Cold Environment, Operate Vehicle in Forest or Rocky Terrain, Operate Vehicle in Saltwater Areas, Set Up/Secure Highway Emergency Marker Kit, Manually Release Spring Brakes, Slave Start Vehicle, Perform Immediate Action for Loss of Hydraulic System, Limp Home/Transmission Fault, Stowage and Sign Guide
• Chapter 3 – Troubleshooting Procedures: Buzzer Sounds and Air Indicator Is Lit, Air System Loses Pressure During Operation, Trailer Brake Does Not Apply, Windshield Washer Will Not Operate, Air Horn Will Not Operate, Arctic Engine Heater Fails to Operate, One or More Lighting Circuits Not Operating, Fails to Crank, Cranks But Fails to Start, Starts or Runs Roughly, Engine Overheats, Low Oil Pressure Gauge Indication, Excessive Oil Consumption, Hydraulic System Operates Too Slow/Too Fast/With Jerky Movements, Self-Recovery Winch Does Not Work, Unusually Noisy When Operating, Vehicle Is Hard to Steer/Shimmies/Wanders/Pulls to One Side, Vehicle Steering Slow to Respond or Intermittent, Slow or Difficult Engagement, Transfer Case Shift Lever Will Not Shift, Trans Temp Gauge Indicates Overheating, Wheel Wobbles, Tires Worn Unevenly or Excessively
• Chapter 4 – Preventive Maintenance Checks and Services (PMCS): Introduction, Before PMCS, During PMCS, After PMCS, Weekly PMCS, Monthly PMCS, Semiannual PMCS
• Chapter 5 – Maintenance Instructions: Lubrication Instructions, Close/Open Heater Valves, Pre/Post Towing Procedure (Front Lift Only), Clean Vehicle, Change Wheel and Tire Assembly, Clean Fuel Tank Strainer, Service Air Cleaner Element, Service Tires, Open/Close Battery Box, Open/Close Engine Covers and Engine Side Panel, Priming Fuel System, Open/Close Circuit Breaker Access Panel
• Chapter 6 – Supporting Information: References, Components of End Item and Basic Issue Items Lists, Additional Authorization List (AAL), Expendable and Durable Items List

What makes the M983A4 LET operator manual worth keeping on hand is the way it separates operating knowledge from maintenance knowledge without losing either. The operator chapters walk through the cab one control at a time — the fifth wheel controls, the hydraulic selector valve, the tire carrier pump, the suspension dump valve, the heavy-duty winch and its remote-control unit — then show how those controls are used in the field: starting a cold engine, running the transmission and transfer case, coupling and uncoupling an M870 or M870A3 semitrailer, recovering the vehicle with the self-recovery winch, rigging a snatch block, and towing a disabled vehicle with the 10-ton tow bar. The same chapters cover the environments these trucks actually work in, from extreme heat and desert dust through sand, mud, cold and extreme cold down to −50°F, forest and rocky terrain, and saltwater areas.

Underneath all of that sits a full troubleshooting chapter. Each fault is worked as a numbered test sequence with a condition/indication and a decision — low air pressure, brake faults, lighting circuits, starting and cranking faults, engine overheating, low oil pressure, hydraulic and self-recovery winch faults, steering complaints, transfer case shift problems, transmission over-temperature and uneven tire wear. It is the kind of flow-chart thinking a driver can follow at the roadside without guessing. The PMCS chapter closes the loop with before, during, after, weekly, monthly and semiannual checks tied to specific lubrication points, inspection criteria and equipment-not-ready conditions.

What This Operator Manual Covers In Practice

This is not a generic truck book. It is written around the M983A4 LET — the 8×8 HEMTT-series tractor fitted with a fifth wheel, a 3.5 in. kingpin and a 45,000 lb heavy-duty winch — and every specification, capacity and procedure in it belongs to that vehicle. The equipment data tables give dimensions, weights, weight distribution, performance figures, tire pressures and operating speeds. The lubrication chapter gives fluid capacities and the correct lubricants for the expected operating temperature range. The troubleshooting flows and PMCS tables give the readings, pressures and limits a crew needs to decide whether the truck is fit to move. The stowage and sign guide at the end of Chapter 2 maps the data plates, decals and stencils carried on the vehicle, including the warranty information and tire inflation data inside the driver side door.

Why It Matters

Operator-level mistakes on a vehicle this size are expensive. Running the winch with fewer than five wraps of cable on the drum, dumping the suspension with the tire carrier down, shifting the transfer case while the truck is rolling, or coupling a semitrailer without checking the fifth wheel lockout position are all conditions this manual explicitly warns against. The correct procedure, the correct lugnut tightening sequence, the correct air pressure for the terrain — it is all documented here in the Army’s own step-by-step format, with the warnings and cautions kept in place rather than edited out. Having the actual TM 9-2320-341-10 means the crew is working from the same instructions the vehicle was fielded with, not from memory or a second-hand summary.

Instant PDF Delivery

The manual is delivered as a PDF immediately after payment. Nothing ships and nothing has to be waited on — download it once and it is yours. It opens on any device, whether that is a laptop in the shop, a tablet in the cab or a phone at the roadside, and every page can be printed if a paper copy is more useful in the field. Jump straight to the work package you need, keep the whole 962-page reference within reach of the vehicle it belongs to, and stop guessing at procedures that were already written down.
