Utilev UT30/35P 3.0-3.5T Forklift Parts Manual – Full Illustrated Catalog PDF

Description

Utilev UT30/35P Parts Manual – Illustrated Spare Parts Catalog

This Utilev UT30/35P 3.0-3.5T Forklift Parts Manual is the full illustrated parts catalog for the 3.0 to 3.5 tonne internal combustion counterbalanced forklift truck range. Every section is organised by installation location on the truck and presented as exploded graphic figures with itemised part numbers, descriptions, quantities and serial-number or model applicability notes. It is the document you keep open on the workshop bench when you need to identify, order, or verify the correct spare part for a UT30 or UT35P truck.

File Details

• Manual type: Illustrated Parts Manual / Spare Parts Catalog
• Brand: Utilev
• Model: UT30/35P (3.0T–3.5T)
• Truck type: Internal combustion counterbalanced forklift truck
• Language: English
• Format: PDF
• Publication: November 2014, 9th Edition
• Structure: Complete manual, also navigable by installation location (individual sections) on the truck
• Sections: Driving System, Steering System, Power System, Body System, Control System, Hydraulic System, Electrical System, Cab System, Mast Parts Manual, and engine-specific parts sections

How This Utilev UT30/35P Parts Manual Is Organised

The catalog supports two lookup methods. You can work through the complete manual using the part description to find the corresponding graphic figure number, or you can start from the installation location of the spare part on the truck and locate the figure number in the contents. Either route leads to the same result: the correct part number, figure reference, quantity, and any serial-number or model restriction that applies to your machine. Each figure is drawn as an exploded assembly so the relationship between neighbouring components is visible before you commit to an order.

Model applicability is handled through letter codes (A, B, C, C1, D, E, F) assigned to the different engine and fuel configurations. Where a part applies only to certain models, the applicable codes are printed in the remarks column. Where a part applies to all truck models, no code restriction appears. This means the same catalog covers diesel, gasoline, LPG, and dual-fuel variants without ambiguity.

Chapters Covered

The manual is divided into numbered parts, each containing its own figure list:

• Part I – Driving System
  • Driving System (figures 1 and 2)
  • Cooling Hose Assembly
  • Drive Axle Assembly (pre- and post-2014-02-09 variants)
  • Brake Assembly (LH/RH, and pre/post 7-22-2013 split)
  • Front Wheel – Single Tire and Dual Tire

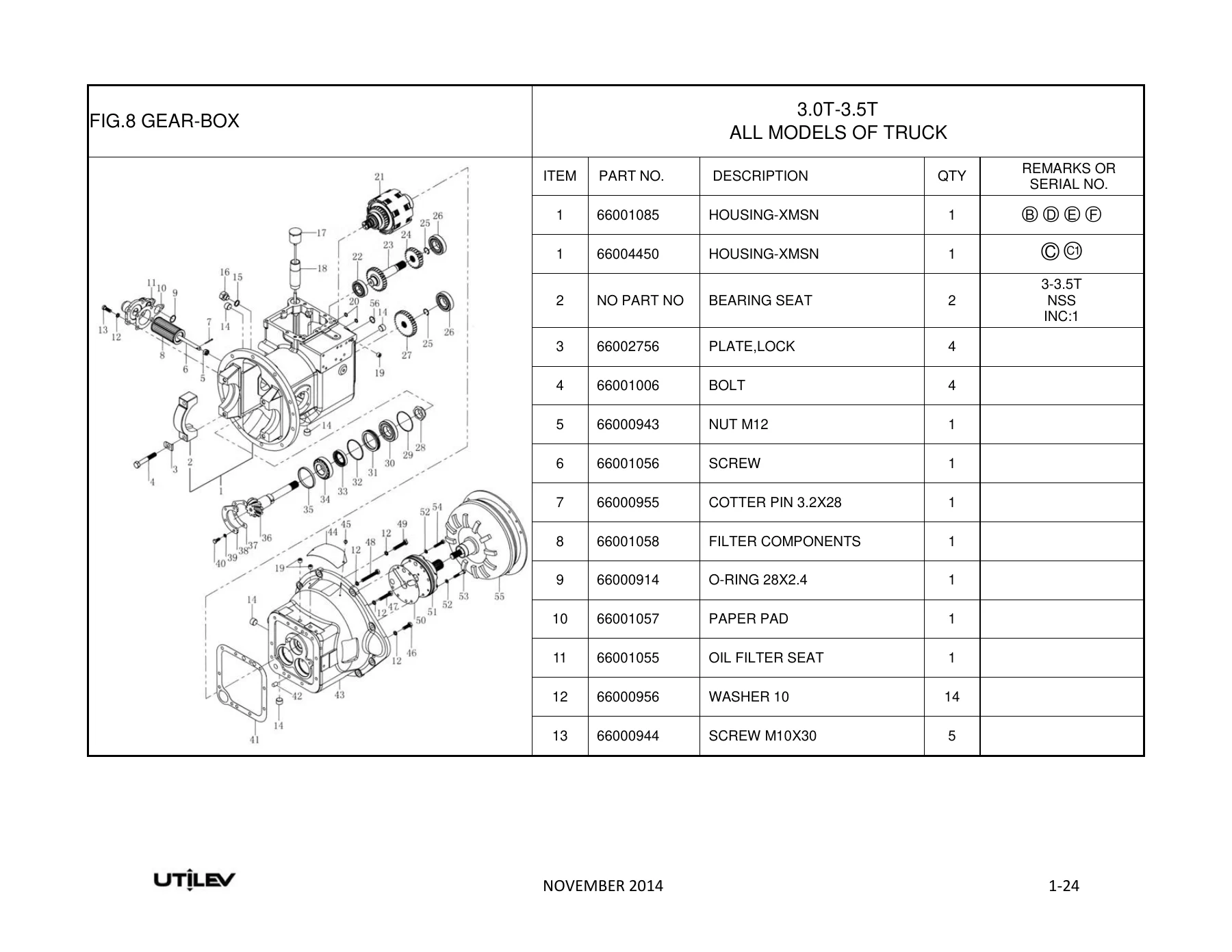

  • Gear-Box
  • Cover Control Valve, Inching Valve
  • Hydraulic Clutch
  • Charging Pump
  • Reduction & Differential
• Part II – Steering System
  • Steering Axle I and II
  • Steer Wheel Assembly
  • Steering Cylinder
  • Steering Column (standard and shock absorption versions)
  • Steering Shaft
• Part III – Power System
  • Power System by engine variant (4TNV94, 4TNE98, Mazda 2.2L LPG/Dual, Nissan K21/K25 Gas/LPG)
  • Air Intake System and High Air Intake System
  • Exhaust System and High Exhaust System
  • Cooling System
  • Fuel System, Fuel Tank Cover
  • Engine Mount
  • LPG Plumbing
  • Gear Shaft
• Part IV – Body System
  • Counterweight Assembly
  • Labels (safety and information decals)
  • Seat Assembly (standard, CE, North America variants)
  • Body System
  • Cowl Assembly
  • Hood and Floor Plate Assembly I and II
  • Lock Catch Assembly
  • Overhead Guard
• Part V – Control System

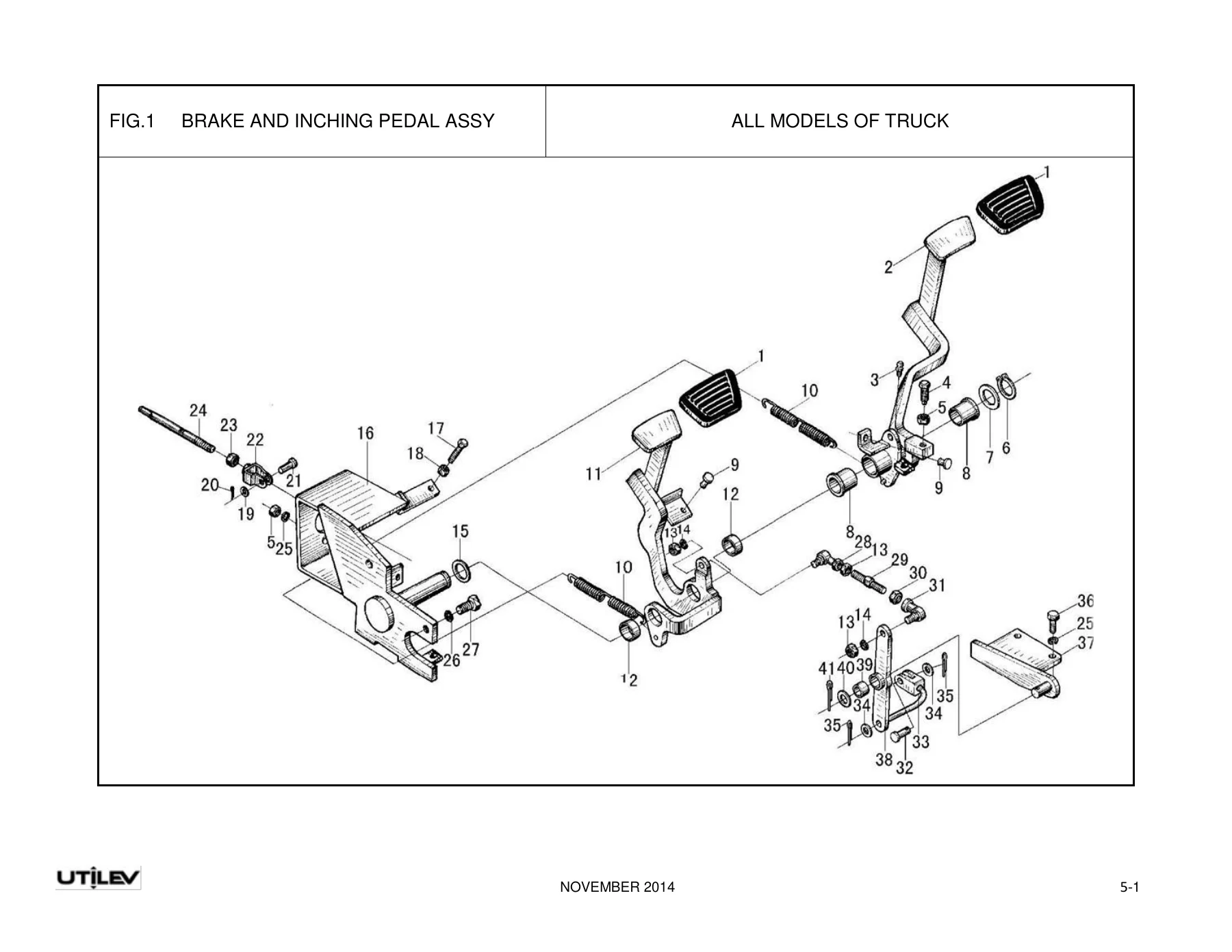

  • Brake and Inching Pedal Assembly
  • Brake Pedal Assembly
  • Throttle Control Assembly (pre- and post-02-01-2014)
  • Hand Brake Control
• Part VI – Hydraulic System
  • Hydraulic Hose Assembly by model group
  • Hydraulic Tank Accessory (pre- and post-12-24-2012)
  • Multi-Way Lever Controls
  • Multi-Way Valve Assembly (Standard and Operator Presence)
  • Tilt Hoses
  • Steering Hoses
  • Strainer Assembly
• Part VII – Electrical System
  • Electrical System by model group
  • Electrical System (Operator Presence)
  • Hand Brake Switch (Operator Presence)
  • Dash Display, Forward/Reverse Levers, Fuse Box Assembly
  • Front Light, Rear Light, Strobe Light assemblies
  • Horn
• Part VIII – Cab System
  • Cab Overview and Frame System
  • Top Windows, Front Windows, Rear Windows systems
  • Left Door and Right Door systems
  • Wiper Bottle Assembly (CE)
  • Heater (CE and Non-CE)
• Part IX – Mast Parts Manual
  • Load Roller Assemblies (Complex and Cross)
  • Side Roller Assembly
  • Lifting Parts for Simplex, Duplex and Triplex masts
  • Chain assemblies with lift-height part lists
  • Mast weldments, Carriage Assemblies, Side-Shift Carriages
  • Side-Shift Cylinder, Lift Cylinders, Tilt Cylinders
  • Mast Routing, Side-Shift Routing, 4th Function Hose Routing
• Parts X–XVII – Engine Parts Sections
  • Yanmar 4TNE98 engine parts catalog
  • Nissan K21-K25 engine parts catalog
  • LPG and Dual Fuel System parts
  • Mazda Base Engine System and Mazda LPG / Bi-Fuel parts
  • A490BPG diesel engine parts
  • Yanmar 4TNV94L diesel engine parts catalog

Between them, these sections give a complete bill-of-materials view of the UT30/35P: from the drive axle, gearbox, and hydraulic clutch through to the steering axle, mast, carriage, cab, and every wiring and hydraulic hose routing on the truck. The engine parts sections at the back let you drop down to component level on the Yanmar, Nissan, Mazda and A490BPG power units without needing a separate engine catalog for each fuel type. Model codes in the tables tell you immediately whether a given part fits your diesel, gasoline, LPG, or dual-fuel truck.

Model and Engine Coverage

The catalog spans the full 3.0T–3.5T UT30/35P range, including the following model codes used throughout the tables:

• AUT30/35P – Yanmar 4TNV94 diesel
• BUT30/35P – Yanmar 4TNE98 diesel
• CUT30/35P – Mazda 2.2L LPG
• CUT30/35P – Mazda 2.2L Dual
• DUT30/35P – Nissan K21 Gas
• EUT30/35P – Nissan K21 LPG
• FUT30/35P – Nissan K21 Dual
• Nissan K25 Gas and K25 LPG variants (D and E groups in the contents listings)
• A490BPG diesel engine variants

Where a part number applies only to one of these configurations, the model code letter appears in the remarks column. Where no letter appears, the part applies to all truck models.

Why This Parts Manual Matters

Ordering the wrong part for a forklift is expensive in both money and downtime. A 3.0T–3.5T counterbalanced truck is a working asset, and every hour it sits waiting for a component that does not fit costs more than the component itself. This manual removes the guesswork by tying every part number to a specific figure number, quantity, and – critically – a model applicability code and serial-number cut-off where one exists. The date-split figures (brake assemblies before and after 7-22-2013, drive axles before and after 2014-02-09, hydraulic tank accessories before and after 12-24-2012, throttle controls before and after 02-01-2014) are especially valuable because they let you match the part to your truck’s actual build date instead of ordering a superseded component.

For a workshop maintaining a mixed fleet, the catalog also doubles as a cross-reference: the same figure layouts appear across model groups, so you can compare a Yanmar diesel truck against a Nissan LPG truck and see exactly which components are shared and which are unique.

Who This Manual Is For

Fleet workshops, independent forklift technicians, parts counter staff, and owners who do their own maintenance will all find the catalog useful. You do not need factory training to use it – you need the truck’s model code and serial number, the figure number from the relevant section, and the item number within that figure. The parts tables then give you the exact part number to order.

Because the manual also ships with the Mast Parts Manual and engine parts catalogs in the same file, it covers the parts of the truck that most often need replacement – lift chains, load rollers, brake components, hydraulic hoses, seals, filters, and electrical items – without requiring a second document.

Get Instant Access to the Utilev UT30/35P Parts Manual

This Utilev UT30/35P parts manual gives you the ability to identify and order the correct spare part for your 3.0T–3.5T internal combustion forklift, whether you are rebuilding a brake assembly, replacing a lift cylinder seal kit, tracing a hydraulic hose routing, sourcing a mast load roller, or matching an engine component for the Yanmar, Nissan, Mazda, or A490BPG power unit in your truck. Correct part identification means fewer returns, less downtime, and repairs done right the first time.

IMAGES PREVIEW

The manual is delivered as an instant PDF download after payment – no shipping, no waiting for a disc or printed binder. You can open it on a laptop, tablet, or phone in the workshop, search by section, and print the figures or tables you need for the job in front of you. Keep it on file for the life of the truck and use it every time a part number has to be confirmed.
