Vogele Super 1800-3i & 1800-3 Paver Machine Technology Training Manual

Description

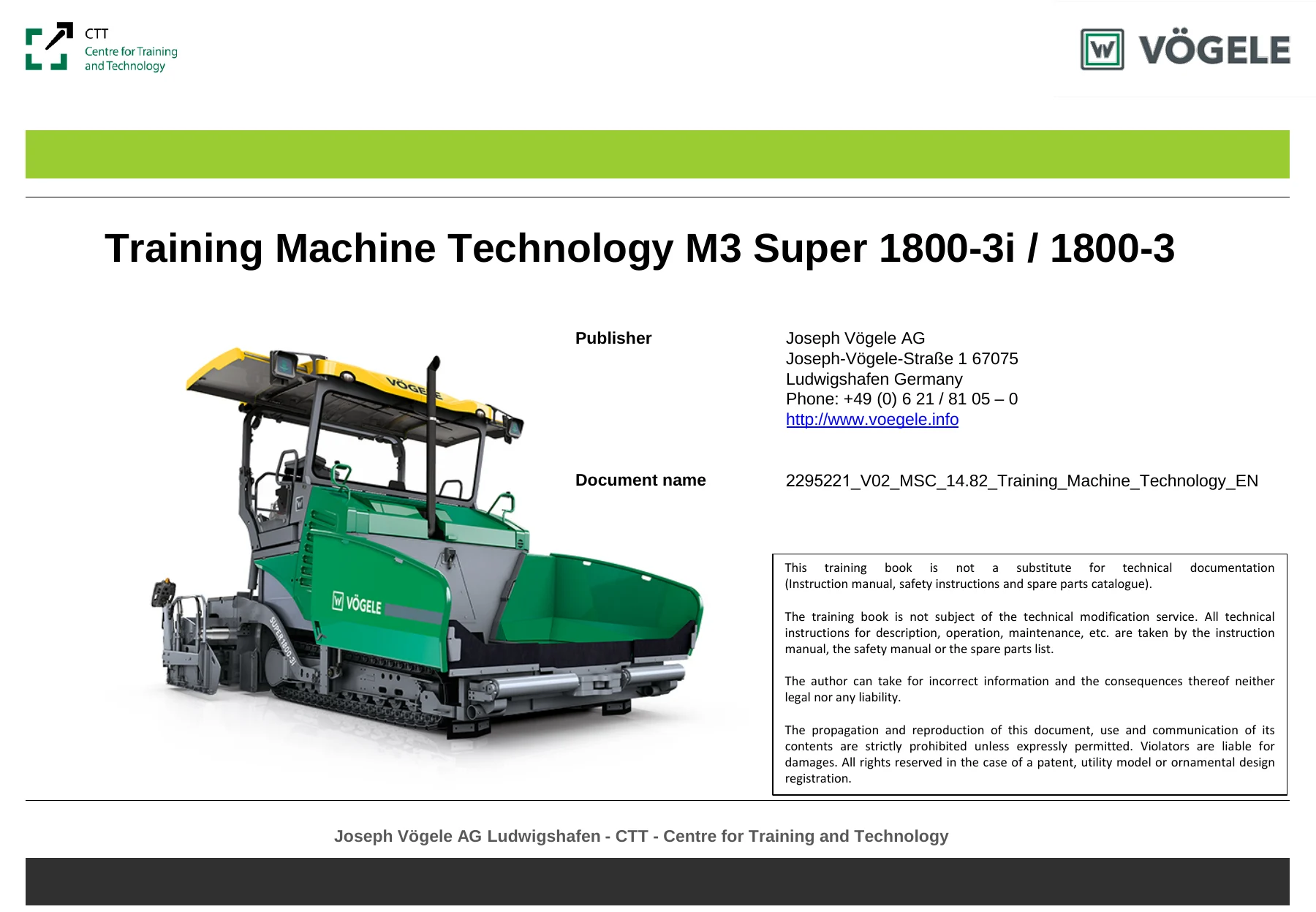

Vogele SUPER 1800-3i / 1800-3 Machine Technology Training Manual

This Vogele Super 1800-3i & 1800-3 Paver Machine Technology Training Manual is the full training reference used to teach the construction, operation and servicing of the SUPER 1800-3i and SUPER 1800-3 tracked asphalt pavers. Across roughly 422 pages it explains the machine from the operator’s console down to individual hydraulic valve blocks, sensors, wiring harnesses and Cummins engine components. Every section is written around the 14.82 series machine and was issued by Joseph Vögele AG as internal machine technology training material.

File Details

• Manual type: Machine Technology Training Manual
• Brand: Vogele (Joseph Vögele AG)
• Machines covered: SUPER 1800-3i, SUPER 1800-3 (14.82 series)
• Language: English
• Format: PDF
• Page count: Approx. 422 pages
• Document number: 2295221_V02_MSC_14.82_Training_Machine_Technology_EN
• Hydraulic diagram reference: HFP_1482_2374137_02_00_01 (dated 15.12.2015)
• Electrical diagram reference: ESP_1482_2444938_01_00_00 (dated 31.08.2012)

Chapters Covered

• 1.0 General Information — Type designations (14.82 series, 3i vs 3), differences between ErgoPlus 2 and ErgoPlus 3, Cummins diesel engines, EcoPlus package, AutoSet, PaveDock Assistant and sprung push-rollers, EME generator, performance data
• 2.0 Machine Operation — Paver operator’s console (left, middle, right modules), signal lights, display module, main and operator screens, error messages, screed console operation, Niveltronic Plus sensor symbols, ultrasonic auger sensor

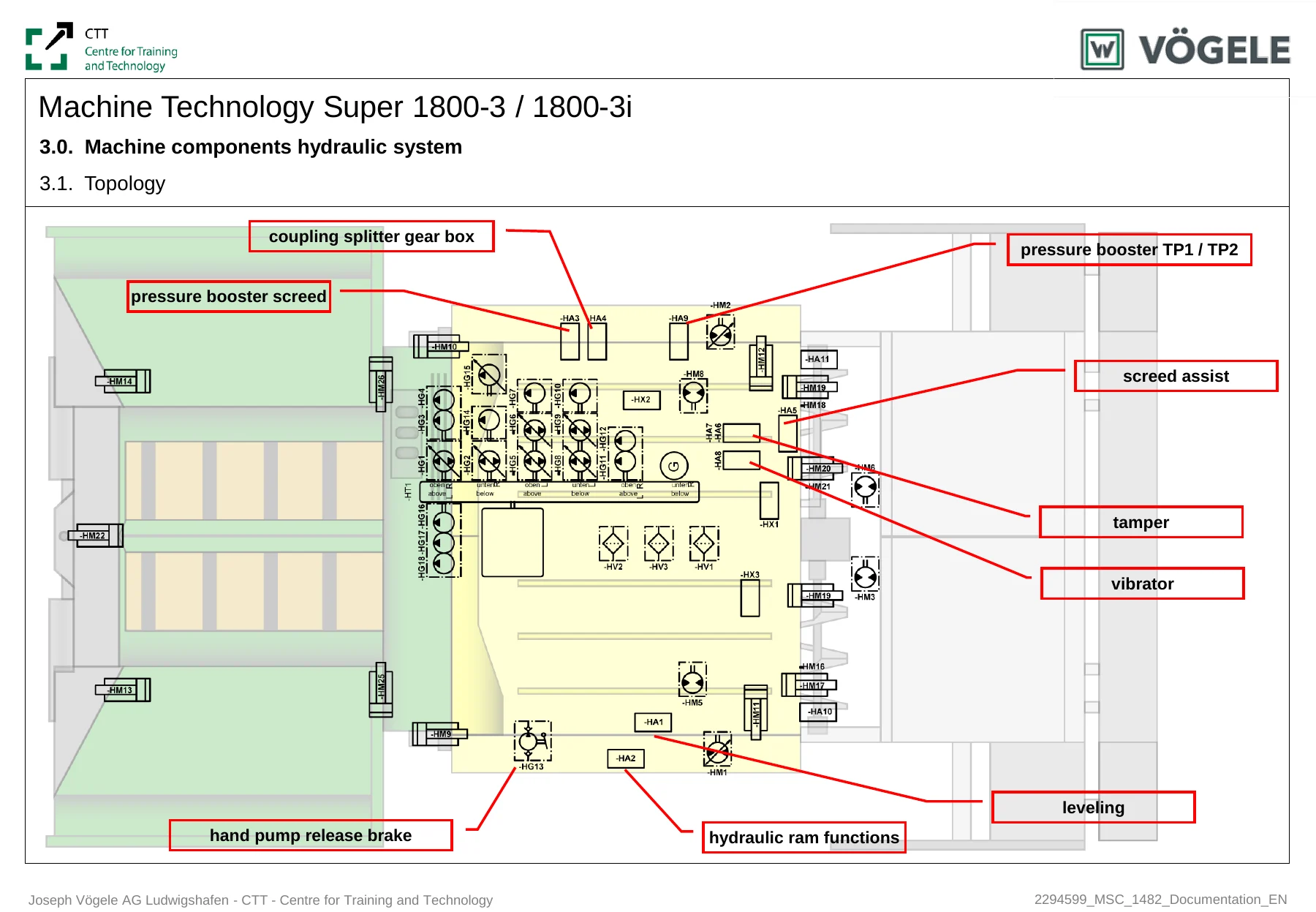

• 3.0 Machine Components – Hydraulic System — Topology, pump arrangement, traction drive schematic, traction pump HG1 and motor HM1, conveyor/auger pump and motor, valve blocks HA1–HA9, hand pump HG13, tamper valve blocks, variable displacement pump HG15, cooler bypass HR13, hydraulic filters, central lubrication
• 4.0 Machine Components – Electrical System — 24 VDC distribution, central PC board +2-A2, fuses (F1–F43 and main fuses), relays, Emergency Stop circuit, voltage transformer, sensor amplifier, CAN-bus repeater, sensors, screed heating box, generator, voltage regulator, insulation monitoring, RCD
• 5.0 Control System — CAN bus topology (CAN 0 through CAN 6), controller members, info pages, input/output symbols and numbering, controller info pages
• 6.0 Settings and Measured Values — Control system travel/engine/material handling values, hydraulic system pressures and settings
• 7.0 Jump Starting / Welding — Correct jump-start sequence and welding precautions to protect electronic components
• 8.0 Diesel Engine — Cummins QSB 6.7, differences between Tier 3 and Tier 4i, engine rating plate, CEGR and DOC exhaust after-treatment, ECM CM850 / CM2250, sensors, common rail fuel system
• 9.0 Maintenance / Service — Maintenance schedule, lubricant chart, engine oil and filter, fuel filters, air filters, hydraulic oil, return flow intake filter, leakage oil filter, crawler track tension, conveyor and auger chain tension, gear oil changes

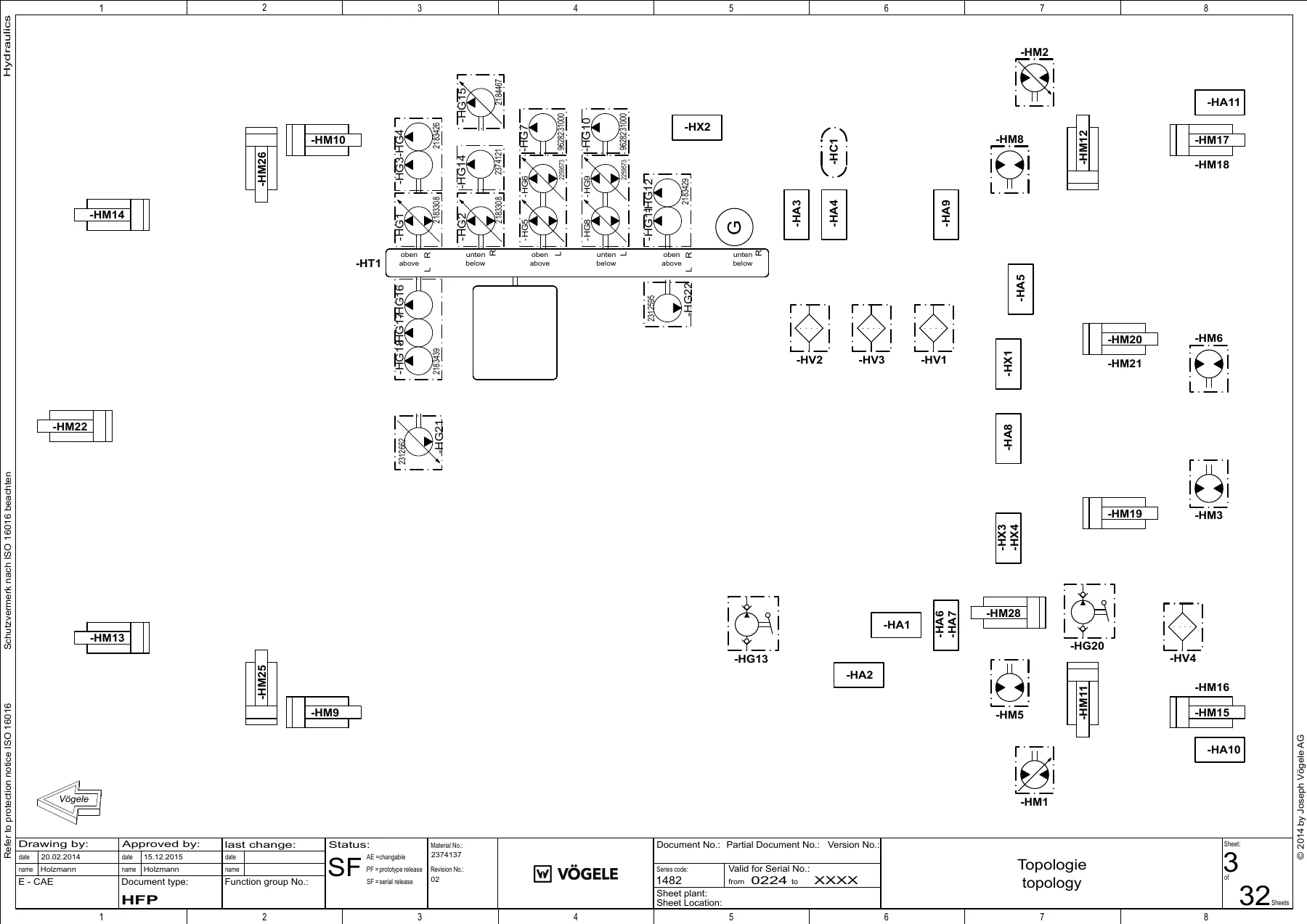

• Hydraulic Diagram (fold-out set) — 32-sheet hydraulic plan covering topology, pump position, propel left/right, auger-conveyor left/right, cylinder functions, screed assist, gearshift, tamper, vibration, high compaction, spray pump, generator, filters, leakage oil and return flows
• Electrical Diagram (fold-out set) — 197-sheet electric plan covering horn, beacon, work lights, seat heating, wiper, signal lights, starter, ECM, visco clutch, fuel level, filter monitoring, batteries, ignition, fuses, emergency stop circuit, CAN buses, screed heating and connector list

Read as a whole, the manual gives a technician a complete working picture of the SUPER 1800-3i and 1800-3. The early chapters explain what makes the 14.82 series different from the earlier SUPER 1800-2, then move through every operator control and display page before descending into the machine itself. Hydraulic coverage names each pump, motor and valve block by its factory designation (HG1, HM1, HA1–HA9) and shows the internal function of each. Electrical coverage maps the 24 VDC distribution, every fuse and relay, the monitored Emergency Stop circuit and the full CAN architecture. The engine chapter covers the Cummins QSB 6.7 in both Tier 3 and Tier 4i forms, including CEGR, DOC, VGT and the CM850/CM2250 ECMs.

What This Training Manual Lets You Do

Because the manual was written to train Vogele service personnel rather than to sell the machine, it documents the reasoning behind the systems — not just the parts. That makes it useful for:

• Understanding the operator’s console layout, screen pages and display menus so every function can be exercised correctly
• Following the hydraulic circuit for the traction drive, conveyors, augers, tamper, vibrators and screed functions
• Reading the CAN bus architecture and identifying which controller or node handles each input and output
• Tracing electrical faults through the central PC board, fuse list, relay list and monitored Emergency Stop circuit
• Setting and checking travel speeds, engine speeds, control currents and hydraulic pressures against the published measured values
• Working safely around the Cummins QSB 6.7, including jump starting and welding precautions
• Following the maintenance schedule and lubricant chart for engine, hydraulic and gearbox service

Correct procedures and correct specifications matter on a paver. A tamper running at the wrong control current, a screed assist set outside its 0–40 bar range, or a crawler track tensioned wrongly all show up in mat quality. Having the factory control currents, pressure limits, engine speeds and service intervals in one place removes the guesswork.

Delivery

IMAGES PREVIEW

The manual is delivered as an instant PDF download after payment — no shipping, no waiting. It can be opened on a laptop, tablet or phone in the workshop or on site, and pages can be printed when a paper copy is more practical. Whether you are diagnosing a fault, setting up a screed, or servicing the Cummins engine, this Vogele Super 1800-3i and 1800-3 Machine Technology Training Manual keeps the correct factory information within reach.
