Volvo BL60 Backhoe Loader Parts Catalogue – S/N 11315 & Up PDF

Description

Volvo BL60 Backhoe Loader Parts Catalogue – S/N 11315 & Up

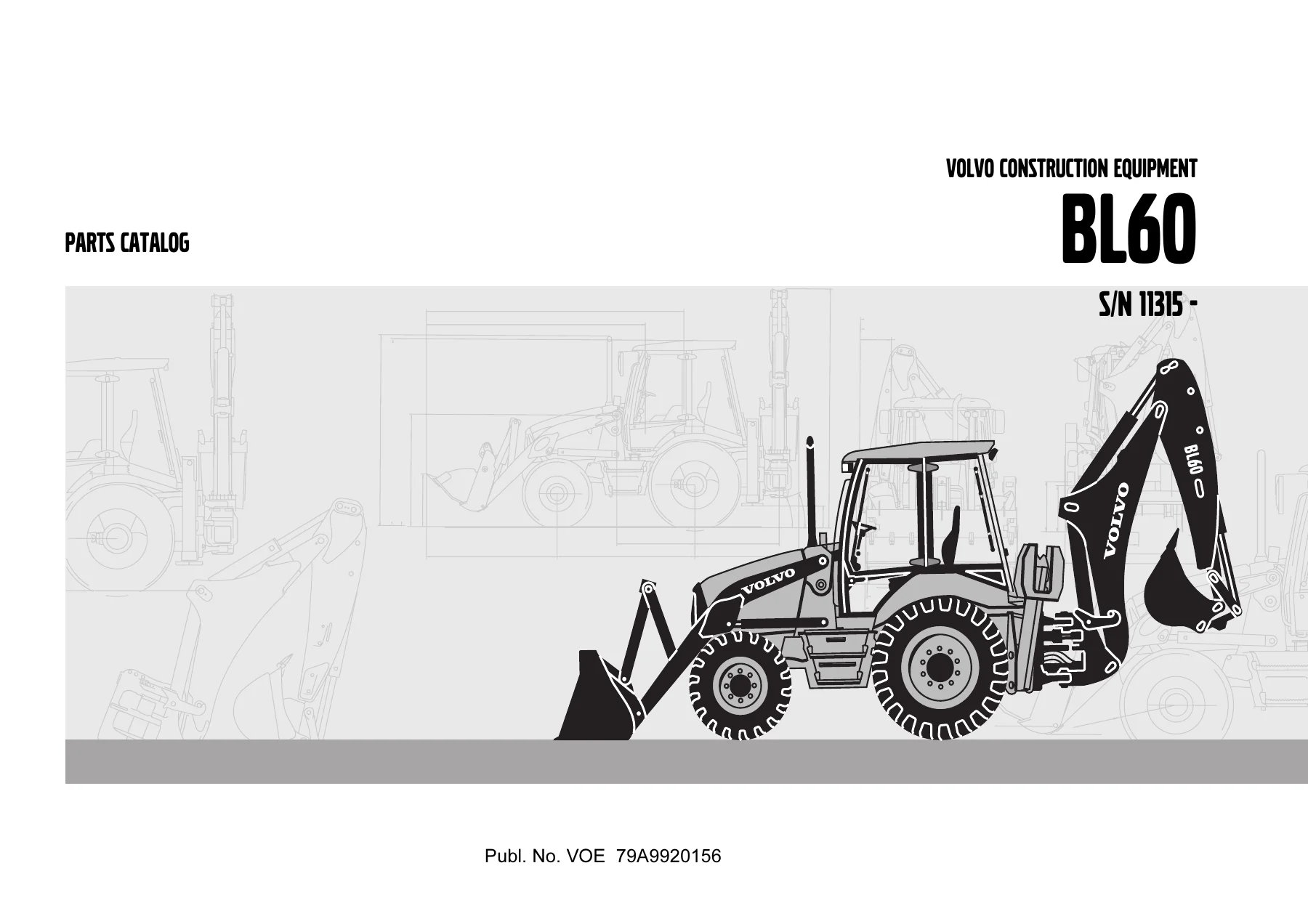

This is the complete parts catalogue for the Volvo BL60 Backhoe Loader, covering machines from serial number 11315 onwards. Catalogue number 20156, issued by Volvo Construction Equipment, this parts catalogue provides the full parts breakdown for the BL60 backhoe loader in a single PDF file. Whether you are ordering spare parts, rebuilding a component, or identifying a part number for a repair, this catalogue gives you the exact information you need.

File Details

• Manual Type: Parts Catalogue
• Brand: Volvo Construction Equipment
• Model: BL60 Backhoe Loader
• Serial Number: S/N 11315 –
• Catalogue ID: 20156
• Issue: VOE 79A9920156
• Language: English, French, German, Spanish, Swedish
• Page Count: 609
• File Format: PDF

Chapters Covered

• Group 1: Preface and Instructions
• Group 2: Engine
• Group 3: Electrical Systems and Instruments
• Group 4: Power Transmission
• Group 5: Brakes
• Group 6: Steering System
• Group 7: Frame and Wheels
• Group 8: Body with Associated Parts
• Group 9: Miscellaneous Equipment
• Group 10: Replaced Parts / Number Index

Group 2 – Engine

The engine section of this Volvo BL60 parts catalogue covers the D5DCCE3 engine and all its sub-assemblies. You will find cylinder head components, cylinder block, cylinder liners and pistons, valve mechanism, timing gear casing, crankshaft and related parts, flywheel housing, oil sump, engine mounting and suspension, lubricating oil system, oil filter, oil cooler, fuel pump, fuel filter, fuel tank with fitting parts, fuel system, fuel pipes and fuel pump, fuel injection pump with fitting parts, delivery pipe and injector, inlet manifold and exhaust manifold, exhaust system and silencer, turbocharger with fitting parts, air filter with fitting parts, radiator, expansion tank with fitting parts, cooling system, water pump and thermostat housing, fan, belt transmission, engine heater, regulator control, hand throttle, and shutdown device.

Group 3 – Electrical Systems and Instruments

Electrical parts for the BL60 are fully documented here, including battery box with fitting parts, alternator with assembling details, starter motor with assembling details, pre-heater with relay, work lights, rear lighting, interior lamp, horn, rotating beacon, windshield wiper (front and rear), windshield washer, electronic unit, battery cable and main switch, engine cable harness, transmission cable harness, other cables in cab and AC and rear windshield wiper, cable harness cab interior roof, cable harness chassis, cable harness rear valve block, other cables chassis, cable harness panel, cable harness control panel right, cable harness heater and air conditioning, cable harness hand tool hydraulic, cable and switch for rear horn, and cable harness fuel filling pump.

Group 4 – Power Transmission

The power transmission group covers the torque converter with fitting parts, hydraulic transmission with fitting parts for both 2WD (15600092) and 4WD (15600085) variants, oil filler and dipstick, oil pump for both transmission variants, clutch shaft forward/reverse for both variants, reverse and primary shaft, secondary shaft for both variants, gearshifting for both variants, range selector valve, axle four-wheel drive, solenoid valve 4WD, gear selector, gearbox housing with fitting parts, propeller shaft mounting, planet axles with fitting parts, front axle, pinion, differential front axle, drive axle, wheel hub, 2WD front axle, planet shaft rear, pinion rear, differential rear, hub reduction rear axle, differential lock, and oil cooler transmission.

Group 5 – Brakes

Brake system parts including multi-disc rear brake, brake pedal assembly, parking brake components for different machine variants, brake caliper, brake disc, and all associated fittings and switches.

Group 6 – Steering System

Steering column with fitting parts, steering system for both 11895046 and 11895045 front axle variants, and control valve assemblies with all related hoses and fittings.

Group 7 – Frame and Wheels

Frame components, protecting plates, counterweight, and wheel assemblies including tires, rims, valves, and caps for both standard and heavy-duty configurations.

Group 8 – Body with Associated Parts

The body group covers cab body roof and floor panel, cab mounting block, engine hood, hood locking device, radiator casing, fenders, small rear fender, foot step, step handle canopy, door with fitting parts, rear view mirror, glass panes, windows for different cab variants, interior components, operator’s seat, air ducts for different cab variants, cab heater, radiator and control, air conditioning, evaporator assembly, assembly hoses for evaporator/receiver drier/condenser, interior components for different cab variants, instrument panel, radio bracket, vandalism kit, interior components, casing loader controls, toolbox, tools, stop block holder, and sign plates and decals.

Group 9 – Miscellaneous Equipment

This extensive group covers the hydraulic oil tank, hydraulic system suction line, hydraulic system return line, hydraulic oil cooler, hydraulic system hammer, pipes for hammer attachment, hydraulic system excavator, hydraulic system stabiliser legs, hydraulic system loader for different configurations, hydraulic system boom, hydraulic system dipper arm, hydraulic system bucket, hydraulic system extendible dipper arm, hydraulic system lock cylinder, control valve with fitting parts, valve body with fitting parts for different configurations, inlet valve, valve section for different configurations, hydraulic pump, controls, loader controls, pedal, optional hydraulic equipment for different configurations, boom suspension system, attachment bracket mechanical, bucket straight with teeth in various widths, bucket straight lip without teeth in various widths, multi-purpose bucket, pins for mounting bucket, transport bracket without front bucket, fork arm, retainer for hammer, hammer, pallet forks for quickfit, tools for hammer, lifting framework with assembly parts, mechanical self-levelling tilt mechanism, hydraulic cylinder, swing system, boom swing system, swing cylinder, stabilisers, stabiliser cylinder, foot plate, boom and dipper arm, excavator boom with extendible dipper arm, boom cylinder, dipper arm cylinder, and extendible dipper cylinder.

Group 10 – Replaced Parts / Number Index

The replaced parts section lists part numbers that have been superseded with their replacement numbers. The numerical index provides a complete reference of all part numbers in the catalogue, along with their group, section, and page references, making it fast to locate any specific part.

Why This Volvo BL60 Parts Catalogue Matters

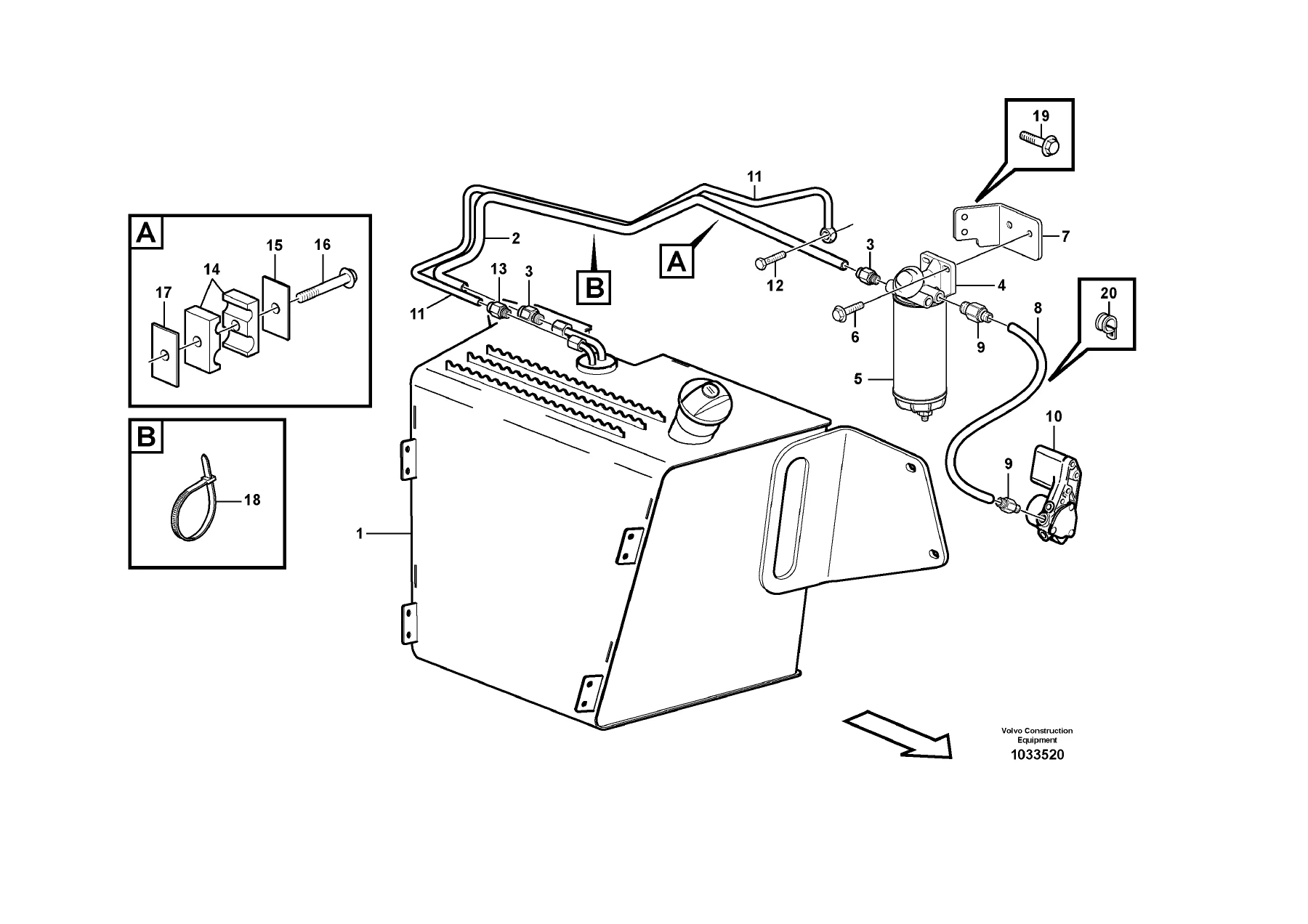

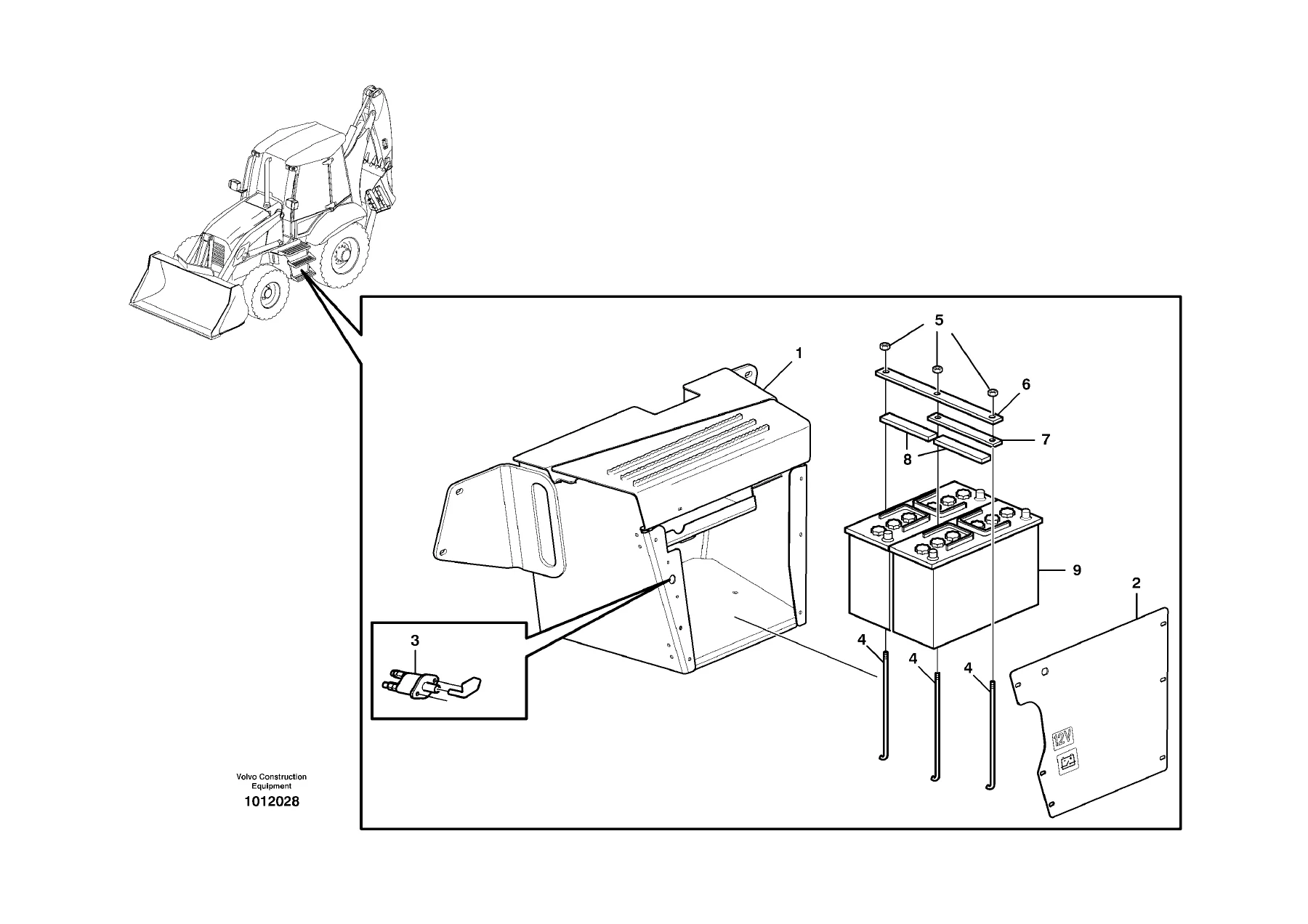

When you are maintaining, repairing, or rebuilding a Volvo BL60 Backhoe Loader, having the correct part number is critical. Ordering the wrong component wastes time, money, and can lead to further damage. This parts catalogue gives you the exact part numbers for every component on the machine, organised by system and sub-system, with exploded-view diagrams that show how parts fit together.

Whether you are servicing the D5DCCE3 engine, repairing the transmission, replacing hydraulic hoses, or sourcing cab interior parts, this catalogue provides the identification you need. The diagrams make it easy to locate the exact part you are looking at on the machine and cross-reference it to the parts list. With coverage of both 2WD and 4WD variants, different cab configurations, and multiple equipment options, this catalogue is an essential reference for any BL60 owner or technician.

IMAGES PREVIEW

Instant PDF Delivery

This Volvo BL60 Backhoe Loader Parts Catalogue is delivered as an instant PDF download. No shipping, no waiting. The file works on any device – computer, tablet, or smartphone – and can be printed if you prefer a physical copy in the workshop. Navigate through all 609 pages of parts data and diagrams to find the exact part number you need for your BL60 backhoe loader. Get the complete parts reference today and make every repair and maintenance job faster and more accurate.
