Volvo BL60B Backhoe Loader Parts Catalog 20603 – PDF Parts Manual Download

Description

Volvo BL60B Backhoe Loader Parts Catalog – Catalogue id 20603

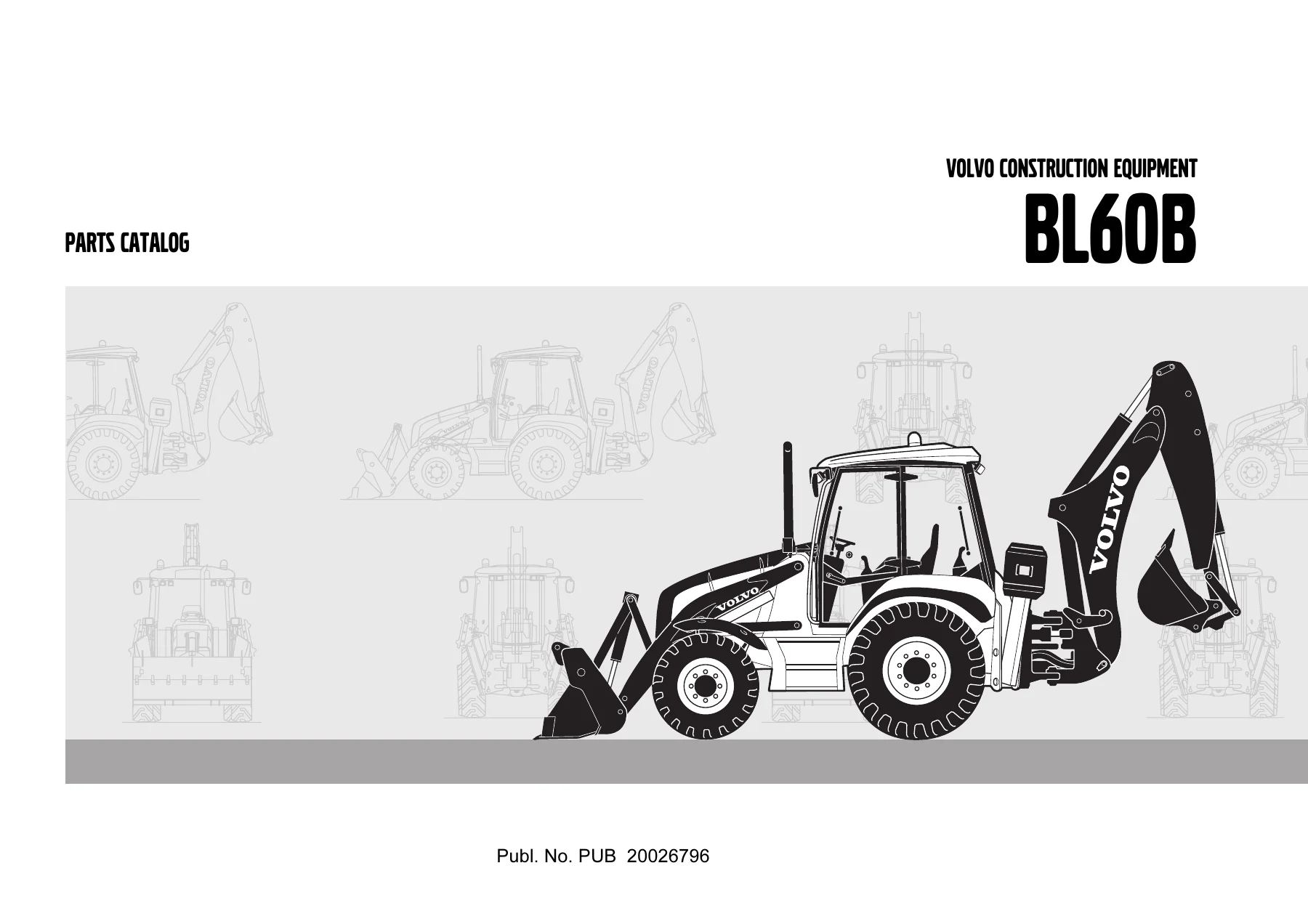

This is the full parts catalogue for the Volvo BL60B backhoe loader, published under catalogue identification 20603 with issue designation PUB 20026796. It is the reference document a workshop, parts counter or owner uses to identify and order the correct components for every major assembly on the machine, from the engine block down to individual O-rings, nipples and cable ties. Every entry is listed with a figure number, part number, quantity and a description in five languages, and the illustrations that accompany each text page show exactly where the part sits on the machine.

File Details

• Manual type: Parts catalog / spare parts manual
• Brand: Volvo Construction Equipment
• Model: BL60B backhoe loader
• Document title: Parts Catalog BL60B
• Catalogue id: 20603
• Issue / publication: PUB 20026796
• Language: Multilingual – English, French, German, Spanish and Swedish
• Page count: 651 pages
• File format: PDF

Chapter Coverage in the BL60B Parts Catalog

The catalogue is organised into numbered groups and sections, each with its own illustration page followed by the corresponding text page. The top-level groups and their main sections are:

• Group 1 – Preface and instructions: product sign plates, foreword, market-adapted equipment variants, catalogue guide, table of abbreviations
• Group 2 – Engine: repair kits for engine, cylinder head, cylinder block, cylinder liner and piston, valve mechanism, timing gear casing, pump drive power take-off, crankshaft and related parts, flywheel housing, oil sump, engine mounting, lubricating oil system, oil filter, oil cooler, fuel pump, fuel filter, fuel tank, fuel system, fuel pipes, fuel injection pump, regulator, delivery pipe – injector, inlet and exhaust manifold, exhaust system and silencer, turbocharger, air filter, crankcase ventilation, radiator, cooler protection, expansion tank, cooling system, cab heating, water pump and thermostat housing, fan, belt transmission, heater, throttle control, shutdown device, cable harness engine
• Group 3 – Electrical systems and instruments: battery, alternator, starter motor, lighting front and rear, interior lamp, work lamp, back-up warning unit, rotating beacon, windshield wipers front and rear, windshield washer, electronic unit, battery cables and main switch, cable harnesses for chassis, transmission, instrument panel, control panel, cab interior roof, lighting and rear
• Group 4 – Power transmission: torque converter, hydraulic transmission, oil filler and dipstick, oil pump, clutch shaft forward/reverse, reverse and primary shaft, secondary shaft, hydraulic clutch 4WD, gearshifting, range selector valve, solenoid valve 4WD, gear selector, gear box housing, propeller shafts, planet axles, front axle, planetary axle front, pinion, differential front axle, drive axle, wheel hub, planetary gear, 2WD front axle, planet shaft rear, pinion rear, differential rear, hub reduction rear axle, differential lock, oil cooler transmission
• Group 5 – Brakes: multi-disc brake rear, wheel brake rear, brake pedal, parking brake
• Group 6 – Steering system: steering column with fitting parts, steering system components and steering cylinders
• Group 7 – Frame and wheels: frame, protecting plates, counterweight, wheel
• Group 8 – Body with associated parts: cab body roof and floor panel, cab mounting block, engine hood, hinge, lock device engine hood, radiator casing, fenders, mudflap, step handle canopy, door with fitting parts, rear view mirror, glass panes, windows, operator’s seat, insulating matting, assembly hoses for evaporator/receiver drier/condenser, heater and air conditioning installation, air conditioning unit, cab heater, interior components, instrument panel, casing loader controls, toolbox, tools, sign plates and decals
• Group 9 – Miscellaneous equipment / hydraulic system: hydraulic oil tank, return line, suction line, excavator system, hydraulic oil cooler, lock cylinder system, hammer circuits, stabiliser legs, loader circuits, control valve with fitting parts, valve bodies, inlet valve, valve sections, hydraulic pump, loader controls, pedal, excavator controls, excavator lock system, optional hydraulic equipment, boom suspension system, mechanical attachment bracket, hydraulic attachment brackets, quick attachment cylinders, bucket cylinder, transport bracket, pins for mounting bucket, lifting framework, self-levelling tilt mechanism, hydraulic cylinders, swing system, boom swing system, swing cylinder, stabilisers, stabiliser cylinder, boom cylinder, boom and dipper arm, extendible dipper arm, dipper arm cylinder, extendable dipper cylinder
• Group 10 – Replaced parts and number index: superseded part numbers with their replacements, plus an alphabetical numerical index of every part number in the catalogue cross-referenced to group, section and page

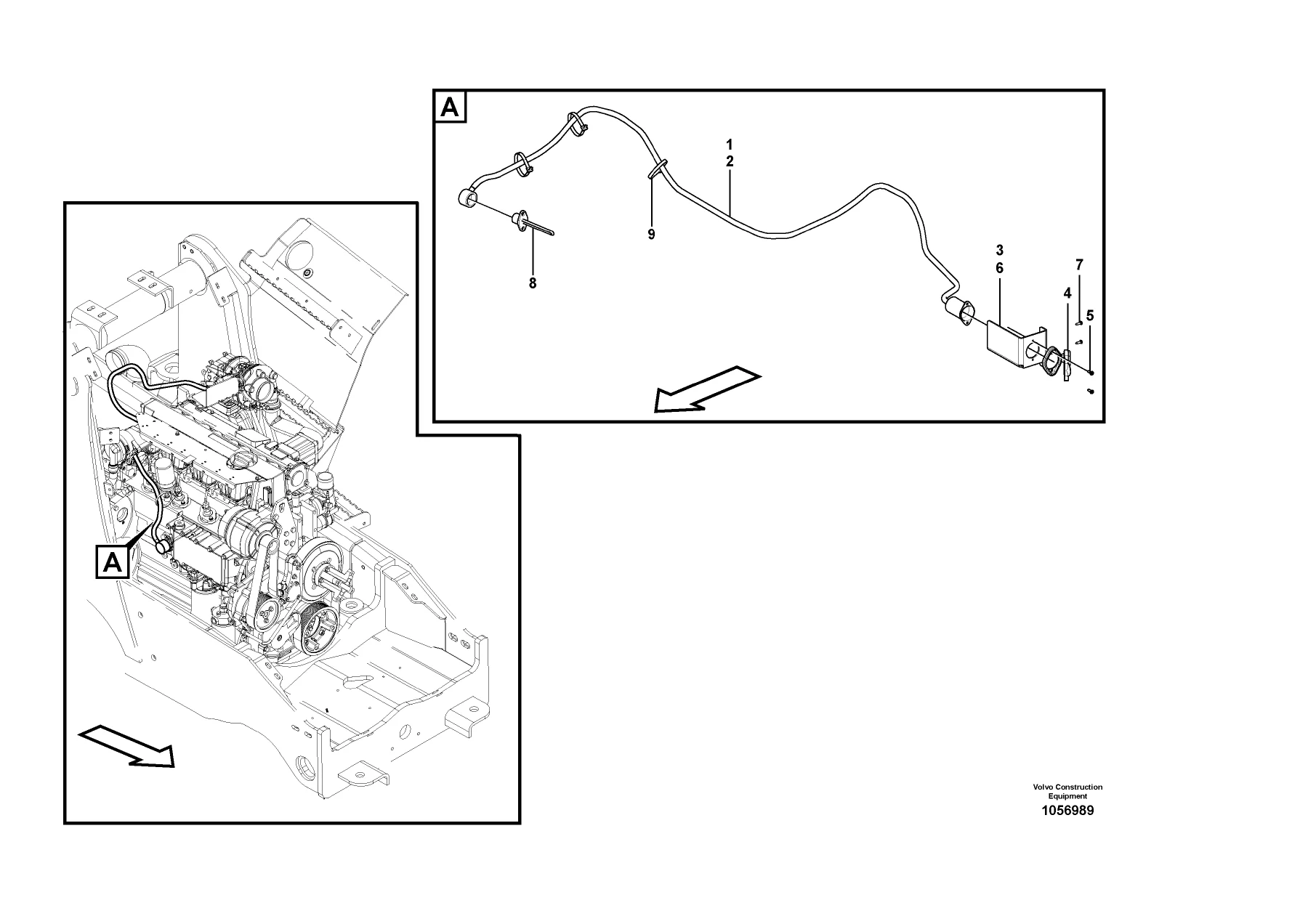

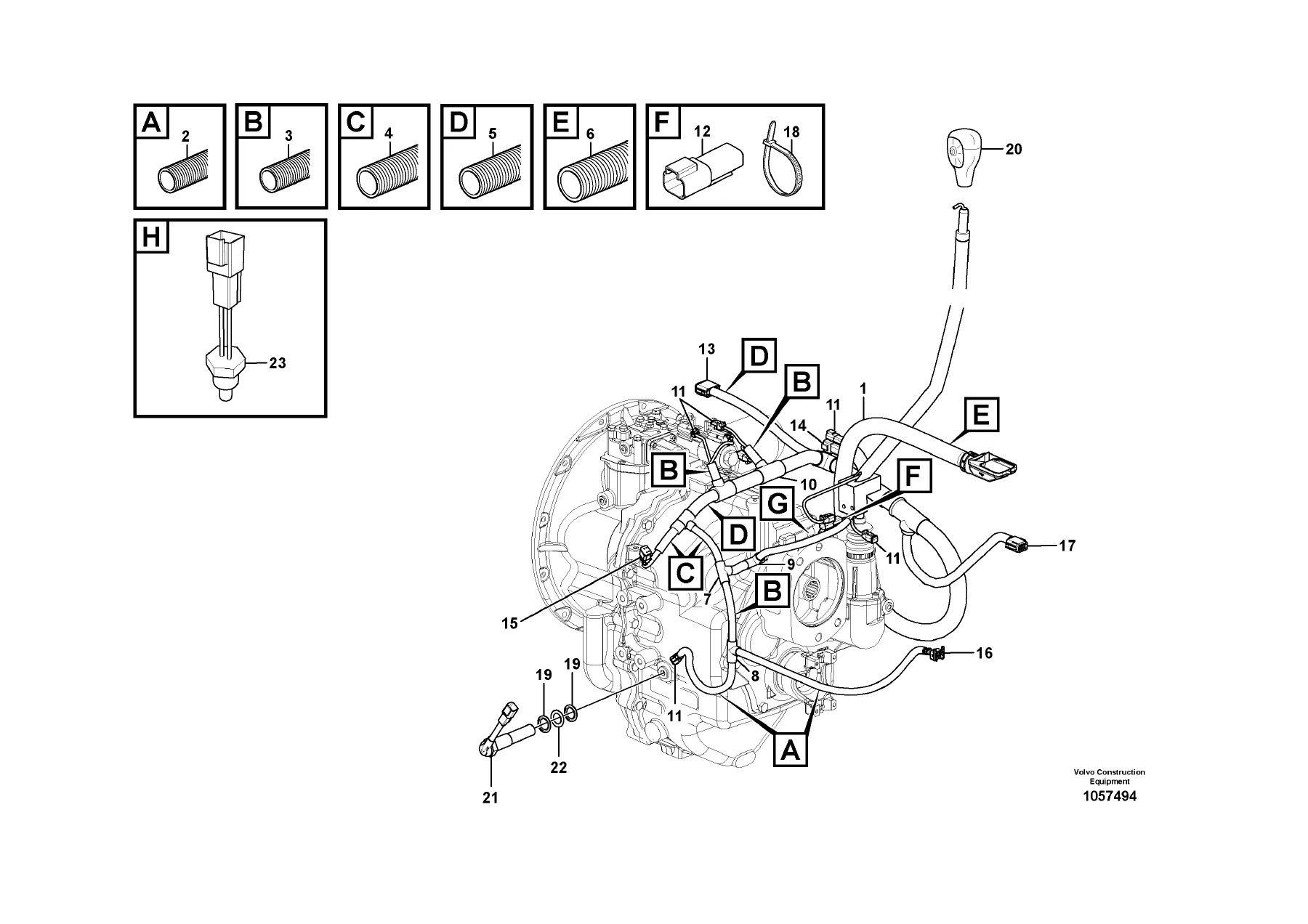

In practical terms, this BL60B parts catalog gives a technician a complete, illustrated map of the machine. Each text page carries the figure number, part number, quantity, parts status code, kit indicator, description in five languages and any relevant notes, while the facing illustration page numbers the components so you can visually confirm a part before ordering. Groups 2 through 9 cover the entire machine, and the numerical index at the back turns the catalogue into a lookup tool: find a part number and it tells you exactly which group, section and page to open.

Machine Identification Covered by This Catalogue

The foreword pages of the parts catalogue list the exact build configurations this edition was issued for:

• Basic machine: 11892007, BL60B SER NO 2121121 –
• Cab: 11298303, Cab; 11298304, Canopy
• Transmission: 16206725, 4WD; 16205728, 2WD
• Drive axle: 11887359, Front, 2WD; 11887360, Front, 4WD; 11887363, Rear
• Engine: 16212920, Type D5DCCE3; 16212922, Type D5DCDE3

Additional axle variants appear throughout the driveline groups, including planetary front axle 11887362 and the heavy-duty front axle 11887362 configuration, so the catalogue supports both the standard 2WD machine and the 4WD backhoe loader with planetary front and rear axles.

What a Parts Catalog Like This Actually Lets You Do

Ordering the wrong part on a backhoe loader is expensive, and it is usually caused by guessing at a part number from a similar machine or a different serial range. The Volvo BL60B parts catalog removes that guesswork. Because every assembly in Groups 2 through 9 is broken down to component level and shown in an exploded illustration, you can identify the exact bearing, seal, bushing, pin, plate, hose, valve section or hydraulic cylinder you need, then confirm it against the figure number on the drawing. This matters most in the areas where backhoe loaders share visually similar parts across variants – the front axle assemblies for 2WD and 4WD machines, the hydraulic valve sections, and the many hose and fitting combinations in the excavator and loader circuits.

The catalogue is equally useful when a part has been superseded. Group 10 lists replaced part numbers alongside their replacement numbers, so if you are holding an older number or working from an old repair note, you can trace it forward to the current part. The parts status column on each text page also flags parts that are no longer stocked, that require an alternative, or that are supplied only as part of a kit, which avoids a wasted order.

Who This BL60B Parts Manual Is For

This parts catalog suits equipment owners maintaining their own BL60B, independent workshops doing rebuilds and hydraulic repairs, and parts professionals who need a reliable cross-reference. The bilingual and multilingual descriptions make it usable across markets, and because it covers the engine, electrical system, transmission, brakes, steering, frame, cab, body panels and the complete hydraulic system, one document answers almost every parts question on the machine.

Get Instant Access to the Volvo BL60B Parts Catalog

With this PDF parts manual on hand you can identify components for engine overhauls, transmission and axle rebuilds, brake and parking brake work, steering cylinder repair, hydraulic valve and pump service, stabiliser and boom cylinder replacement, cab and body panel sourcing, and full electrical harness and lighting troubleshooting. Correct part numbers mean correct fitment the first time, fewer returns and less downtime on a machine that is expected to work every day.
