Volvo EC360 EC460 Excavator Service Information Manual PDF

Description

Volvo EC360 and EC460 Excavator Service Information Manual

This Volvo Construction Equipment Service Information document covers the EC360 and EC460 hydraulic excavators. It gathers machine dimensions, general specifications, standard tightening torques, measurement and inspection procedures, periodic maintenance schedules, hydraulic troubleshooting flowcharts and detailed system descriptions into a single working reference. Every section is built around values a technician can actually use – torque figures, wear limits, adjustment clearances, idle speeds, oil capacities and diagnostic decision trees that lead from a reported symptom down to a specific component.

File Details

• Manual type: Service Information / Workshop Manual
• Brand: Volvo Construction Equipment
• Models covered: EC360, EC460
• Engines covered: Cummins LTA 10-C, Cummins M11-C
• Language: English
• Page count: approximately 1088 pages
• File format: PDF
• Document date: 10.07.2013
• Function groups included: 030 General, 173 and 1732 Measurement and Maintenance, 214 Engine Adjustment, 218-270 Engine Systems, 300-333 Electrical, 1792 Hydraulic Troubleshooting

Chapters Covered

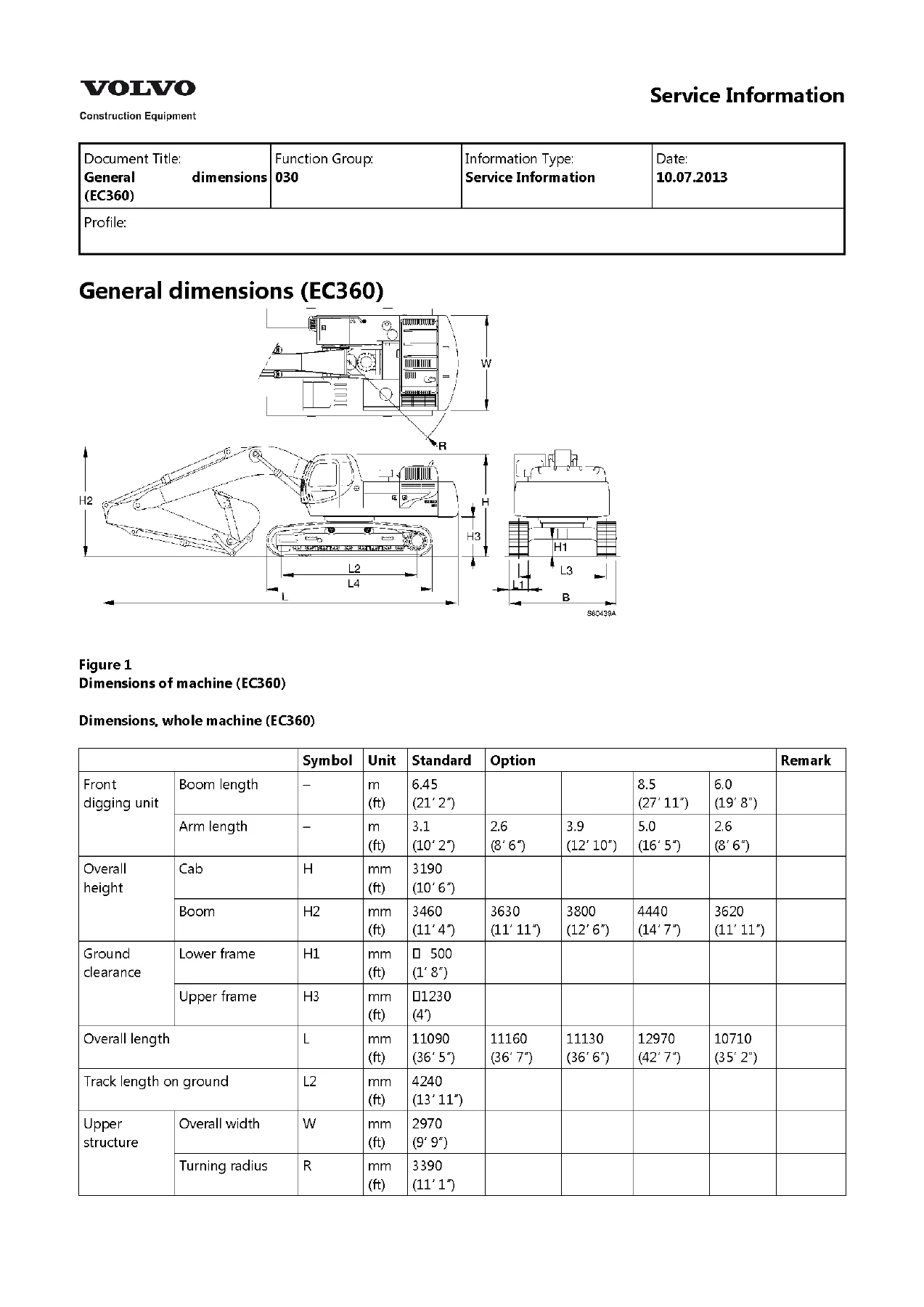

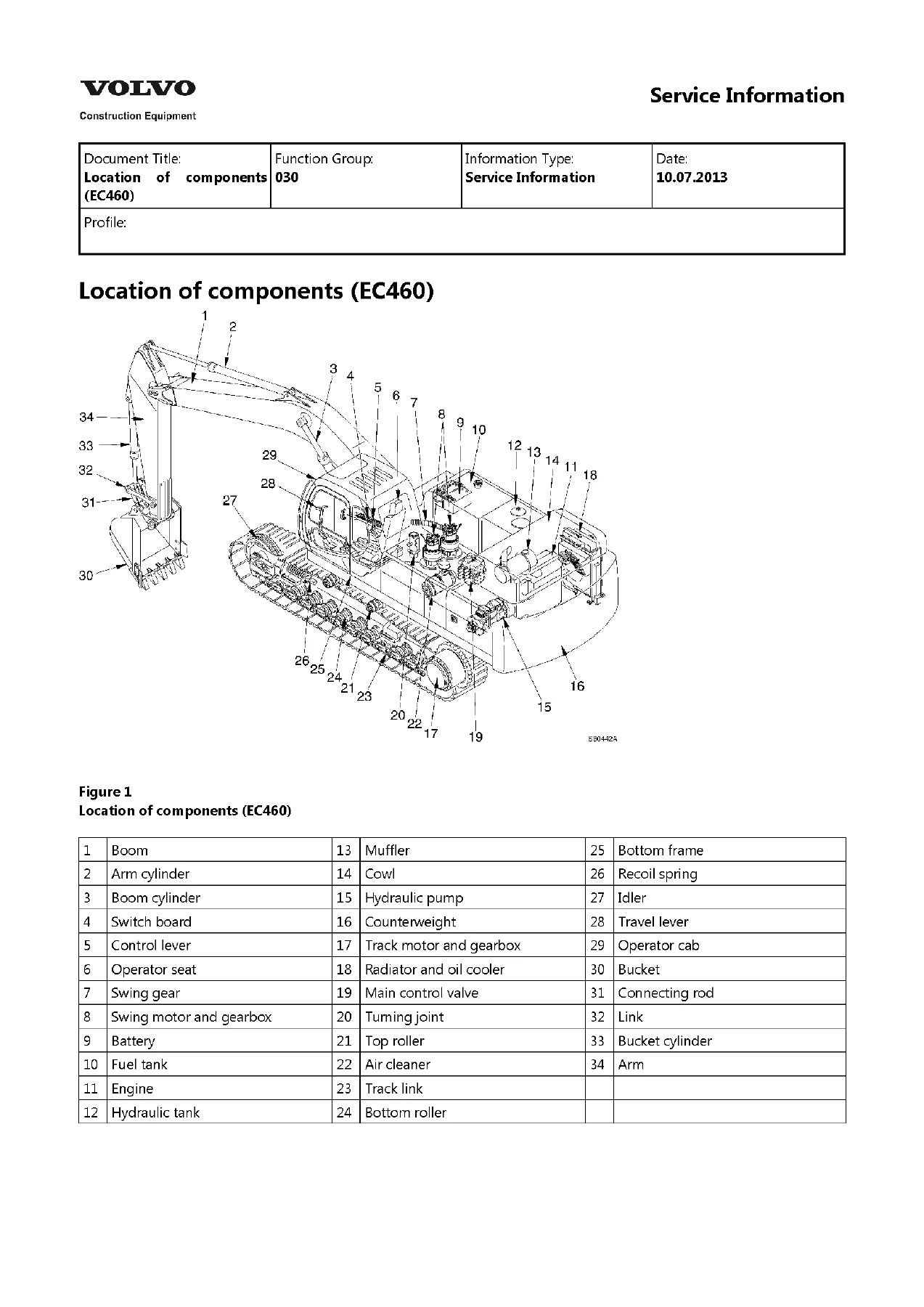

• General (EC360) – whole machine dimensions, boom and arm lengths, cab and boom heights, track and undercarriage dimensions
• Dimensions, whole machine (EC460) – shoe width, track gauge, overall width, track length
• General specification – operating weight, ground contact pressure, swing speed, travel speed, maximum digging force, tractive effort, gradeability
• Measurement conversion tables – length, area, volume, weight, pressure
• Standard tightening torque – metric and inch capscrews in 4T/5T and 10T classifications
• Split flange capscrew torque, hydraulic plug torque with O-ring, swivel nut fitting torque
• Service tools – remote control valve joint tool, rotary switch inspection tool, hydraulic tee fitting tools, turning joint tool, motor guide pins, swing ring gear tool
• Measuring procedures – coasting swing, hydraulic cylinder creep, cylinder speed, swing bearing clearance, straight traveling performance, track running speed, travel speed
• Periodic maintenance table – 10, 40, 100, 250, 500, 1000 and 2000 service hour intervals
• Starting engine with booster cables
• Hydraulic system troubleshooting – pump connection noise, cloudy oil, overheated oil, pump cavitation, contaminated oil, systems that do not operate, slow digging, no digging power, slew faults, slow travel, one-side travel, actuator drop
• Troubleshooting diagnosing procedure – five-step method
• Engine description and characteristic curves – Cummins LTA 10-C and M11-C
• Adjusting engine valves and injectors – valve lash, injector preload, adjustment sequence
• Engine mounting – cushion identification and tightening torques
• Lubricating system – oil flow, oil pressure, oil pan capacity

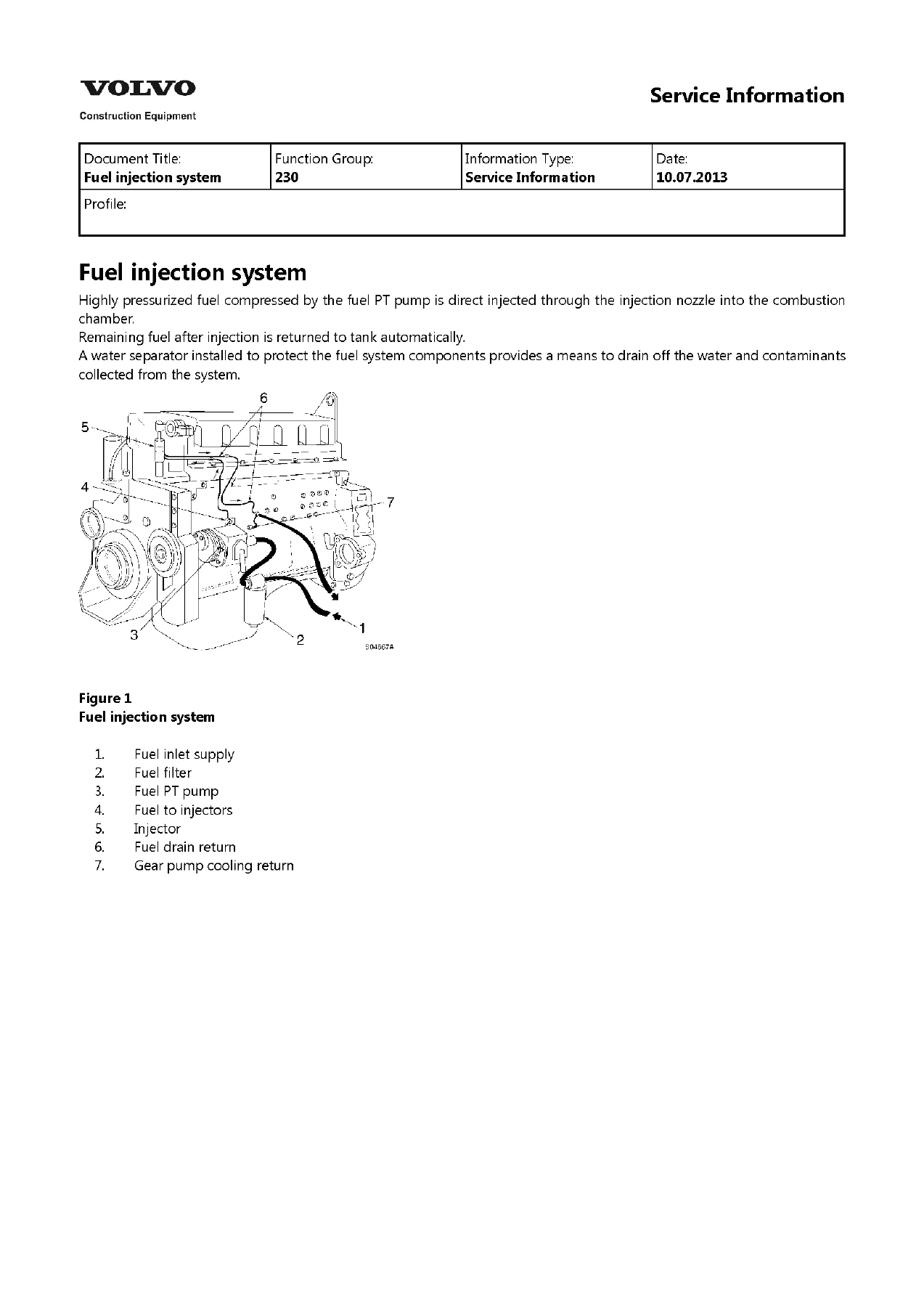

• Fuel system – fuel tank, fuel filling pump, fuel warmer, fuel lines
• Inlet and exhaust system – turbocharger, aftercooler, intake manifold
• Cooling system – radiator, thermostat, engine coolant heater
• Engine control – idle speeds, stepping motor, engine speed control switch, throttle linkage adjustment
• Electrical system – description, troubleshooting, electronic control diagnostics
• Battery, master switch, alternator, regulator, battery relay, safety start relay, start switch, starting operation, starter motor
• Air heater, preheating controller, preheating relay, thermo switch, preheating system
• Air horn
• Flat rate labour time guide covering engine, lubrication, fuel, intake and exhaust, cooling, engine control, electrical, power transmission, hydrostatic drive, swing, brake, frame, tracks, cab, hydraulic system and digging equipment

Read as a whole, this Volvo EC360 EC460 excavator service information manual gives a technician a complete working envelope for both machines rather than an isolated repair sheet. The general chapter establishes exactly what each excavator measures – the EC360 runs from a 6.45 m boom with 3.1 m arm up to an 8.5 m boom configuration, while the EC460 sits on a longer 5370 mm track with a wider 2870 mm gauge. The specification pages then anchor those dimensions to real numbers: the EC360 carries an operating weight of 36800 kg and a ground contact pressure of 0.67 kgf/cm2, while the EC460 is listed at 44500 kg and 0.79 kgf/cm2. Swing speed, first and second travel speed, maximum digging force in normal and pressurized mode, maximum tractive effort and gradeability are all tabulated for both machines, so a technician knows what a healthy machine should look like before any diagnosis begins.

IMAGES PREVIEW

Torque Data and Service Tools

The tightening torque section is unusually practical. Standard capscrew torques are given in both metric and inch sizes across two classification groups, so a technician can find the correct figure for an M4 through to the largest flange bolt without hunting through separate documents. Separate tables cover split flange capscrews, hydraulic plugs with O-ring seals and swivel nut fittings, with individual part numbers listed for the plug sizes. Beyond torque, the document includes fabrication drawings and material specifications for a set of special service tools – the remote control valve joint replace tool, the rotary switch inspection tool, two hydraulic tee fitting replace tools, the turning joint replace tool, the swing motor and travel motor guide pins, and the swing ring gear replace tool. Each drawing lists dimensions, tolerances and the SAE material the tool should be made from.

Measurement, Inspection and Wear Limits

Several sections exist purely to tell a technician whether a machine is still within specification. Coasting of the left and right swing is measured against the marks on the lower frame and swing bearing, with standard, allowable and maximum limit figures listed. Hydraulic cylinder creep is measured over a five-minute period under a defined bucket load, again with allowable and maximum limits. Cylinder speed is timed for boom raise and lower, arm roll in and roll out, and bucket roll in and roll out, with standard times and allowable values for both the EC360 and EC460. Swing bearing clearance is covered in detail for both the removed and installed condition, including dial gauge setup, the two-position measurement method at 90 degrees apart, and the outer and inner capscrew tightening torques. Straight traveling performance, track running speed and travel speed each have their own measurement conditions and limit tables. A short measuring-condition page fixes the baseline – high rpm in P mode, hydraulic oil at 50 +/- 5 degrees C, and firm level ground.

Hydraulic System Troubleshooting Flowcharts

The hydraulic troubleshooting chapter is written as a series of decision trees rather than paragraphs. Starting from a symptom such as unusual noise at the pump connection, cloudy hydraulic oil, overheated oil, pump cavitation, contaminated oil, a digging unit that moves slowly, no digging power, slew faults or slow travel, each chart asks a sequence of yes and no questions and ends at a concrete action – replace the coupling element, clean the suction strainer, repair the port relief valve, replace the main pump, adjust the pump regulator or replace the remote control valve. The diagnosing procedure chapter that follows lays out the five basic steps that underpin all of it: study the system, ask the operator, inspect the machine, operate the machine yourself, and trace possible causes.

Engine, Electrical and Powertrain Descriptions

Both engine variants are described in full. The Cummins LTA 10-C and M11-C are six-cylinder, four-stroke, direct injected, turbocharged and water cooled assemblies with cast iron blocks and cylinder heads. The EC360 characteristic curves show the LTA 10-C rated at 250 PS at 1700 rpm with 114 kgf-m maximum torque, and the M11-C at 250 PS at 1700 rpm with 120 kgf-m, while the EC460 curves show 300 PS at 2000 rpm with 135 kgf-m for the LTA 10-C and 120 kgf-m for the M11-C. Valve and injector adjustment is covered step by step, with an intake valve lash of 0.36 mm and exhaust lash of 0.69 mm, an injector preload torque of 0.6 to 0.7 N-m, the 1-5-3-6-2-4 firing order and a full adjustment sequence table. The lubricating, fuel, inlet and exhaust, cooling and engine control systems are each described with flow diagrams and component locations. The electrical chapter covers the 24 volt system in depth – battery and master switch, Delco Remy 21SI alternator, regulator circuitry, battery relay, safety start relay, start switch, starting operation sequence, starter motor construction, air heater, preheating controller, preheating relay and thermo switch. A dedicated electronic control troubleshooting section works through controller error codes and the input and output diagnosing procedure, and a connector handling guide explains how to separate and inspect the harness connectors without damaging them.

Why This Manual Matters

A machine like an EC360 or EC460 is expensive to diagnose by substitution. The difference between a correctly adjusted valve train and one that is half a millimetre out, or between a swing bearing within clearance and one past its limit, is not visible by eye – it has to be measured against published figures. This Volvo EC360 EC460 service information manual supplies those figures along with the procedures to take them, so a technician can confirm a fault, repair it to specification and verify the result instead of guessing. It supports the full range of work these excavators demand: dimensional checks, torque application, hydraulic and electrical fault finding, engine valve and injector adjustment, preheating system diagnosis, scheduled maintenance at every interval through to 2000 hours, and flat rate labour times for quoting the job. The document is delivered as an instant PDF download after payment, with no shipping and no waiting. It opens on a workshop computer, a laptop or a tablet and can be printed page by page for use at the machine, so the relevant torque table or measurement procedure is always within reach when the work is being done.
