Volvo Penta D34A MS D34A MT Marine Diesel Engine Workshop Manual

Description

Volvo Penta D34A MS D34A MT Marine Diesel Engine Workshop Manual

This Volvo Penta D34A MS D34A MT Marine Diesel Engine Workshop Manual is the complete factory-style repair reference for the D34A 12-cylinder, V-type, turbocharged marine diesel used in both the MS and MT variants. It walks a technician through every major system on the engine, from cylinder head work down to the crankcase, and pairs each procedure with the exact clearances, torques, and pressures needed to put the engine back into service correctly.

• Manual type: Workshop / repair manual
• Brand/model: Volvo Penta D34A MS, D34A MT
• Language: English
• Page count: 196 pages
• File format: PDF
• Copyright: © 2003 AB Volvo Penta

IMAGES PREVIEW

Chapters Covered

• Safety Information and Warning Labels (D34A MS and D34A MT)
• General Information — Identification Numbers, Specifications
• Maintenance Standards Table
• Tightening Torques (D34A MS and D34A MT)
• Sealants and Lubricants Table

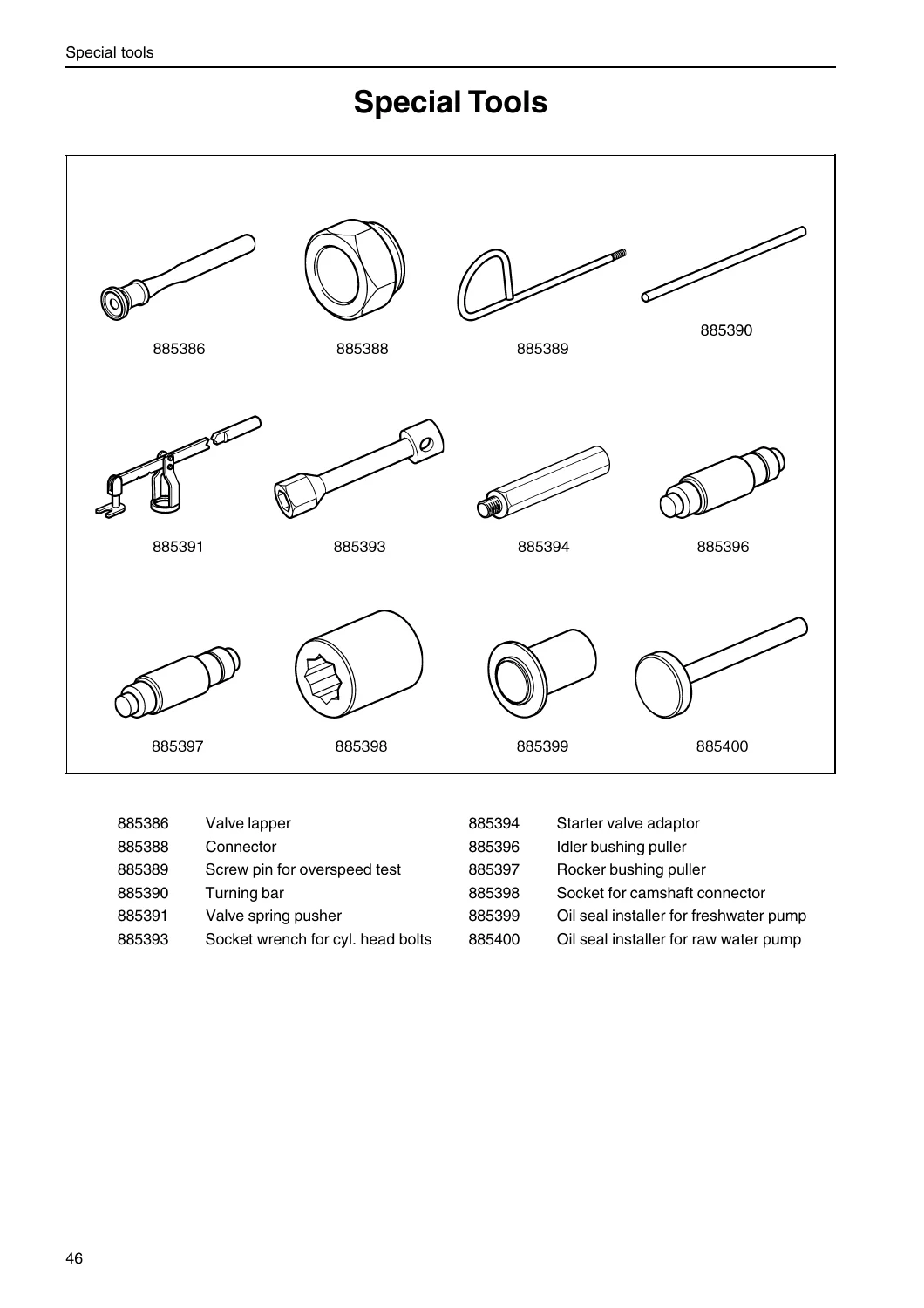

• Special Tools
• Determination of Overhaul Timing, Adjustment and Benchtesting
• Engine Auxiliaries Removal and Installation
• Group 21 Engine Body — Cylinder Heads and Valve Mechanism, Cylinder Liners/Pistons/Connecting Rods, Flywheel/Timing Gears/Damper/Pulleys/Camshaft, Crankcase/Crankshaft/Main Bearings
• Group 22 Lubrication System — Oil Strainer/Pump/Safety Valve, Oil Cooler/Filter/Relief Valve, Bypass Oil Filter
• Group 23 Fuel System — Fuel Filters, Fuel Injectors, Governor Drive
• Group 25 Inlet and Exhaust System — Air Cooler, Turbocharger (TD10, TD13)
• Group 26 Cooling System — Fresh Water Pump, Thermostats, External Heat Exchanger, Raw Water Pump
• Group 30 Electrical System — Starter, Alternator

Together these sections give a technician everything needed to strip, inspect, and rebuild the D34A from the cylinder head down to the crankshaft, plus the auxiliary systems that keep a marine installation running: fuel delivery, cooling, lubrication, and starting/charging.

Engine Coverage

The D34A MS/MT is a water-cooled, 4-stroke, turbocharged diesel with air-cooled intercooler, 12 cylinders arranged in a vertical V, 150mm bore x 160mm stroke, 33.93 litre displacement, and a 15.0:1 compression ratio. This Volvo Penta D34A MS D34A MT Marine Diesel Engine Workshop Manual documents both the marine gear-driven MS version and the reversing MT version, noting the differences in coolant capacity, sea water pump fitment, and weight between the two.

What This Manual Lets You Do

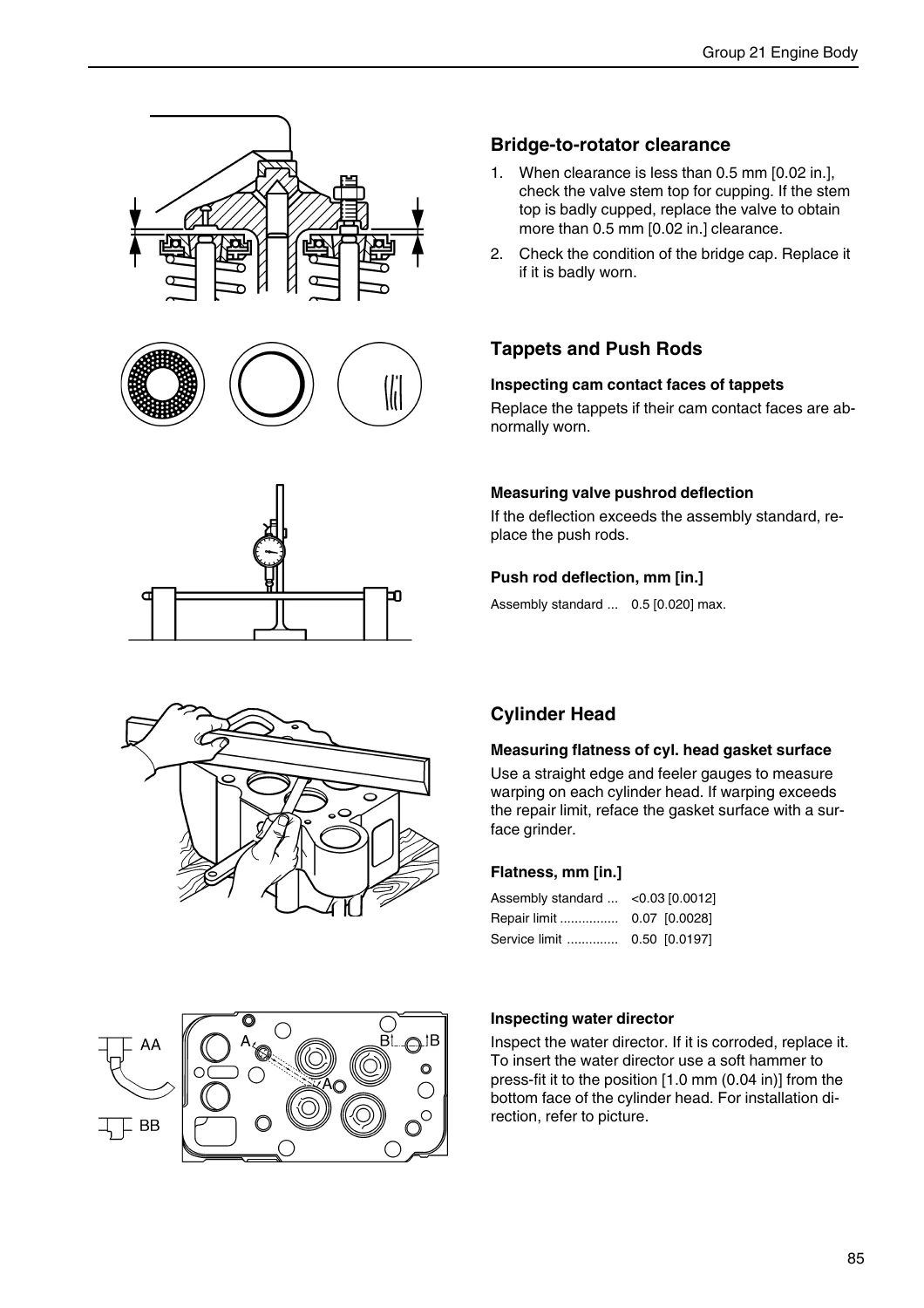

With this D34A workshop manual you can measure compression pressure and know exactly when overhaul is due, disassemble and inspect cylinder heads, valves, liners, pistons, connecting rods, the crankcase and crankshaft against factory assembly standards and service limits, and rebuild the fuel injection pump, injectors, and governor drive to Bosch and Woodward specifications. It covers oil pump, oil cooler, and safety valve service, turbocharger (TD10/TD13) inspection and clearances, fresh and raw water pump rebuilds, thermostat testing, and starter/alternator disassembly and electrical checks — all backed by the full tightening torque tables, sealant/lubricant application chart, and special tools list.

Using the correct clearances, bearing thicknesses, and torque sequences in this manual is what keeps a rebuilt D34A running at its rated output and prevents repeat failures from mismatched bearings, wrong valve lash, or under/over-torqued fasteners. Because it’s a straightforward PDF download, this Volvo Penta D34A MS D34A MT Marine Diesel Engine Workshop Manual arrives instantly after purchase — no shipping wait, no printed book to store. Read it on a laptop, tablet, or phone in the engine room, or print out just the pages you need for the job at hand.
