Volvo Penta D4 and D6 Inboard Diesel Engine Groups 20-26 Workshop Service Manual
Original price was: $34.95.$21.95Current price is: $21.95.
Comprehensive workshop service manual covering overhaul, mechanical repairs, fuel injection, turbocharging, and cooling systems for Volvo Penta D4 and D6 marine diesel engines.
Description
Volvo Penta D4 and D6 Inboard Diesel Engine Groups 20-26 Workshop Service Manual
This technical publication provides comprehensive workshop service instructions, mechanical overhaul procedures, and factory specifications for Volvo Penta D4 and D6 marine diesel engines across Groups 20 through 26. Built around modern common rail direct injection, double overhead camshafts, four valves per cylinder, and advanced forced induction, these inline four- and six-cylinder powerplants demand precise mechanical tolerances and dedicated service routines. Whether carrying out in-chassis maintenance or complete bench rebuilds in an engine holding fixture, this Volvo Penta D4 and D6 Inboard Diesel Engine Groups 20-26 Workshop Service Manual provides marine mechanics and technicians with the exact procedures, factory tightening schedules, and diagnostic criteria established by AB Volvo Penta.
File Details
| Document Type: | Workshop Manual (Groups 20–26) |
| Manufacturer: | Volvo Penta |
| Applicable Engines: | Volvo Penta D4 (4-Cylinder) and D6 (6-Cylinder) Inboard Diesel Engines |
| Publication Number: | 47700149 |
| Issue Date: | 01-2011 (January 2011) |
| Language: | English |
| Page Count: | 296 pages |
| Document Format: | High-resolution digital PDF |
Chapters Covered
| Chapter | Description |
|---|---|
| 00-0 General | Certified engines, spare parts compliance, workshop repair instructions, tightening torques and angle tightening methods, strength classes, lock nut replacement rules, RTV and anaerobic sealing compounds, fluorocarbon rubber handling and safety protocols. |
| 03-0 General Specifications | Identification plate decoding, engine and drive decals, component locations on D4 and D6 models (starboard and port views for reverse gear, Aquamatic stern drive, and IPS configurations). |
| 03-2 Specifications, Engine | Tightening torques table, multi-stage cylinder head and valve cover tightening schedules, balance shaft torques, sealant application charts, and complete wear limit data for cylinder block, cylinder head, pistons, piston rings, gudgeon pins, crankshaft, main bearings, con rods, idler gears, camshafts, and valves. |
| 03-3 Specifications, Electrical | System voltage standards (12V and 24V), starter battery capacity (CCA ratings), marine alternator outputs, starter motor kilowatt ratings. |
| 05-1 Safety Instructions | Personal protective equipment, high-pressure fuel hazards, lifting gear setup, electrical welding precautions, fire safety, and chemical safety. |
| 08-2 Special Service Tools | Cataloged Volvo Penta service tools including pullers, drifts, lock pins, press adapters, indicator fixtures, and VODIA diagnostic equipment. |
| 18-0 General Chemical Products | Approved greases, locking fluids, thread sealants, and vulcanizing compounds. |
| 20-0 Engine Information, General | System operation and design for cylinder block, cylinder head, balance shaft assembly (D4), block stiffening frames (D6), crankshaft, oil-cooled pistons, rear-mounted gear train, and EVC interface. |
| 20-9 Miscellaneous | Guidelines for working on EVC engines, battery charging protocols, harness care, and engine control unit disconnect procedures prior to welding. |
| 21-0 Engine Complete, General | Step-by-step disassembly and reassembly workflows for both supercharged and non-supercharged variants, engine mount fixtures, belt routing, and wiring harness mapping. |
| 21-1 Cylinder Head | Valve removal, valve guide inspection and reaming, cylinder head flatness checking, non-return valve servicing, and copper sleeve replacement. |
| 21-2 Cylinder Block | Cylinder bore inspection, honing pattern assessment, and block replacement criteria. |
| 21-3 Cylinder Liner, Pistons | Piston skirt wear inspection, ring groove clearance checks, and end-gap ring measurements below bottom dead center. |
| 21-4 Valve Mechanism | Hydraulic valve lifter handling, valve seat reconditioning and replacement, valve stem clearance checks, and contact pattern dye verification. |
| 21-5 Timing Gears and Shaft | D4 balance shaft housing overhaul, camshaft runout and lobe lift measurement, and flywheel runout indication. |
| 21-6 Crank Mechanism | Connecting rod alignment and twist inspection, crankshaft journal micrometer measurement, crack detection protocols, polygon hub installation, and flywheel ring gear heating and installation. |
| 21-9 Miscellaneous | Compression testing methodology using the VODIA diagnostic tool. |
| 22-0 Lubricating and Oil System, General | Oil pressure testing procedures at low idle and operating speeds. |
| 22-1 Oil Pump and Line | Lubricating oil pump gear lash and end float inspection, pump replacement criteria, and safety valve overhaul. |
| 22-3 Oil Cooler | Oil valve housing teardown, thermostat temperature opening testing, and pressure reducing valve renewal. |
| 23-3 Fuel Feed Pump and Filter | Bosch CP3.3 high-pressure pump testing, rail pressure evaluation, and fuel pump renewal and timing. |
| 23-4 Fuel Tank, Fuel Lines, Evaporator | Fuel supply suction depression measurements and vacuum line checks. |
| 23-7 Injectors and Delivery Pipes | Fuel injector return flow leakage diagnostics, injector removal with extraction tools, copper sleeve cleaning, and multi-stage clamp bolt tightening. |
| 23-9 Miscellaneous | Common rail pressure limiting valve replacement, rail pressure sensor servicing, and manual fuel system bleeding. |
| 25-5 Turbo and Supercharger | Turbocharger removal, turbine and compressor radial and axial play measurement, compressor wheel cleaning, mechanical supercharger inspection, and electromagnetic clutch overhaul. |
| 25-9 Miscellaneous | Exhaust backpressure testing with U-tube manometer or gauge, and VODIA charge air pressure verification. |
| 26-1 Radiator, Heat Exchanger | Tubular heat exchanger and oil cooler bundle disassembly, tube cleaning, sacrificial zinc anode replacement, and pressure testing. |
| 26-2 Coolant Pump, Thermostat | Coolant circulation pump overhaul, shaft seal replacement, and thermostat bench testing. |
| 26-5 Charge Air Cooler with Connections | Charge air cooler core removal, ultrasonic/manual cleaning, sealing flange preparation, and leak testing. |
| 26-6 Sea Water System, Sea Water Pump | Impeller inspection and replacement, raw water pump bearing and seal rebuild, and raw water circuit leak testing. |
| 26-9 Miscellaneous | Closed freshwater cooling circuit pressure testing. |
This technical volume provides marine engineering professionals with the authoritative factory standards required to carry out complete engine overhauls and subassembly rebuilds. Covering everything from raw water impellers to high-pressure common rail injection and crankshaft bearing clearances, it ensures all work conforms directly to Volvo Penta engineering specifications.

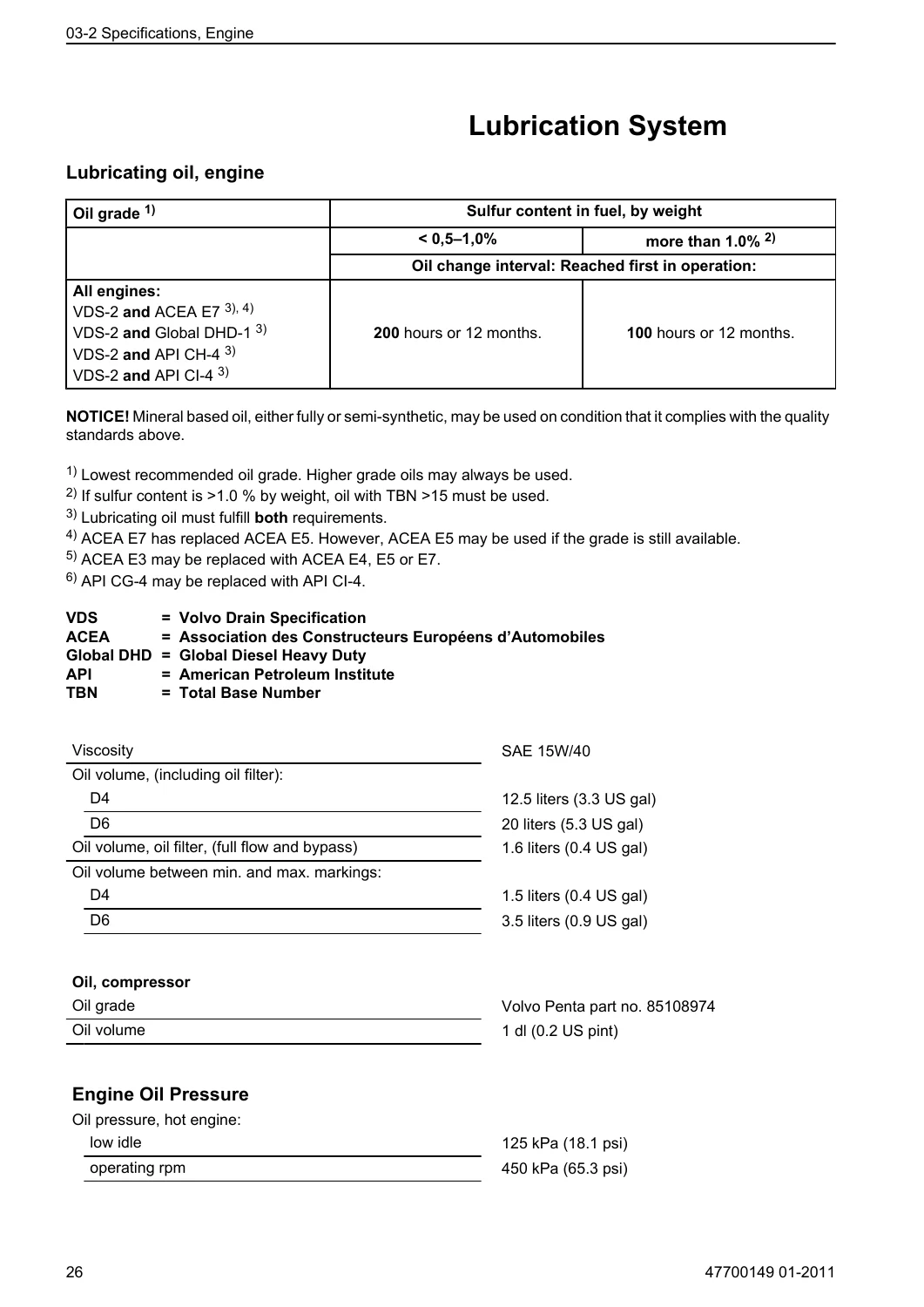

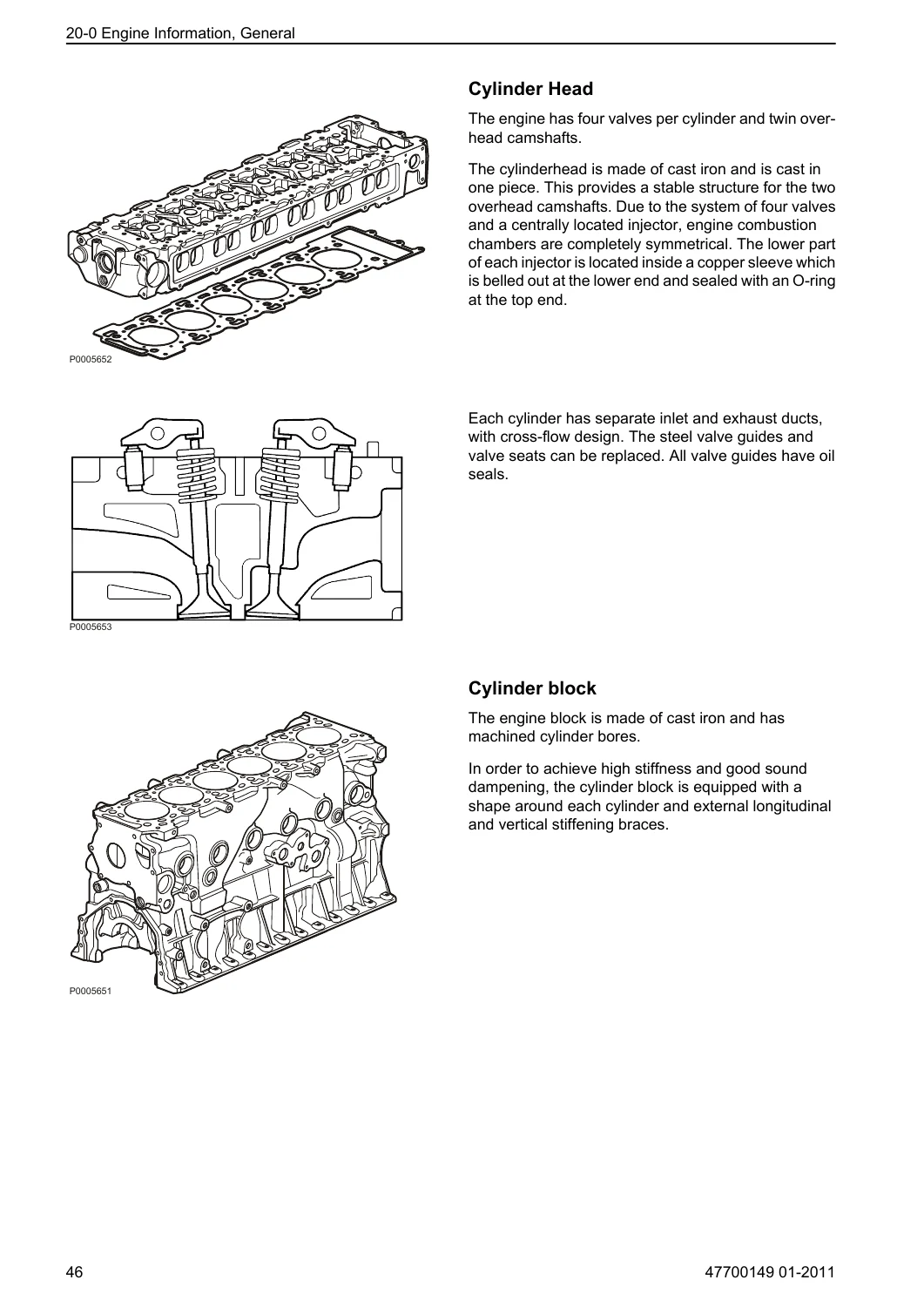

IMAGES PREVIEW
Major Engine Mechanical Overhaul Procedures
The Volvo Penta D4 and D6 Inboard Diesel Engine Groups 20-26 Workshop Service Manual details complete bottom-end and top-end overhaul procedures. Technicians are guided through dismantling and reassembling the cast-iron cylinder block and single-piece cylinder head. Coverage includes five-bearing crankshaft service for D4 models and seven-bearing crankshaft service for D6 engines, complete with journal regrinding dimensions, thrust bearing breadth specifications, and hydraulic oscillation damper inspections. Precise instructions govern the removal, inspection, and installation of pistons featuring oil-cooling channels, keystone upper compression rings, taper-faced second rings, and reversible oil scrapers.
For D4 engines, the manual provides dedicated procedures for the aluminum balance shaft housing and its twin contra-rotating shafts, including counterweight gear alignment and end float measurement. For D6 engines, full coverage is provided for the lower stiffening frames (both early aluminum sheet and late sheet steel designs) that minimize structural vibration and acoustic output.
Fuel Injection & Electronic Engine Management
Precise fuel delivery instructions center on the high-pressure common rail system powered by the Bosch CP 3.3 three-piston pump. The manual details MPROP proportional solenoid valve operation, rail pressures ranging from 40 to 160 MPa (400 to 1600 bar), and pressure limiting valves designed to open at 185 to 195 MPa. Step-by-step procedures illustrate how to verify fuel supply line depression, test injector return flow using excess fuel testers, and safely remove and install injectors. Detailed protocols cover the reaming and hydraulic pressing of cylinder head copper injector sleeves, along with three-stage tightening procedures for both M8 and M9 injector clamp bolts.
Induction, Turbocharging & Cooling Systems
Complete service procedures cover the induction and exhaust systems, featuring KKK K26 and K27 turbocharger variants and Roots-type mechanical superchargers found on performance models. Technicians will find exact instructions for measuring turbine shaft end float and radial play, as well as replacing and setting air gaps on electromagnetic supercharger drive clutches (0.4–0.7 mm on select D4/D6 models and 0.7–1.0 mm on D4-300 and D6-435 units). Cooling system coverage includes overhauling the belt-driven centrifugal freshwater pump, rebuilding the seawater impeller pump with new seals and bearings, cleaning and pressure testing tubular heat exchangers and charge air cooler cores, and testing thermostat opening thresholds.
Why Having This Technical Manual Matters
Working on sophisticated marine diesels without genuine engineering specifications introduces severe risks of premature mechanical failure, fuel system leaks, or thermal damage. The Volvo Penta D4 and D6 Inboard Diesel Engine Groups 20-26 Workshop Service Manual eliminates guesswork by providing precise torque-angle steps, chemical sealant locations, permissible wear tolerances, and dedicated troubleshooting paths. Delivered as an instant high-resolution PDF download, this manual is immediately accessible on any desktop, laptop, tablet, or smartphone, and can be printed in whole or by section for hands-on use in the workshop or engine bay.
