Volvo Penta TAD540-870 Workshop Manual Groups 21-26 PDF – TAD5xxVE & TAD8xxVE Engine Service Repair

Description

Volvo Penta TAD540-870 Workshop Manual – Groups 21-26

This is the full workshop manual for Volvo Penta TAD540-2 VE, TAD550-2 VE, TAD570-2 VE, TAD580-3 VE, TAD840-3 VE, TAD840 GE, TAD850-3 VE, TAD870-3 VE, TAD880-4 VE and TAD880-2GE engines. It covers Groups 21 through 26 – the complete engine, lubrication and oil system, fuel system, inlet and exhaust system, and cooling system – plus the alternator and starting system sections. The document runs 322 pages and carries publication number 47705010, dated 06-2020.

Written for Volvo Penta workshops and qualified personnel, this TAD540-870 workshop manual gives you the same disassembly, inspection, assembly, and tightening procedures used in a professional service environment – including the Special Tightening Torques chapter that governs every critical fastener on these engines.

File Details

• Manual type: Workshop Manual (Service Manual)
• Brand: Volvo Penta
• Document number: 47705010
• Date / edition: 06-2020
• Language: English
• Page count: 322
• File format: PDF
• Groups covered: 21, 22, 23, 25, 26, plus 30 / 32 / 33

Chapters Covered

• General Information – General, Specifications, General Specifications, Specifications Engine, Lubrication System, Fuel System, Inlet and Exhaust System, Cooling System, Safety Instructions, Special Service Tools
• Group 21 – Engine
  • Engine Complete, General – Fitting the Fixture, Engine Disassembly, Engine Assembly
  • Cylinder Head
  • Valve Mechanism
  • Timing Gears and Shaft
  • Crank Mechanism
• Group 22 – Lubricating and Oil System
  • Oil Pump and Line
  • Oil Filter
  • Oil Cooler
• Group 23 – Fuel System
  • Fuel System, General
  • Fuel Feed Pump and Filter
  • Injection Pump, Regulator
  • Injectors and Delivery Pipes
  • Miscellaneous
• Group 25 – Inlet and Exhaust System
  • Inlet and Exhaust Manifolds
  • Emission Control, Catalytic Converter
  • Turbo and Supercharger
  • Air Cleaner, Throttle Housing
• Group 26 – Cooling System
  • Cooling System, General
  • Radiator, Heat Exchanger
  • Coolant Pump, Thermostat
  • Fan, Fan Shroud
• Group 32 – Alternator
  • Alternator, Charge Regulator
• Group 33 – Starting System
  • Starter Motor
• Index and References to Service Bulletins

What this Volvo Penta TAD540-870 workshop manual gives you is a single, complete, factory-derived reference for the mechanical heart of these engines. Groups 21 through 26 are where nearly every repair decision on a TAD5xxVE or TAD8xxVE engine lives: the cylinder head torque/angle sequence, the timing gear alignment marks, the conrod cap procedure, the common-rail fuel system layout, the VGT turbo removal steps, and the coolant pump and thermostat housing bolt patterns. Rather than pulling torque figures from one source and disassembly order from another, everything is in one place, organised the way the engine itself is assembled.

What This Manual Enables You To Do

These are the jobs the manual supports, start to finish:

• Remove and refit the cylinder head with the correct bolt sequence and the short/long bolt angle-tightening distinction
• Adjust inlet and exhaust valve clearances (0.4 mm inlet, 0.5 mm exhaust, cold engine) and set exhaust brake piston clearance
• Disassemble and assemble the complete engine on a workshop fixture, including the frame reinforcement and flywheel housing

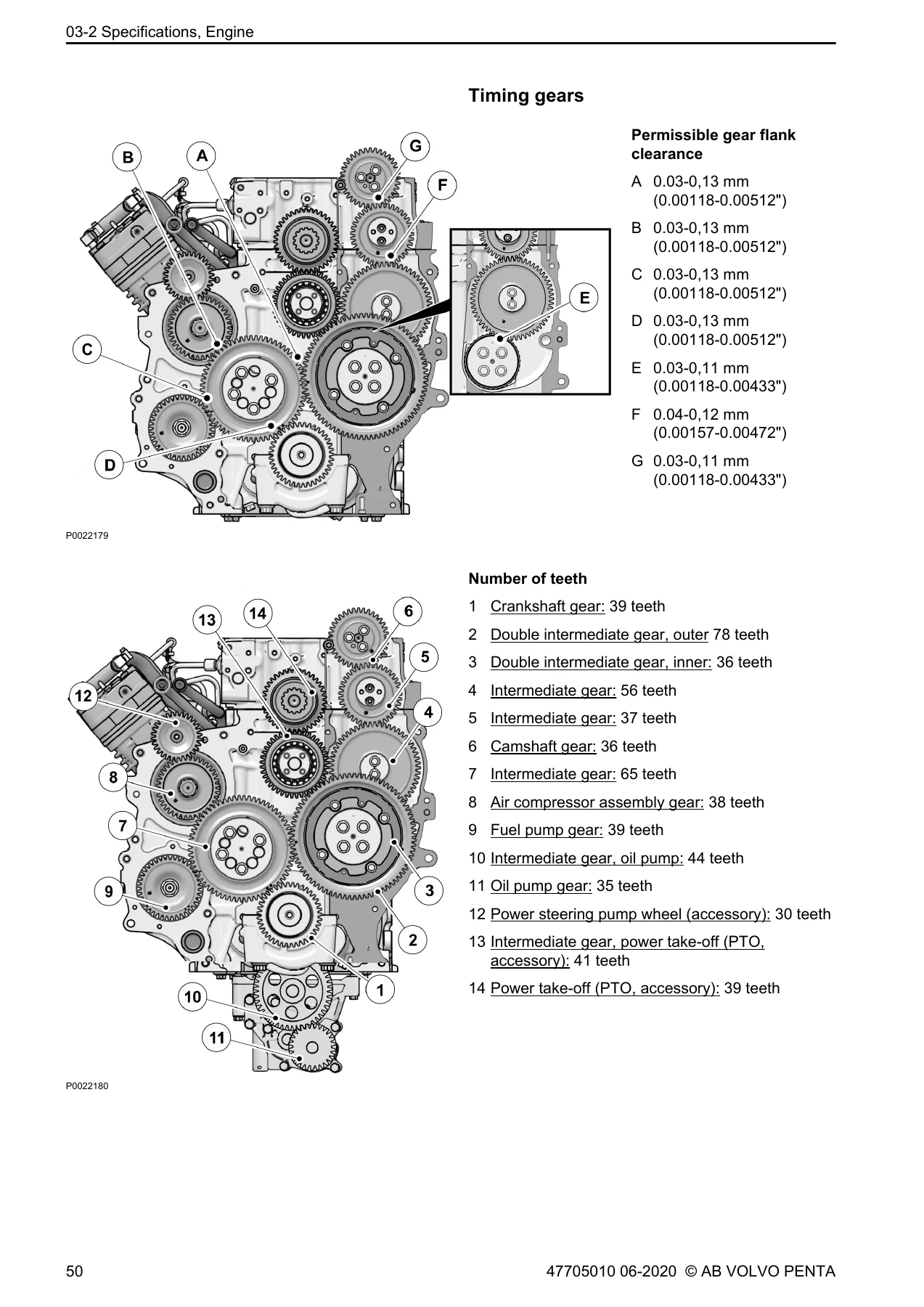

• Replace timing gears and check gear flank clearance across the whole gear train
• Remove and install the crankshaft, main bearings, thrust washers, conrods and pistons
• Service the oil pump, oil filter housing and oil cooler with correct O-ring placement
• Bleed the fuel system and replace the fuel pre-filter, fuel filter and filter housing
• Remove and replace the high-pressure pump, MPROP valve, common rail, pressure reducing valve, injectors and delivery pipes
• Remove and replace the intake manifold, exhaust manifold, e-EGR cooler, control valve and turbocharger
• Replace the coolant pump, thermostat, radiator, fan, viscous coupling and drive belt
• Replace the alternator, alternator pulley and starter motor
• Check crankshaft end float, liner height, camshaft wear and valve guide play

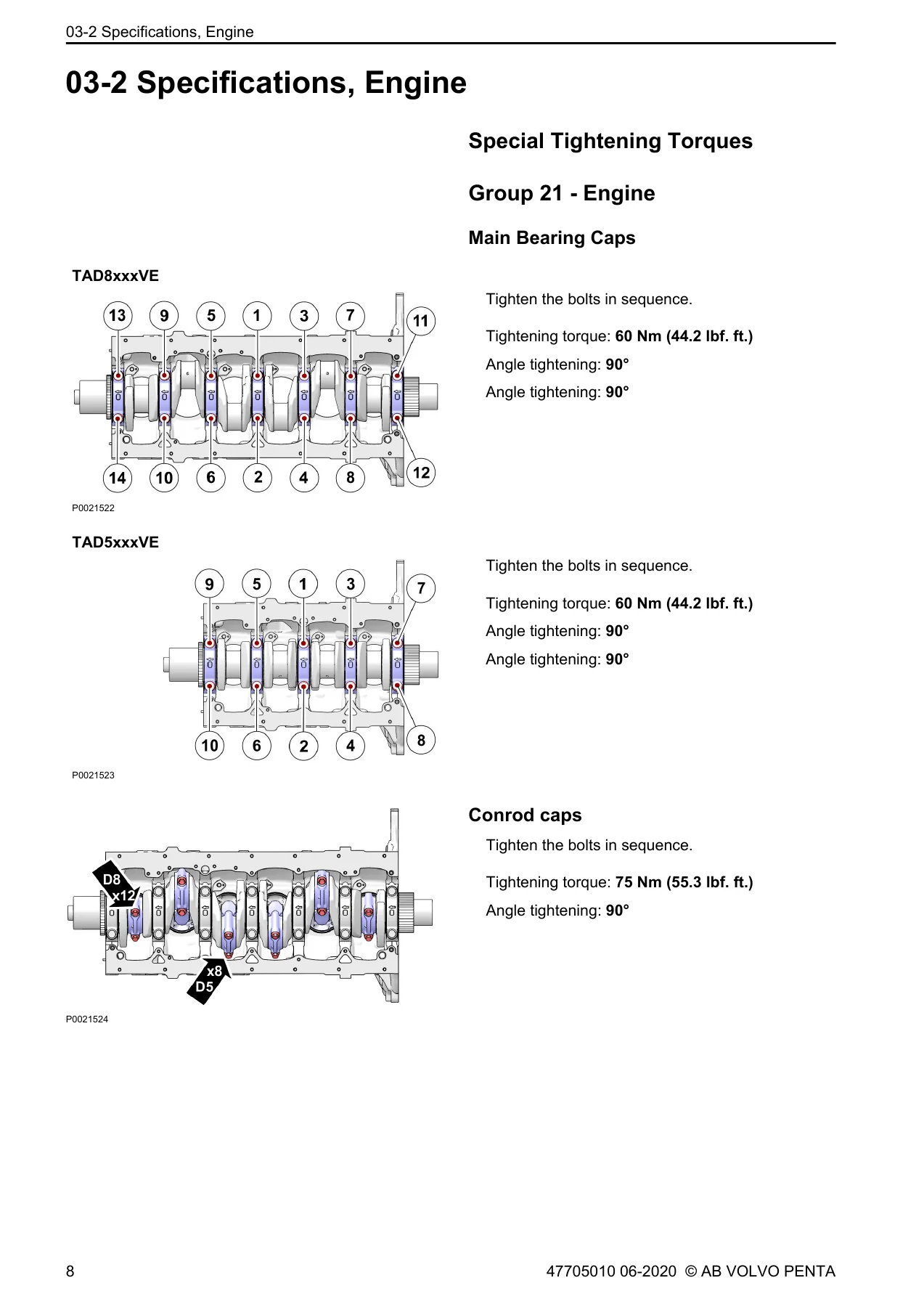

Each of those procedures is backed by the tightening torque data that makes the job safe. The manual states the tightening torques for vital fasteners directly in the work descriptions and in the Special Tightening Torques chapter, with torque/angle tightening steps spelled out – for example the main bearing caps at 60 Nm plus two 90-degree stages, the conrod caps at 75 Nm plus 90 degrees, and the flywheel at 190 Nm. Getting those values and sequences right is the difference between an engine that runs reliably for years and one that fails early.

Models and Engines Covered

The manual is divided into TAD5xxVE (4-cylinder) and TAD8xxVE (6-cylinder) procedures where they differ, so you always know which specification applies to your engine.

• TAD540-2 VE, TAD550-2 VE, TAD570-2 VE, TAD580-3 VE – 4-cylinder, 5.13 L displacement
• TAD840-3 VE, TAD840 GE, TAD850-3 VE, TAD870-3 VE, TAD880-4 VE, TAD880-2GE – 6-cylinder, 7.7 L displacement

Common specifications across the range include 110 mm bore, 135 mm stroke and 17.5:1 compression ratio. Firing order is 1-3-4-2 on the four-cylinder engines and 1-4-2-6-3-5 on the six-cylinder engines. Rotation is clockwise seen from the front.

Why This PDF Matters

Emission-certified Volvo Penta engines place specific demands on service work: maintenance intervals must be followed, only approved spare parts may be used, and injection pump, pump setting and injector service must be carried out correctly. This manual reflects that standard. It includes the safety information, the handling rules for fluorocarbon rubber seals, the sealing compound and locking fluid guidance, and the cleanliness requirements for fuel, lubrication and turbocharger work that keep an engine within its certified condition.

It also includes the special tools list – pullers, drift tools, lifting tools, pressure testing kits, timing tools and rotation tools – so you can see exactly which tool is required before you start a job, rather than discovering mid-stripdown that you need a puller or a guide pin.

IMAGES PREVIEW

Instant PDF Delivery

The Volvo Penta TAD540-870 Workshop Manual Groups 21-26 is delivered as a downloadable PDF immediately after payment. There is no shipping and no waiting. Read it on a laptop, tablet or phone in the workshop, or print the pages you need and take them to the engine. Because it is a PDF, you can jump straight to the group and procedure you are working on, keep it open beside the machine, and reprint a soiled page without losing the original.

If you maintain, repair or rebuild a TAD540-2 VE, TAD550-2 VE, TAD570-2 VE, TAD580-3 VE, TAD840-3 VE, TAD840 GE, TAD850-3 VE, TAD870-3 VE, TAD880-4 VE or TAD880-2GE, this is the reference that tells you the order, the torque and the tolerance – the three things that decide whether the job is done right.
