WEICHAI WD12 Series Marine Diesel Engine Operation and Maintenance Manual

Description

WEICHAI WD12 Series Marine Diesel Engine Operation and Maintenance Manual

This is the full WEICHAI operation and maintenance manual for the WD12 series marine propulsion diesel engine, published by Weichai Power Co., Ltd. It is the working reference that covers the engine from the moment it is lifted out of its crate through installation, first start, sea trials, daily operation, scheduled servicing and major overhaul. Everything a vessel operator, shipyard fitter or marine mechanic needs in order to run and maintain a WD12 correctly is contained in these pages.

File Details

• Manual type: Operation and Maintenance Manual
• Brand: WEICHAI (Weichai Power Co., Ltd.)
• Model: WD12 Series Marine Diesel Engine (Propulsion)
• Document number: 0MMWPv2001
• Language: English
• Page count: 118 pages
• File format: PDF

Chapters Covered

• A – Introduction: A10 Security, A20 Warranty Policy, A30 Duty Class Definition
• B – Engine Description: B10 Engine Overview, B20 Engine Identification, B30 Technical Data, B40 Cooling Circuits, B50 Oil Circuit, B60 Fuel Circuit, B70 Air Circuit
• C – Installation: C10 Lifting and Handling, C20 Engine Mounting, C30 Gearbox Coupling, C40 Exhaust Connection, C50 Blow-by Connection, C60 Water Circuits, C70 Fuel Circuit, C80 Engine Room Ventilation, C90 PTO Power Take Off, C100 Starter – Alternator, C110 Emergency Circuits, C120 Engine Period Storage Protection, C130 Preparing an Engine after Long Period Storage
• D – Commissioning: D10 First Start, D20 Commissioning Trials, D30 Compliance Test, D40 Sea Engine Test Sheet
• E – Operation: E10–E60 Electronic Monitoring System (general, product characteristics, technical specification, function declaration, installation and use, common malfunction and repair), E70 Filters
• F – Maintenance: F10 Coolant, F20 Oil, F30 Fuel, F40 Air Filter and Breather, F50 Inspection and Replacement of Zinc Anodes, F60 Belts Tension Check, F70 Engine Servicing, F80 Maintenance Tables, F90 Maintenance Operations, F100 Overhaul Operations R1 to R3
• G – Appendix: G10 Coolant Recommendations, G20 Lubricant Recommendations, G30 Fuel Recommendations, G40 Tightening Torques Table, G50 Sensors and Alarms Thresholds, G60 Abbreviations, G70 Certified Emission Cycles, Index

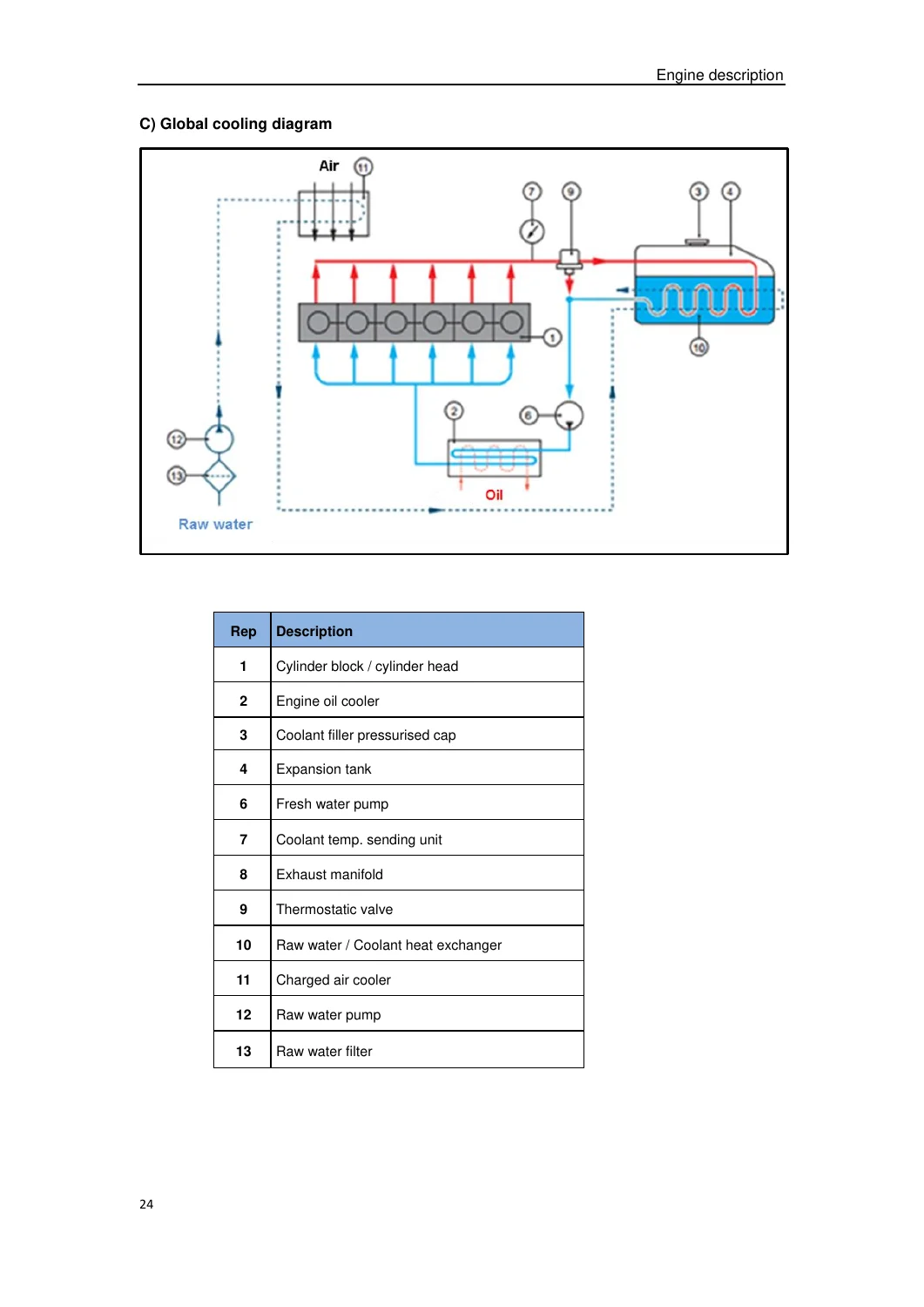

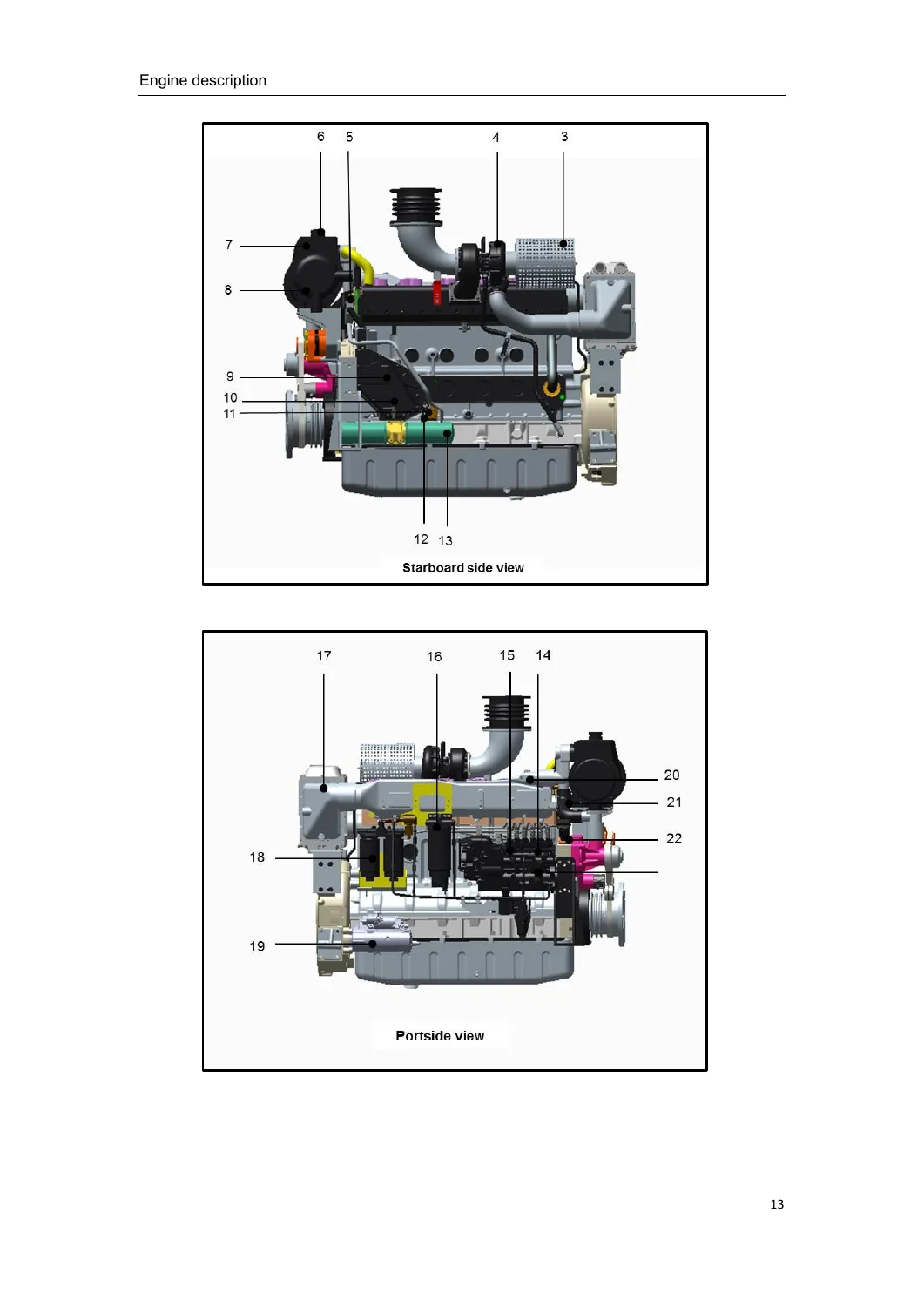

Read as a whole, this WD12 marine diesel engine manual is a single-source technical file. The opening chapters describe the hardware: a six-cylinder inline, four-stroke, direct-injection, turbocharged and aftercooled marine engine with a 126 × 155 mm bore and stroke, 11.596 litre displacement and 17:1 compression ratio. From there the manual moves into the two separated cooling circuits (high-temperature and low-temperature), the pressure-fed lubrication circuit with its oil pump safety and control valves, the fuel circuit with mechanical injection pump and priming hand pump, and the air circuit with turbocharger, charge air cooler and dry air filter. Each circuit is documented with its own global diagram and numbered component key so the reader can trace flow path and identify every part on the engine.

Engines and Ratings Covered

The performance and specification tables in the manual list the following WD12 marine propulsion models:

• WD12C300-15 – 220 kW rated at 1500 rpm
• WD12C327-15 – 240 kW rated at 1500 rpm
• WD12C300-18 – 242 kW rated at 1800 rpm
• WD12C327-18 – 264 kW rated at 1800 rpm
• WD12C350-18 – 258 kW rated at 1800 rpm
• WD12C375-21 – 275 kW rated at 2100 rpm
• WD12C400-21 – 294 kW rated at 2100 rpm

All listed ratings fall under IMO Tier II emission compliance, with a standard SAE 1 flywheel housing, 14-inch flywheel and 136-tooth ring gear. The manual also explains the duty class definitions (P1 through P5), so the owner can match the correct maintenance schedule and overhaul life to how the vessel is actually used – from continuous-duty ocean vessels down to light-duty pleasure craft.

Installation, Commissioning and Sea Trial Documentation

Installation guidance covers rigid and resilient mounting arrangements, alignment tolerances between pads, coupling checks for axial stress on the crankshaft, exhaust bellows characteristics and orientation, blow-by piping, raw water suction circuit sizing, fuel pipe connections, and engine room ventilation layouts (Type 1 and Type 2). The commissioning chapter walks through first start procedure, warming the engine, topping up circuits, and then the compliance test and sea engine test sheet, both of which are the documentation trail Weichai expects as part of warranty validation. Anyone installing a WD12 in a new build or repower will find the required clearances, angles and connection diameters spelled out here rather than left to guesswork.

Operation and Electronic Monitoring

The operation chapter is built around the VOYAGE NUMBER ONE electronic monitoring system. It documents the speed, lube oil pressure, cooling freshwater temperature, lube oil temperature, battery voltage and hour-meter displays, the start/stop/reset/override control logic, alarm lamp meanings, sensor installation clearances, wiring harness routing, and a troubleshooting table of common malfunctions with their repair methods. This is the section a skipper uses when an alarm lamp comes on at sea and the engine needs to be understood before it can be trusted again.

Maintenance Tables and Overhaul Operations

The maintenance section is where the manual earns its keep on a working vessel. It sets out M1, M2, M3 and M4 scheduled maintenance operations, the P1 and P2 rating-based maintenance tables running from 40/60 hours up to 24,000 hours, and the preventive overhaul markers R1, R2 and R3. Coolant draining and filling, oil draining and refilling, oil and fuel filter replacement, fuel filter bleeding, air filter cleaning, breather replacement, zinc anode inspection and belt tension checks are all given as step-by-step procedures with the tools, torque values and safety warnings needed to do the job properly. The overhaul tables then list, item by item, what has to be checked or replaced at R1, R2 and R3 – from oil pressure-limiting valves and injectors through to piston rings, cylinder liners, connecting rod bearings and the heat exchanger unit.

Reference Values and Safety

Back-of-book appendix material includes coolant, lubricant and fuel recommendations, the full tightening torque table across M6 to M30 threads, sensor and alarm threshold values, an abbreviations glossary and the certified emission cycles. Throughout the manual, safety warnings cover lifting operations, hot coolant and oil, high-pressure injection, battery acid, welding precautions, fire prevention and health protection when handling used engine oil.

Why This Manual Matters

A WD12 marine engine is a substantial piece of machinery, and the difference between a correctly maintained unit and one that is run on guesswork shows up in fuel consumption, downtime and overhaul cost. This WEICHAI WD12 series marine diesel engine operation and maintenance manual gives the correct clearances, pressures, temperatures, torques and service intervals for the exact model on board, so the technician is not working from generic advice. Whether the task is a routine oil and filter change, a cooling circuit flush, an exhaust installation check during a repower, or planning the next top-end overhaul, the procedure and the numbers are already documented.

IMAGES PREVIEW

Instant PDF Delivery

The file is delivered immediately after payment as a PDF, with no shipping and no waiting for a physical book. It can be read on a laptop, tablet or phone in the engine room, printed for the workshop binder, or stored on board as part of the vessel’s technical documentation. Keep a copy with the engine – the manual itself notes that it must stay with the engine if the vessel is sold.
