The Yanmar 6EY18L 6EY18AL Marine Auxiliary Engine Operation Manual PDF is a detailed operating, maintenance and servicing reference for the 6EY18L and 6EY18AL vertical, water-cooled four-cycle diesel engines. Beyond normal starting and stopping instructions, the manual provides specifications, scheduled maintenance requirements, troubleshooting guidance, operating limits, adjustment values, wear limits, tightening data and illustrated procedures for major engine components.

The manual is especially useful when work requires more than routine operation. It provides technical information for checking engine condition, measuring running performance, interpreting abnormal operating symptoms and carrying out component-level servicing. Detailed drawings identify engine sections, piping arrangements, controls and internal components, while service chapters show disassembly, inspection, measurement, adjustment and reassembly procedures.

File Details

• Manual type: Operation Manual
• Brand: Yanmar
• Models: 6EY18L and 6EY18AL
• Language: English, with Japanese/English parts-list headings in illustrated parts sections
• Pages: 648
• File format: PDF
• I.B.C. No.: DAEY1-G00100

Engine Specifications and Technical Reference

The Yanmar 6EY18L 6EY18AL Marine Auxiliary Engine Operation Manual PDF begins with identification and specification information for the engine family. The specification tables describe the engines as vertical, water-cooled, four-cycle diesel engines with direct injection, six cylinders, 180 mm cylinder bore, 280 mm stroke and 42.75 total cylinder displacement. The manual also records compression ratio, rated-output arrangements, rated speeds, crankshaft rotation direction, firing order, supercharging arrangement, cooling-system configurations, lubrication-system arrangement and air-motor starting system.

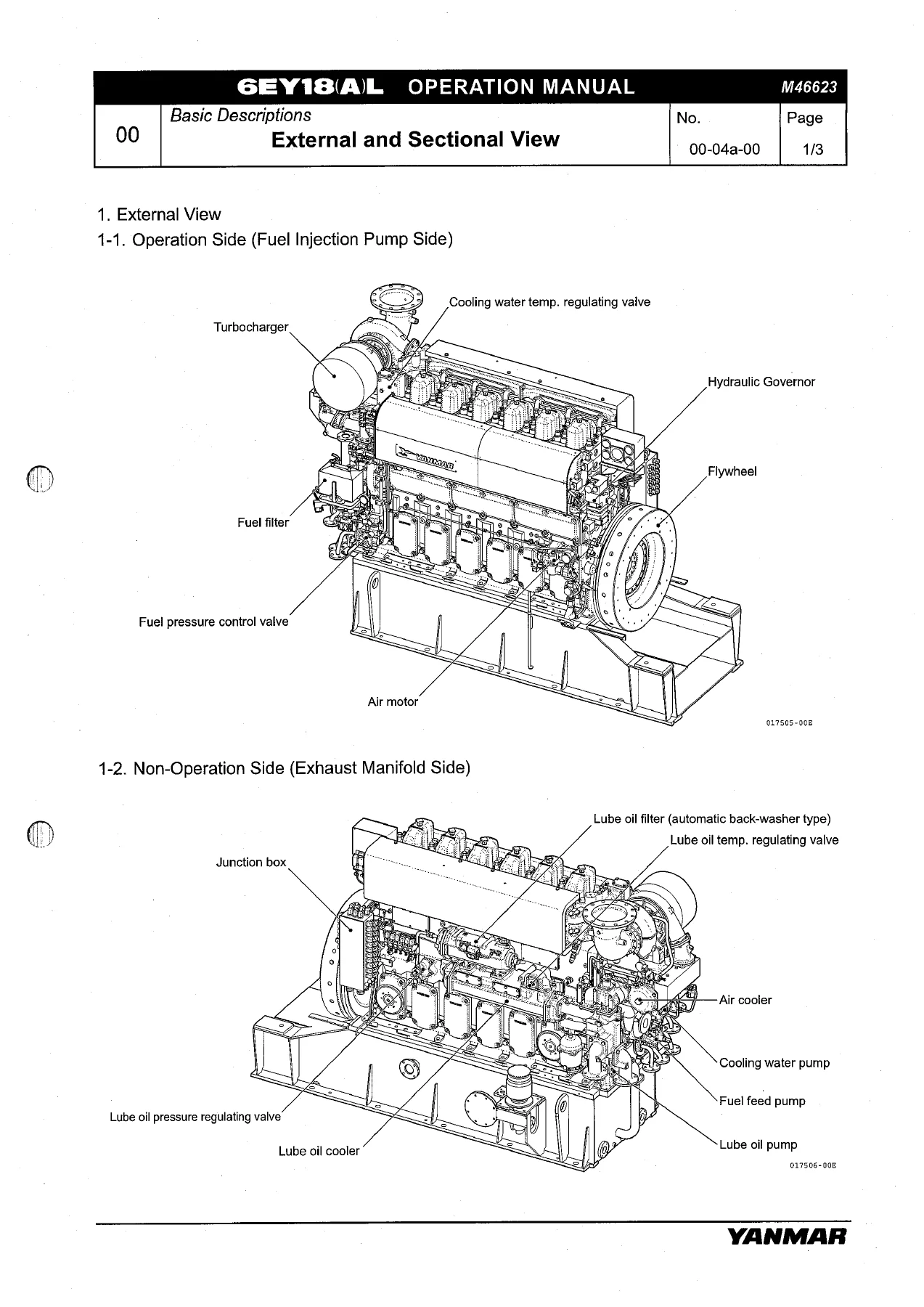

External and sectional illustrations identify components such as the turbocharger, hydraulic governor, fuel filter, fuel pressure control valve, flywheel, lubricating-oil filter, lubricating-oil cooler, cooling-water pump, fuel-feed pump, air cooler, crankshaft, connecting rod, cylinder liner, piston, camshaft, rocker arm and fuel-injection equipment. These views provide a useful orientation before maintenance or disassembly work begins.

Maintenance, Adjustment and Service Data

A substantial part of the manual is devoted to the measurements and limits needed for correct servicing. Routine and periodic maintenance tables cover inspection frequencies for the fuel system, lubricating-oil system, cooling-water system, starting-air system, governor, turbocharger, instrumentation and other engine components. Separate schedules are supplied for operation with marine diesel oil and heavy fuel oil.

Service-data sections contain protective-device settings, holding volumes, pressure and temperature settings, assembly adjustment values, clearances, wear limits and tightening specifications. Examples include piston top clearance, intake and exhaust valve timing, valve head clearance, fuel-injector pressure, cylinder-liner and piston measurements, crankshaft and bearing dimensions, valve and guide wear data, camshaft measurements, pump clearances and other component limits. Tightening information includes hydraulic-pressure tightening for principal fasteners, angle-tightening procedures and torque tables for major and general bolts and nuts.

Operation and Engine Handling

The operating section guides the user through preparation before initial starting, restart after overhaul or a long stoppage, lubricating-oil system checks, priming, air bleeding, fuel-system preparation, cooling-water checks, starting-air preparation and governor/control-device checks. Starting procedures cover both air-running preparation and normal starting, including corrective action if starting fails.

Running instructions explain warm-up, load operation, monitoring of pressure and temperature, observation of unusual sound or heat, turbocharger and air-cooler checks and recording of engine performance. Normal stopping, emergency stopping and actions after an emergency stop are also included, together with cautions concerning hot components, rotating machinery, stored pressure and post-shutdown handling.

Fuel, Lubricating Oil and Cooling Water

The manual contains dedicated reference material for marine diesel oil and heavy fuel oil. It gives fuel-quality criteria, viscosity ranges and guidance for selecting and blending fuels. Graphs are included for determining heavy-fuel-oil heating temperature and blended-fuel viscosity. Recommended pressure and viscosity conditions at the engine inlet are also shown.

Lubricating-oil sections explain approved oil characteristics, monitoring criteria and oil-change considerations. Cooling-water guidance covers recommended water quality, chloride and sulfate limits, hardness and other criteria, plus selection and control of corrosion inhibitor for fresh-water cooling circuits.

Troubleshooting and Performance Measurement

The troubleshooting chapter is arranged around actual engine symptoms and corresponding countermeasures. It addresses conditions including a flywheel that will not turn, failure to start even though the flywheel turns, spontaneous speed reduction, unequal cylinder output, poor exhaust-gas colour, low lubricating-oil pressure, abnormal sound, excessive cooling-water temperature, excessive exhaust temperatures and sudden engine stoppage. Possible causes are linked to checks involving fuel supply, injection equipment, valve condition, governor operation, lubrication, cooling, bearings, turbocharger condition and protective devices.

Performance-measurement material explains the parameters that should be observed and recorded while the engine is operating. The manual identifies measurement points for cylinder maximum combustion pressure, cylinder-outlet exhaust-gas temperature, turbocharger inlet and outlet temperatures, lubricating-oil temperature, multiple cooling-water temperatures, boost-air conditions, fuel-oil temperature and gauge-panel pressures. Procedures are also provided for measuring maximum combustion pressure and evaluating differences between cylinders.

Chapters Covered

• Basic Descriptions
  • Preface and engine specifications
  • Direction of rotation
  • External and sectional views
  • Term and symbol marks
  • Maintenance precautions
  • Protective-device setting values
  • Assembly adjustment values
  • Clearances and wear limits of major parts
  • Tightening torques of major bolts and nuts
  • Principal dimensions and mass for disassembly and servicing
  • SI unit conversion table
  • Symbols used for piping layouts and instruments
• Operation
  • Operational preparation
  • Starting
  • Running
  • Stopping
  • Engine data sheet
• Troubleshooting & Countermeasures
• Fuel Oil, Lubricating Oil & Cooling Water
  • Fuel quality criteria
  • Fuel CCAI calculation
  • Blended fuel-oil criteria
  • Heavy-fuel-oil heating temperature
  • Fuel-oil viscosity determination
  • Lubricating-oil selection and control
  • Cooling fresh-water criteria
  • Corrosion inhibitor selection and control
• Measurement of Running Performance
  • Precautions and measuring items
  • Measurement of running performance
  • Measurement of maximum combustion pressure
• Cylinder Block & Cylinder Liner
  • Construction and outline
  • Overhauling the cylinder block
  • Overhauling the cylinder liner
  • Illustrated parts information
• Cylinder Head & Its Accessories
  • Cylinder-head construction
  • Overhauling the cylinder head
  • Intake and exhaust valve servicing
  • Intake and exhaust valve-seat servicing
  • Valve-guide servicing
  • Valve bridge and guide
  • Valve rotator
  • Valve-head-clearance adjustment
  • Nozzle sleeve
  • Illustrated parts information
• Timing Gear, Camshaft & Intake/Exhaust Swing Arm
  • Timing-gear construction
  • Timing-gear overhaul
  • Camshaft servicing
  • Intake/exhaust swing-arm servicing
  • Illustrated parts information

Taken together, these chapters make the manual useful for day-to-day engine operation as well as planned maintenance and deeper service work. It connects operating symptoms with inspection procedures and supplies the dimensional, pressure, temperature, clearance and tightening information needed when components are checked or reassembled.

IMAGES PREVIEW

Detailed Overhaul and Illustrated Parts Information

The later sections go well beyond general operating advice. The cylinder-block and liner chapter covers liner removal, measurement, inspection for corrosion and wear, O-ring installation and reassembly. The cylinder-head section describes use of the hydraulic jack for loosening and tightening head nuts, cylinder-head lifting, injector removal, combustion-side inspection, hydraulic testing and reinstallation.

Valve-related procedures include disassembly of intake and exhaust valves, inspection of valve stems and guides, valve grinding, valve-seat correction and replacement, guide replacement, valve-rotator inspection and valve-head-clearance adjustment. Nozzle-sleeve maintenance and pressure testing are also included. Timing-drive chapters illustrate the relationship of the crank gear, cam gear, governor drive, cooling-water-pump gears, lubricating-oil-pump gear and fuel-oil-feed-pump gear, with instructions for inspection, removal and alignment during reassembly.

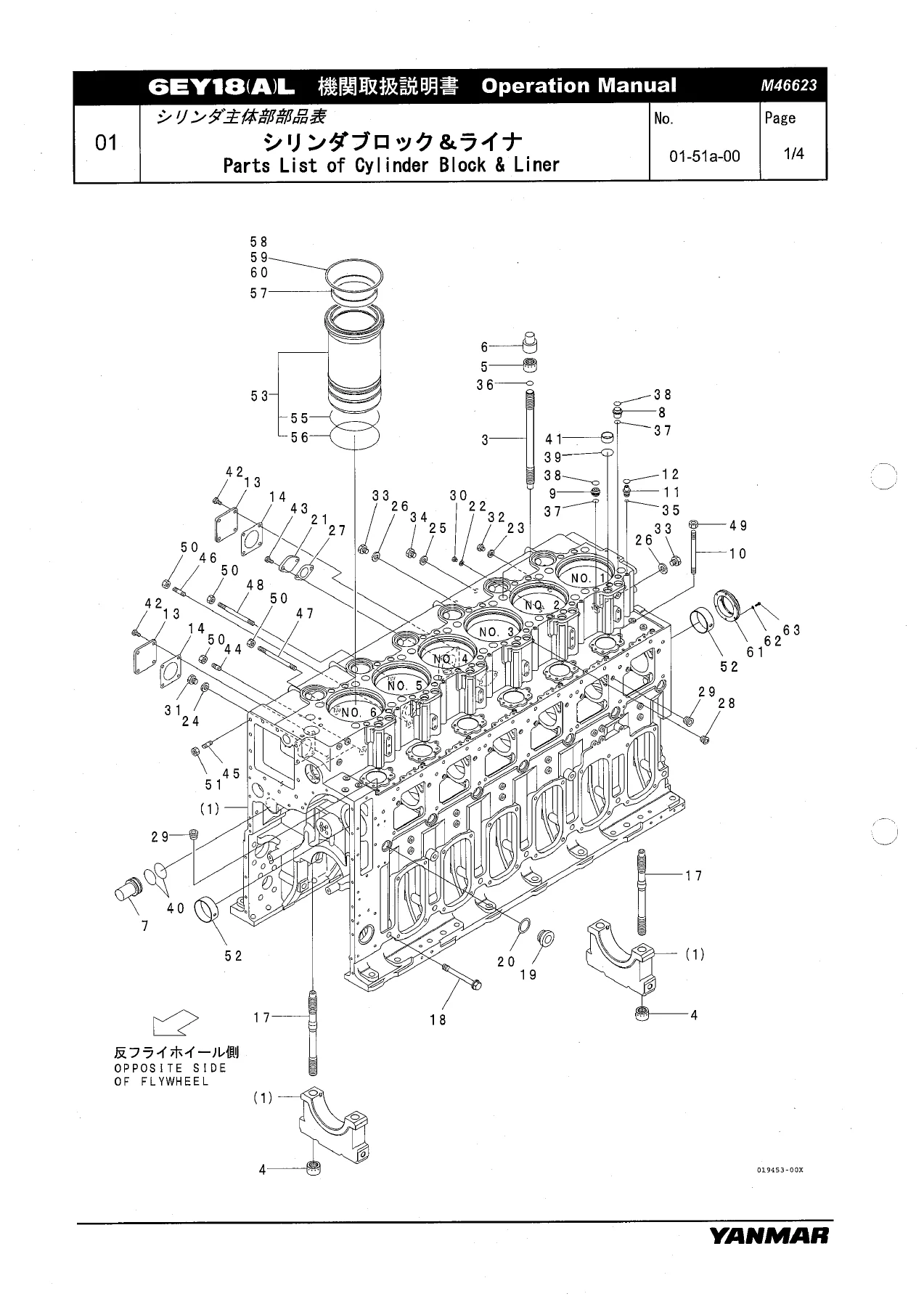

Exploded drawings and parts lists accompany several assemblies, including the cylinder block and liner, cylinder-side covers, gear case, oil sealing arrangement, breather pipe, pump-case cover, cylinder head, valve-arm assembly, indicator valve and idle gear. These illustrations help identify individual pieces and their relationship within the engine assembly.

Operate, Diagnose and Service the 6EY18 Series with the Correct Reference

The Yanmar 6EY18L 6EY18AL Marine Auxiliary Engine Operation Manual PDF gives owners, engineers and service personnel a single reference for preparing the engine for operation, starting and stopping it correctly, monitoring operating condition, locating likely causes of faults, following maintenance intervals and carrying out detailed component service. Its adjustment values, wear limits, pressure settings, torque information and illustrated procedures are particularly valuable when accuracy matters during inspection and reassembly.

Use this manual when working on the 6EY18L or 6EY18AL to follow the documented procedures and specifications instead of relying on memory or approximate settings. The manual is supplied as an instant PDF download after purchase, with no physical shipping required. It can be viewed on compatible computers, tablets and phones and printed for workshop or engine-room reference.
