Yamaha F25C T25C Outboard Service Manual — 65W-28197-1F-11 (2003)

This is the Yamaha service manual for the F25C and T25C four-stroke outboard motors, published under document number 65W-28197-1F-11 (LIT-18616-02-61) in 2003. It is the reference Yamaha dealers and trained mechanics use for maintenance, disassembly, repair, assembly and inspection of the F25 and T25 outboards across the MH, EH, ER, TR and T25TR variants. The manual is organised in a sequential, step-by-step format so each procedure can be followed directly at the bench.

File Details

• Manual type: Yamaha Service Manual
• Brand: Yamaha
• Models covered: F25C, T25C (F25MH, F25EH, F25ER, F25TR, T25TR)
• Document number: 65W-28197-1F-11 / LIT-18616-02-61
• Publication date: 2003
• Language: English
• Page count: 297 pages
• File format: PDF

Chapters Covered

• Chapter 1 — General Information: identification, serial numbers, starting serial numbers, safety while working, good working practices, disassembly and assembly, special tools, measuring, removal and installation
• Chapter 2 — General Specifications: general specifications, maintenance specifications (engine, lower, electrical), dimensions, tightening torques, general tightening torques
• Chapter 3 — Periodic Inspection and Adjustment: maintenance interval chart, cowling, fuel system, control system, power unit, valve clearance, timing belt, PTT system, lower unit gear oil, anode, battery, spark plugs, lubrication points
• Chapter 4 — Fuel System: fuel joint, fuel filter, fuel pump, carburetor unit, carburetor disassembly and inspection
• Chapter 5 — Power Unit: power unit removal, flywheel magneto, recoil starter, stator and timing belt, electrical unit, control unit, cylinder head and oil pump, camshaft and valves, oil filter cartridge, thermostat, exhaust cover, crankcase, crankshaft assembly, cylinder body, piston, oil seal installation
• Chapter 6 — Lower Unit: lower unit disassembly, water pump, propeller shaft assembly, propeller shaft housing assembly, forward gear and drive shaft, shim selection, backlash measurement
• Chapter 7 — Bracket Unit: steering handle, steering friction, bottom cowling, upper case assembly, oil pan, steering bracket, power trim and tilt (PTT) unit, clamp bracket, swivel bracket, tilt rod, PTT motor, pump housing, gear pump
• Chapter 8 — Electrical System: wire harness diagrams (MH, EH, E, ET), electrical analysis, ignition system, ignition control system, starting system, charging system, enrichment control system, PTT control system
• Chapter 9 — Trouble-Analysis: trouble-analysis chart covering engine, fuel, power unit, lower unit, bracket unit and electrical checks
• Appendix: T25 supplemental coverage — special tools, camshaft and valves, lower unit, water pump, shift rod, propeller shaft housing, drive shaft, lower case assembly, shimming and backlash, bracket unit, PTT unit, clamp bracket, steering arm, electrical components and wiring diagram T25TR

Across its nine chapters plus appendix, the 2003 Yamaha F25C T25C service manual walks through the entire outboard from the recoil starter and timing belt down through the powerhead, gearcase and bracket, ending with the complete electrical system and a dedicated trouble-analysis chart. Every removal and installation section opens with an exploded diagram and a job chart listing part names, quantities, service points and torque callouts, so the technician can plan each step before picking up a tool. The maintenance chapter alone gives the full periodic service schedule — oil and filter intervals, valve clearance, timing belt inspection, gear oil changes, anodes, battery checks and lubrication points — while the specifications chapter provides the exact service limits, clearances and tightening torques needed when rebuilding a powerhead or shimming a gearcase.

What This Manual Enables You To Do

Owning the factory-format Yamaha F25C T25C outboard service manual means having the same step-by-step procedures, exploded diagrams and specification tables that were prepared for Yamaha dealers and their trained mechanics. Owners and independent workshops can use it to perform the full break-in service, routine 50/100/200-hour maintenance, valve clearance adjustment, timing belt inspection and replacement, impeller and water pump service, gear oil changes, propeller removal and installation, carburetor inspection and adjustment, PTT fluid checks and bleeding, lower unit pressure testing, and complete disassembly and reassembly of the powerhead, gearcase and bracket assemblies. The trouble-analysis chart helps narrow down a no-start, rough-idle, overheating or poor-performance complaint before any parts are ordered, and the shimming and backlash procedures let you rebuild the lower unit to the correct gear-tooth contact pattern.

Why It Matters

Yamaha four-stroke outboards are built to tight tolerances — main bearing oil clearance is measured in thousandths of a millimetre, valve clearance in hundredths, gear backlash in fractions of a millimetre. Working from memory or a generic third-party guide invites warped cylinder heads, stripped fasteners, incorrect shim stacks and premature bearing failure. The 65W-28197-1F-11 manual gives the correct tightening sequences, the correct torque in Nm/kgf-m/ft-lb, the correct service limits and wear thresholds, and the correct special tool for each operation — the difference between a repair that lasts and one that comes back.

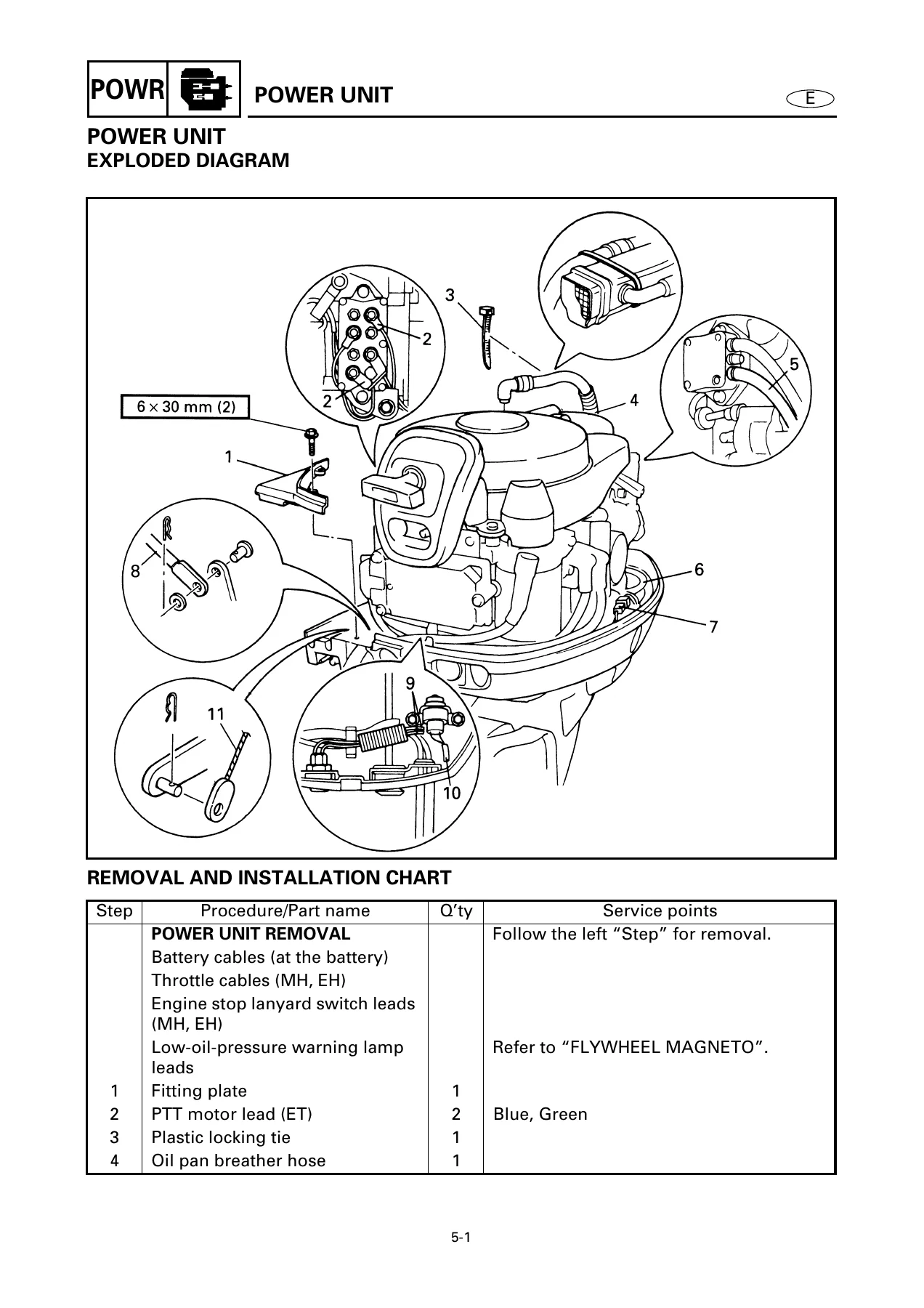

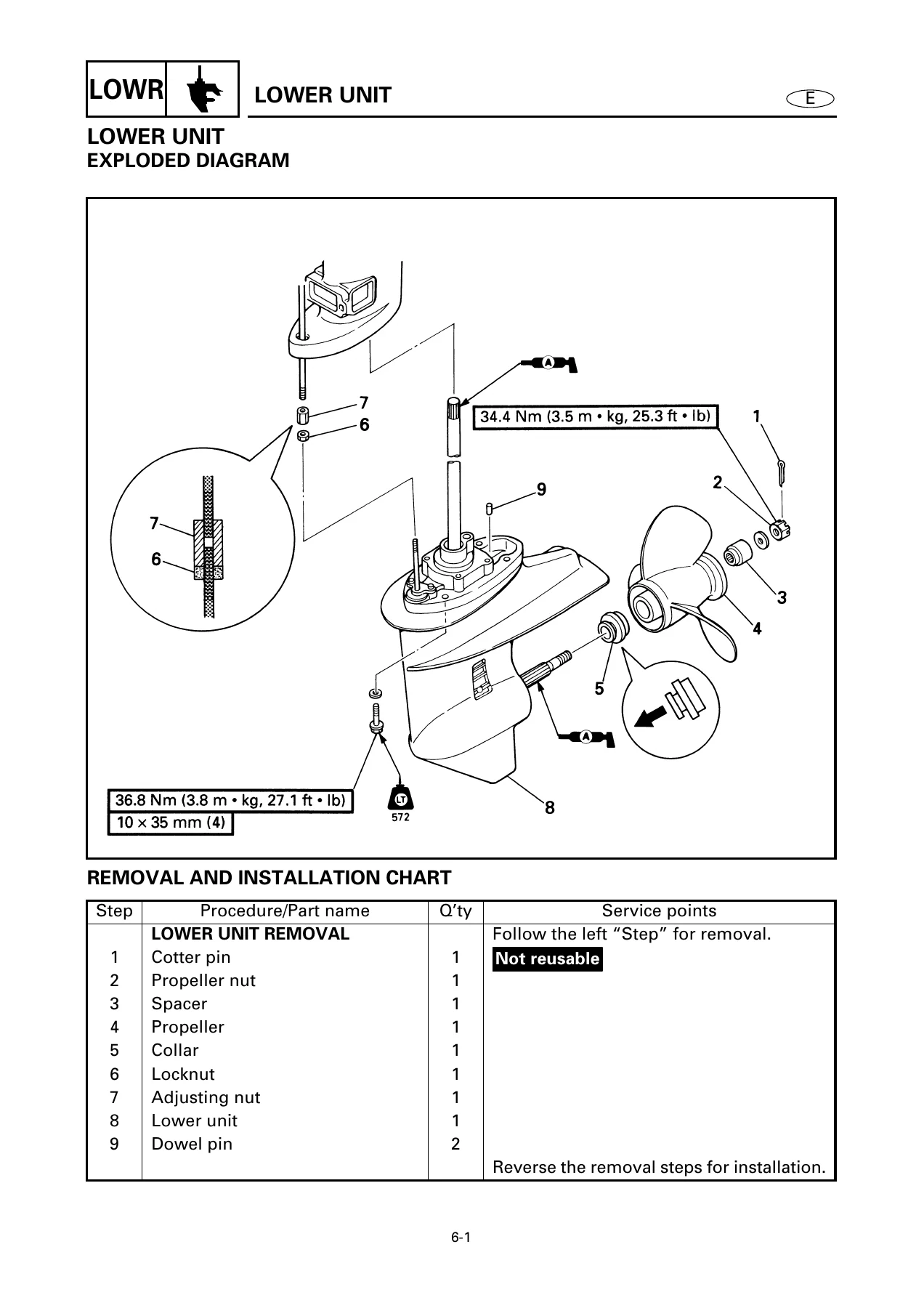

IMAGES PREVIEW
