Yamaha F30A F40B Outboard Service Manual 2007 – 67C-28197-3K-11 PDF

Description

Yamaha F30A F40B Service Manual – 67C-28197-3K-11

This is the complete Yamaha service manual for the F30A and F40B four-stroke outboard motors, published under document number 67C-28197-3K-11. It is the first edition released in August 2007 and covers every major system on the motor – from the top cowling down to the propeller shaft housing. Whether you are performing a 100-hour service, chasing a no-start fault, resealing the lower unit, or rebuilding the powerhead, this manual supplies the torque figures, clearances, service limits, and step-by-step procedures Yamaha technicians rely on.

File Details

• Manual type: Service Manual
• Brand: Yamaha
• Models covered: F30AMHD, F30AEHT, F30AET, F40BMHD, F40BWHD, F40BWHT, F40BED, F40BET
• Document number: 67C-28197-3K-11
• Edition: 1st Edition, August 2007
• Language: English
• File format: PDF
• Page count: Approximately 285 pages

Chapters Covered

• General Information – manual format, symbols, abbreviations, sealant and locking agent table, safety while working, identification, serial numbers, special service tools, propeller selection, predelivery checks, break-in
• Specification – general specification, maintenance specification, power unit, fuel system, lower unit, electrical, dimensions, tightening torque, general torque
• Periodic Check and Adjustment – maintenance interval chart, top cowling, fuel system, power unit, control system, bracket unit, lower unit, general checks
• Fuel System – fuel hoses, fuel pump, fuel filter, fuel joint, carburetor unit, carburetor, Prime Start, pilot screw adjustment, carburetor synchronization, dashpot adjustment
• Power Unit – compression and oil pressure checks, valve clearance, timing belt, manual starter, power unit assembly, starter motor, starter relay, PTT relay, ignition coil, CDI unit, Rectifier Regulator, throttle cam, timing belt and sprocket, cylinder head, cylinder block, pistons, crankshaft, bearings
• Lower Unit – lower unit removal, water pump, propeller shaft housing, drive shaft and lower case, shimming, forward/reverse gear backlash
• Bracket Unit – tiller handle, friction plate, bottom cowling, upper case and steering arm, hydraulic tilt unit, PTT unit, PTT motor, PTT gear pump, PTT cylinder, PTT electrical system
• Electrical System – wiring harness routing, electrical component checks, peak voltage measurement, starter motor, starting system, ignition and ignition control system, engine electric control system, charging system
• Troubleshooting – troubleshooting table format, power unit, PTT unit, lower unit

What This Yamaha F30A F40B Service Manual Gives You

The 67C-28197-3K-11 manual is structured so that every job follows a logical flow: general specification, maintenance specification, dimensional data, then the actual procedure. Exploded diagrams accompany every major assembly, with tightening torques printed directly on the illustrations and repeated in the detailed instructions. Component lists give part names, quantities, and bolt and screw dimensions so you can identify fasteners before you remove them.

For the power unit, this Yamaha F30A F40B service manual walks through compression and oil pressure testing, valve clearance adjustment with the exact cold specifications, timing belt removal and installation with the alignment marks, cylinder head disassembly, valve guide replacement, valve seat refacing, piston and ring measurement, crankshaft journal checks, and connecting rod bearing selection. Cylinder head bolts and crankcase bolts are tightened in staged sequences with specified torque values – critical on these 747 cm³ three-cylinder four-strokes where uneven clamping causes warpage or oil leaks.

The lower unit coverage is equally detailed. You get gear oil capacity, lower unit holding pressure, drive shaft and propeller shaft runout limits, forward and reverse gear backlash ranges, and the full shimming procedure with calculation formulas for selecting pinion shims, forward gear shims, and reverse gear shims. This is the part of the manual most owners never see and most independent mechanics wish they had – measuring M1, M2, and M3 with the correct service tools and working out the exact shim thickness instead of guessing.

On the fuel side, the manual covers the carburetor unit for all three cylinders, float height, main jet, main nozzle, pilot jet, and pilot screw settings, plus carburetor synchronization using a vacuum gauge. Prime Start resistance and plunger length checks are included so cold-start enrichment faults can be diagnosed rather than swapped out blindly.

Electrical and Troubleshooting Coverage

The electrical section of the F30A F40B service manual covers the CDI ignition system with peak voltage values at cranking, 1,500 r/min, and 3,500 r/min for the pulser coil, charge coil, CDI unit, and power bobbin. Ignition coil primary and secondary resistance, spark plug cap resistance, thermo sensor resistance at three temperatures, and oil pressure switch operation are all listed with the exact figures needed to test each component.

The troubleshooting chapter follows a symptom-to-cause format: engine does not crank, engine does not start, unstable idle, poor acceleration, limited engine speed, PTT unit not operating, shift mechanism problems, and cooling water not discharging. Each symptom is broken down into likely causes with the checking step and the page reference where the test is described – so you work through the fault in a structured way instead of replacing parts.

Who This Manual Is For

Yamaha dealers and trained mechanics, independent marine workshops, and owners who service their own F30A or F40B outboard. It assumes a basic understanding of mechanical and electrical procedures and includes the safety warnings, fire precautions, ventilation requirements, and personal protection guidance needed when working with gasoline and high-voltage ignition systems.

Get Instant Access to the Yamaha F30A F40B Workshop Manual

With this Yamaha F30A F40B outboard service manual PDF you can carry out routine maintenance, diagnose electrical faults, rebuild the powerhead, reseal the lower unit, service the PTT system, and set every adjustment to Yamaha’s original specification. Correct torque values and clearances protect the engine from warpage, oil leaks, bearing failure, and gear damage – and the troubleshooting tables cut diagnostic time dramatically.

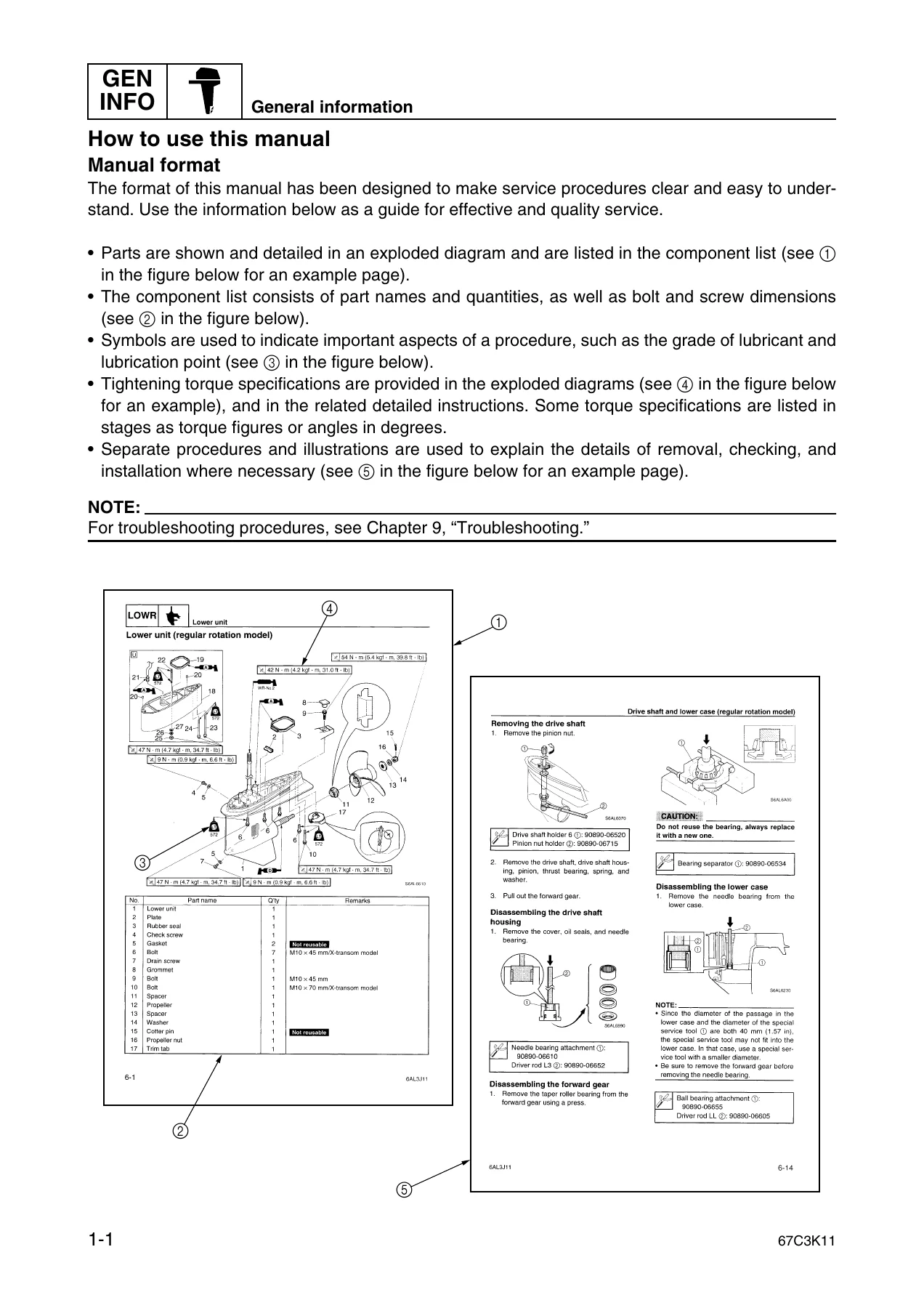

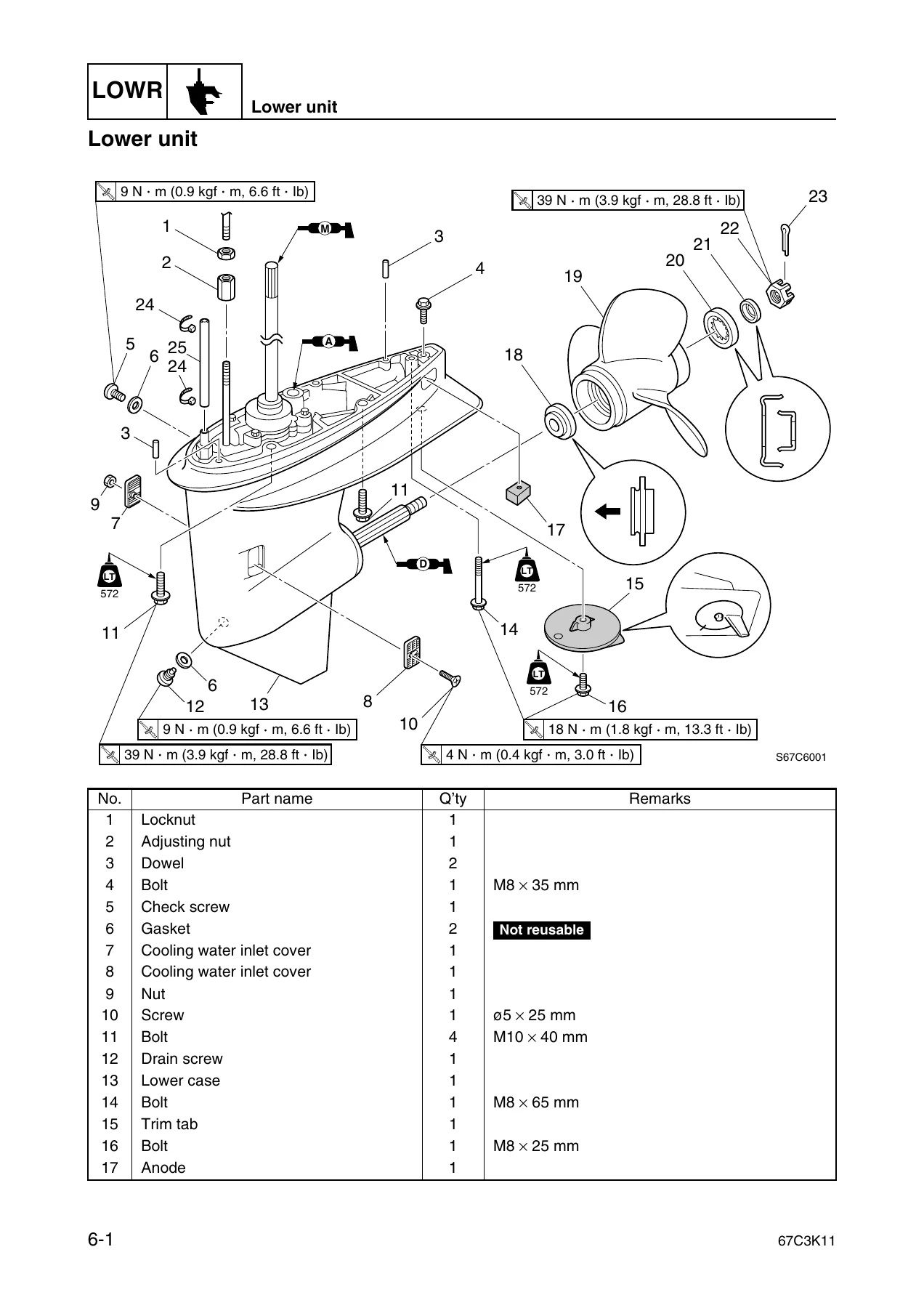

IMAGES PREVIEW

The file is delivered instantly as a PDF download after payment. No shipping, no waiting. Read it on a laptop, tablet, or phone in the workshop, and print only the pages you need. Keep the 67C-28197-3K-11 service manual on hand and every job on your F30A or F40B becomes a known procedure with a known outcome.
