Yamaha G1 Golf Car Service Manual – G1-AM3 G1-A3 G1-E3 Gasoline & Electric Repair PDF

Description

Yamaha G1 Golf Car Service Manual – Gasoline & Electric Coverage

This is the Yamaha G1 Golf Car service manual covering the G1-AM3 gasoline model, the G1-A3 gasoline model, and the G1-E3 electric model in a single volume. It is the same reference used by technicians to inspect, adjust, disassemble, overhaul, and reassemble the G1 platform, from the 214 cm3 two-stroke engine and its Autolube oil injection system through to the transmission, brakes, steering, and the electric car’s traction motor and speed controller.

File Details

• Manual type: Service / Workshop Manual
• Brand: Yamaha
• Models covered: G1-AM3, G1-A3, G1-E3 (also referenced as G1A/M/E/M)
• Document number: IT-11616-03-89
• Language: English
• Page count: 223 pages
• File format: PDF

Chapters Covered

• General Information – external view, caution and specification labels, description, car identification, features, engine, governor, clutches, differential, brakes, Yamaha Autolube, service notes, special tools
• Periodic Inspections and Adjustments – periodic maintenance table (G1-A3 and G1-E3), adjustments, pre-delivery service and maintenance, engine section, chassis section, electrical section, lubrication points
• Engine Overhaul – engine removal, disassembly and inspection (shroud fan, flywheel magneto, primary sheave, oil pump, top end, bottom end), assembly and adjustment, engine installation, exhaust pipe assembly
• Carburetion – carburetor removal, disassembly, inspection and assembly, fuel pump testing and service, reed valve removal and inspection
• Power Train – primary sheave removal/checking/assembly, secondary sheave removal/inspection/assembly, transmission removal, disassembly and inspection, assembly
• Chassis – brake shoe removal, brake shoe wear limits, brake drum, brake assembly, cable replacement and routing, steering removal/inspection/assembly, wheel alignment, steering linkage, tie rod, wheel bearings, knuckle arm, rear axle, front and rear shock absorber and spring assembly, rear arm bushing, oil tank, fuel tank, body, frame, body fitting, front/rear bumper, front/rear cowl, seat, carrier
• Electrical – main parts and functions, charging system (voltage regulator operation, charging current route, measuring and adjustment, troubleshooting), starting system (operation, checks, troubleshooting, starter generator performance, disassembly and assembly, inspection), ignition system (basic circuit, operation, checks, ignition timing inspection and adjustment, troubleshooting), signal system (back-up buzzer circuit), battery notes, cable routing, circuit diagram
• Electric Car – general (forward and reverse speeds), switches (speed controller, solenoid relay, main switch, accelerator stop switch, charging receptacle), battery, traction motor, electric wire routing, wiring diagram, accelerator, solenoid relay assembly, speed controller
• Troubleshooting – G1-A3 troubleshooting chart, engine, suspension and steering; G1-E3 electrical and motor troubleshooting
• Appendix – tightening torque tables, general torque specifications, conversion tables, cable routing, wiring diagrams

Across these chapters the manual delivers a complete picture of the G1 platform in both its gasoline and electric forms. Gasoline coverage walks through the reversible two-stroke engine, the 7-port piston reed valve induction, the C.D.I. ignition, the Autolube oil injection pump with its exhaust-pressure-controlled stroke, the governor and speed limiter linkage, the V-belt automatic centrifugal clutch system, the differential, and the self-adjusting drum brakes. Electric coverage handles the 36-volt traction motor, solenoid relays, six-speed controller, resistor bank, battery pack service, and the charging receptacle’s safety interlock. The appendix collects the torque values and conversion factors needed to work on either variant.

Models & Starting Serial Numbers

• G1-AM3 – Frame I.D. J24-000101 / Engine I.D. J24-000101
• G1-A3 – Frame serial starting J17-000101 / Engine serial starting J17-000101
• G1-E3 – Frame serial starting J22-000101

Key Specifications at a Glance

• Engine: Reversible, 2-stroke, gasoline, 7-port piston reed valve, single forward-inclined cylinder, 214 cm3, bore x stroke 68 x 59 mm, compression ratio 5.7:1, forced air cooled
• Lubrication: Yamaha Autolube automatic oil injection (controlled by exhaust pressure), 150:1 at max power
• Transmission: V-belt automatic centrifugal engagement, 3.1:1 to 0.8:1 primary reduction
• Overall dimensions: 2,403 mm length x 1,140 mm width x 1,180 mm steering height, wheelbase 1,550 mm
• Dry weight: 310 kg; maximum loading limit 340 kg; maximum speed 19 km/h
• Front and rear tire size: 18 x 8.50-8.00, 4 ply rating

What This Yamaha G1 Golf Car Service Manual Enables You To Do

With this G1 service manual on hand, a technician or owner-mechanic can carry out the full range of scheduled and unscheduled work on the G1-AM3, G1-A3, and G1-E3: set the governor lever and speed limiter so the carburetor throttle just reaches full open at full pedal travel, adjust the exhaust butterfly valve so it closes completely at idle (with the special checking tool dimensions included), bleed the Autolube oil pump correctly to prevent cylinder seizure, rebuild the carburetor with the correct float height, and reassemble the crankcase in the correct bolt sequence.

It covers the jobs you cannot guess at – measuring piston skirt clearance at the correct 10 mm point above the skirt end, checking ring end gap, measuring crankshaft deflection, setting ignition timing to 1.3 mm B.T.D.C., and adjusting the brake wire end play so the self-adjusting brake shoes actually work. On the electric side it supports testing the voltage regulator, reading the starter generator brush wear, checking the traction motor’s commutator and mica undercut, and setting the speed controller contacts to the specified 1-2 mm gap.

Because so many G1 adjustments have an exact number attached to them, and so many parts are easy to damage when disassembled incorrectly – the primary sheave, the reed valve petals, the weight assembly in the speed limiter – working from the correct torque and clearance values matters as much as having the right tools. That is what this manual provides.

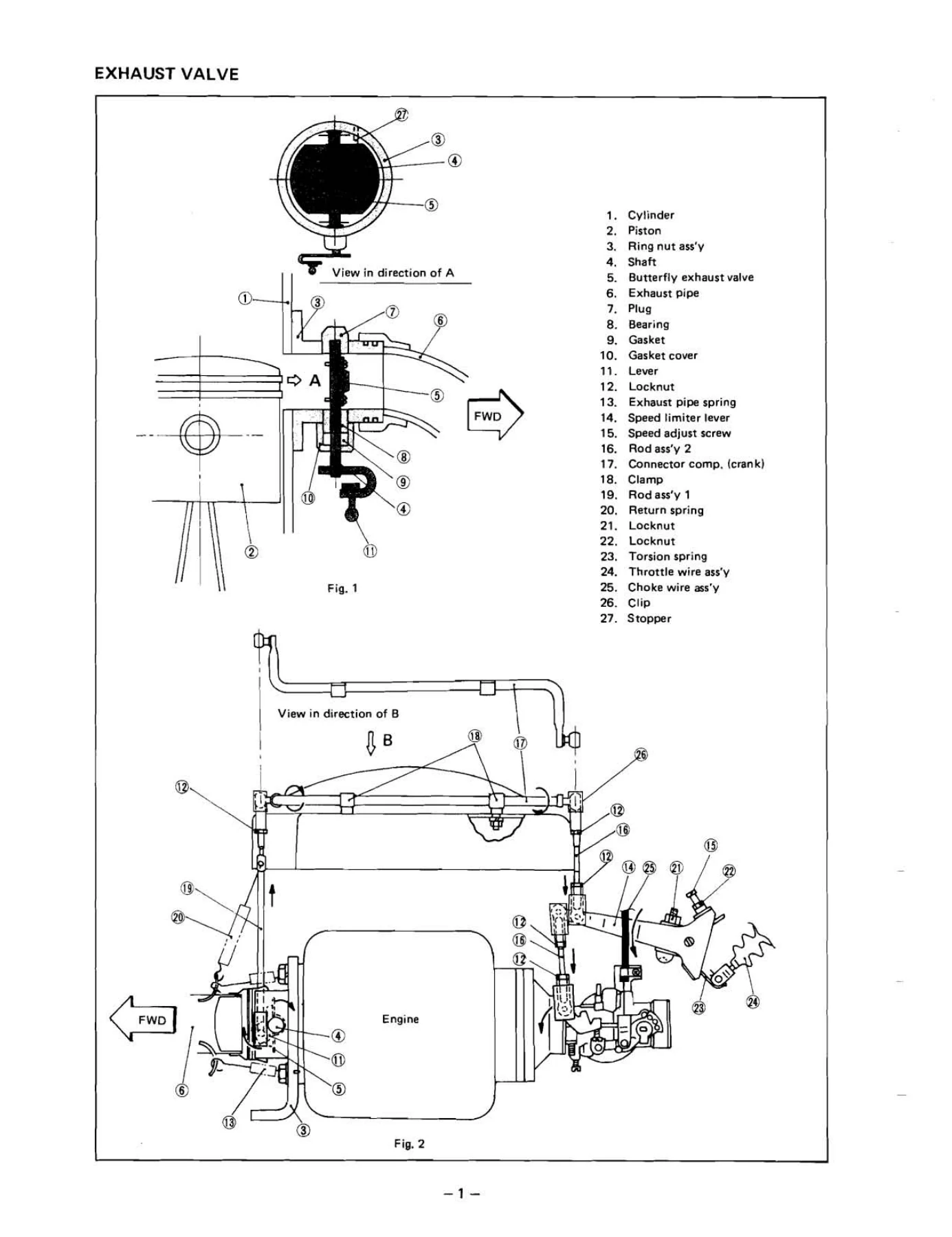

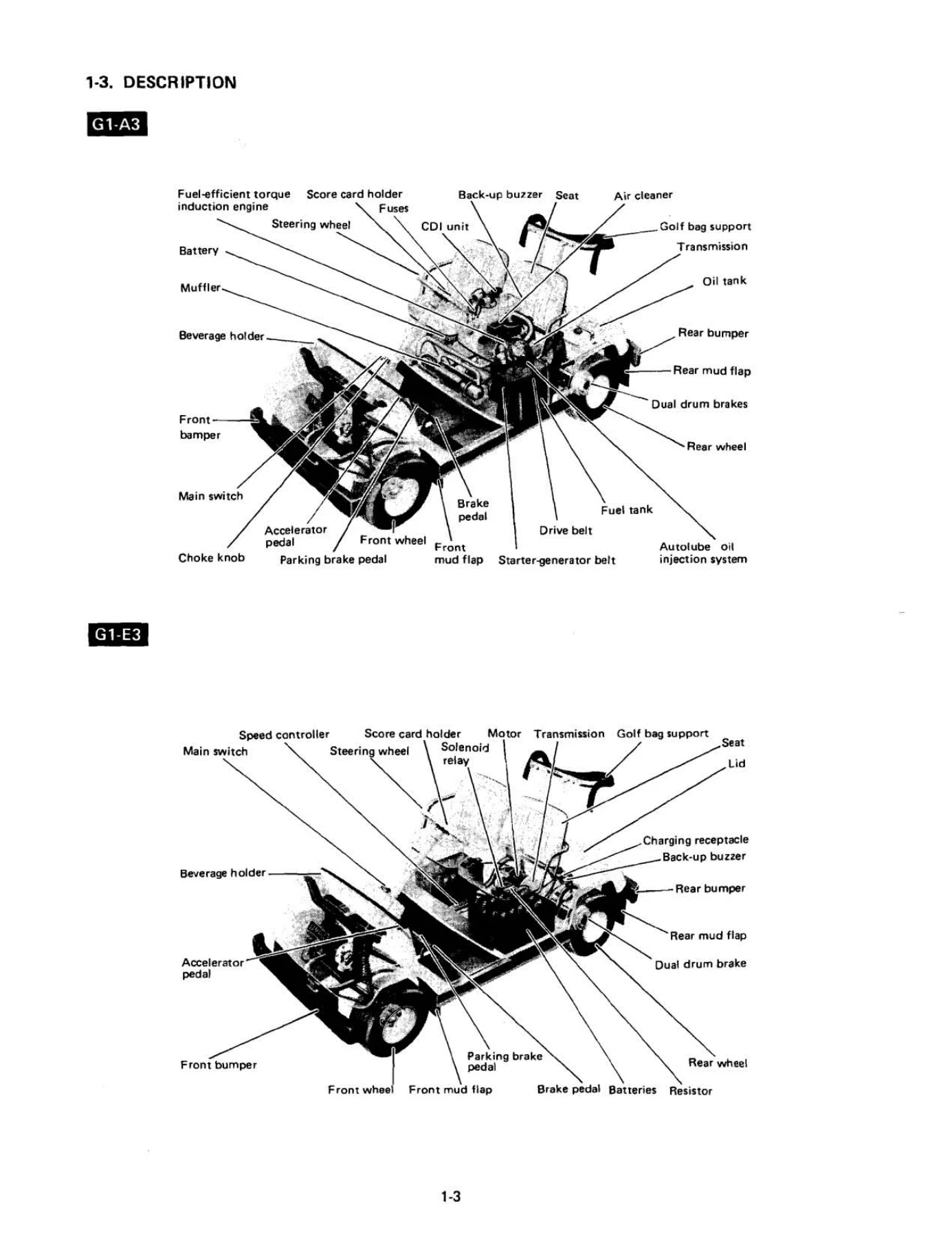

IMAGES PREVIEW

Delivery is instant. The Yamaha G1 Golf Car service manual is supplied as a downloadable PDF after payment – no shipping, no waiting. Read it on any phone, tablet, laptop, or desktop, and print whichever pages you want to take into the shop with you.
