Yamaha WR125R & WR125X Service Repair Manual PDF Download (22B-F8197-E0)

Description

The Yamaha WR125R and WR125X Service Repair Manual is the full workshop document for the 22B-series 125 cc four-stroke, issued under document number 22B-F8197-E0. It was produced by MBK Industrie for use by Yamaha dealers and qualified mechanics, and it is written the way a working technician needs it: removal and installation steps in sequence, exploded diagrams at the head of each disassembly section, job instruction charts listing the order of work and parts, tightening torques printed beside the component, and special tool numbers called out wherever a job needs one.

File Details

• Manual type: Service repair manual (dealer and qualified mechanic level)
• Brand: Yamaha
• Models covered: WR125R (model code 22B1), WR125X (model code 22B2)
• Document number: 22B-F8197-E0
• Language: English
• Page count: 372 pages
• File format: PDF

Chapters Covered

• General Information — Vehicle identification number and model label locations, outline of the FI system and how it differs from a carburettor, instrument and multi-function display functions, preparation for removal and disassembly, replacement parts, gaskets/oil seals/O-rings, lock washers and cotter pins, bearings and oil seals, circlips, checking connections, special tools
• Specifications — General specifications, engine specifications, chassis specifications, electrical specifications, general tightening torque specifications, engine tightening torques, chassis tightening torques, lubrication points and lubricant types, lubrication system chart and diagrams, engine oil lubrication chart, lubrication diagrams, cooling system diagrams, cable routing
• Periodic Checks and Adjustments — Valve clearance, exhaust gas volume (CO adjustment), engine idling speed, throttle cable free play, spark plug, ignition timing, compression pressure, engine oil level and oil change, clutch cable free play, air filter element cleaning, throttle body joint and air filter case joint, fuel line, cylinder head breather hose, exhaust system, coolant level and coolant change, rear disc brake adjustment, brake fluid level, front and rear brake pads, front and rear brake hoses, bleeding the hydraulic brake system, drive chain slack and lubrication, steering head, front fork, rear shock absorber assembly, tires, wheels, spokes, cables, lever and pedal lubrication, battery, fuses, headlight bulb and headlight beam
• Chassis — General chassis (seat and covers, fuel tank cover, battery box), front wheel, rear wheel, front brake, rear brake, handlebar, front fork, steering head, rear shock absorber assembly, swingarm, chain drive
• Engine — Engine removal and installation, rider footrest/brake pedal bracket, shift pedal, muffler and exhaust pipe, cylinder head, camshaft, rocker arms and rocker arm shafts, valves and valve springs, cylinder and piston, piston rings, piston pin, generator and starter clutch, electric starter, clutch (friction plates, clutch plates, springs, housing, boss, pressure plate, push lever and push rod), oil pump, shift shaft, balancer gears and primary drive gear, crankcase, crankshaft, transmission, shift forks and shift drum assembly
• Cooling System — Radiator and radiator cap testing, thermostat, water pump
• Fuel System — Fuel tank, fuel pump, fuel pressure check, throttle body and throttle body sensor assembly, fuel injector, air induction system
• Electrical System — Ignition system, electric starting system and starting circuit cut-off operation, charging system, lighting system, signaling system, cooling system circuit, fuel injection system with ECU self-diagnostic function and fault code tables, diagnostic mode and sensor/actuator operation tables, fuel pump system, electrical components and switch, bulb, fuse, battery, relay, diode, coil, sensor and motor checks
• Troubleshooting — Starting failures, incorrect engine idling speed, poor medium- and high-speed performance, faulty gear shifting, shift pedal does not move, jumps out of gear, faulty clutch, overheating, overcooling, poor braking performance, faulty front fork legs, unstable handling, faulty lighting or signaling system

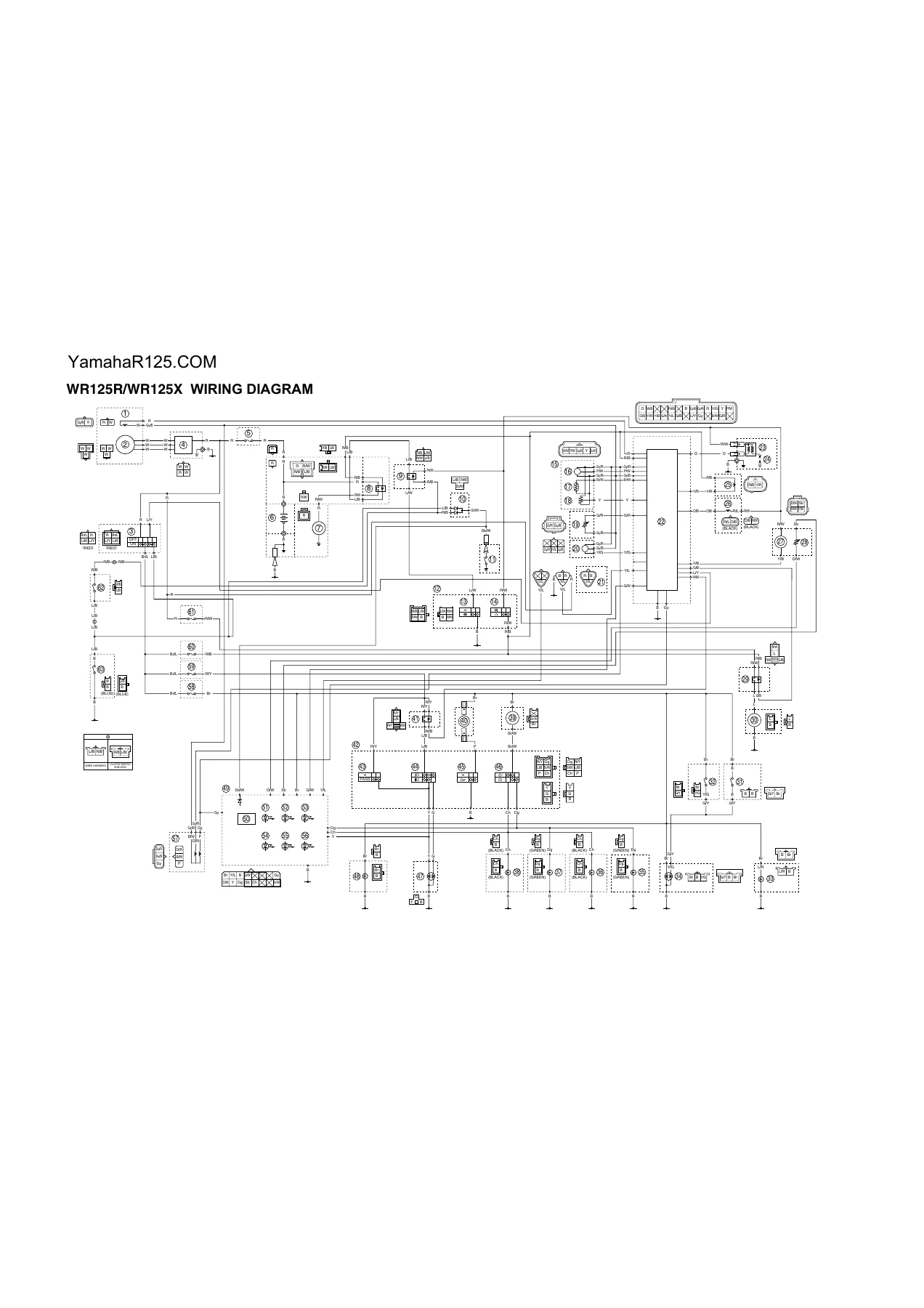

• Wiring Diagram — Full vehicle wiring diagram for WR125R / WR125X with colour code key

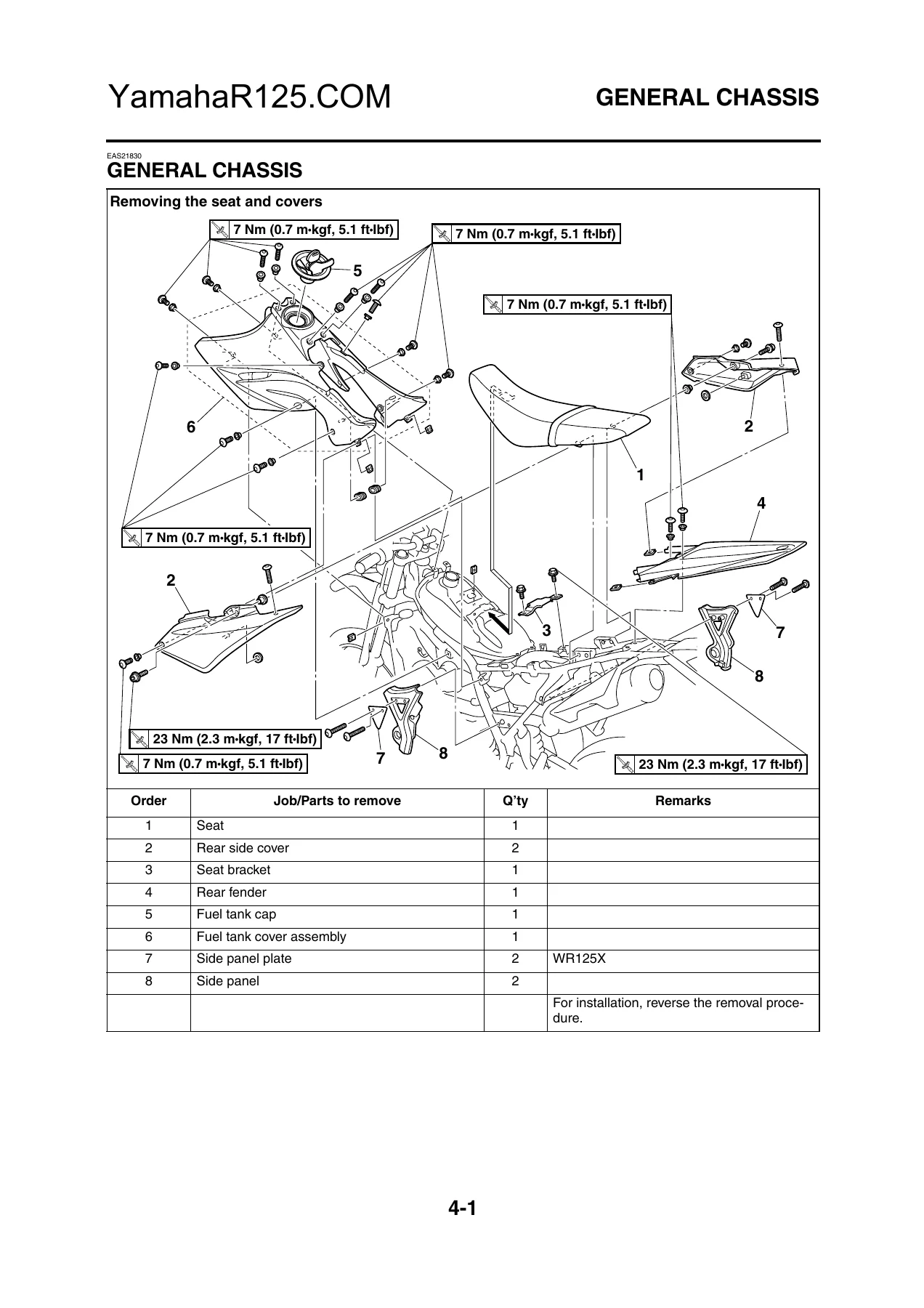

Read as a whole, the Yamaha WR125R and WR125X service repair manual walks through the machine system by system and then hands you the numbers to put it back together correctly. The engine chapter is not a summary — it separates the top end from the bottom end, takes the camshaft, rocker arms, valves, valve springs, cylinder, piston and rings individually, then moves through the generator and starter clutch, the electric starter, the complete clutch stack, the oil pump, the shift shaft, the balancer gears and primary drive gear, the crankcase and crankshaft, and finally the transmission, shift forks and shift drum. Every one of those sections opens with an exploded diagram and a job instruction chart, so you can see the parts, the order they come off, and the torque or note attached to each before you touch the bike. The chassis chapter follows the same pattern for the wheels, both brake systems, the handlebar, the front fork, the steering head, the rear shock absorber assembly, the swingarm and the chain drive.

What the Manual Gives You in Practice

This is the difference between guessing and knowing. Because the document covers the 22B1 WR125R and the 22B2 WR125X side by side, it also flags where the two machines diverge — fork oil quantity and oil level, fork travel, rim size and rim material, front brake disc diameter and thickness, tire sizes and approved tire combinations, caster angle and trail, and the different front brake caliper removal and brake disc bolt torque figures for the two models. Anyone maintaining one of these bikes, or both, gets the correct figure for the machine in front of them rather than a generic value.

• Engine work from valve clearance adjustment through to crankcase separation, crankshaft removal and transmission reassembly
• Clutch inspection with friction plate and clutch plate wear limits, clutch spring free length and clutch boss nut torque
• Complete front and rear brake overhaul — pad replacement, caliper disassembly, piston and seal inspection, master cylinder service and hydraulic bleeding
• Front fork disassembly, oil seal and bushing replacement, fork oil quantity and oil level for both models, and correct reassembly
• Rear shock absorber, relay arm and connecting rod service, swingarm bushing and pivot shaft inspection
• Fuel injection diagnostics using the ECU self-diagnostic function, fault code tables and the diagnostic mode sensor and actuator operation tables
• Electrical fault finding across the ignition, starting, charging, lighting, signaling and cooling circuits
• Periodic maintenance schedules for the emission control system and for general maintenance and lubrication

Specifications, Torque Values and Service Data

Specification tables run through the whole document, not just the specifications chapter. Compression pressure with minimum and maximum figures, cylinder bore and taper limits, piston-to-cylinder clearance, piston ring end gap and side clearance, valve stem to valve guide clearance, valve spring free length and installed compression force, camshaft lobe dimensions with wear limits, rocker arm and rocker arm shaft diameters, crankshaft runout, main axle and drive axle runout limits, clutch plate warpage, oil pump rotor clearances and relief valve operating pressure, radiator cap opening pressure and thermostat opening temperature — all printed with their service limits so wear can actually be judged. Engine tightening torques, chassis tightening torques and general tightening torque specifications are tabulated by thread size and component, and the chapter includes the proper tightening sequences for the cylinder head, generator cover, clutch cover and crankcase.

Who This Manual Is For

It suits the home mechanic working through a rebuild or a single repair, and it suits the workshop technician who needs the factory procedure and the exact figure rather than a forum answer. It also suits anyone doing their own scheduled servicing who wants the real intervals and the real clearances. The document assumes a basic understanding of mechanics and the techniques used to repair this type of vehicle, and it says so plainly — it is not a beginner’s introduction to spanners.
