Yanmar M220 M220L M220AL Marine Diesel Engine Operation & Overhaul Manual

Yanmar M220 M220L M220AL Marine Diesel Engine Operation & Overhaul Manual

Name: Yanmar M220 M220L M220AL Marine Diesel Engine Operation &amp; Overhaul Manual
SKU: HD-YAN-M220-OPR-OVH
Availability: InStock

Original price was: $39.95.Current price is: $24.95.

Comprehensive Yanmar M220-series diesel engine operation and overhaul reference covering M220, M220L and M220AL variants. Includes engine operation, fuel and lubrication requirements, cooling water, periodic maintenance, cylinder head and piston work, crankshaft and bearing service, fuel injection equipment, turbocharger servicing, tightening torques, wear limits and troubleshooting.

SKU: HD-YAN-M220-OPR-OVH Category: Marine Engine Manuals Tags: Yanmar M220 Marine Diesel Engine Manual, Yanmar M220 Operation Overhaul Manual, Yanmar M220AL Marine Diesel Engine Manual, Yanmar M220L Marine Diesel Engine Manual Vendor: Ignition Service Docs

⚡

Instant PDF Download

Available immediately

💾

Save to Your Device

Download & keep forever

🛡️

Antivirus Scanned

100% virus-free

🌍

Trusted Worldwide

175,000+ customers

Description
Reviews (0)

Description

Yanmar M220 M220L M220AL Marine Diesel Engine Operation & Overhaul Manual

This Yanmar M220 M220L M220AL Marine Diesel Engine Operation & Overhaul Manual provides detailed operating, maintenance, inspection and internal engine servicing information for the M220 family of six-cylinder diesel engines. Coverage extends from routine starting, running and shutdown procedures through scheduled checking and major dismantling and reassembly work, giving technicians a single reference for both day-to-day engine care and deeper mechanical service.

The manual covers marine main-engine configurations as well as marine auxiliary and land-engine versions identified within the document. Individual model designations include M220-UN, M220-SN, M220-EN, M220L-UN, M220L-SN, M220L-EN, M220AL-UN, M220AL-SN, M220AL-EN, M220L-UX, M220L-SX and M220L-EX.

File Details

Manual type: Operation manual with overhaul, adjustment and troubleshooting procedures
Brand: Yanmar
Engine family: M220, M220L and M220AL
Language: English
Page count: 307 pages
File format: PDF

Engine Operation and Service Information

The Yanmar M220 manual begins with extensive safety guidance for operation and maintenance, then moves into engine descriptions and essential check points. Separate engine-description tables identify the marine main-engine and marine auxiliary/land-engine arrangements, including cylinder configuration, bore, stroke, displacement, compression ratio, rotation, firing order, cooling arrangement, lubricating system, starting system and principal dimensions.

Operating instructions cover preparation before starting, oil-system priming, cooling-water preparation, fuel-system preparation, starting-air checks, initial starting, warming-up, load running and confirmation of engine performance. The manual also explains operating observations such as combustion pressure, exhaust temperature, lubricating-oil temperature, cooling-water temperature and indicated pressures. Procedures for turbocharger washing, fuel injection adjustment, injection timing, rocker-arm lubrication and shutdown are included alongside precautions for heavy-fuel operation.

Maintenance, Inspection and Overhaul Depth

A substantial part of the Yanmar M220 M220L M220AL Marine Diesel Engine Operation & Overhaul Manual is devoted to scheduled inspection and mechanical overhaul. Periodic checking tables are provided for engines using diesel oil, intermediate fuel oil and heavy fuel oil, with separate provisions for emergency-engine service. The schedules cover fuel injection equipment, lubricating systems, pistons, connecting rods, cylinder liners, bearings, crankshaft, cooling-water components, governor equipment, starting-air components, cylinder-head mechanisms, turbochargers, camshaft and associated systems.

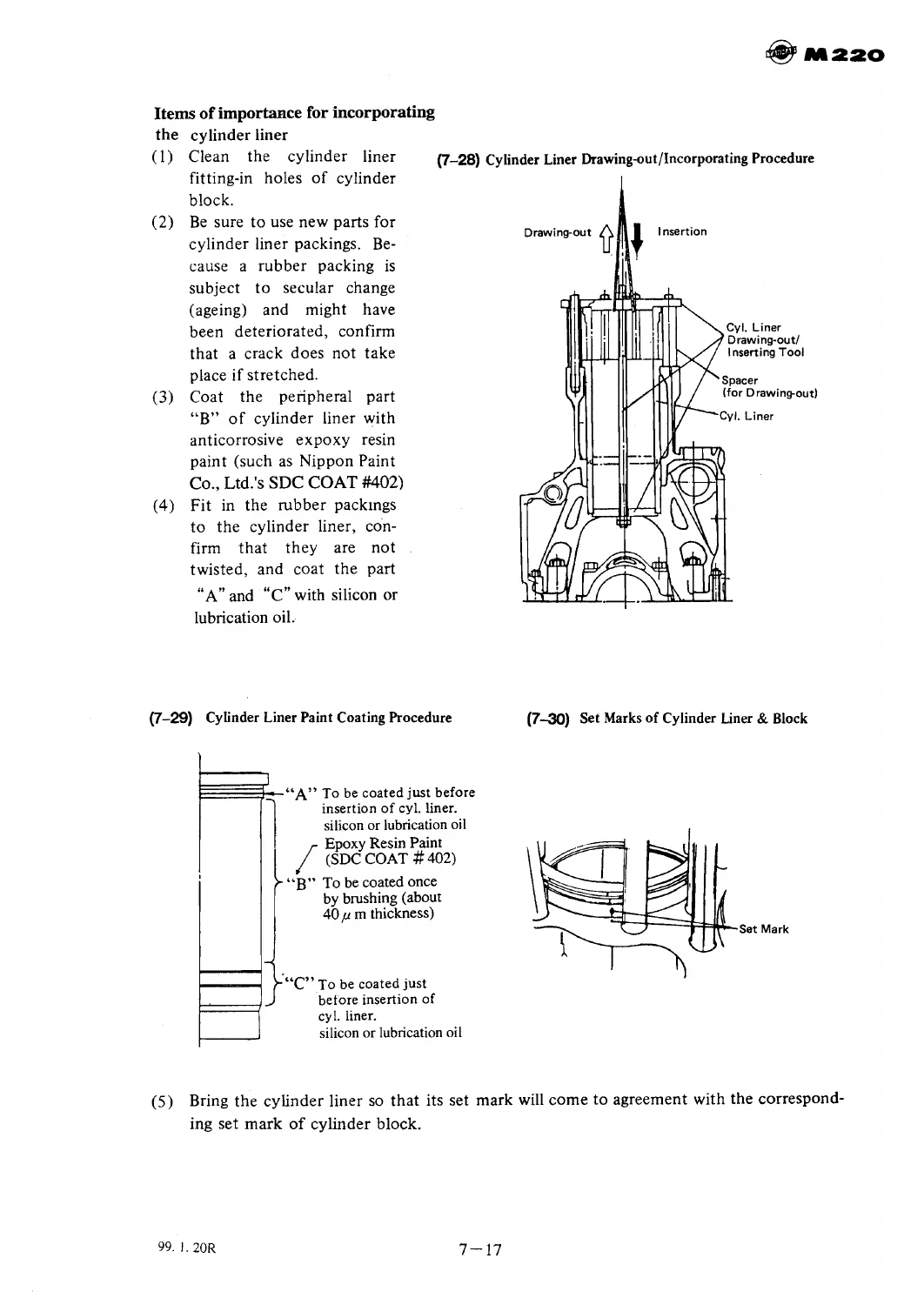

The dismantling and reassembly section goes well beyond basic maintenance. It includes cylinder-head removal, valve and valve-seat work, valve guides, fuel injection valves, starting valves and cylinder valves. Piston and connecting-rod servicing addresses removal, carbon cleaning, ring inspection, piston-pin measurement and connecting-rod checks. Cylinder-liner removal and installation, bed-plate inspection, main-bearing and thrust-bearing work, crankshaft inspection and crank deflection measurement are also covered with diagrams and dimensional guidance.

IMAGES PREVIEW

Yanmar M220 M220L M220AL Marine Diesel Engine Operation & Overhaul Manual — PDF page 1 preview

Yanmar M220 M220L M220AL Marine Diesel Engine Operation & Overhaul Manual — PDF page 19 preview

Yanmar M220 M220L M220AL Marine Diesel Engine Operation & Overhaul Manual — PDF page 94 preview

Chapters Covered

Precautions on Safety
- Basic precautions
Precautions on Operation
- Prior to starting the engine
- When starting the engine
- When stopping the engine
Precaution on Maintenance
- Precautions prior to maintenance servicing
- Precautions during maintenance servicing
- Precautions at completion of maintenance servicing
Engine Description
- Marine main engine
- Marine auxiliary engine / land engine
Essential Check Points
Table of Engine Standard Adjustments
Operation
- Operational preparation
- Starting
- Warming-up
- Initial running
- Load running
- Stopping
- Operation cutting off a fuel injection pump
Fuel Oil / Lub. Oil & Cooling Water
- Fuel oil
- Lubricating oil
- Guide for lubricating-oil changing time
- Cooling water
Periodical Checking
- Periodical checking for normal-service engine
- Periodical checking for emergency engine
Dismantling, Reassembling & Adjustment
- Cylinder head and accessories
- Piston and connecting rod
- Cylinder and liners
- Bed plate, main bearings and crankshaft
- Timing gears, camshaft and suction/exhaust valve tappet
- Fuel injection pump and tappet
- Governor and governor gear adjustment
- Lubricating-oil pump, oil cooler and pressure regulating valve
- Cooling-water pump overhaul
- Fuel-feed pump and rocker-arm lubricating-oil feed pump
- Suction and exhaust system
Principal Dimensions of Part Mates for Disassembly & Servicing
Table of Tightening Torques of Major Bolts
Clearances & Wear Limits of Major Parts
Troubleshootings & Counter Measures
- Troubleshooting at starting time
- Troubleshooting during operation

Taken together, these sections support inspection and servicing of the engine from external operating systems through its major internal reciprocating and rotating components. The combination of procedures, adjustment data, tightening information, wear criteria and illustrated reassembly guidance makes the manual useful when diagnosing a fault, planning an overhaul or checking whether a component remains within service limits.

Fuel, Lubrication and Cooling Guidance

The fuel and lubrication chapter covers diesel fuel, intermediate and heavy fuel operation, fuel properties, viscosity and heating guidance, lubricant selection and oil-change judgment. Separate information is given for engine lubricating oil, rocker-arm oil, governor lubrication and turbocharger lubrication. Cooling-water guidance includes recommended fresh-water properties, treatment considerations and rust-inhibitor information.

Complete PDF Bookmark Tree

Complete Bookmarks

The complete bookmarks in the “Yanmar M220 M220L M220AL Marine Diesel Engine Operation & Overhaul Manual” are as follows:

COVERp. 1

CONTENTSp. 2

PREFACEp. 6

OUTLINEp. 6

1. PRECATIONS ON SAFETYp. 8

1-1. Basic Precationp. 8

2. PRECATIONS ON OPERATIONp. 12

2-1. Prior to Starting of the Enginep. 12

2-2. When Starting the Enginep. 13

2-3. When Stopping the Enginep. 14

3. PRECATIONS ON MAINTENANCEp. 15

3-1. Precations Prior to Maintenance Servicingp. 15

3-2. Precations during Maintenance Servicingp. 17

3-3. Precations at Coplection of Maintenance Servicingp. 18

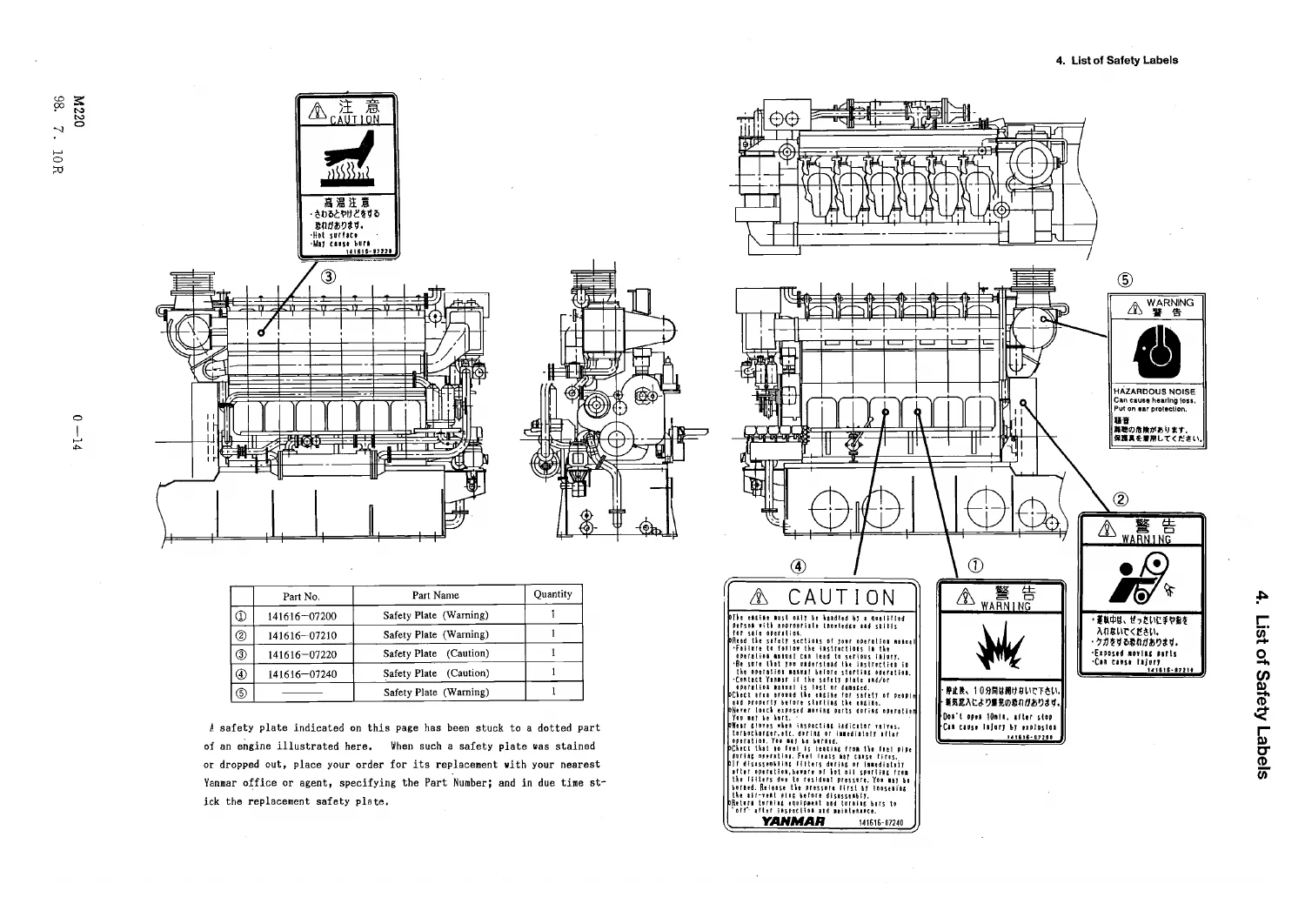

4. LIST OF SAFETY LABELSp. 19
