Airbus A319 A320 A321 AMM Chapter 05 Time Limits & Maintenance Checks – Nov 2006

Description

Official Airbus A319/A320/A321 Maintenance Manual – Chapter 05

This is the complete Airbus A319 A320 A321 – AMM Chapter 05 Time Limits and Maintenance Checks document, revision 06 dated November 2006. This official Aircraft Maintenance Manual chapter provides maintenance personnel with all required inspection schedules, procedures, and airworthiness guidelines for the A320 family.

File Details

• Manual Type: Aircraft Maintenance Manual (AMM) – Chapter 05
• Applicable Models: Airbus A319, A320, A321
• Document Number: AMM Chapter 05
• Revision: 06
• Date: November 2006 (with various page dates up to Aug 2006)
• Language: English
• Page Count: Over 1,000 pages
• File Format: PDF
• Publisher: Airbus (THY)

Chapters & Procedures Covered

• 05-20-00: Scheduled Maintenance Checks
  • Zonal inspections of the entire aircraft
  • Fuselage (lower/upper half, cockpit, cargo compartments)
  • Wings, stabilizers, and control surfaces
  • Power plant, nacelles, and pylons
  • Landing gear and doors
• 05-21-00: Zonal Inspection – Lower Half of Fuselage

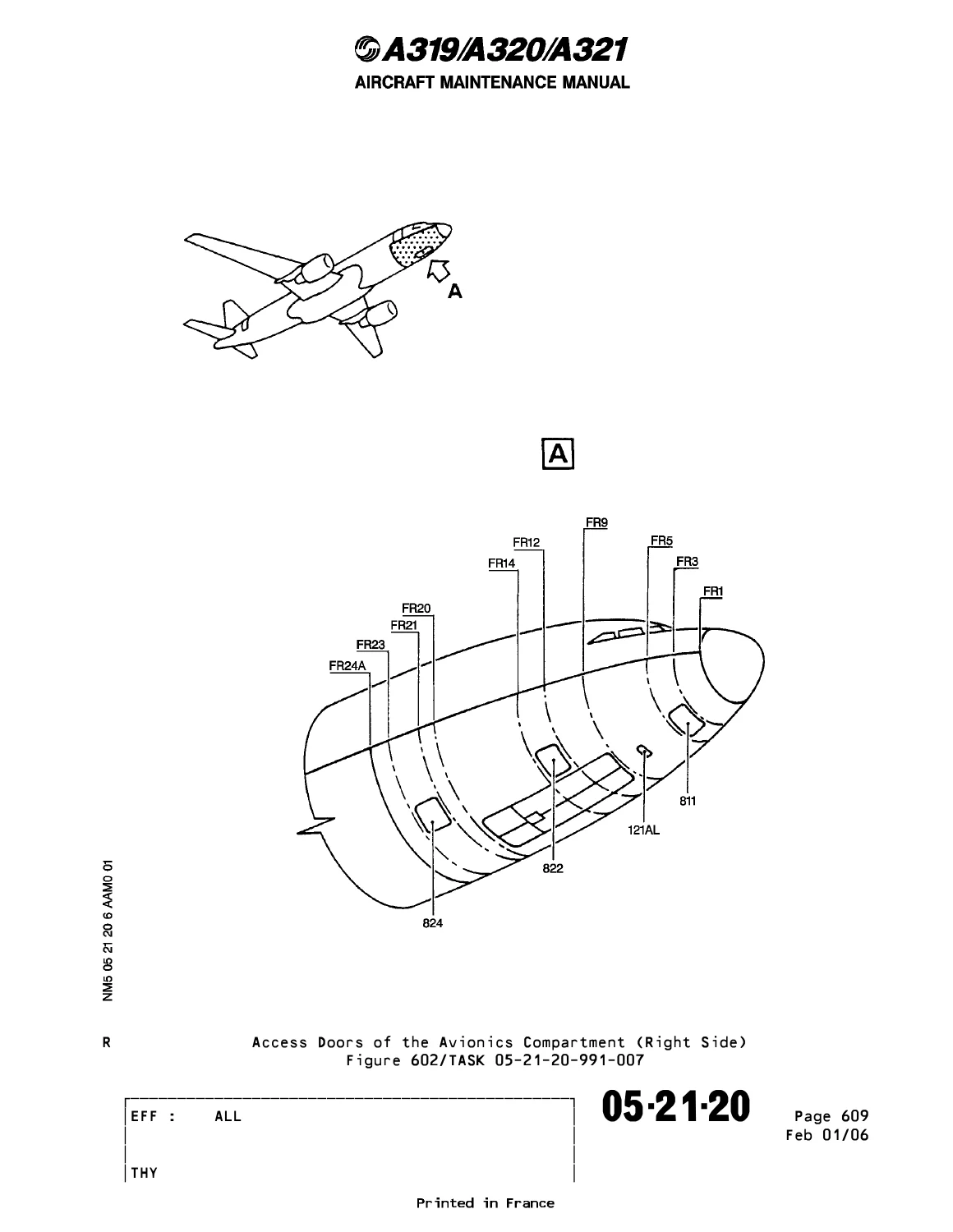

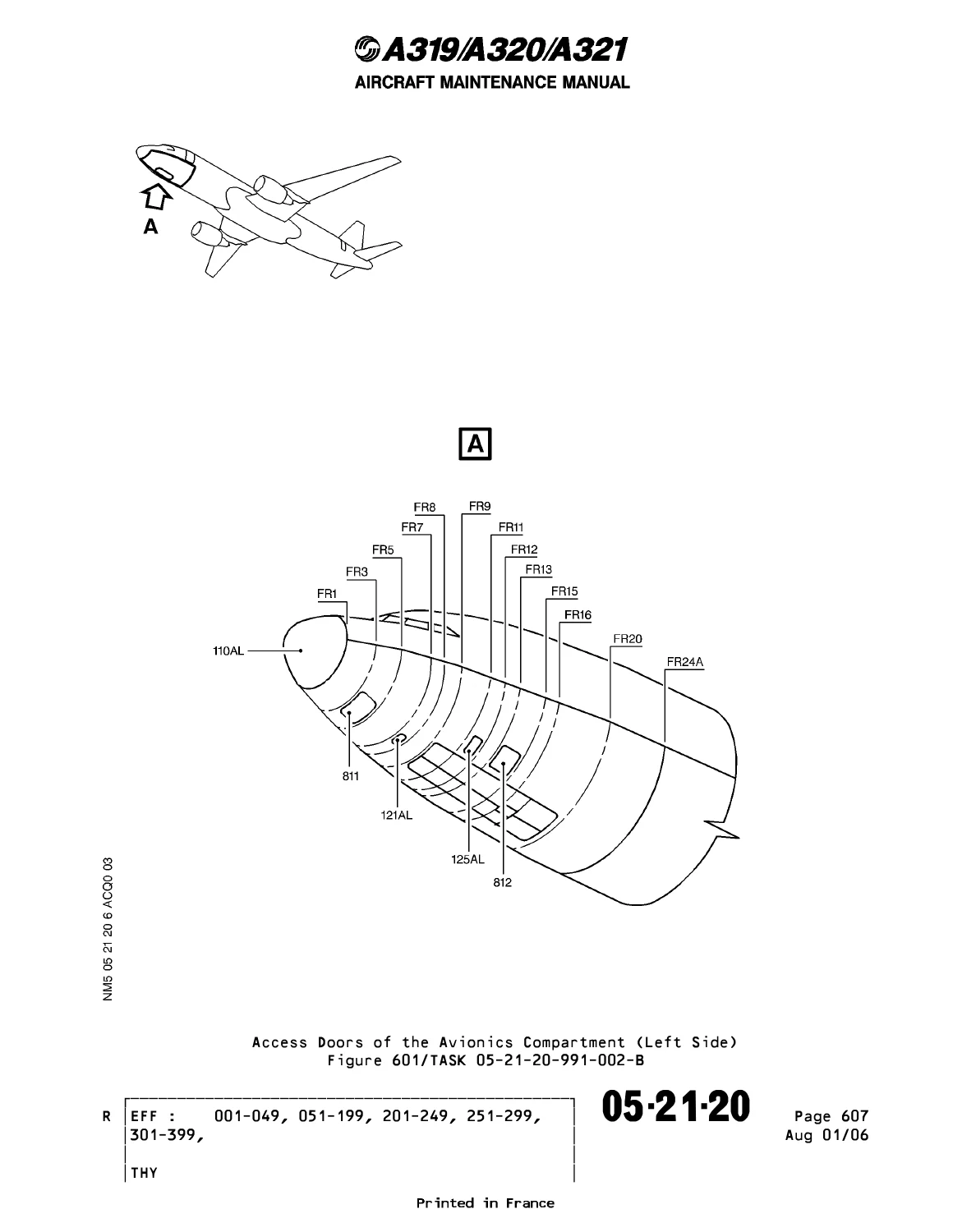

  • Radome, avionics compartment, forward/aft cargo compartments
  • Center wing, belly fairing, air conditioning and hydraulics compartments
• 05-22-00: Zonal Inspection – Upper Half of Fuselage
  • Cockpit, passenger compartments, cabin utility areas

  IMAGES PREVIEW







• 05-23-00: Zonal Inspection – Stabilizers & Rear Fuselage
  • Vertical and horizontal stabilizers, rudder, elevators, THS
• 05-24-00: Zonal Inspection – Power Plant, Nacelles & Pylons
  • Engine air intake, fan, accessory gearbox, thrust reverser, exhaust section
• 05-25-00: Zonal Inspection – Wings
  • Leading/trailing edges, flaps, slats, spoilers, ailerons, fuel tanks
• 05-27-00 & 05-28-00: Zonal Inspection – Landing Gear & Doors
  • Nose gear, main gear, doors, emergency exits, cargo/avionics compartment doors
• 05-50-00: Unscheduled Maintenance Checks
  • Inspection after hard/overweight landing
  • Inspection after flap/slat speed exceedance
  • Inspection after bird or hail strike, lightning strike
  • Inspection after tire burst, brake overheat, engine failure
  • Inspection after tail runway impact, towing overload, fluid spillage
  • Inspection after flight through dust storm or volcanic ash
• 05-53-00: Pressurization Test of Fuselage (Leakage Checks)
• 05-56-00: Leveling and Measurement after Abnormal Operation
• 05-57-00: Aircraft Stability
• 05-59-00: Non-Revenue Flight Requirements & Ferry Flight with Gear Down

This AMM chapter is essential for any maintenance operation on the A319/A320/A321. It provides the complete time limits and inspection schedules required by Airbus, including detailed zonal inspection procedures, unscheduled checks after abnormal events, and comprehensive safety and airworthiness guidelines. Whether you are performing routine scheduled maintenance or need to inspect the aircraft after an incident, this document gives you the official procedures, references, and job set-up information to work correctly and safely.

What You Can Do With This Manual

• Perform all scheduled zonal inspections as required by the MPD.
• Carry out unscheduled maintenance checks after hard landings, turbulence, lightning strikes, bird strikes, engine failures, and other abnormal events.
• Conduct fuselage pressurization leak tests and structural measurements.
• Ensure aircraft stability and airworthiness with approved procedures.
• Follow official Airbus procedures for time limits and maintenance checks.

This is an instant PDF download. No shipping fees, no waiting. You get the complete, original Airbus document, exactly as issued, ready to use on any device.
