Airbus Helicopters EC130 H130 G500 Training Manual – Full Type Rating PDF Course

Description

Airbus Helicopters EC130 H130 G500 Training Manual – Full Type Rating Course for Maintenance Personnel

This is the complete Airbus Helicopters EC 130 Training Course manual – Edition 2, dated September 2019 – written for maintenance personnel working on the EC130 / H130 helicopter. It is built around the ATA chapter system and spans 33 core chapters plus two additional optional-equipment chapters (34 and 35), giving roughly 2,091 pages of systems description, component location, normal and degraded functioning, and rigging data for the EC130 T2 / H130 fitted with the G500 avionics suite and the Turbomeca Arriel 2D engine.

File Details

• Manual type: Maintenance Training Manual (Type Rating course)
• Manufacturer / brand: Airbus Helicopters
• Models covered: EC130 B4, EC130 T2, H130
• Engine covered: Turbomeca Arriel 2D
• Language: English
• Edition: Edition 2 (supersedes Edition 1, December 2017)
• Edition date: September 2019
• Page count: Approximately 2,091 pages
• File format: PDF
• Structure: 33 core ATA chapters plus 2 optional-equipment chapters

Chapters Covered

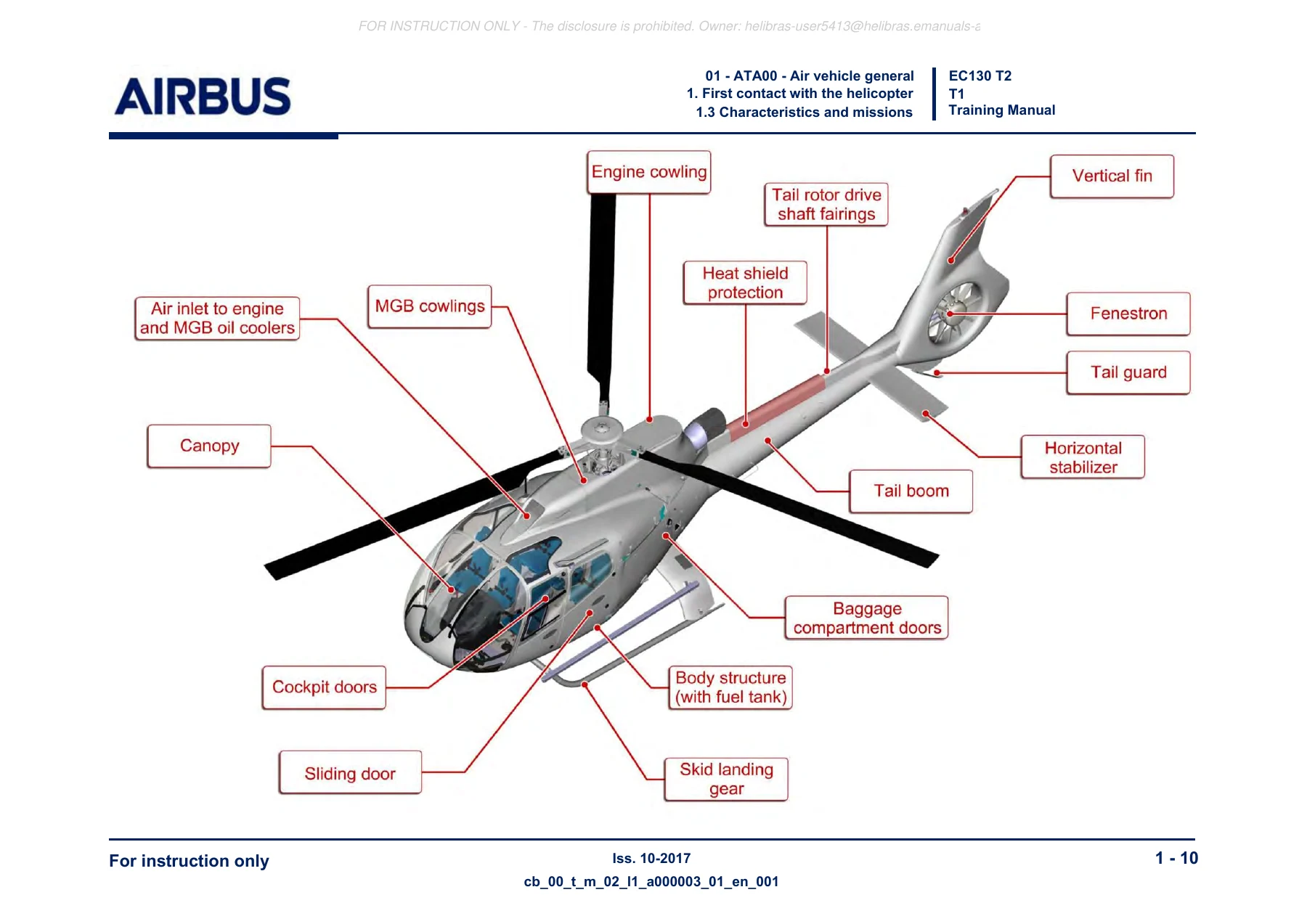

• Air vehicle general (ATA 00) – category, history, characteristics and missions
• Periodic inspection (ATA 04, 05, 20, 70) – operating and maintenance documentation, MSM, AMM, SRM, SDS, WDM, special publications

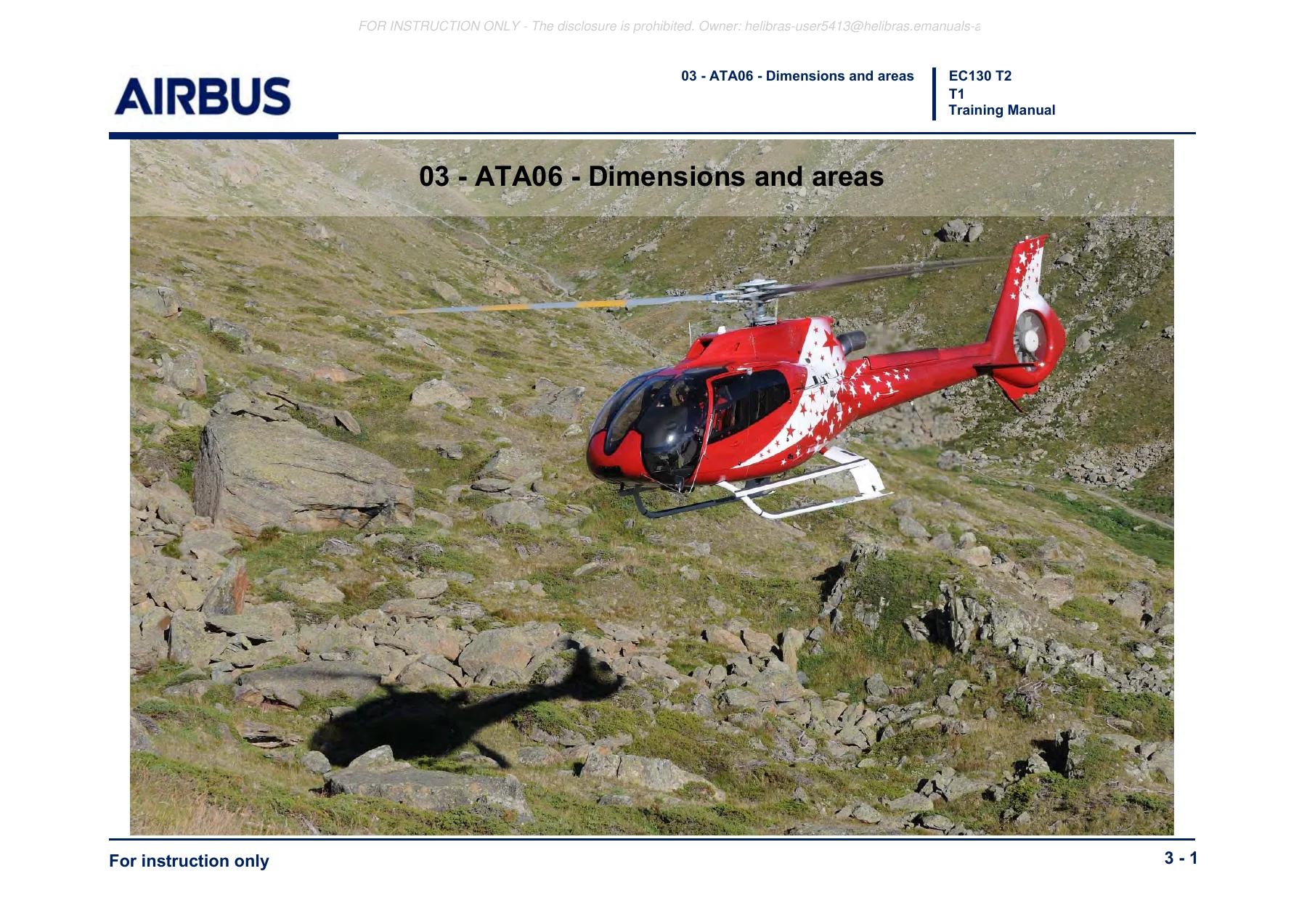

• Dimensions and areas (ATA 06) – primary dimensions, access items, main reference stations, CG definition, zoning
• Lifting and shoring (ATA 07) – lifting, jacking, transport
• Leveling and weighing (ATA 08) – leveling, weighing, weight definitions, weighing procedure
• Handling and taxiing (ATA 09) – towing and taxiing
• Parking and mooring (ATA 10) – parking, mooring and picketing
• Placards and markings (ATA 11) – inside and outside name plates
• Servicing (ATA 12) – filling and draining, cleaning, unscheduled operations
• Fuselage (ATA 53) – main structure, canopy, tail boom, Fenestron, cowlings and fairings
• Doors (ATA 52) – cabin doors, front doors and jettison system, sliding doors, cargo hold doors
• Tail and stabilizers (ATA 55) – horizontal stabilizers, vertical fins
• Windows and canopy (ATA 56) – windows and windshields
• Landing gear (ATA 32) – assembly, fittings, ground resonance
• Standard practices – Propeller & Rotor (ATA 60) – critical parts, chip detection system, spectral oil analysis
• Main rotor (ATA 62) – rotor mast assembly, main rotor hub (Starflex), main rotor blades, vibration absorbers
• Main rotor drive (ATA 63) – engine-to-MGB coupling, rotor brake, main gear box, MGB suspension, lubrication
• Tail rotor (ATA 64) – tail rotor hub, tail rotor blades, hub balancing
• Tail rotor drive (ATA 65) – drive shafts, tail gear box
• Vibration and noise analysis (ATA 18) – Active Vibration Control System (AVCS)
• Rotor flight controls – G500 (ATA 67) – cyclic, collective, yaw channel, mixing unit, servocontrols
• Dual hydraulic system – G500 (ATA 29) – dual generation, indicating, degraded modes
• Fuel (ATA 28) – storage, distribution, indicating
• Standard practices – Engine – G500 (ATA 70, 71, 73, 77, 79, 80) – power plant, engine governing, indicating, lubrication, starting
• Electrical power – G500 (ATA 24) – DC power system, distribution principles, breaker panels
• Fire protection (ATA 26) – fire detection, cabin extinguisher
• Air conditioning – G500 (ATA 21) – heating and demisting, ventilation
• Lights – G500 (ATA 33) – internal, integrated and external lighting
• Communications – G500 (ATA 23) – intercommunication system, VHF 1 and VHF 2
• Navigation – G500 (ATA 34) – air data system, NAV1/NAV2, GPS, transponder, attitude and direction, magnetic compass
• Equipment and furnishing – G500 (ATA 25) – seats, APPAREO Vision 1000, Emergency Locator Transmitter
• Ice and rain protection (ATA 30) – pitot static system heating
• Indicating and recording systems – G500 (ATA 31) – indicating system, caution and warning panel, VEMD
• Air conditioning system (optional) – heating, demisting, ventilation, cooling
• Optional equipment – G500 (optional) – sand filter, cargo swing

Across these chapters the manual walks through the helicopter system by system: how each one is built, where its components sit on the airframe, how it behaves in normal operation, what happens when it degrades, and what the maintenance technician needs to check or adjust. Rotor, transmission, hydraulic, fuel, engine-governing, electrical, avionics, lighting, communication and navigation systems are all covered in the same consistent ATA format, which makes the manual practical to use alongside the aircraft maintenance documentation set.

What This Training Manual Covers in Practice

The EC130 H130 G500 Training Manual is not limited to component lists. For the main rotor it explains the Starflex hub architecture, how the laminated spherical stop transfers centrifugal loads, and how drag, flapping and pitch change are achieved without conventional hinges. For the main gearbox it details the modular bevel gear, epicyclic reduction and oil pump modules, the bidirectional MGB suspension, and the lubrication circuit including filter clogging, low pressure, overheat and chip detection behaviour.

Rotor flight controls are treated in depth – cyclic and collective channels, the mixing unit, vertical and swashplate linkages, main rotor flight controls rigging, the tail rotor yaw channel and its rigging, and the servocontrols with their double distributor valves, automatic mechanical test, limit sensor and degraded modes.

The dual hydraulic system chapter explains the two independent circuits, the 35 bar service pressure, the regulator valve, filter and low pressure switch, and the indications a pilot or technician sees when pressure drops or a filter begins to clog. The engine chapters cover the Arriel 2D, its modular architecture (M01 to M05), the FADEC/EECU governing system with its two channels, the EBCAU back-up control and its ground test sequence, engine indicating for N1, N2, TOT and TRQ, the oil system, and the automatic starting sequence.

On the avionics side, the G500 chapters cover the Garmin GDU 620 display, GTN 750H and GNC 255 units, the GMA 35H intercommunication system and its intercom modes, VHF 1 and VHF 2, the air data system, NAV1 and NAV2, GPS including RAIM prediction and GPS status, the GTX 33H transponder, the ADAHRS GSU 75H, the back-up gyro-horizon and the standby magnetic compass.

The remaining chapters handle the airframe and support tasks – fuselage and Fenestron structure, doors and the front door jettison system, landing gear and ground resonance, lifting, jacking, leveling and weighing procedures, parking and mooring, servicing and fuel / MGB / TGB filling and draining, fire detection, air conditioning, lighting, seats and the ELT.

Who This Manual Is For

This manual is intended for maintenance technicians, type-rating students and instructors who need to understand the EC130 T2 / H130 with the G500 package. It also suits operators who want a structured reference for the aircraft’s systems, component locations and normal and degraded behaviour, and for anyone preparing for maintenance training or checking a task against the described system operation.

Why the EC130 H130 G500 Training Manual Matters

Correct maintenance on a helicopter depends on understanding how a system is supposed to behave before touching it. This manual supplies that understanding – the component positions, the operating principles, the degraded-mode indications and the rigging and adjustment points – in the sequence a technician actually needs them. Because it is organised by ATA chapter and spans rotor, drive, controls, hydraulics, fuel, engine, electrical, avionics and airframe, it can be used as a single training reference across the whole aircraft rather than as a fragment.

Get Instant Access

IMAGES PREVIEW

The Airbus Helicopters EC130 H130 G500 Training Manual is delivered as an instant-download PDF – no shipping, no waiting. Open it on a laptop, tablet or phone, print the chapters you need for the hangar, and keep the full 2,091-page reference available whenever a system question comes up. Whether you are working through a type-rating course, refreshing your knowledge of the EC130 T2 / H130 G500, or checking a maintenance task against the aircraft’s documented behaviour, this Airbus Helicopters EC130 H130 G500 Training Manual puts the full course at your fingertips.
