ASTRA HHD9 Euro 3 Truck Use and Maintenance Handbook – Complete PDF Workshop Manual

Description

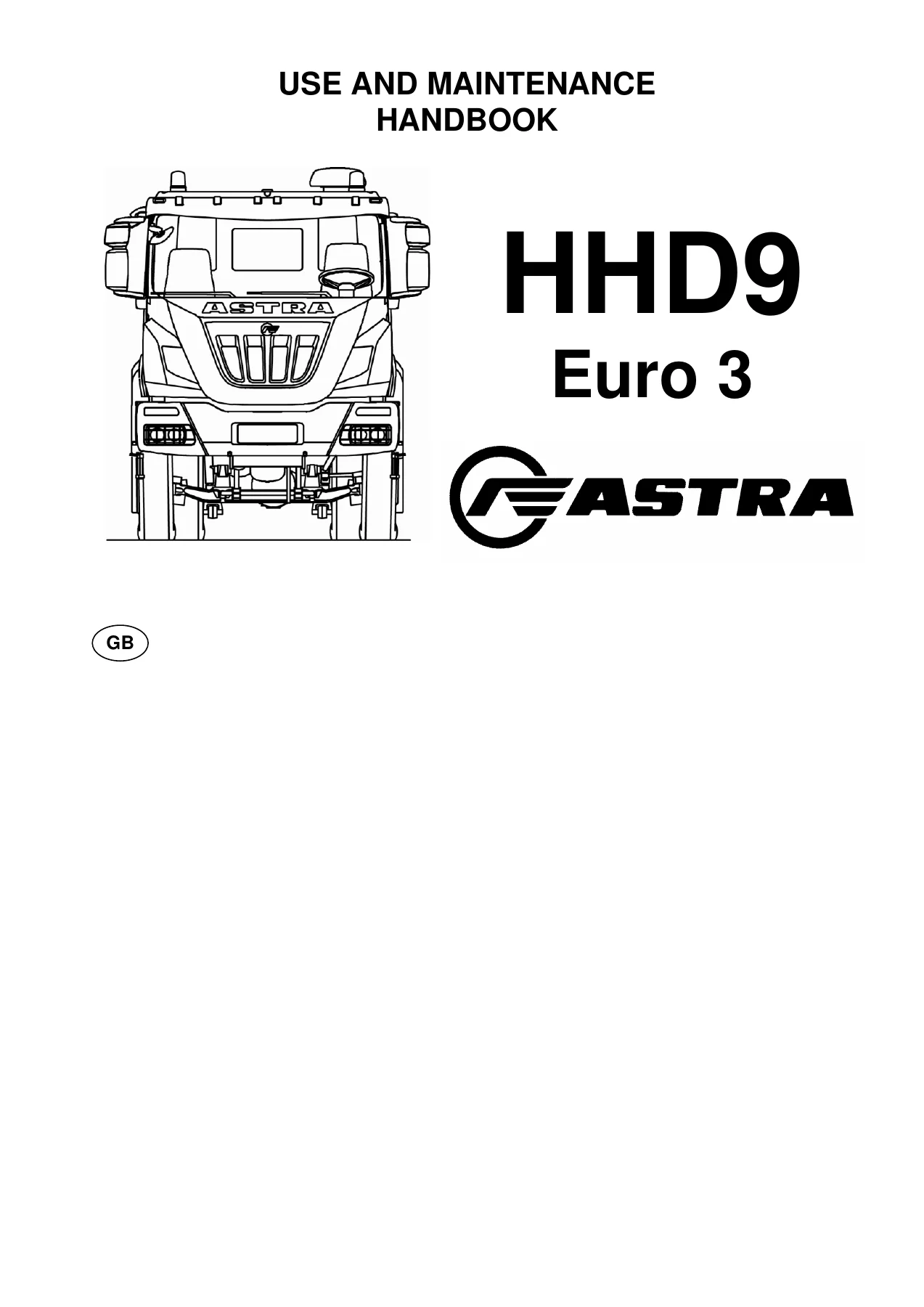

ASTRA HHD9 Euro 3 Use and Maintenance Handbook

This ASTRA HHD9 Euro 3 Use and Maintenance Handbook is the complete manufacturer-issued guide for the HHD9 Euro 3 heavy truck platform. It covers the IVECO Cursor 13 engine in both Wastegate (WG) and Variable Geometry Turbocharger (VGT) configurations, ZF manual and automated transmissions, the Allison HD 4700 automatic transmission, transfer distributor, front and tandem rear axles, simplex and duplex braking systems with ABS, suspension, steering, electrical system, chassis, and the full range of scheduled maintenance and lubrication procedures. Whether you are a fleet operator, workshop technician, or owner-operator, this handbook gives you the specifications, procedures, and diagrams needed to service and maintain the HHD9 Euro 3 correctly.

File Details

• Manual Type: Use and Maintenance Handbook
• Brand: ASTRA (Astra Veicoli Industriali S.p.A.)
• Model: HHD9 Euro 3
• Language: English
• Format: PDF
• Page Count: 376 pages
• Publication Number: Print cat. A3502304
• Edition: First edition – October 2012
• Prepared by: SIPAL S.p.A. – Torino (Italy)

Chapters Covered

• Introduction and After Sales Service
• Technical Data
  • Position of Vehicle Identification Data Plates
  • Engine – IVECO F3B WG (Cursor 13)
  • Engine – IVECO F3B VGT (Cursor 13)
  • Manual Transmission – Clutch, Gear Shift, Ratios
  • Automatized Transmission – ZF 16 AS 2601 OD
  • Automatic Transmission – Allison HD 4700
  • Transfer Distributor – Steyr VG 2700/400
  • Axles – Front Steering Drive Axle, Tandem Rear Drive Axles
  • Brakes – Simplex, Duplex with ABS
  • Tyres, Suspension, Steering
  • Electrical System, Chassis, Fuel Tanks
  • Tightening Torques
• Instructions for Use
  • General Instructions for Correct Use of the Vehicle
  • Left Hand Drive Vehicles – Cab External, External Lighting, Doors, Seats, Seat Belts, Controls
  • Right-Hand Drive Vehicles – Cab External, External Lighting, Doors, Seats, Seat Belts
  • Climate Controls, Warm Air Auxiliary Heater (Webasto)
  • Starting Engine, Cold Start, Stopping Engine
  • Manual Transmission Vehicles – Starting, Driving, Gearbox Control, Splitter Control
  • Vehicles with Automated Transmission (AstrOnic) – EuroTronic Operation
  • Vehicles with Automatic Transmission – Allison Operation
  • Speed Programmer, Engine Brake, Retarder
  • Vehicle Parking, ABS, Semi-Trailer Coupling, Towing
• Maintenance Instructions
  • Opening Radiator Grill, Tilting the Cab
  • Main Levels Check – Engine Oil, Coolant, Windshield Washer
  • Engine – Oil Change, Oil Filter, Oil Vapour Filter, Drive Belts, Valve Play
  • Fuel Feed System – Water Drain, Filter Replacement, Bleeding
  • Intake System – Filter Element, Intercooler Cleaning
  • Cooling System – Coolant Replacement, Antifreeze
  • Clutch, Multipower PTO, ZF NMV 221 PTO
  • Transmission – Manual, Automated, Automatic Oil Levels and Changes
  • Distributor-Transfer, Transmission Shafts Greasing
  • Axles – Front, Intermediate, Rear, Hub Oil
  • Suspensions, Steering System
  • Compressed Air System, Braking System
  • Tyres and Wheels, Cab Tipping System
  • Towing Systems, Air Conditioner, Supplementary Heater
  • Bodywork, Lighting System, Electrical System, Fuses and Relays
• Tables and Diagrams
  • Lubricants, Oils, Hydraulic Fluids and Filter Refilling/Replacement Diagram
  • Location of Components – Engine, Transmission, PTO, Drive-line, Suspension, Steering
  • Service Schedule – Checking, Adjusting and Cleaning Operations
  • Lubrication and Replacement Operations – Engine and Vehicle
  • Lubricant and Hydraulic Fluid Tables

This handbook is organized into four main parts. The Technical Data section provides all characteristic data needed to understand the vehicle’s systems and specifications, including engine parameters, transmission ratios, axle configurations, brake specifications, tyre pressure tables, and tightening torques. The Instructions for Use section covers every control and instrument, driving procedures for manual, automated, and automatic transmission variants, cold start procedures, auxiliary heater operation, and practical guidance for safe and economical operation. The Maintenance Instructions section contains functional instructions for checking and maintaining the vehicle, from daily checks through to major component servicing, with detailed procedures for oil changes, filter replacements, greasing points, and system bleeding. The Tables and Diagrams section provides scheduled maintenance tables, component location diagrams, and lubricant specifications.

Engine and Powertrain Coverage

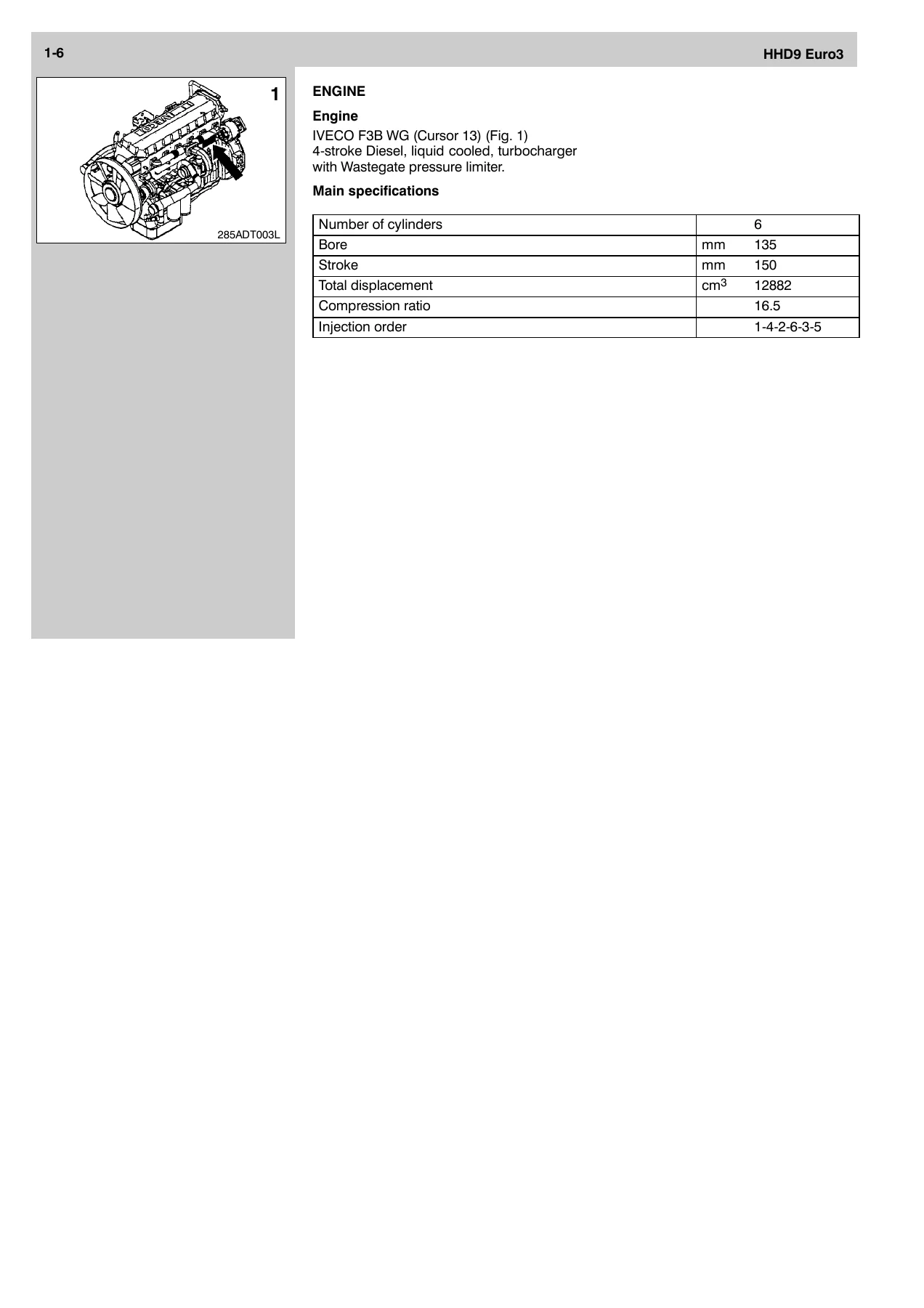

The ASTRA HHD9 Euro 3 is powered by the IVECO Cursor 13 engine, available in two configurations. The F3B WG variant uses a turbocharger with Wastegate pressure limiter, while the F3B VGT variant features a variable geometry exhaust gas turbocharger. Both are 4-stroke diesel engines, liquid cooled, with 6 cylinders, 135 mm bore, 150 mm stroke, 12,882 cm3 total displacement, and 16.5:1 compression ratio. The firing order is 1-4-2-6-3-5. This manual provides the specifications and maintenance procedures for both engine variants.

Transmission options covered include the ZF 16 S 2320 TD, ZF 16 S 2520 TO, and ZF 16 S 2720 TO manual gearboxes with synchromesh, 8 forward gears split into low range (1-4) and high range (5-8), plus reverse. The automatized ZF 16 AS 2601 OD transmission offers 16 forward and 2 reverse gears with electro-pneumatic servoshift and automatic or manual mode selection. The Allison HD 4700 automatic transmission is an epicyclical automatic with 7 forward plus reverse, hydrodynamic torque converter, and built-in hydrodynamic retarder. The Steyr VG 2700/400 transfer distributor provides normal (0.913) and off-road (1.407) ratios.

Axles, Brakes, and Chassis

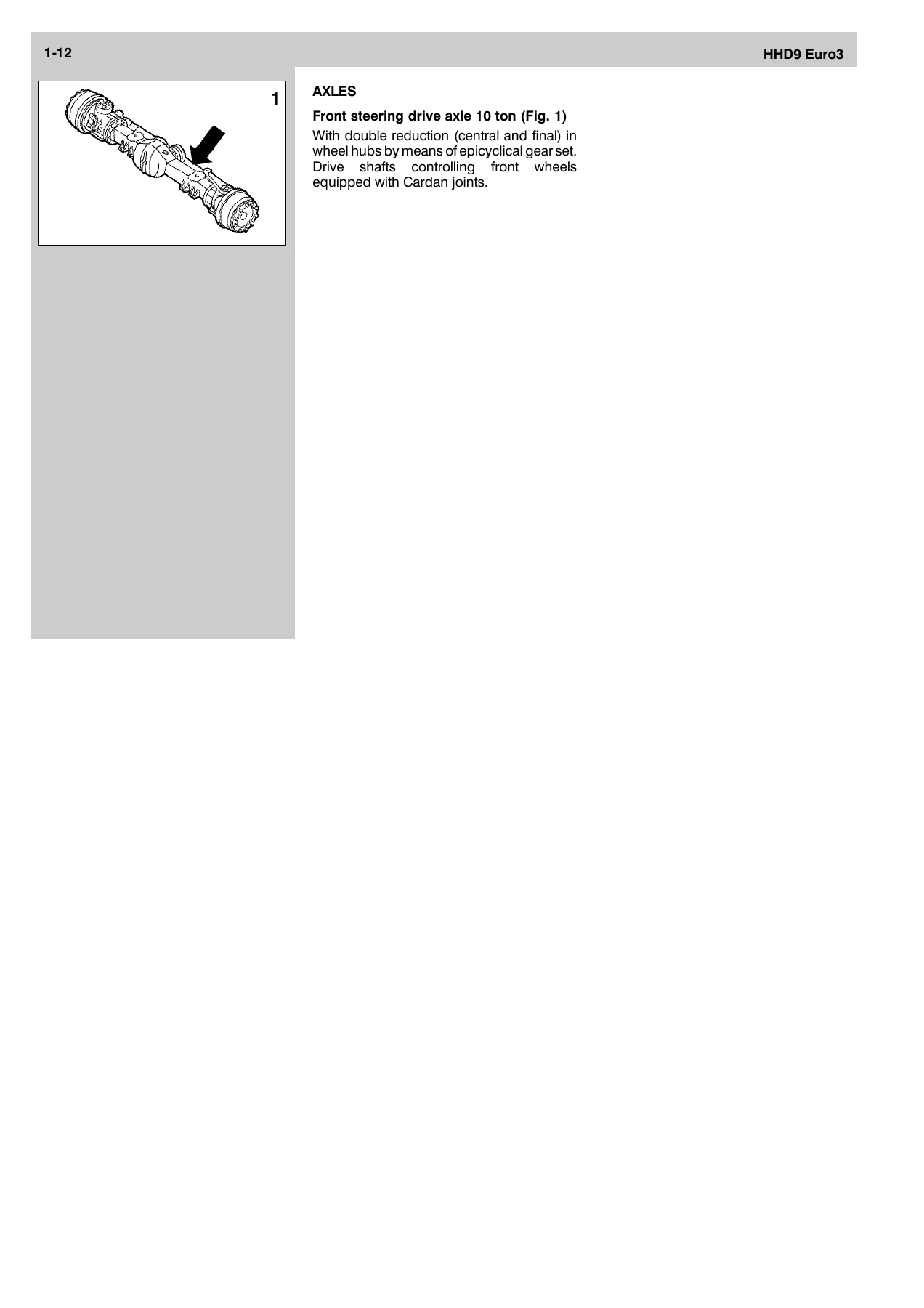

The front steering drive axle is a 10-ton unit with double reduction (central and final) in wheel hubs via epicyclical gear sets, with Cardan joint drive shafts. Tandem rear drive axles use double reduction with central bevel gear and final epicyclical hub reduction, with splitter between axles and pneumatic differential locks. Brake options include simplex wedge drum brakes without ABS and duplex wedge drum brakes with ABS. The ABS system is a four-channel electronic system with four solenoid valves, with pulse generators and sensors on the 1st and 3rd axles for 3-axle vehicles or 2nd and 4th axles for 4-axle vehicles. The chassis uses rectilinear side members in high-strength C-section steel with riveted or bolted cross-members, and standard 300-litre or optional 600-litre steel fuel tanks.

Cab and Controls

The cab is hinged at the front and suspended on the chassis with longitudinal arms, springs, shock absorbers, and buffers at both front and rear. It can be tipped forward via a manually controlled hydraulic cylinder. The handbook covers left-hand drive and right-hand drive variants, with detailed descriptions of external lighting (front lights, rear lights, LED taillight versions), doors with central locking remote control, driver’s seat adjustments, seat belts, electric window controls, hatch operation, compartments, accessories, and all dashboard and floor controls. Climate controls and the Webasto warm air auxiliary heater and auxiliary heater are covered with operating instructions.

Maintenance and Service Information

The maintenance section of this ASTRA HHD9 Euro 3 workshop manual provides complete procedures for maintaining the vehicle. Engine oil and filter changes, fuel filter replacement and fuel circuit bleeding, air filter cleaning and replacement, cooling system maintenance with antifreeze concentration checks, clutch fluid changes and air bleeding, transmission oil level checks and changes for manual, automated, and automatic gearboxes, axle oil maintenance for front, intermediate, and rear axles, hub oil changes, transfer case oil, power steering system oil and filter, compressed air system maintenance including air dryer filter changes, brake shoe-drum play checks, tyre and wheel maintenance, cab tipping system oil, towing systems greasing, air conditioner maintenance, and bodywork care. The tightening torques section provides specific torque values for engine, transmission, axles, wheels, and other critical fasteners.

Diagnostics and Troubleshooting

The handbook includes diagnostic information for the vehicle’s electronic control systems. The automated transmission display shows gear engaged, possible gear shifts, system errors, and fault codes. The automatic transmission display shows gear position and alphanumeric fault codes. The diagnostics section covers the odometer display error memory, showing errors present in the vehicle control system memory with ECU type identification. Control systems covered include ECM (engine control unit), ABS (brakes/traction control unit), UDS (AdBlue additive dosing unit), VCM (vehicle control unit), IBC (body computer control unit), ETC (automated transmission control unit), and EST (intarder control unit). Diagnostic connector information is provided for both the 30-pole IVECO diagnostics connector and the Allison connector.

Why This Handbook Matters

Heavy truck maintenance and repair demands accurate specifications and correct procedures. Incorrect torque values, wrong fluid types, or improper adjustment can lead to premature component failure, costly downtime, or unsafe operating conditions. This ASTRA HHD9 Euro 3 Use and Maintenance Handbook PDF gives you the manufacturer’s own data and procedures, ensuring that every service task is performed to specification. The scheduled maintenance tables help you plan servicing intervals correctly, the component location diagrams help you find what you need quickly, and the detailed procedures guide you through each task step by step.

IMAGES PREVIEW

Instant PDF Delivery

This ASTRA HHD9 Euro 3 manual is delivered as an instant PDF download after payment. No shipping, no waiting for a physical book. The PDF can be viewed on any device – computer, tablet, or smartphone – and relevant pages can be printed for use in the workshop. Whether you are performing routine maintenance, diagnosing a fault, or undertaking a major repair, this handbook provides the information you need to get the job done correctly.
