Renault Magnum E-Tech 400, 440 & 480 Driver Handbook — English Edition, 2003

This is the complete Renault Trucks driver handbook for the Magnum E-Tech 400, Magnum E-Tech 440 and Magnum E-Tech 480 heavy tractor units. Published under document reference NE 3/3914 and dated 11/03, this English edition is the operating manual that accompanied the vehicle when new. It is the reference the driver needs for daily checks, cab controls, driving technique, fluid capacities, maintenance schedules, air conditioning and the electrical system — written in the same direct, technical style as the original factory literature.

File Details

• Manual type: Driver’s handbook / operating manual
• Brand: Renault Trucks (RENAULT V.I.)
• Models covered: Magnum E-Tech 400, Magnum E-Tech 440, Magnum E-Tech 480
• Language: English
• Page count: 251
• File format: PDF
• Document number: NE 3/3914
• Publication reference: 50 21 014 670
• Edition: English edition (edition anglaise)
• Date: 11/03

Chapters Covered

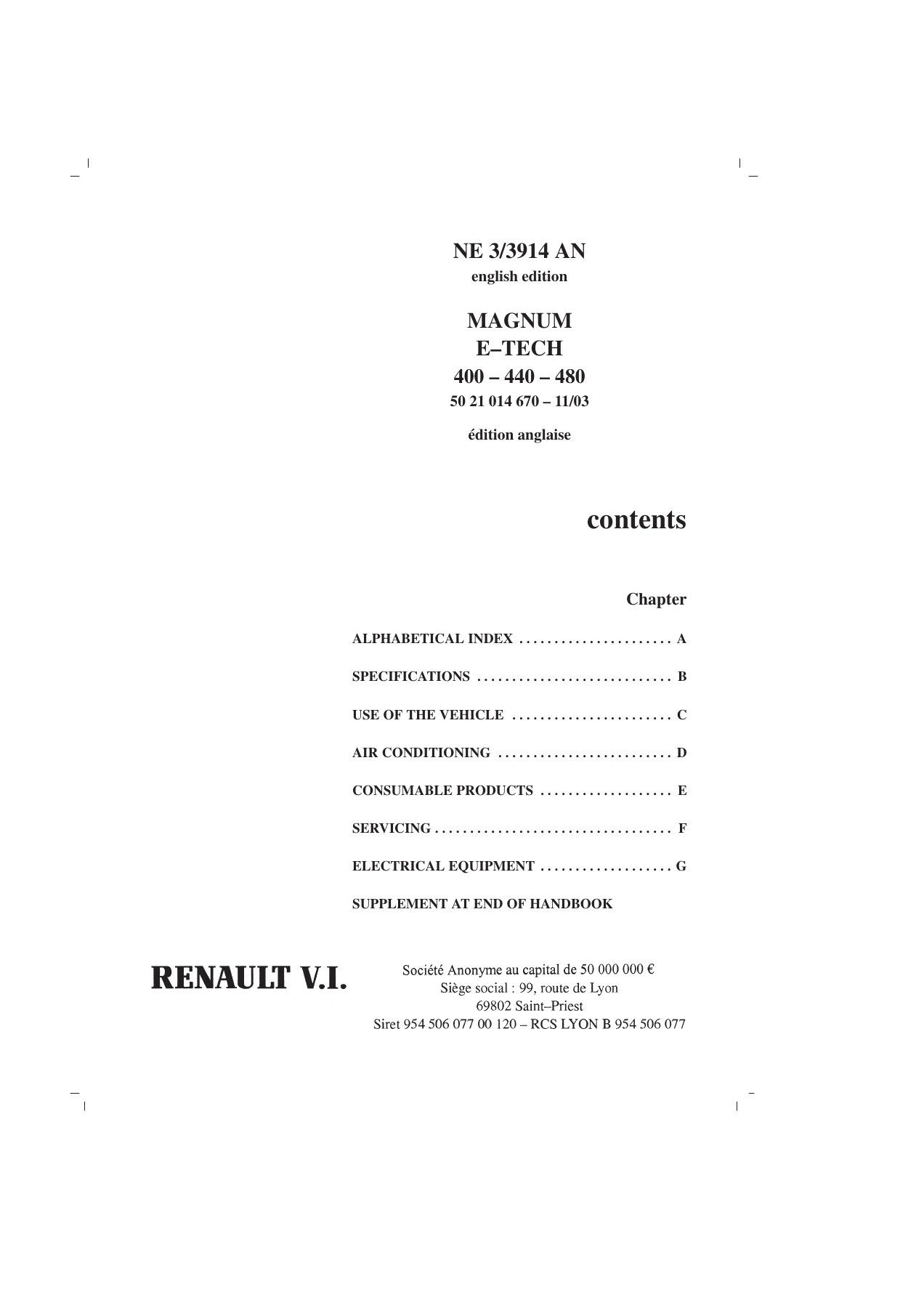

• A — Alphabetical index
• B — Specifications
• C — Use of the vehicle
• D — Air conditioning
• E — Consumable products
• F — Servicing
• G — Electrical equipment
• Supplement at end of handbook

B — Specifications

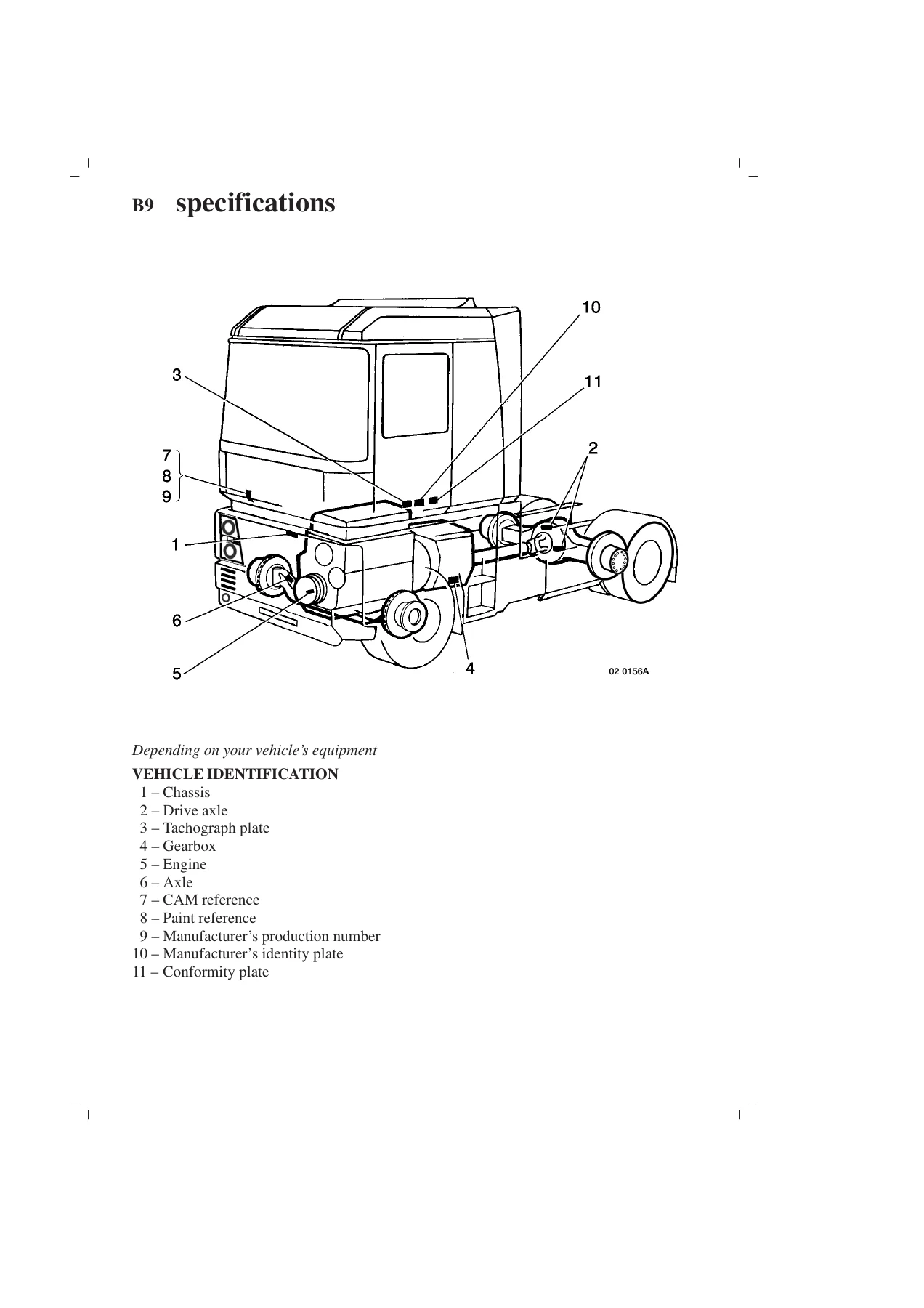

The specification chapter opens with the engine data for the MIDR 06.24.65 A66 / B66 / C66+J01 diesel: 11,929 cm³ capacity, 124 mm bore by 165 mm stroke, Bosch PLD 20 CCRS injection equipment, firing order 1.5.3.6.2.4, maximum no-load speed 2,350 rpm and 700 rpm idle. It continues through the clutch, gearbox options (ZF 16 S 181, ZF 16 S 221, ZF ASTRONIC), power take-off variants, propeller shafts, front and rear drive axles, steering (ZF 8098 hydraulic power assisted), front and rear suspension types, brakes, retarder options, 24 V electrics with two 190/230 Ah batteries, Bosch NL1 80 A alternator and Mitsubishi P 105 D starter, plus bodywork advice and the important welding precautions for vehicles with electronic circuits. The capacity tables give oil, coolant, windscreen washer and fuel tank volumes in litres, and the tyre chapter reproduces the load/pressure charts and wheel nut tightening sequence.

C — Use of the Vehicle

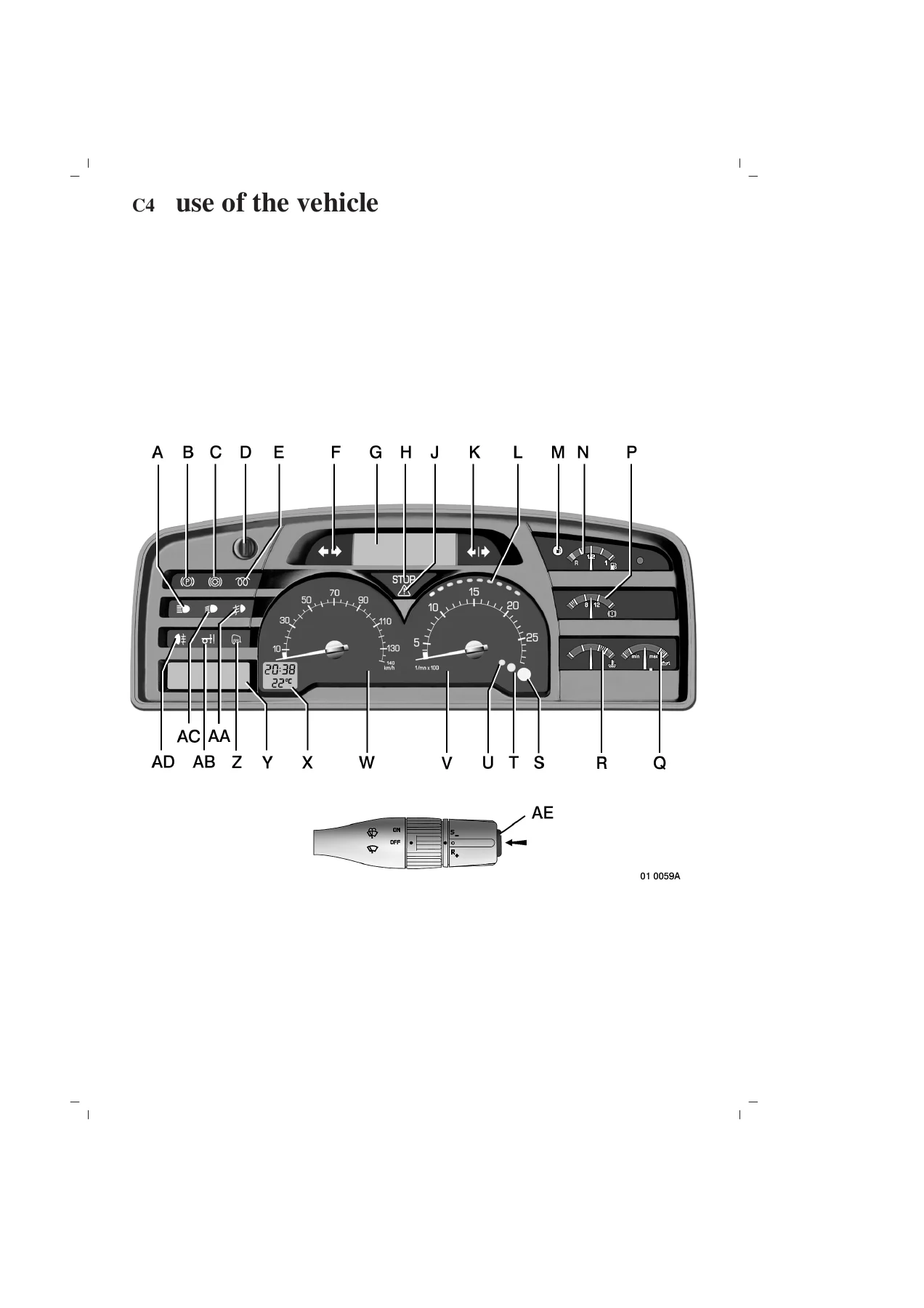

By far the largest section, this chapter walks through the complete dashboard, the multi-function display and its menus — maintenance, diagnostics, auto-test, brightness, sound volume, language, hour adjustment and warm-up selection. It then covers driver access, seat adjustment, seat belts, steering wheel adjustment, airbag and pretensioner, sun blinds, electrically operated rearview mirrors, alarm clock, parking brake, trailer brake and emergency brake. Pre-start checks, starting procedure, cold-weather starting, engine idling and fast-idling adjustment devices, running-in, economic driving, battery usage and special operating conditions (winter, hot climates, dusty atmospheres, high altitude) are all detailed. Fifth wheel coupling instructions are given for GEORG FISCHER, JOST, VBG and ROCKINGER units, followed by on-the-road guidance, gearbox operation (ZF 16 S 181/221, ASTRONIC, OPTIDRIVER), EBS/ABS/ASR braking systems, retarder operation, power take-off, differential locks, stopping, cab tilting, tyre and wheel handling, jack location, spare wheel carrier and towing.

D — Air Conditioning

Heating and ventilation controls are explained with the air distribution knob, temperature variator, ventilation control and air conditioner button. It covers quick defrosting, cold-weather and hot-weather operation, air vents and the electrically operated roof vent with its emergency manual control. The independent heating section covers the Webasto AT 2000 S and Thermo 90 S add-on heaters, timer setup, the alarm clock function and a troubleshooting guide for common heater faults.

E — Consumable Products

This chapter lists the approved Renault Trucks Oils and specifications — RD, RLD and RXD engine oil grades — together with gearbox, drive axle, hydraulic, coolant and grease requirements. Choice of lubricant by operating temperature is tabulated, and the centralized lubrication system is described with its operating principle, lubrication points, pump filling and circuit bleeding procedure.

F — Servicing

Servicing opens with the warranty conditions and then the full maintenance schedule: first oil change intervals, predictive versus fixed maintenance terms, and the M0, M1, M3 and MP service tables. Individual procedures follow for the engine, oil filters (including the centrifugal filter), air filters, fuel system and prefilter, cooling system draining and filling, turbocharger, drive belt tension with SEEM points, clutch, gearboxes (ZF 16 S 181/221, ZF ASTRONIC, ZF + INTARDER), propeller shafts, rear drive axles (P 1345, P 1370, PMR 2141, PMA 1341), hub reduction units, suspension swivels, lift-up axle, front axle, steering, front and rear suspension, air tanks, braking system, brake pad and lever checks, retarder servicing, bodywork cleaning and the fifth wheel coupling inspection.

G — Electrical Equipment

The electrical chapter covers battery maintenance and testing, starting with an external power source, alternator and flasher unit precautions, the available power supply points with wire and fuse references, the bulb table, headlight adjustment, the Cobra alarm system, and the full fuse table for every circuit. A voltage dropper section closes the chapter.

Why This Handbook Matters

Heavy tractor units of this generation depend on correct procedures and the right specifications — the wrong oil grade, an incorrect wheel nut torque or a misunderstood dashboard warning can all lead to expensive damage or an unplanned stop. This Magnum E-Tech driver handbook gives you the capacities, intervals, torque values and step-by-step routines that the vehicle was designed around, together with the pictogram keys you need to decode the instrument panel quickly.

Whether you are running a working Magnum E-Tech 400, 440 or 480, adding one to a fleet, or restoring a truck and trying to get the electrics and pneumatics right, having the correct English driver handbook to hand makes every job faster and safer. It covers routine servicing, fluid top-ups, ADR master switch procedures, fifth wheel coupling, cab tilting, cold-weather preparation and the electrical fuse layout — the practical information that keeps a commercial vehicle on the road.
