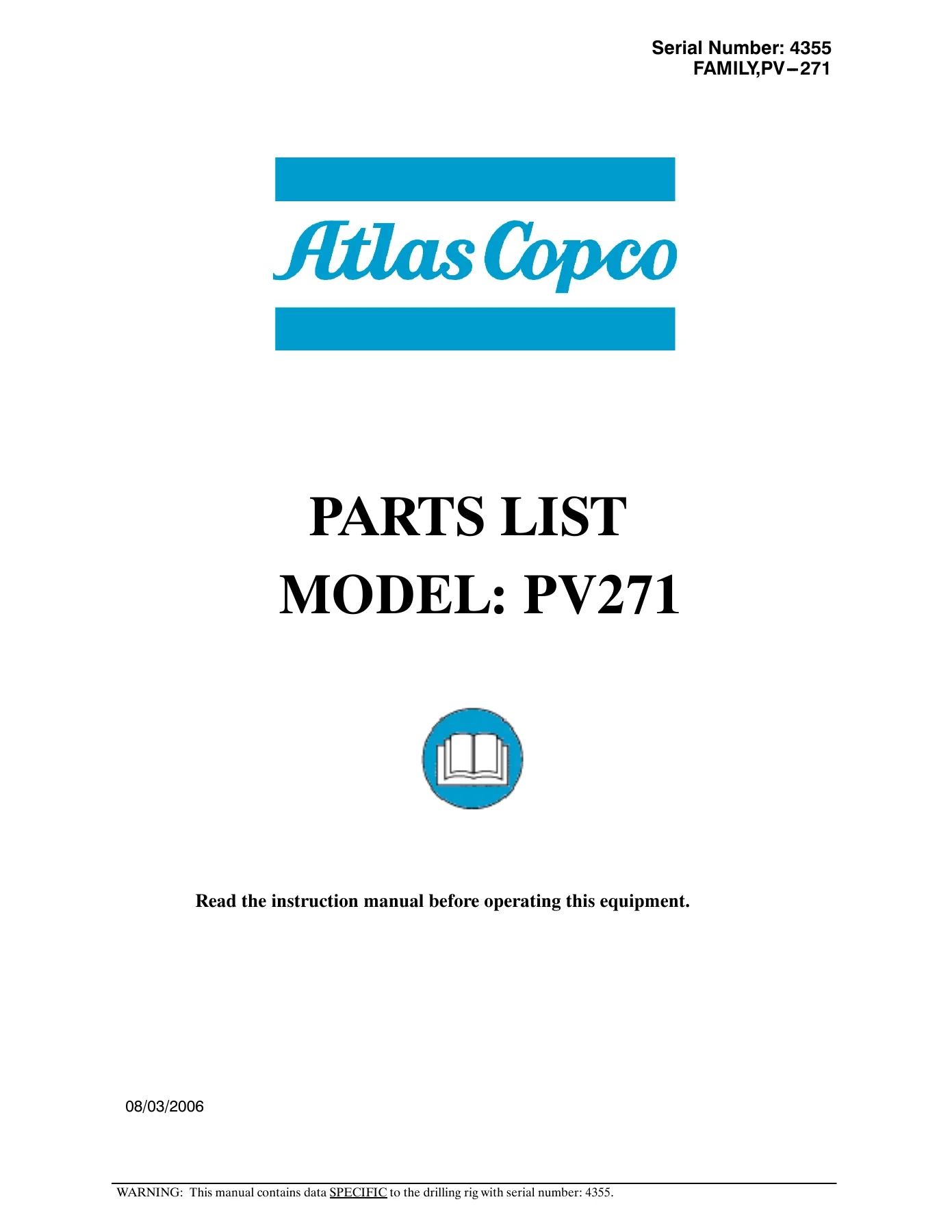

Atlas Copco PV271 Drill Parts Manual – Serial 4355

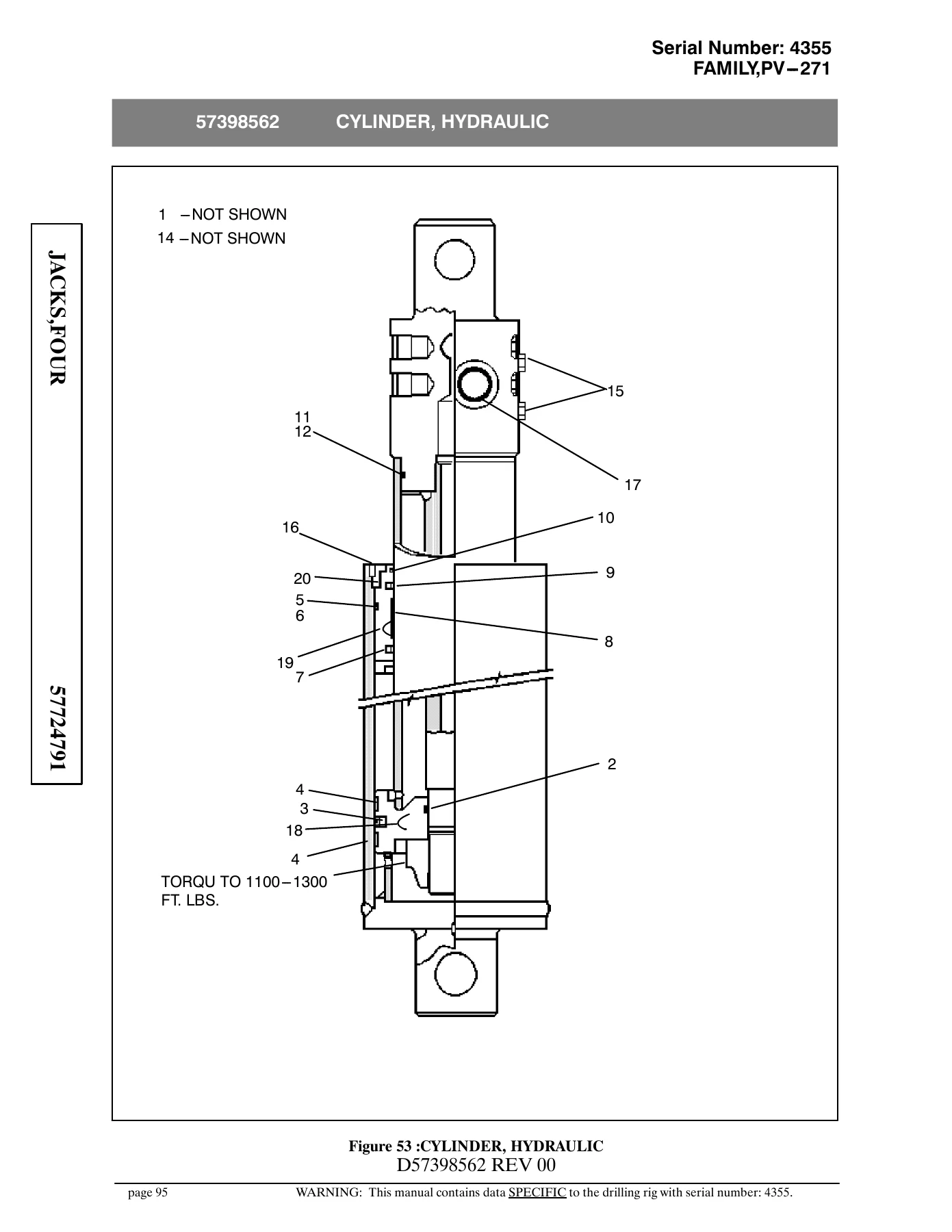

This is the illustrated parts list built specifically for the Atlas Copco PV271 drill carrying serial number 4355. Every section page is headed with that serial and the PV-271 family designation, so the part numbers you look up are the ones that actually fit this machine – not a nearby build or a generic drill of the same family. Replacement parts are identified by reference number on exploded views and clean line drawings, then cross-referenced in the adjacent parts table with the Atlas Copco part number, quantity and description.

File Details

• Manual Type: Illustrated Parts List / Parts Catalog
• Brand: Atlas Copco (Drilling Solutions)
• Model: PV271
• Serial Number: 4355
• Language: English
• Page Count: 808 pages
• File Format: PDF
• Numbering: Reference numbers link each illustration to its parts table; part numbers, quantities and unit of measure are listed for every item

Chapters Covered

• Frame/Chassis – main frame weldment, decking installation, cab-access decking/rails, DCS decking, CS decking, entry/exit ladder, stair weldment, decking ladders, CAT decking assembly, inclinometer assembly
• Undercarriage/Tracks – CAT345SL tracks, undercarriage assembly, front idler group, adjustment group, spring group, idler group, track-guard group, track group, link assembly, upper roller group, single and double flange roller groups

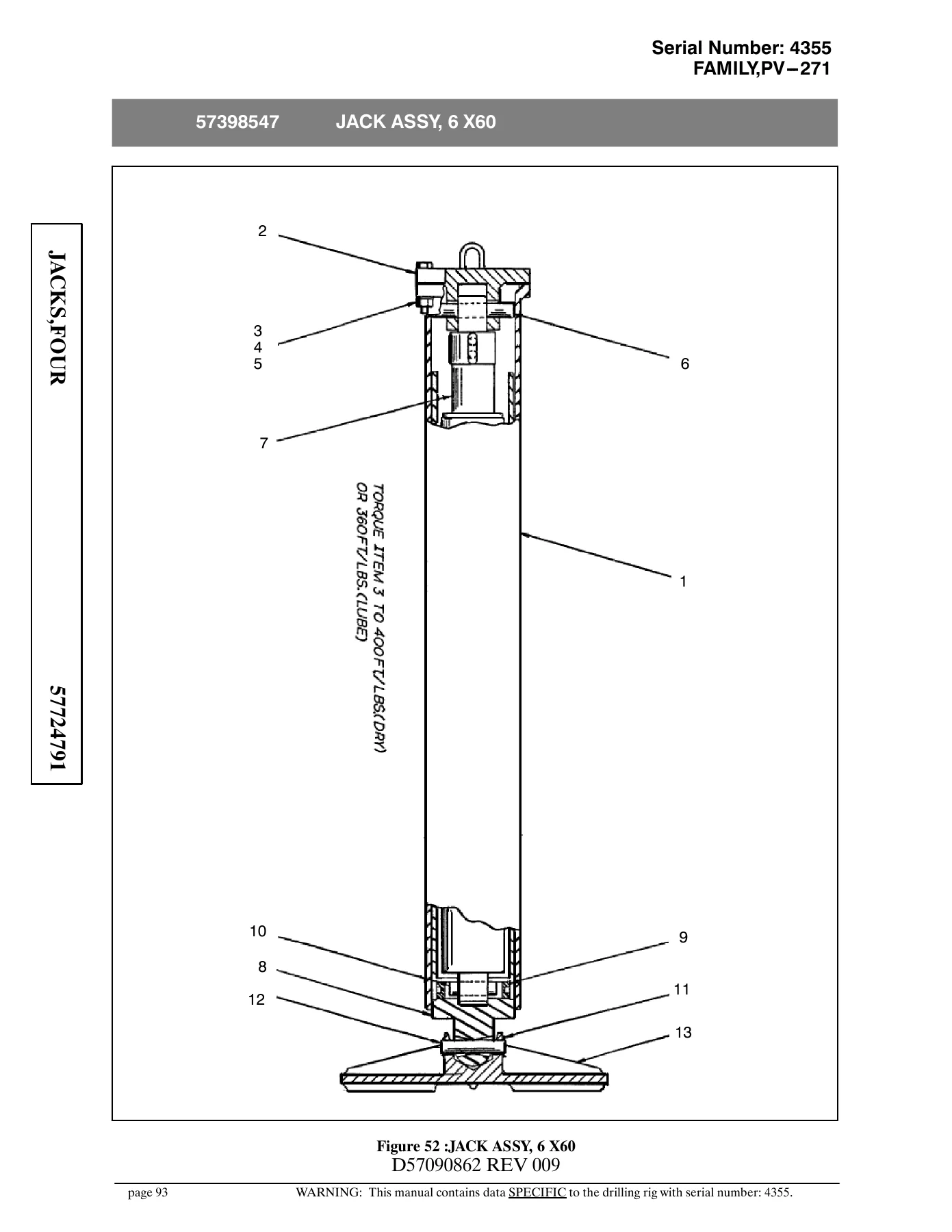

• Jacks – four-jack installation, jack assemblies, hydraulic cylinders, seal kits, counterbalance valves
• Cab/Console – cab installation, bare cab, curbside and tower-side doors, air conditioning assembly, package kit, heater coils, filters, gauges and controls
• Derrick/Tower – tower piping, regeneration valve, split-flange kits, carousel, detach chuck, angle drill package, tower-angle support, outer leg assembly, hydraulic cylinders, seal kits, stacking valves, angle-locking piping, angle indicator, tower rest, rod seal assembly, sprocket installation, breakout base assembly, powerhead mounting group, IR270SP rotary powerhead, powerhead machining
• Wrench assembly, hydraulic wrench cylinders, rod catcher installation, carousel rod changer, rod support assembly, shock sub, tower locking, main winch, Braden winch, brake valve assembly
• Powerpack/Engine – CAT 3412E 760 engine assembly, fuel-tank heater, cooling package installation, radiator/compressor-oil/hydraulic-oil coolers, radiator piping, powerpack base and mounts, battery installation, battery cables, exhaust system
• Air Cleaners – primary and secondary air cleaner assemblies, elements and shrouds
• Fuel System – 350-gallon fuel tank assembly, fuel tank components, coolant heater, ether injection system
• Compressor/Air System – XL1900 compressor assembly, air end, Ringfeder coupling, compressor control piping, anti-rumble kit, blowdown valve, compressor-to-receiver piping, COC piping, air-system piping, main air piping, vertical receiver installation, upper and lower manifolds
• Hydraulic System – main hydraulic piping, diverter manifold, return manifold, split-flange kits, hydraulic tank installation, hydraulic oil reservoir, pumps and drive, double hydraulic pump, Funk 3-hole gearbox, feed system installation, sheave assembly, sheave carriage, feed cylinder, guide-block assembly, tower-raise cylinders
• Electrical System – tower electrical installation, mainframe electrical installation, clamp assemblies, breaker box installation, engine oil pan heater, warning horn, night halogen lights, ground-level shutdown, water injection system, dust skirt installation, mainframe lube, tow hooks, battery heater, hydraulic reservoir heater, ProHeat preheater, forced-air heater, tower lube system, engine pre-lube, water heater, LP heater assembly, cab receptacle, AC generator, fast-service box, cab window wiper
• Options – water injection package, dust skirt, lubrication systems, heaters, generator, service boxes, wiper systems
• Tools/Accessories – Spanish safety decals, PV-271 decals, international shipping kit, shipping plates and plugs, QSK decals, filter elements, bit baskets

Between those chapters, the PV271 parts list covers the entire machine from the main frame weldment up through the tower and powerhead. A technician looking up a replacement part gets the correct Atlas Copco number for the item, the quantity required, and a clean drawing so the item can be visually confirmed before the order goes out. Wear items like seals, O-rings, bearings and bushings are broken out individually in groups like the jack seal kits, cylinder seal kits and roller groups, so rebuild parts can be ordered without buying a whole assembly.

Why This PV271 Parts Catalog Matters

Drill parts mistakes are expensive. A part number picked from a similar PV-series build may look right and even bolt on, but the wrong revision of a hydraulic cylinder, a powerhead gear, or a track roller collar leads to premature failure or a rework job. This catalog is tied to serial number 4355, and each parts page header confirms that scope. Cross-referenced by reference number, drawn on the same page as its parts table, and laid out section by section, it lets a parts counter or a maintenance tech move from a failed component to a verified part number without guesswork.

Whether you are ordering wear parts for a planned service, chasing a leaking cylinder, rebuilding a track roller group, replacing the carousel rod changer, or identifying a decal or filter element, the same lookup method applies – find the figure, find the reference number, read the part number, quantity and description. The 808-page PDF is organised exactly like the factory parts breakdown, with illustration after illustration of exploded views, sectional drawings and assembly diagrams for the PV271.
