B/E Aerospace Spectrum 1006944 & Spectrum Convertible 1006627 Seat Component Maintenance Manual with Illustrated Parts List

Description

B/E Aerospace Spectrum 1006944 & Spectrum Convertible 1006627 Seat Component Maintenance Manual with Illustrated Parts List

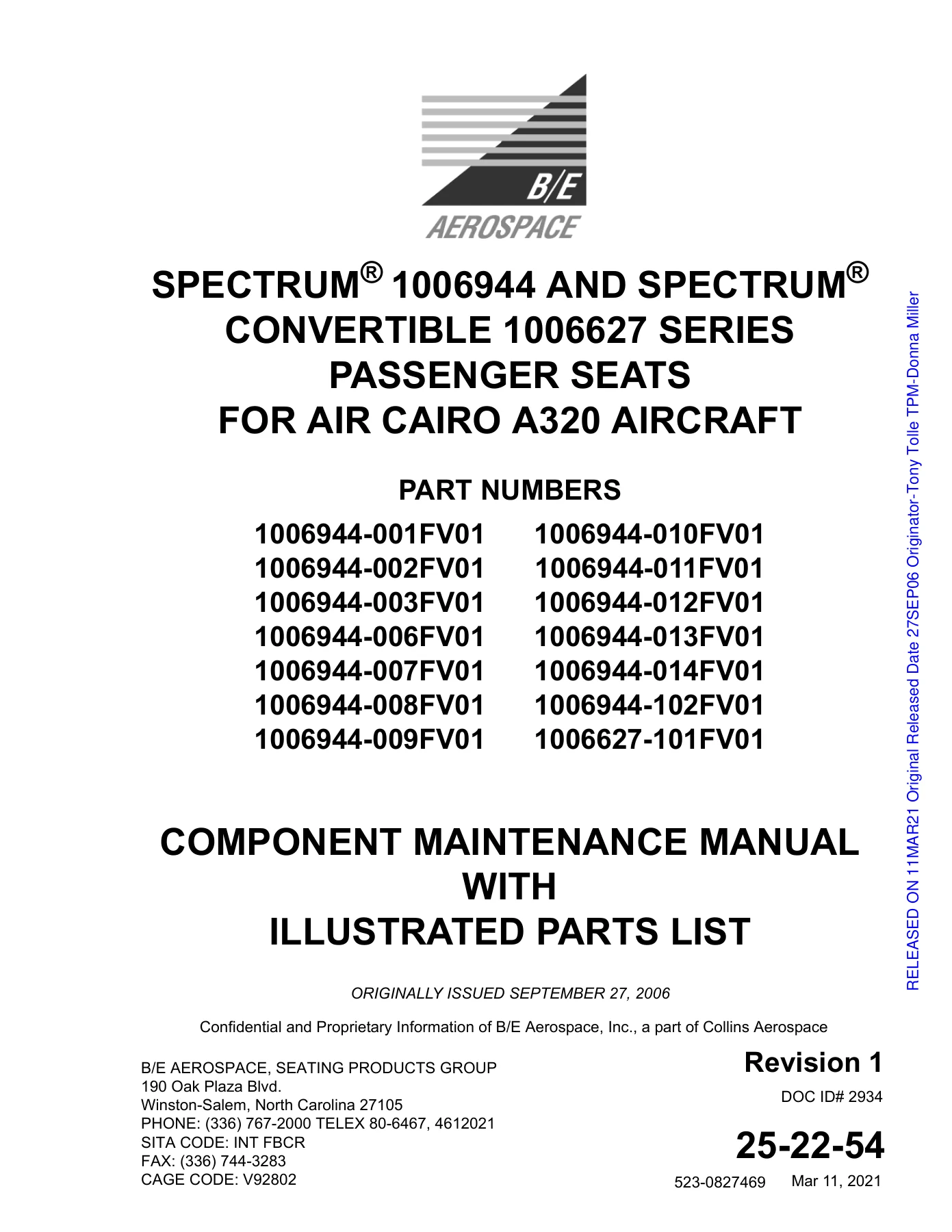

This Component Maintenance Manual with Illustrated Parts List covers the B/E Aerospace Spectrum 1006944 and Spectrum Convertible 1006627 Series passenger seats installed in the Air Cairo A320 174 PAX configuration. It is the complete maintenance reference for these specific seat assemblies, providing disassembly, cleaning, inspection, repair, assembly, testing, and parts identification procedures written for first-tier maintenance personnel.

File Details

• Manual Type: Component Maintenance Manual with Illustrated Parts List (CMM-IPL)
• Manufacturer: B/E Aerospace, Seating Products Group (part of Collins Aerospace)
• Models Covered: Spectrum 1006944 and Spectrum Convertible 1006627 Series
• Aircraft Application: Air Cairo A320, 174 PAX configuration
• Document Number: 523-0827469
• Document ID: 2934
• ATA Reference: 25-22-54
• Revision: Revision 1, March 11, 2021 (originally issued September 27, 2006)
• Language: English
• Format: PDF
• Page Count: Approximately 390 pages

Chapters Covered

• Introduction — purpose, scope, maintenance concept, CMM arrangement
• Description and Operation — seat configuration, dimensions, features, operation
• Testing and Fault Isolation — operational tests, troubleshooting table
• Disassembly — seat removal and complete teardown procedures
• Cleaning — disinfectants, cleaning agents, material-specific methods
• Inspection/Check — detailed accept/reject inspection criteria
• Repair — surface damage, screw threads, corrosion, upholstery repair
• Assembly — leg, frame, arm, endbay, IAT module, back pivot, hydraulic lock
• Fits and Clearances — threaded fastener torque table, back adjustment
• Special Tools, Fixtures and Equipment — suggested common hand tools

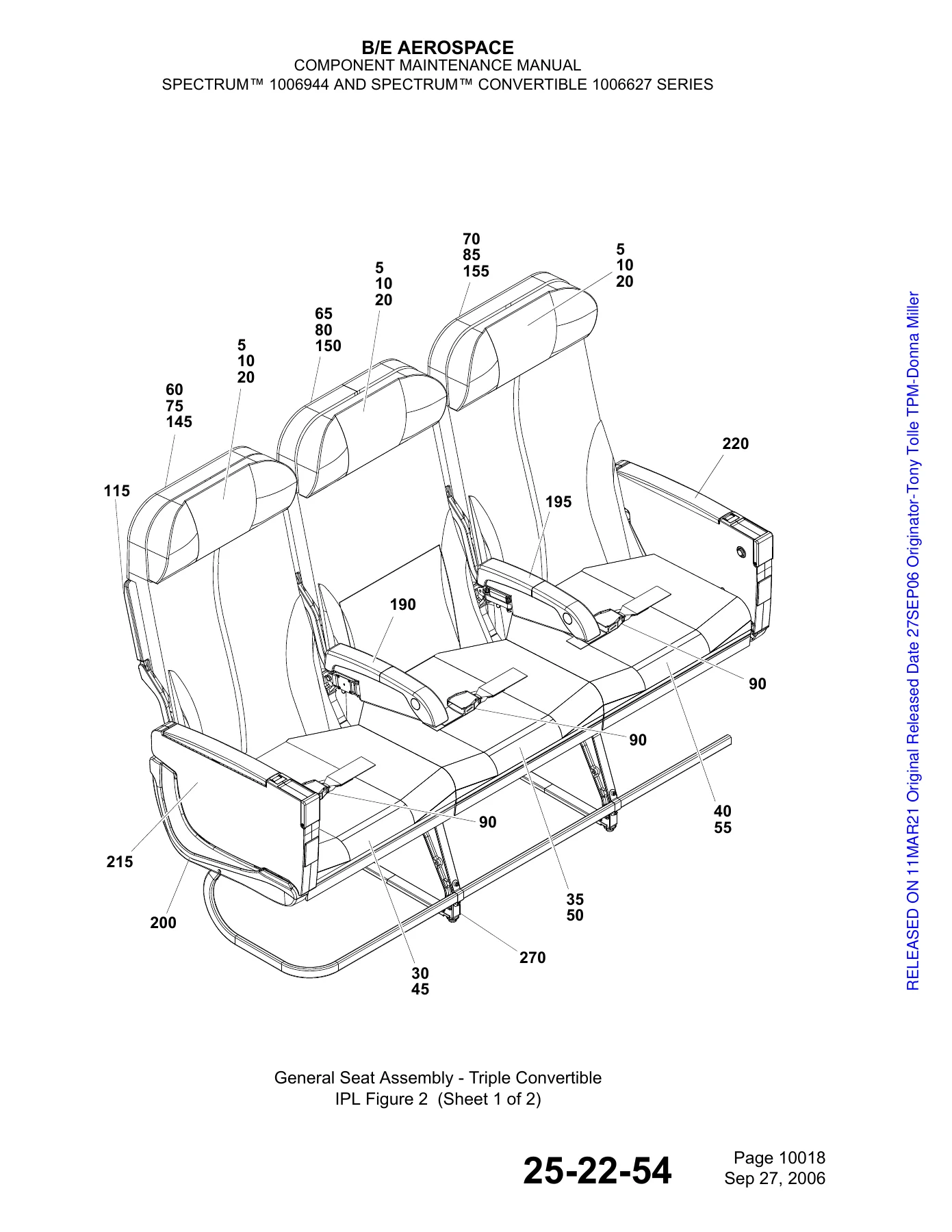

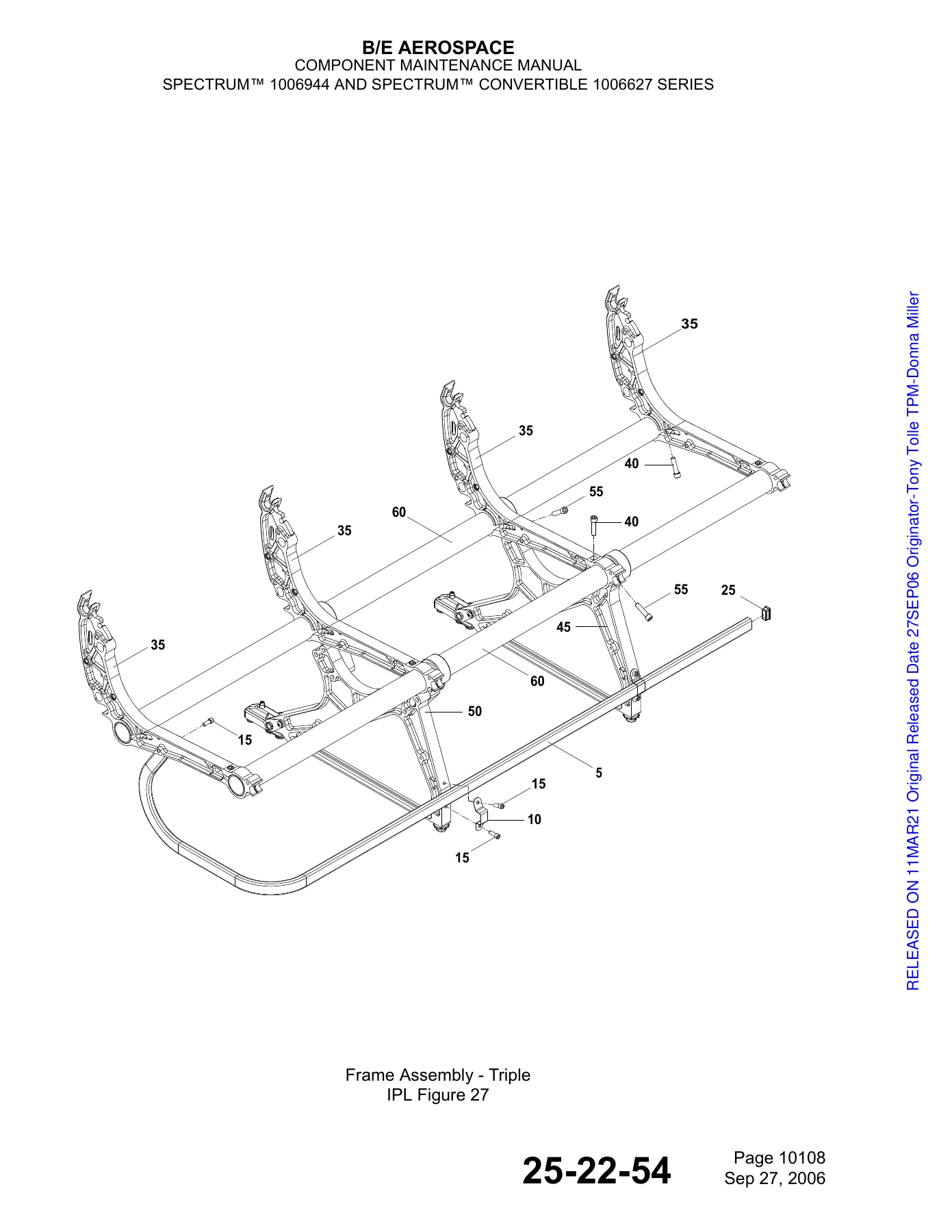

• Illustrated Parts List — 29 figures with exploded views and parts lists
• Maintenance and Servicing — daily, monthly, light, and heavy check schedules

The B/E Aerospace Spectrum 1006944 and Spectrum Convertible 1006627 Component Maintenance Manual opens with a configuration table listing all 14 seat part numbers covered, including triple standard, triple with sliding back-mounted foodtray, triple narrow, and convertible models with in-arm foodtray. It details seat dimensions from Envelope Drawings 36277 and 35976, and provides basic seat dimensions for the Airbus installation. The illustrated parts list spans 29 figures, from the general seat assembly and back-mounted foodtray table through to the leg assembly, giving parts breakdowns that let you identify and order replacement parts by item number and part number for the Spectrum seat family.

Disassembly procedures walk through removal of the seat from the aircraft, headrest and cushion removal, dress cover detachment, seat belt guide, literature pocket springs, back-mounted foodtray table, foodtray escutcheon, back support, hydraulic lock, AN79 strap, back pivot tubes, ashtray, table latch, arm assembly, endbay, IAT module, life vest assembly, seat bottom, convertible table, convertible arm, outboard section cover, triple frame, and leg assembly. Each procedure references the corresponding IPL figure so you can match hardware and components as you work.

The cleaning section provides approved disinfectant lists, cleaning agent tables for composites, vinyl, leather, metal, painted surfaces, PCUs, EnduraLite, plastics, seat belts, Ultraleather, and upholstery, along with specific procedures for each material and warnings about prohibited cleaners. The repair section covers minor surface damage on light alloy and steel, thermofomed plastic panel repair, screw thread cleanup, corrosion removal, and upholstery fabric repairs with Kevlar thread.

The assembly section is equally detailed, covering installation of the seat on the aircraft, leg assembly, triple frame, outboard exit bracket, convertible arm mechanism, arm assembly, table latch, ashtray, AN79 strap, back pivot tubes, hydraulic lock, back support, foodtray escutcheon and latch, back-mounted foodtray table, literature pocket springs, seat belt guide, dress covers, and cushions. Torque values are called out at each step and collected in the Fits and Clearances section, which also includes full upright and recline adjustment procedures.

The testing and fault isolation section includes a troubleshooting table addressing endbay arm play, in-arm foodtray table stiffness, foodtray latch and pivot problems, slide rod issues, seat leg movement in floor tracks, SEB housing looseness, recline control failures, footrest problems, bottom diaphragm sagging, headrest tension, and excessive back play. The maintenance and servicing section lays out daily, monthly, light, and heavy check tasks with the scope of inspection expected at each interval.

Seat Models Covered

The manual applies to these 14 seat assemblies:

• 1006944-001FV01 — LH STD TPL, 3″ Recline
• 1006944-002FV01 — RH STD TPL, 3″ Recline
• 1006944-003FV01 — LH TPL, 1.5″ Recline, 6″ Sliding BMFT, One-Way BMFT Latch, AN79
• 1006944-006FV01 — RH TPL, 3″ Recline, 6″ Sliding BMFT, One-Way BMFT Latch, AN79
• 1006944-007FV01 — LH TPL, No Recline, 1″ Upright, One-Way BMFT Latch, No Outboard Arm, AN79
• 1006944-008FV01 — RH TPL, No Recline, 1″ Upright, One-Way BMFT Latch, No Outboard Arm, AN79
• 1006944-009FV01 — LH TPL, 3″ Recline, No Outboard Arm, AN79
• 1006944-010FV01 — RH TPL, 3″ Recline, No Outboard Arm, AN79
• 1006944-011FV01 — LH TPL, Narrow 2″, 3″ Recline
• 1006944-012FV01 — RH TPL, Narrow 2″, 3″ Recline
• 1006944-013FV01 — LH TPL, Narrow 2″, No Recline
• 1006944-014FV01 — RH TPL, Narrow 2″, No Recline
• 1006944-102FV01 — RH TPL, In-Arm Foodtray, 3″ Recline
• 1006627-101FV01 — LH TPL, In-Arm Foodtray, 3″ Recline, Plug-In Foodtray CTR Position
