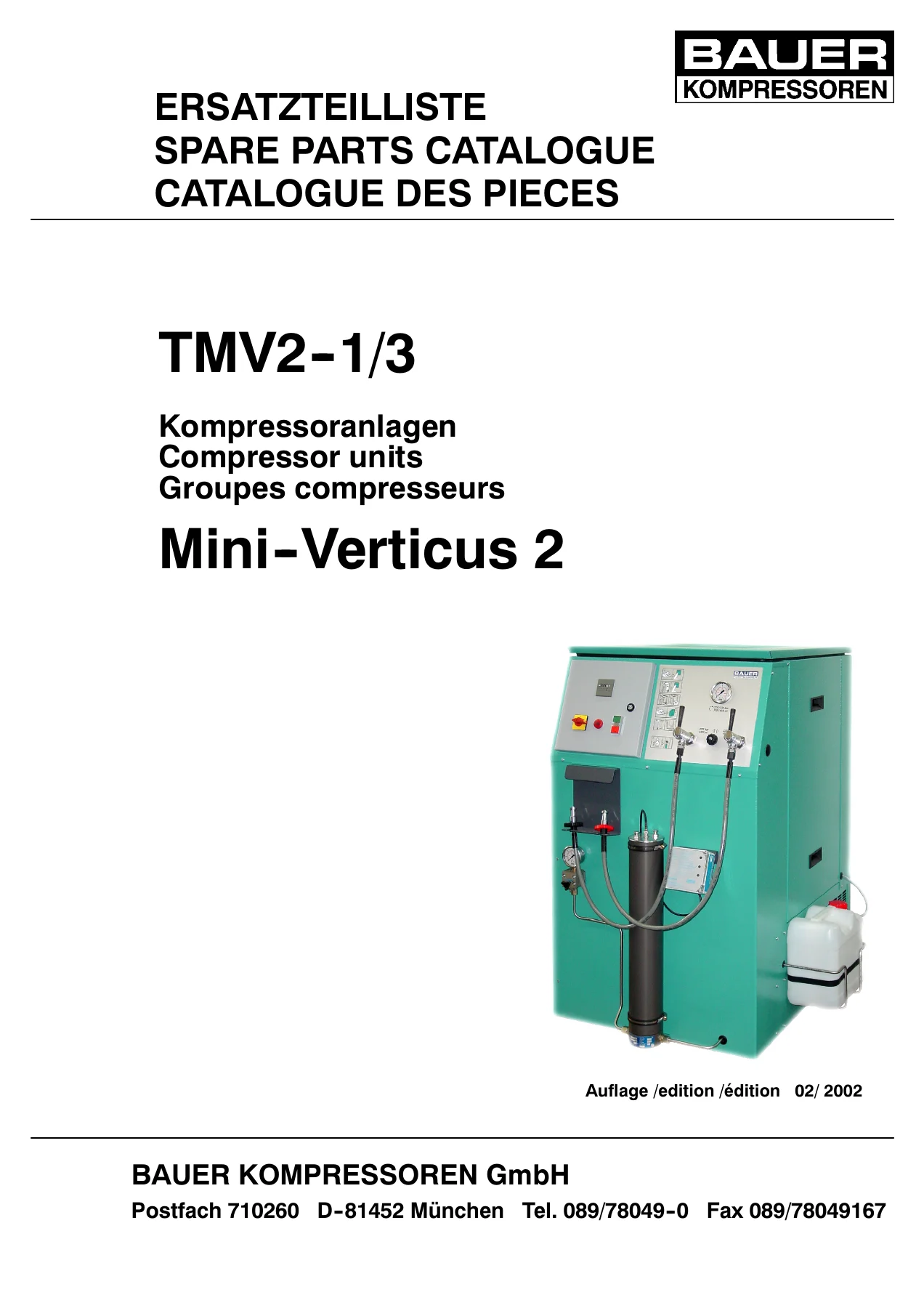

Bauer Mini-Verticus 2 TMV2-1/3 Spare Parts Catalogue

This is the complete illustrated spare parts catalogue for the BAUER Mini-Verticus 2 compressor unit, edition 02/2002. It covers the TMV2-1/3 group and the compressor blocks IK100 II, IK100 II-420 and IK120 II, together with their accessories, filtration, condensate management, frame, motor and control systems. Every assembly is shown as an exploded drawing with numbered callouts linked to genuine BAUER part numbers and quantities, so you can identify and order exactly the component you need rather than guessing or replacing whole assemblies.

File Details

• Manual type: Illustrated spare parts catalogue (Ersatzteilliste / Liste des pièces)
• Brand: BAUER KOMPRESSOREN
• Model group: TMV2-1/3 Mini-Verticus 2
• Compressor blocks covered: IK100 II, IK100 II-420, IK120 II
• Language: Trilingual – German / English / French
• Edition / date: Auflage 02/2002
• File format: PDF
• Page count: 132 pages

Chapters and Assemblies Covered

• Compressor block IK100 II, IK100 II-420 and IK120 II – complete assemblies
• Crankcase with accessories, driving gear
• Piston and cylinder 1st stage – IK100 II, IK120 II
• Piston and cylinder 2nd stage
• Piston and cylinder 3rd stage – IK100 II-420
• Valve head, 1st stage (IK100 II and IK120 II)
• Valve head, 2nd stage and 3rd stage
• Pressure valve assemblies and pressure valve inserts
• Intake valve assemblies
• Flywheel and fanwheel components
• Intermediate separator with filter head and element
• Cooling system – IK100 II, IK100 II-420 and IK120 II
• Lubricating system – complete oil circuit and connecting lines
• Intake filter and intake hose
• Condensate drain tap and condensate separator
• Filter systems MV (P41 and P61 filter system)
• Oil and water separator
• Non-return valve, safety valve, oil pressure gauge
• Automatic condensate drain MV2 – drain unit, drain valves, drain taps, collector tank

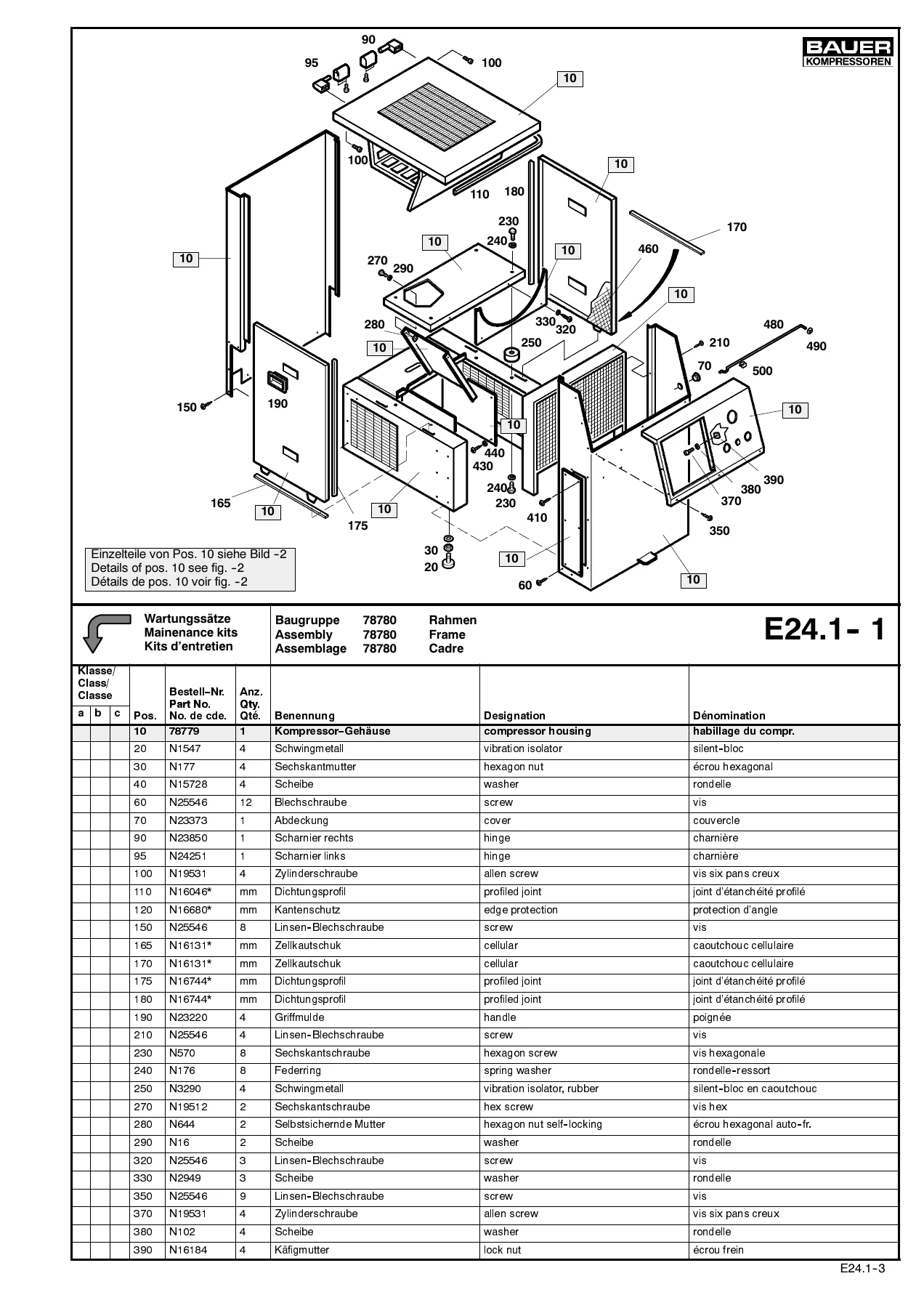

• Frame MV2 (Mini-Verticus) – compressor housing, panels, doors, vibration dampers
• Labelling and tool set
• Motor and accessories MV2 – three-phase motors, belt pulleys, V-belts, electrical connections
• Compressor control system MV2 – contactors, relays, transformers, hour meters, timers
• Bottle connectors PN200 / PN300 and international filling connector
• Maintenance kits – 500 h, 1000 h, 2000 h and 4000 h service sets

What makes this catalogue practical is the level of granularity. Each main chapter opens with a full assembly view, then drills into sub-assemblies such as the pressure valve insert, the intake valve, the piston ring set, the condensate drain valve body, the tommy screw with retaining spring and the individual O-rings, gaskets, studs and washers. Position numbers in the drawings correspond directly to the part number tables, so a complete rebuild of a valve head, a piston or a separator can be planned part-by-part. The trilingual layout means the same reference number, designation and part number appear in German, English and French on the same page – useful if you are ordering across a European BAUER distributor network.

Why This Catalogue Matters for Mini-Verticus 2 Owners and Technicians

Compressor downtime usually comes from small, cheap components failing inside a larger assembly. Without a parts catalogue you either replace the whole assembly or try to source a matching seal, ring or valve plate by trial and error. This document removes that problem. It shows you exactly how each stage of the IK100 II, IK100 II-420 and IK120 II blocks is constructed, what sits inside the valve heads, how the lubricating system is routed, which filter element belongs in the P41 / P61 filter system, and how the automatic condensate drain MV2 is plumbed and controlled.

Because the maintenance kit sections clearly mark which parts belong to the 500 h, 1000 h, 2000 h and 4000 h service intervals – and note that higher kits do not include lower ones – you can plan a service properly instead of ordering overlapping sets. The catalogue also lists screws and studs by quality class, so when a fastener is replaced you use a part of the same 8.8 grade specified by the manufacturer rather than an unknown substitute.

How the Catalogue Is Organised

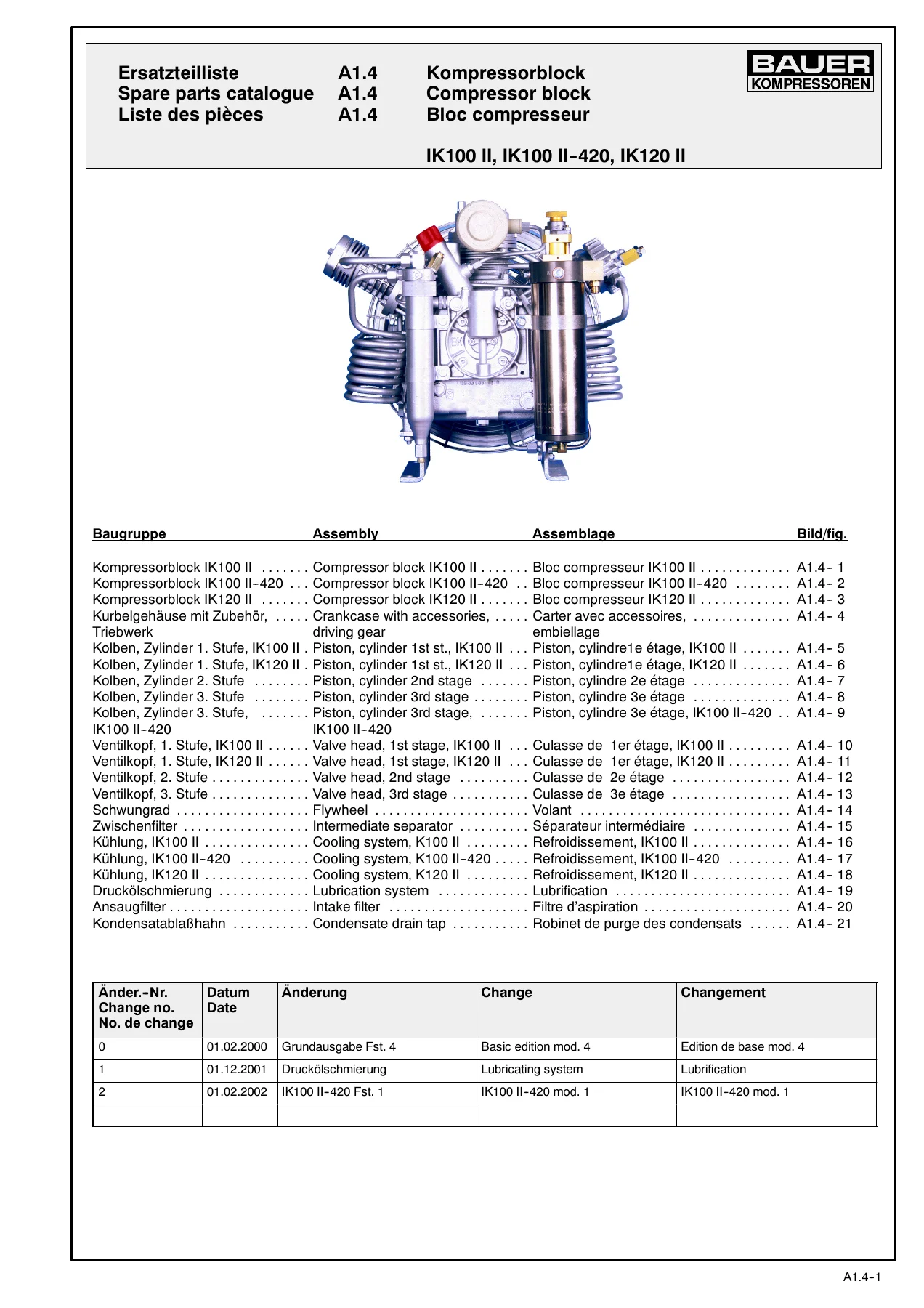

The document is divided into major assembly groups, each with its own page identifier in the top corner: A1.4 for the compressor block, B56.3 for filter systems MV, C51.1 for the automatic condensate drain MV2, D13.2 for filling connectors and oil pressure gauge, E24.1 for the frame MV2, F12.2 for motor and accessories MV2, and G50.3 for the compressor control system MV2. This structure lets you jump straight to the section you are working on, and the change-history tables at the front of each group (with dates back to the original 1996 base edition and the 2000 MV2 conversion) show when a part was revised or superseded.

Who This Parts Catalogue Is For

• Owners of a BAUER Mini-Verticus 2 compressor who maintain the unit themselves
• Workshop technicians servicing breathing-air or industrial compressor installations
• Service engineers needing correct part numbers for IK100 II, IK100 II-420 or IK120 II blocks
• Spare parts distributors and dealers identifying the correct component for a customer
• Anyone rebuilding a valve head, piston, separator or control system on a TMV2-1/3 group
