Case 335B 340B Simplemux Articulated Dump Truck Service Manual PDF

Description

Case 335B 340B Simplemux Articulated Dump Truck Service Manual PDF

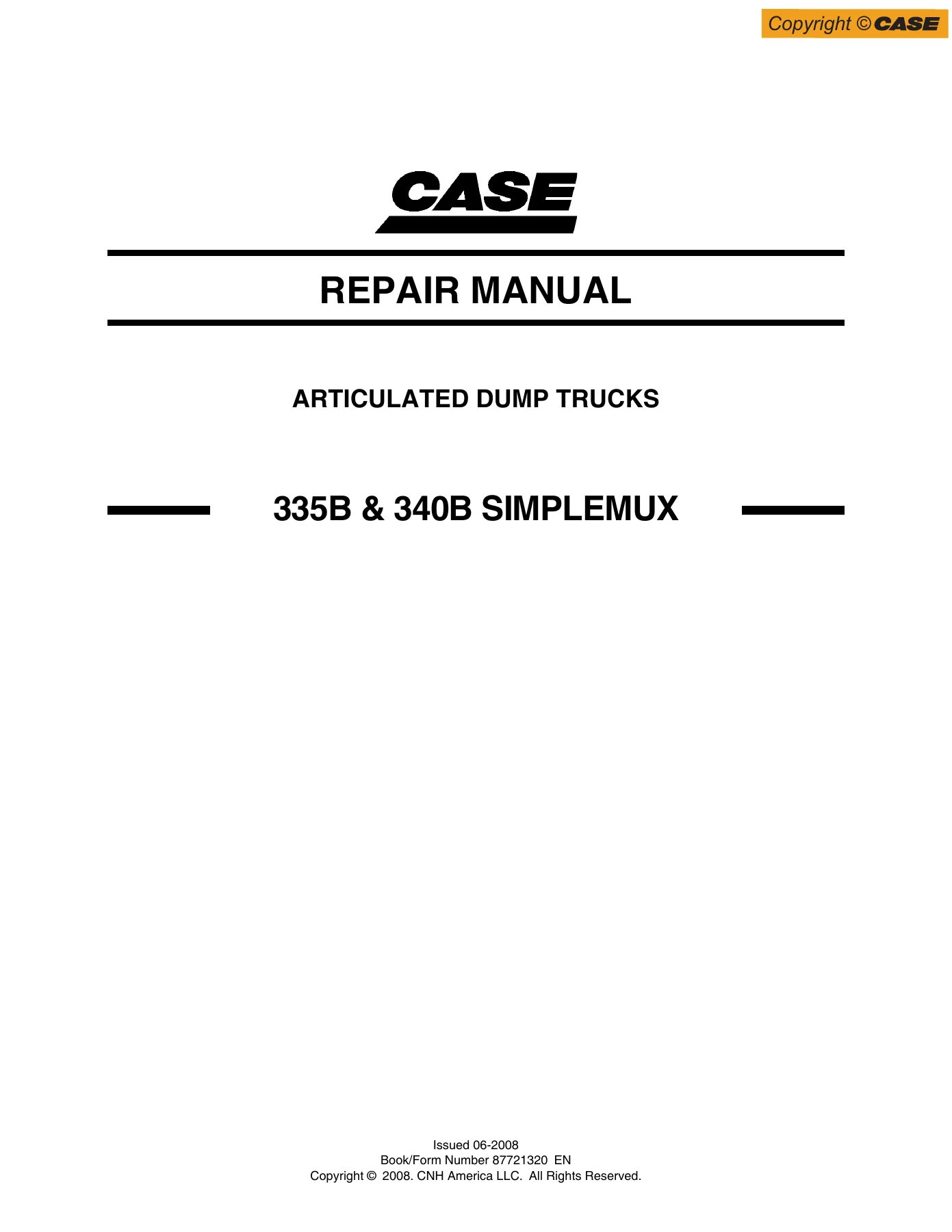

This Case 335B 340B Simplemux Service Manual is the full factory repair book for the 335B and 340B Simplemux articulated dump trucks, Print No. 87721320, first edition issued June 2008 by CNH America LLC. It is delivered as an instant-download PDF and covers both machines in a single volume, section by section, from the F3B Cursor diesel engine through to the hydraulic circuits and mounted equipment.

• Manual type: Repair/Service Manual
• Brand / Models: Case 335B Simplemux and Case 340B Simplemux Articulated Dump Trucks
• Language: English
• Page count: 1462 pages
• File format: PDF
• Document number: 87721320 EN
• Edition: First Edition
• Issue date: June 2008 (06-2008)

Chapters Covered

The Case 335B 340B Simplemux Service Manual is organized into nine main sections, each broken down into detailed chapters:

• Section 1 – General
  • Chapter 1: Conditions of Use and Safety Instructions
  • Chapter 2: Technical Data (335B and 340B specifications, capacities, torque values)
  • Chapter 3: Fault Codes (Multiplex system and engine fault codes, diagnostic connector pin-out)

  IMAGES PREVIEW







• Section 2 – Engines
• Section 4 – Electrical
• Section 5 – Steering
• Section 6 – Power Train
• Section 7 – Brakes
• Section 8 – Hydraulics
• Section 9 – Mounted Equipment

Together, these sections take a technician from initial machine familiarization and safety procedures through full diagnostic, disassembly, inspection and reassembly work on every major system of the 335B and 340B Simplemux dump trucks.

Engine, Transmission and Chassis Data

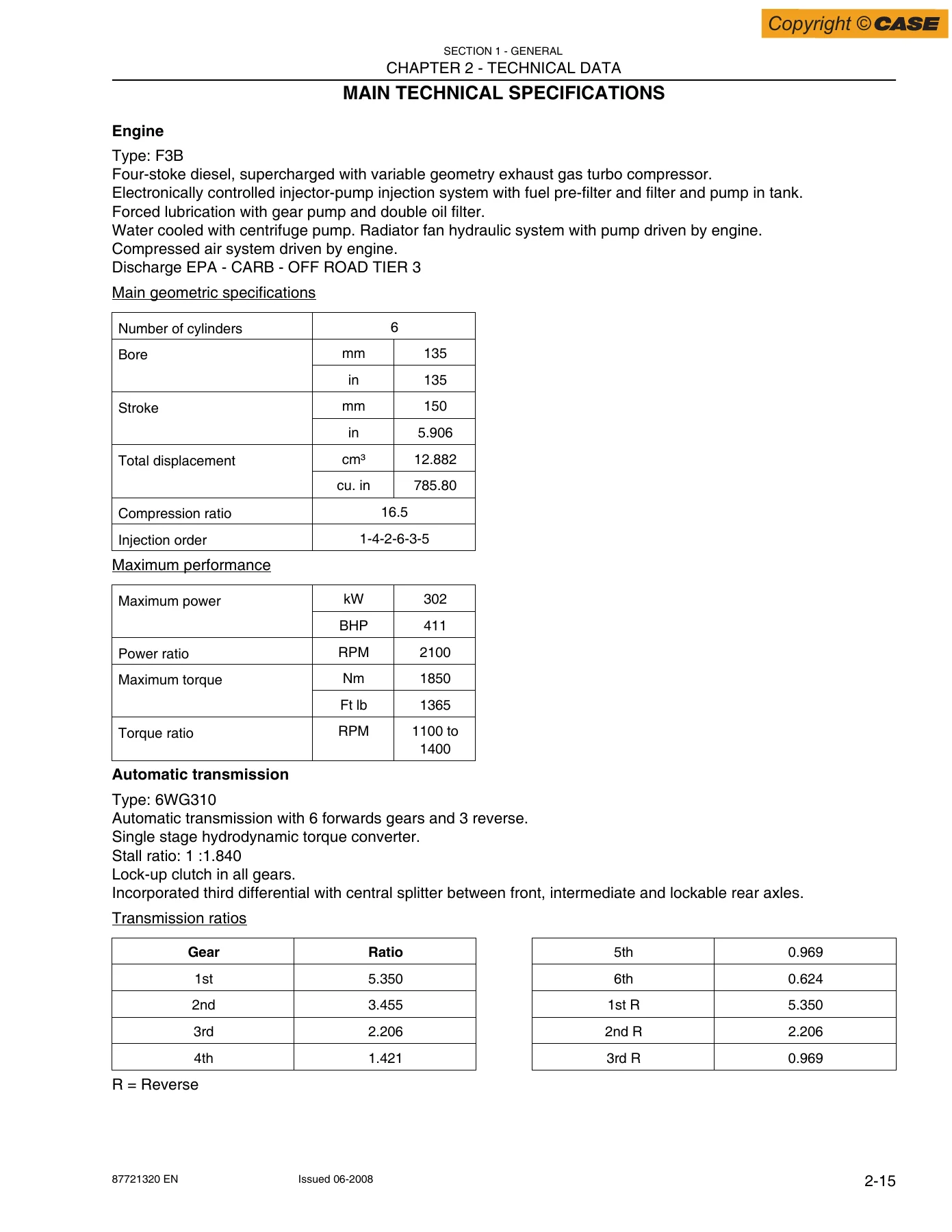

The Case 335B 340B Simplemux Service Manual documents the F3B six-cylinder turbocharged diesel engine, rated at 302 kW (411 BHP) at 2100 RPM with 1850 Nm of maximum torque, paired with a 6WG310 automatic transmission (6 forward, 3 reverse gears) and a central splitter driving front, intermediate and lockable rear axles. Chassis data in the manual includes an empty vehicle weight of 28,500 kg, a loaded weight of 60,000 kg, and a rated payload capacity of 31,500 kg, along with fluid capacities for the engine oil sump, coolant, fuel tank, transmission, axles, suspension and hydraulic circuit.

Why Technicians Need This Manual

The Case 335B 340B Simplemux Service Manual gives a workshop everything needed to diagnose Multiplex system and engine fault codes, service the F3B engine and 6WG310 transmission, work on the front and rear drive axles, rebuild the disk brake assemblies, and repair the hydraulic dumper, steering and suspension circuits. Following the correct torque values, clearances and procedures printed in this manual protects the machine from comebacks and keeps repairs to factory standard. As an instant PDF download, the Case 335B 340B Simplemux Service Manual arrives immediately after payment, with no shipping wait — it can be opened on a laptop, tablet or phone in the shop, or printed for bench use.
