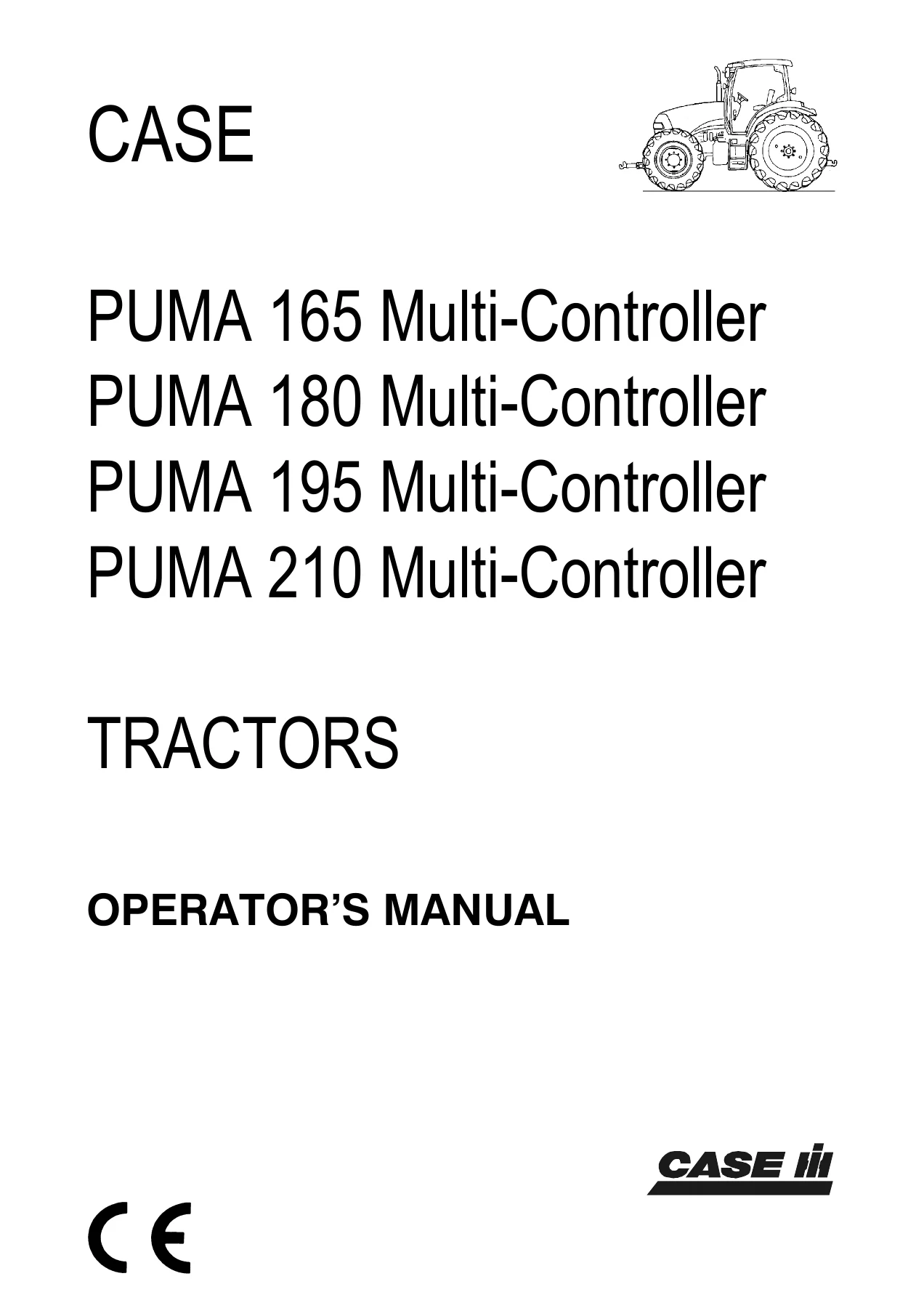

Case IH Puma 165, 180, 195 and 210 Multi-Controller Tractor Operator’s Manual

This Case IH Puma 165 180 195 210 Multi-Controller tractor operator’s manual is the complete operating and maintenance guide for the four Multi-Controller models in the Puma line. It covers every control, every routine service interval and every major system on the tractor, from the Powershift transmission and Integrated Control Unit through to Electronic Draft Control, the electro-hydraulic remote valves and the front and rear hitches. Whether you have just taken delivery of a Puma 165 and want to understand how Headland Management Control records a sequence, or you run a Puma 210 and need the correct 600-hour service procedure, the answers are here.

What This Puma Operator’s Manual Covers

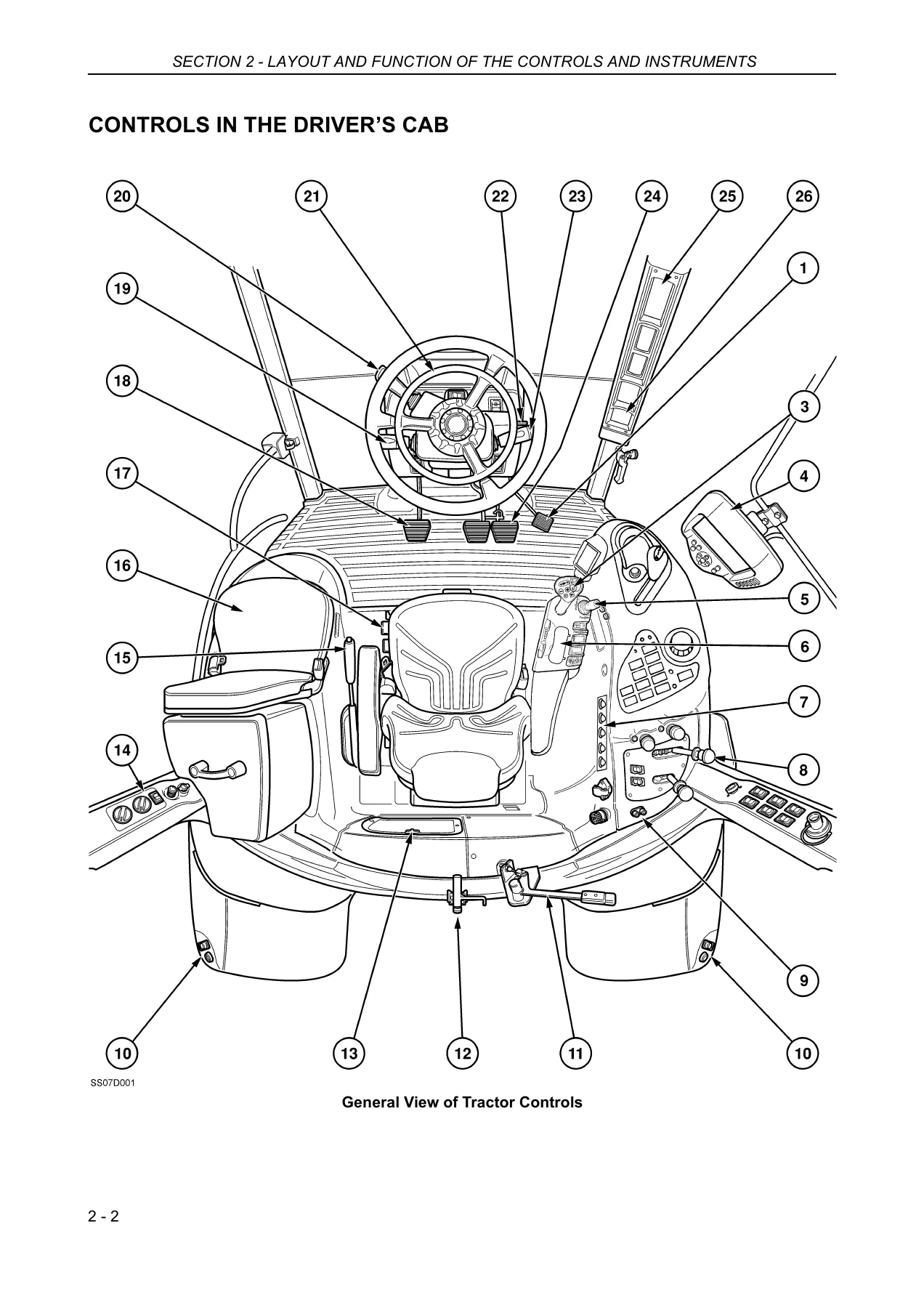

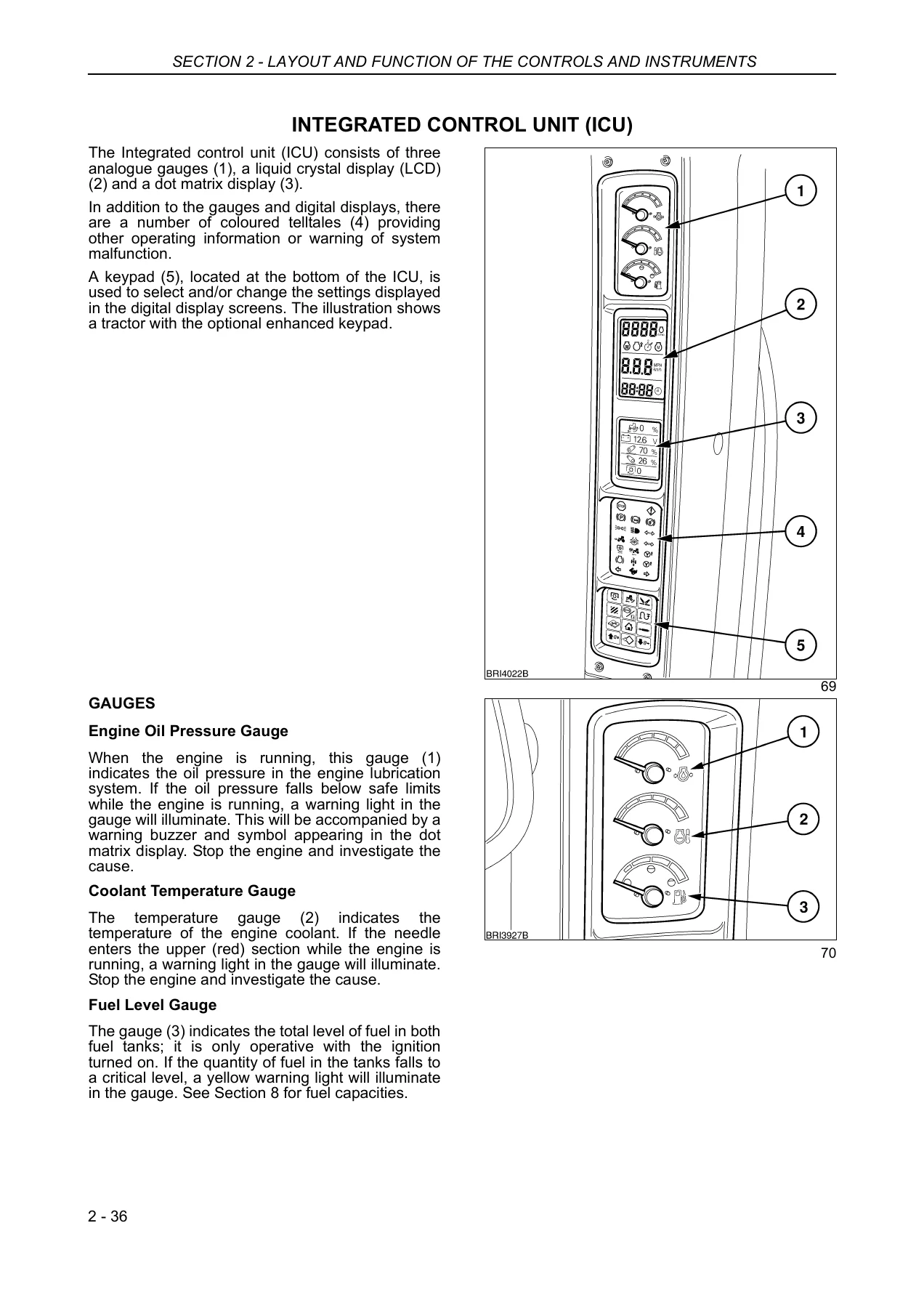

The manual is organised into nine clearly indexed sections, each one building on the last. Section 1 lays out general information, product identification (vehicle nameplate, engine plate, driveline plate, cab OECD plate and vehicle weighting plate) and the full safety information set: safety decals, international symbols, rollover protection, PTO precautions, servicing safety and fuel handling. Section 2 is the layout and function of every control and instrument, covering cab entry, electrical power panel, driver’s seat adjustments for both the standard and deluxe air suspension seats, parking brake, throttle and foot pedals, steering column controls, the Integrated Control Unit with its gauges, LCD, dot matrix display and keypad, the Full Powershift transmission, differential lock, four wheel drive and front axle suspension.

Section 3 is Working with the Tractor. It covers connecting jump leads, starting and stopping the engine, Power Management, Constant Engine Speed, Headland Management Control, Turn Assist, the rear PTO and front PTO, Electronic Draft Control, electro-hydraulic remote valves, the three-point hitch, quick hitch, linkage stabilisers, drawbars and towing attachments, trailer braking systems, wheel track adjustment and ballasting and tyres. Section 4 is the Lubrication and Maintenance section, with a full lubrication and maintenance chart plus the procedures for every interval up to three years. Section 5 is Fault Finding, Section 6 covers Accessories, Section 7 lists Specifications, Section 8 contains the First Service Sheets for the 50-hour service, and Section 9 is a full index.

Transmission, Hydraulics and Control Systems

The Full Powershift transmission chapter covers the 17 x 6, 18 x 6 and 19 x 6 configurations offered across the 30 km/h, 40 km/h, 40 km/h economy and 50 km/h builds, along with the optional creeper gear set. It walks through gear selection, the shuttle lever, Auto Shift in both Auto Field and Auto Road modes, Go To mode, speed matching, programming the reverse gear ratios and the clutch calibration procedure. Ground speed charts are provided for each rear tyre size so you can read off the km/h and MPH for any gear.

The hydraulic chapters cover the Electronic Draft Control system with its draft loading wheel, draft sensitivity knob, drop rate control, height limit control and slip limit control. Position Control and Draft Control are each treated separately, including how to set a working depth, how to return to it with the adjustable stop, and how to raise at the headland with the raise/lower switch on the Multi-Controller. The electro-hydraulic remote valves are covered in detail, including setting oil flow, valve priority, timed programmes for double-acting and single-acting cylinders, float position, and the continuous oil supply power-beyond ports.

Maintenance, Fault Finding and Specifications

Section 4 covers the daily and 10-hour checks, the 50-hour service, and the 100, 300, 600, 1200-hour and 2-year intervals, along with general maintenance tasks such as bleeding the fuel system, calibrating the transmission clutches, checking the brake pedal latching, adjusting the automatic pick-up hitch, cab suspension adjustment, headlight and worklamp adjustment, bulb replacement and fuse and relay identification. The 50-hour service sheets in Section 8 are reproduced in full so you can see exactly what the dealer is checking.

Section 5 groups fault finding by system so you can work through symptoms logically: engine will not start, engine lacks power, engine overheats, transmission does not drive, hydraulics do not operate, three-point hitch does not raise, brakes feel spongy, dust enters the cab and electrical system faults. Section 7 lists the full specification tables for the engine, fuel system, cooling system, transmission options, operating angles, PTO speeds, hydraulic system, three-point hitch lift capacities, remote control valves, brakes, steering and electrical equipment, plus hardware torque tables in both imperial and metric.

Why This Manual Matters

A Puma Multi-Controller is a sophisticated machine. The Powershift transmission, the Integrated Control Unit, the Electronic Draft Control hitch and the electro-hydraulic remotes are all electronically managed, and using them correctly means understanding not just what each control does but how the systems interact. The wrong sequence during a headland turn, an incorrect draft sensitivity setting, or a missed 600-hour service can all cost you time, fuel and eventually a repair bill. This operator’s manual gives you the correct procedure for the tractor you are actually sitting on, with the model-specific figures for the Puma 165, Puma 180, Puma 195 and Puma 210 rather than a generic guide.

IMAGES PREVIEW

Instant PDF Delivery

The manual is delivered as an instant PDF download. There is no shipping, no waiting and no physical book to store. You can open it on a laptop, tablet or phone in the workshop, on the kitchen table or in the cab, and print the pages you need for the job in hand. Whether you are a first-time Puma owner getting to grips with the Multi-Controller, an experienced operator looking up a torque figure or a maintenance interval, or someone running a fleet who needs the correct service reference on hand, this Case IH Puma 165 180 195 210 Multi-Controller tractor operator’s manual is the reference you will keep coming back to.
