Caterpillar 3208 Marine Engine Disassembly & Assembly Manual SENR2135-02

Description

Caterpillar 3208 Marine Engine Disassembly & Assembly Manual SENR2135-02

This Caterpillar 3208 Marine Engine Disassembly & Assembly Manual is the complete component-level teardown and rebuild guide for the 3208 Marine Engine, serial numbers 01Z1-UP. Published under media number SENR2135-02, it takes a technician through every major assembly on the engine — from fuel injection lines and the raw water aftercooler, through the turbocharger, cylinder head assemblies and marine transmission, all the way down to the crankshaft, camshaft and bearing clearances. Each section gives the removal sequence, the disassembly steps, the assembly order and the torque values needed to put the component back together correctly.

File Details

• Manual type: Disassembly and Assembly Manual (Service Manual)
• Brand: Caterpillar
• Model: 3208 Marine Engine
• Serial number range: 01Z1-UP
• Media number: SENR2135-02
• Publication date: 20/06/1996
• Date updated: 04/01/2006
• Language: English
• Page count: 140 pages
• File format: PDF

Chapters Covered

• Fuel Injection Lines
• Raw Water Aftercooler & Air Inlet Manifold
• Turbocharger
• Exhaust Manifolds
• Expansion Tank & Heat Exchanger
• Water Pump
• Water Temperature Regulators
• Raw Water Pump
• Engine Oil Cooler
• Oil Filter Base
• Fuel Filter Base
• Fuel Injection Pump Housing & Governor
• Check Valve & Bypass Valve
• Shutoff Housing
• Fuel Injection Pumps
• Fuel Transfer Pump
• Fuel Injection Pump Housing
• Governor
• Valve Covers
• Crankcase Ventilator
• Rocker Shaft Assemblies & Push Rods
• Fuel Injection Nozzles
• Cylinder Head Assemblies
• Oil Pan
• Connecting Rod Bearings
• Pistons & Connecting Rod Assemblies
• Valve Lifters
• Crankshaft Main Bearings
• Crankshaft Pulley
• Crankshaft Front Seal
• Timing Gear Cover & Oil Pump
• Oil Pump & Relief Valve
• Camshaft & Gears
• Automatic Timing Advance
• Marine Transmission
• Flywheel
• Flywheel Housing
• Crankshaft Rear Seal & Wear Sleeve
• Crankshaft & Gear
• Camshaft Bearings
• Bearing Clearances

Across its 41 component groups, the Caterpillar 3208 Marine Engine Disassembly & Assembly Manual SENR2135-02 gives a marine technician a full teardown and rebuild path for the 3208. Every chapter follows the same practical logic: the tools needed are listed up front, the removal and installation steps are numbered, the disassembly and assembly procedures are separated so you can jump straight to the half you need, and the torque figures are called out inline where the fastener is tightened. The manual also includes dedicated coverage of the fuel injection pump housing and governor, the fuel injection pumps themselves, the fuel transfer pump, and the automatic timing advance — areas where getting the timing or calibration wrong can quickly turn into an expensive mistake. Component weights are listed for the heavier assemblies (turbocharger, cylinder head, exhaust manifold, marine transmission, flywheel and timing gear cover), which matters when you are rigging lifting equipment on a marine engine that is still in the hull.

What This Manual Enables You To Do

With this Caterpillar 3208 Marine Engine Disassembly & Assembly Manual in hand, you can pull and reinstall the turbocharger, dismantle the raw water aftercooler and air inlet manifold, service the expansion tank and heat exchanger, rebuild the water pump and raw water pump, and remove and install the water temperature regulators. On the fuel side, the manual covers the fuel injection lines, fuel filter base, fuel injection pump housing and governor, check valve and bypass valve, shutoff housing, individual fuel injection pumps, fuel transfer pump, and the fuel injection nozzles — including disassembly, assembly, and nozzle opening pressure and valve lift adjustment procedures.

On the engine internals, it walks you through valve covers, crankcase ventilator, rocker shaft assemblies and push rods, cylinder head assemblies, oil pan, connecting rod bearings, pistons and connecting rod assemblies, valve lifters, crankshaft main bearings, crankshaft pulley, crankshaft front seal, timing gear cover and oil pump, oil pump and relief valve, camshaft and gears, automatic timing advance, marine transmission, flywheel, flywheel housing, crankshaft rear seal and wear sleeve, crankshaft and gear, and camshaft bearings. A closing section on bearing clearances explains how to use Plastigage to check main and connecting rod bearing clearances without damaging the journal surfaces.

Why It Matters

The 3208 is a workhorse marine diesel, and the parts inside it are not forgiving. Reusing a stretched cylinder head bolt, mixing up the firing order of the fuel injection pumps, dropping the camshaft timing by a tooth, or tightening the crankshaft pulley bolt to the wrong figure are all quick ways to turn a rebuild into a repeat teardown. The Caterpillar 3208 Marine Engine Disassembly & Assembly Manual SENR2135-02 gives you the exact torque values, the exact bolt tightening sequences, the correct orientation of seals and rings, and the clearances that tell you whether a component is still within specification or has to be replaced. The turbocharger section, for example, specifies a shaft end play of 0.114 ± 0.038 mm (0.045 ± 0.0015 in) for a new unit, with 0.20 mm (0.008 in) maximum permissible on a worn one — that is the kind of number you will not find in a generic repair guide.

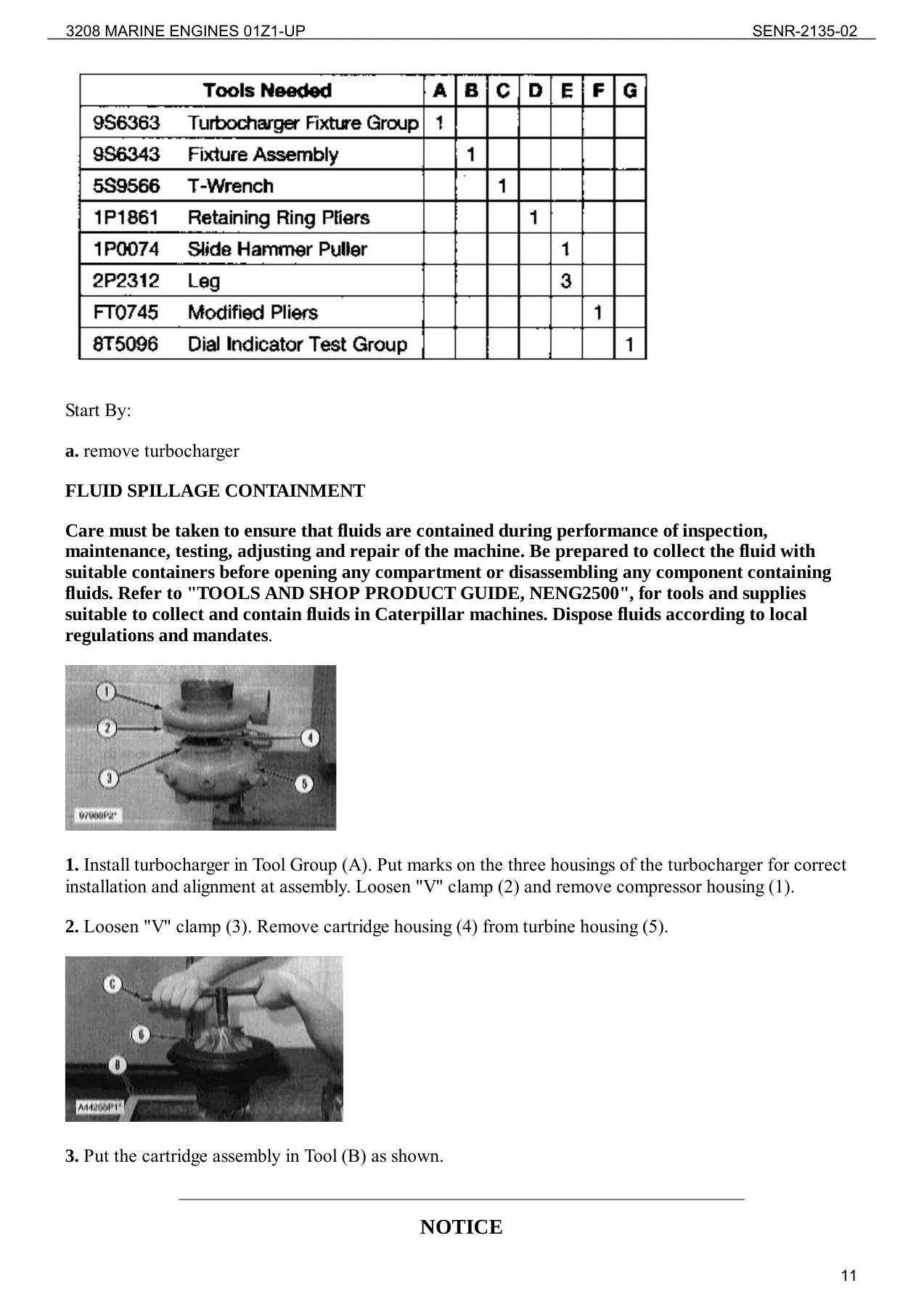

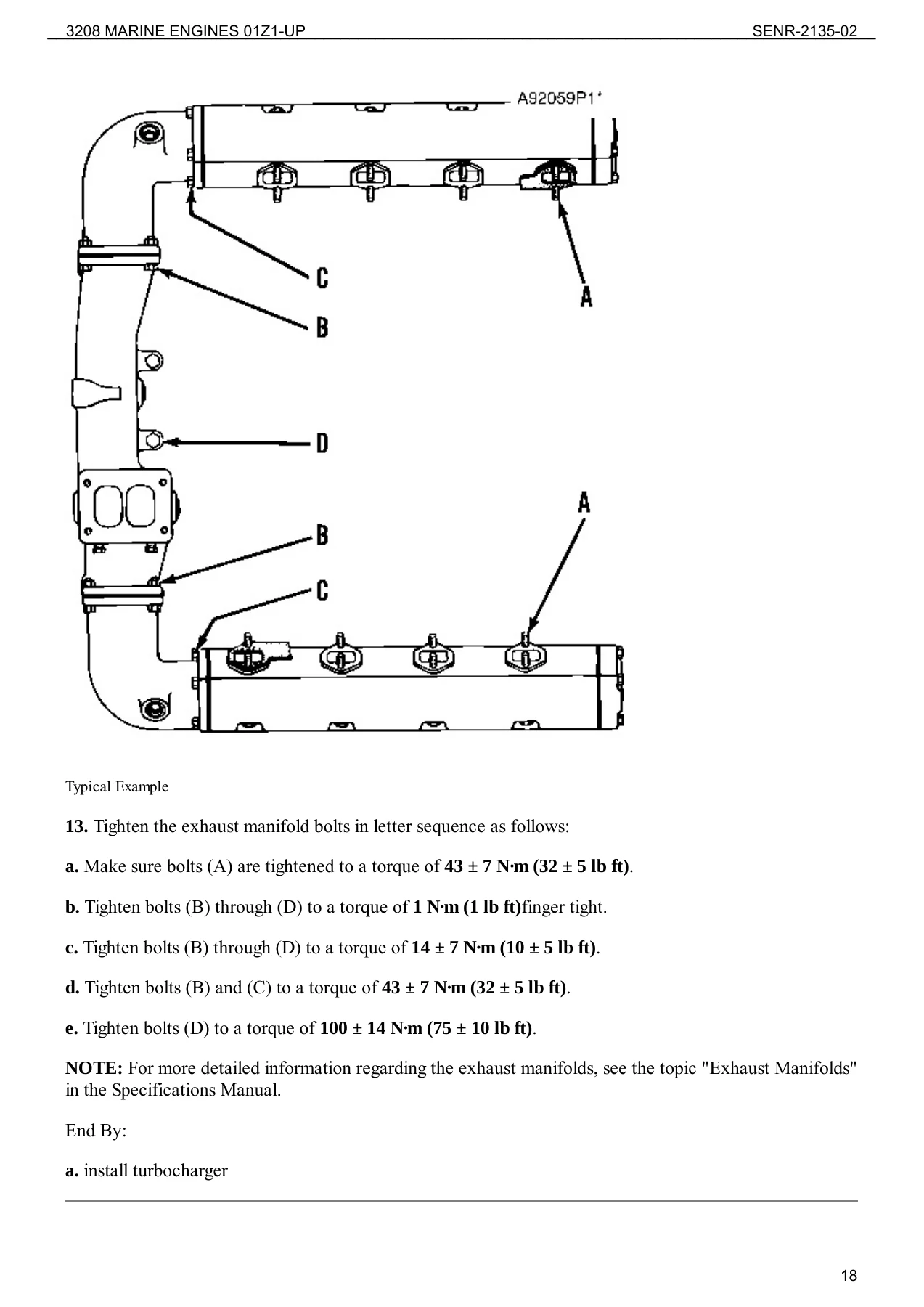

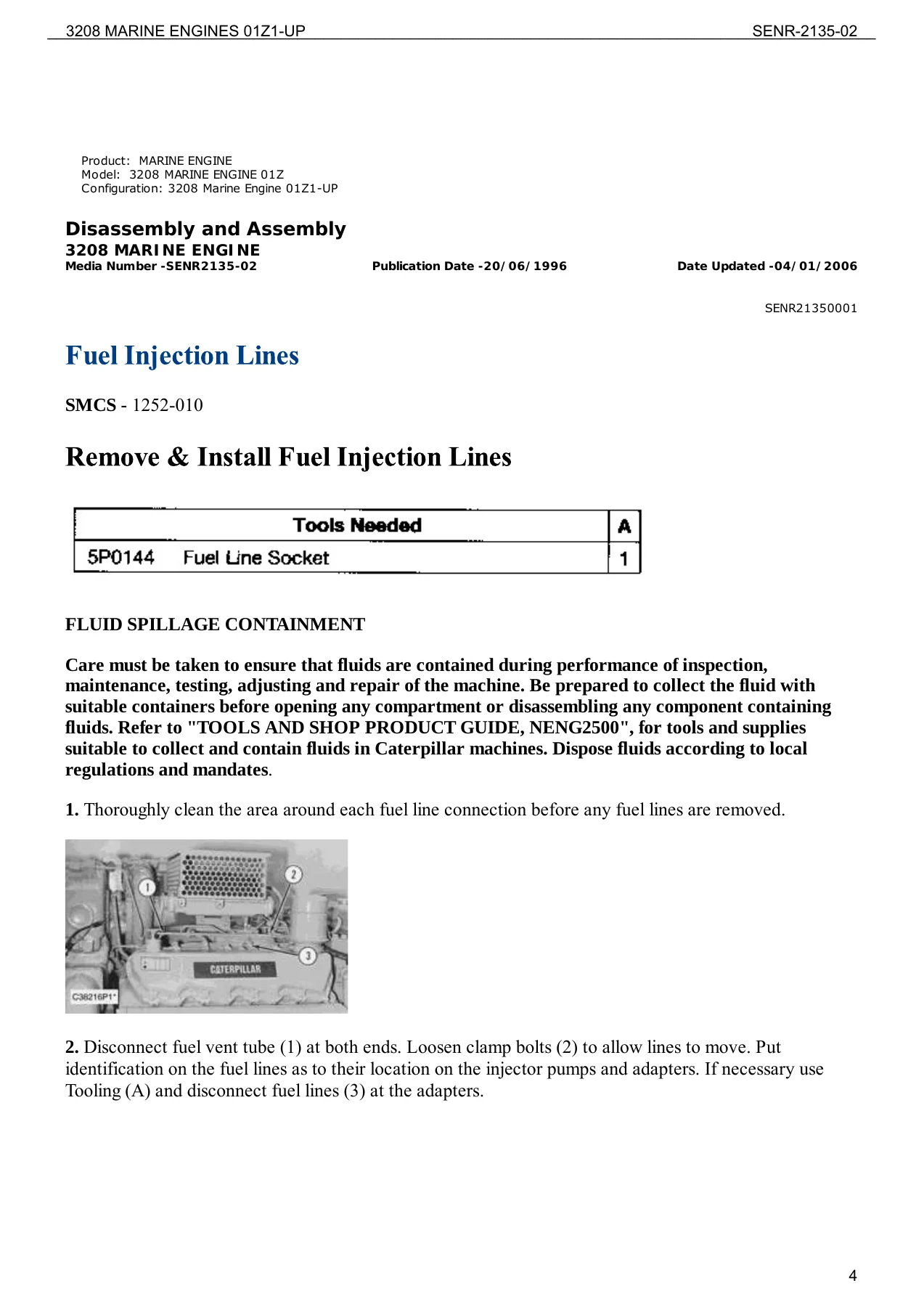

IMAGES PREVIEW

Your Instant Download

This Caterpillar 3208 Marine Engine Disassembly & Assembly Manual is delivered as an instant PDF download — there is no shipping, no waiting for a disc, and no physical book to lose in the engine room. Open it on a laptop on the dock, a tablet in the cabin, or print the chapters you are working on and take the pages to the engine. Every procedure, every torque value and every sequence is right there when you need it.
