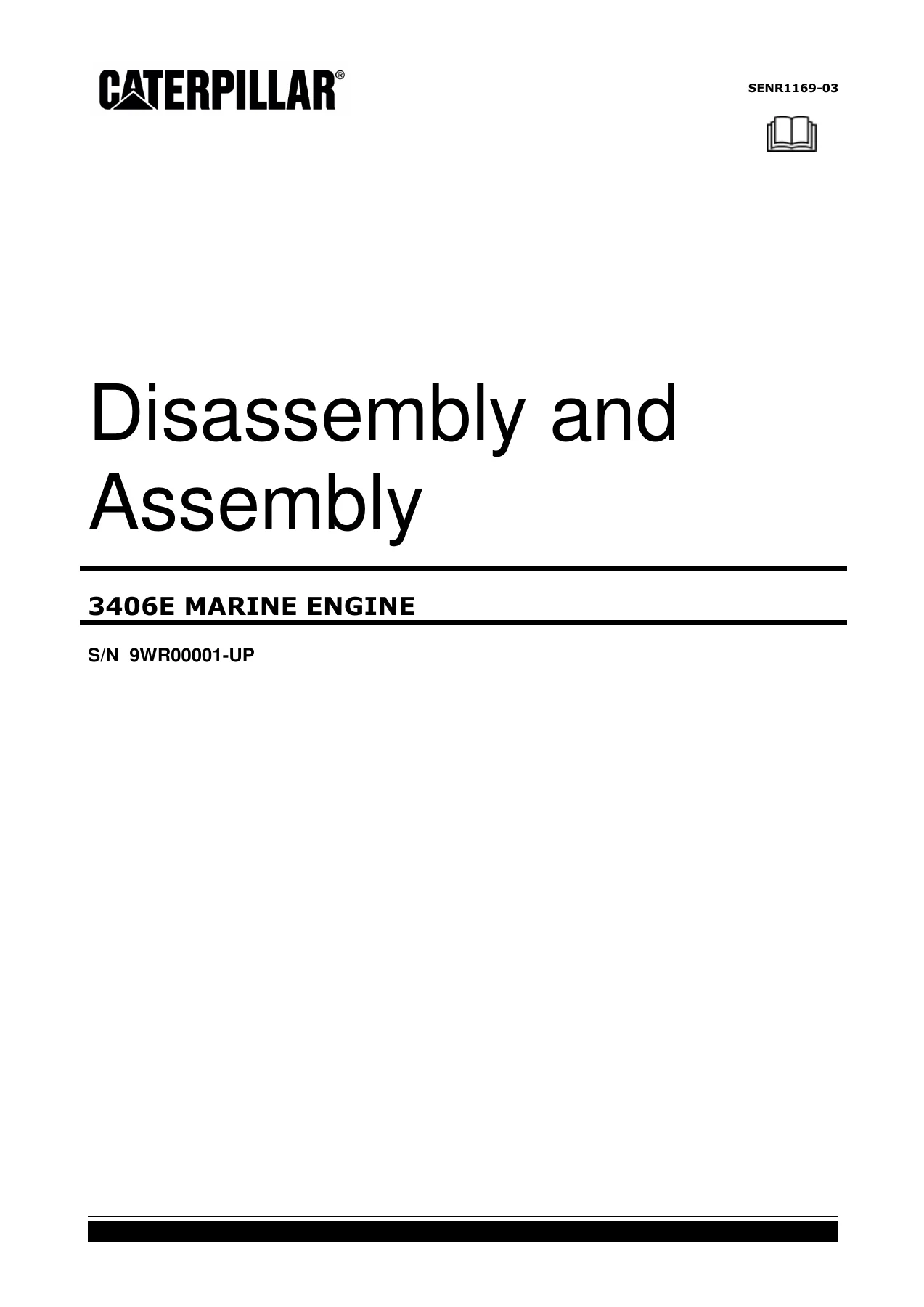

Caterpillar 3406E Marine Engine Disassembly and Assembly Manual SENR1169-03

Description

Caterpillar 3406E Marine Engine Disassembly and Assembly Manual SENR1169-03

The Caterpillar 3406E Marine Engine Disassembly and Assembly Manual SENR1169-03 is a 337-page service document for the 3406E Marine Engine 9WR configuration, with overall serial coverage shown as 9WR00001-UP. It is built around component removal, installation, disassembly and assembly procedures and follows the work from external fuel and cooling components through major internal engine assemblies. The manual repeatedly identifies the product as a 3406E Marine Engine and gives required tooling, warnings, component identification illustrations, tightening values and procedure-specific notes where applicable.

This manual is especially useful when the job has moved beyond routine maintenance and requires components to be removed, rebuilt, inspected or installed in the correct sequence. Procedures are illustrated with line drawings and service photographs that identify bolts, housings, seals, shafts, gears, sensors, pumps, pistons and other parts by callout number. Many sections also state component weights, required lifting arrangements, special tools, replacement cautions, cleanliness requirements and exact installation details that matter during reassembly.

Engine Systems and Repair Depth

The coverage begins with the fuel side of the engine, including the fuel priming pump, fuel filter base, fuel transfer pump, fuel manifold and electronic unit injectors. Injector service includes removal and installation of the electronic unit injector and injector sleeve, with procedures for cleaning the injector sleeve area, installing O-ring seals, using new hold-down hardware where specified, and tightening the injector clamp bolt. The manual also notes that a replacement electronic unit injector code must be programmed into the engine personality module software through the Electronic Service Tool.

Air and exhaust work includes the turbocharger, exhaust manifold and aftercooler. Turbocharger procedures cover removal, limited disassembly, assembly and installation. The document specifically warns that the turbocharger cartridge assembly and wastegate are not field serviced and should be replaced as a unit. The exhaust manifold section includes liner and gasket handling, sealing compounds and a numbered tightening sequence. Aftercooler procedures cover removal and installation of the housing and core assembly, including lifting requirements for the assembled aftercooler housing and core.

The cylinder-head and valve-train material is extensive. It covers inlet and exhaust valve springs, valves, valve guides, valve seat inserts and valve seals; valve mechanism covers and bases; rocker arms and shafts; cylinder-head removal and installation; the camshaft, camshaft gear and camshaft bearings. Several of these procedures provide dedicated tooling lists and precise installation dimensions or torque values. For example, the valve-guide procedure specifies the installed height from the cylinder-head surface, while the camshaft gear procedure gives the required backlash check after installation.

Lubrication and rotating-assembly work is also covered in depth. The manual includes the engine oil filter base, engine oil cooler, engine oil pump, oil pan, piston cooling jets, pistons and connecting rods, connecting rod bearings, crankshaft main bearings and crankshaft removal and installation. The connecting-rod bearing and main-bearing procedures include clearance information and torque-plus-angle tightening methods. A separate bearing-clearance section explains the plastic-gauge method and cautions needed to avoid damaging bearing or journal surfaces.

Marine cooling-system content goes well beyond a basic water-pump replacement. The document includes the engine water pump, water temperature regulator, two auxiliary-water-pump types, marine transmission oil cooler core, marine transmission oil cooler, aftercooler and plate-type heat exchanger. The heat-exchanger section covers disassembly, plate cleaning, gasket replacement, plate orientation and reassembly. It identifies sea-water and jacket-water plate positions and explains the correct plate pattern during assembly.

Front and rear engine structure is included as well: flywheel, ring gear, crankshaft front and rear seals, flywheel housing, vibration damper and pulley, front gear group, front housing, engine lifting bracket and front engine support. The front gear procedures emphasize timing-mark alignment and warn against rotating the crankshaft or camshaft while the camshaft gear is removed because incorrect timing can allow piston-to-valve interference.

The closing sections address electronic and electrical components mounted on the engine. Procedures are included for the camshaft position sensor, crankshaft position sensor, coolant level sensor, coolant temperature sensor, engine oil pressure sensor, fuel pressure sensor, fuel temperature sensor, turbocharger outlet pressure sensor, inlet air temperature sensor, electronic control module and electric starting motor. These sections show connector locations, O-ring handling and installation tightening values where the manual specifies them.

File Details

• Manual type: Disassembly and Assembly
• Brand / model: Caterpillar 3406E Marine Engine 9WR
• Serial coverage: 9WR00001-UP
• Media number: SENR1169-03
• Publication date: 01/10/2007
• Date updated: 18/10/2007
• Language: English
• Pages: 337
• File format: PDF

Chapters Covered

• Fuel system
  • Fuel Priming Pump – Remove and Install
  • Fuel Filter Base – Remove and Install
  • Fuel Transfer Pump – Remove / Install
  • Fuel Manifold – Remove / Install
  • Electronic Unit Injector – Remove / Install
  • Electronic Unit Injector Sleeve – Remove / Install
• Air and exhaust
  • Turbocharger – Remove / Disassemble / Assemble / Install
  • Exhaust Manifold – Remove and Install
  • Aftercooler – Remove / Install
• Cylinder head and valves
  • Inlet and Exhaust Valve Springs – Remove and Install
  • Inlet and Exhaust Valves – Remove and Install
  • Inlet and Exhaust Valve Guides – Remove and Install
  • Inlet and Exhaust Valve Seat Inserts – Remove and Install
  • Inlet and Exhaust Valve Seals – Remove and Install
  • Cylinder Head – Remove / Install
• Lubrication system
  • Engine Oil Filter Base – Remove / Disassemble / Assemble / Install
  • Engine Oil Cooler – Remove / Disassemble / Assemble / Install
  • Engine Oil Pump – Remove / Disassemble / Assemble / Install
  • Engine Oil Pan – Remove and Install
  • Piston Cooling Jets – Remove and Install
• Marine cooling system
  • Water Pump – Remove / Disassemble / Assemble / Install
  • Water Temperature Regulator – Remove and Install

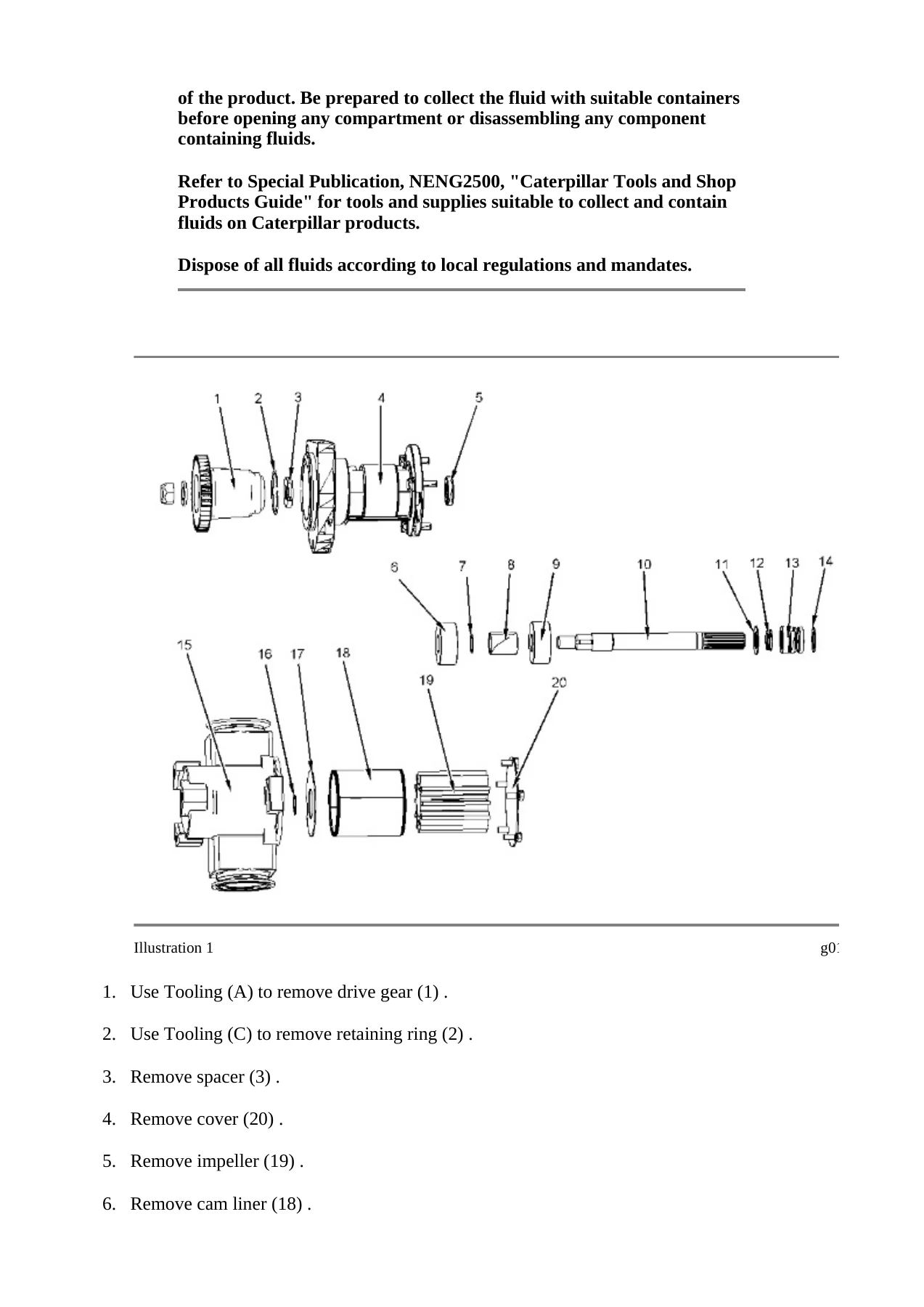

  • Auxiliary Water Pump – Type 1 and Type 2 Disassembly / Assembly
  • Auxiliary Water Pump – Remove / Install
  • Marine Transmission Oil Cooler Core – Remove and Install
  • Marine Transmission Oil Cooler – Remove and Install
  • Heat Exchanger – Remove / Disassemble / Assemble / Install
• Front and rear engine assemblies
  • Engine Lifting Bracket – Remove and Install
  • Engine Support (Front) – Remove and Install
  • Flywheel – Remove / Install
  • Crankshaft Rear Seal – Remove / Install
  • Flywheel Housing – Remove and Install
  • Vibration Damper and Pulley – Remove and Install
  • Crankshaft Front Seal – Remove / Install
  • Gear Group (Front) – Remove / Install
  • Housing (Front) – Remove / Install
• Valve train and camshaft
  • Valve Mechanism Cover – Remove and Install
  • Valve Mechanism Cover Base – Remove and Install
  • Rocker Arm and Shaft – Remove / Install
  • Rocker Arm – Disassemble / Assemble
  • Camshaft – Remove / Install
  • Camshaft Gear – Remove and Install
  • Camshaft Bearings – Remove / Install
• Internal engine components
  • Cylinder Liner – Remove / Install

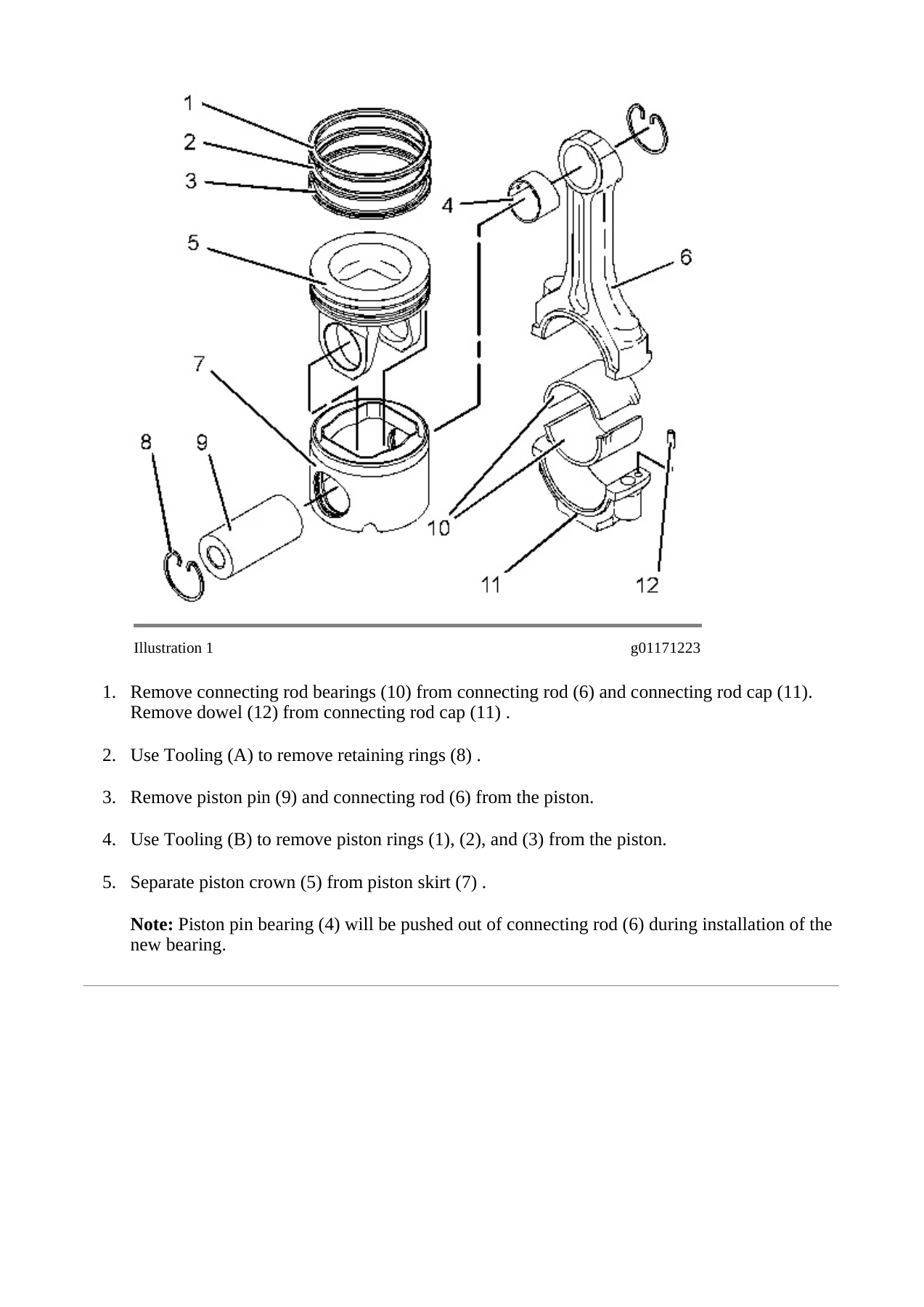

  • Pistons and Connecting Rods – Remove / Disassemble / Assemble / Install
  • Connecting Rod Bearings – Remove / Install
  • Crankshaft Main Bearings – Remove / Install
  • Crankshaft – Remove / Install
  • Bearing Clearance – Check
• Sensors and electrical components
  • Camshaft Position Sensor – Remove and Install
  • Crankshaft Position Sensor – Remove and Install
  • Coolant Level Sensor – Remove and Install
  • Coolant Temperature Sensor – Remove and Install
  • Engine Oil Pressure Sensor – Remove and Install
  • Fuel Pressure Sensor – Remove and Install
  • Fuel Temperature Sensor – Remove and Install
  • Turbocharger Outlet Pressure Sensor – Remove and Install
  • Inlet Air Temperature Sensor – Remove and Install
  • Electronic Control Module – Remove and Install
  • Electric Starting Motor – Remove and Install

Taken together, the manual provides a component-by-component path through major 3406E marine-engine service work, from access and removal through inspection, assembly and final installation. It is detailed enough to support substantial mechanical work while keeping related cautions, special tooling and tightening information close to the procedure being performed.

Repair with the Correct Procedure in Front of You

IMAGES PREVIEW

The Caterpillar 3406E Marine Engine Disassembly and Assembly Manual SENR1169-03 supports jobs ranging from injector, pump, sensor and cooling-system service to cylinder-head work, camshaft service, piston and liner work, bearing replacement and crankshaft removal. Using the documented sequences, tooling references, tightening values, alignment instructions and assembly cautions helps reduce avoidable errors during complex engine work. Your manual is supplied as an instant PDF download after purchase, with no shipping delay; you can open it on a compatible phone, tablet or computer and print the pages you need for workshop use.
