CFMOTO CF500-5 / CF500-5A ATV Technical Service Manual PDF Download

Workshop-Ready Service Information for CFMOTO CF500-5 and CF500-5A ATVs

This technical service manual delivers the detailed procedures, specifications, and diagnostic guidance needed to maintain, repair, and overhaul the CFMOTO CF500-5 and CF500-5A All Terrain Vehicles. Whether you’re a professional workshop technician or an experienced owner handling your own repairs, this PDF reference provides factory-style service data directly applicable to these models.

What This Manual Covers

The manual is organized into 14 chapters that systematically address every major system of the CF500-5 and CF500-5A. Confirmed coverage includes:

• General Maintenance Information – Safety cautions, VIN/engine number locations, main data tables, overhaul data, tightening torque specifications, lubricants, and cable routing diagrams.
• Vehicle Body and Muffler – Disassembly and installation of racks, seats, fenders, fuel tank, and exhaust system with torque values.
• Checks and Adjustments – Maintenance intervals, steering and brake checks, suspension inspection, valve clearance adjustment (IN: 0.05–0.10 mm, EX: 0.17–0.22 mm), idle speed setting (1300±100 r/min), spark plug gap (0.8–0.9 mm), air filter service, drive belt inspection, and cylinder pressure testing (1000 kPa).
• Cooling and Lubrication Systems – Coolant capacity (1140 ml), thermostat testing (opens at 71±3°C), water pump overhaul, oil pump rotor clearances, oil pressure check (130–170 kPa at 3000 r/min), and fan motor/thermoswitch diagnostics.
• Engine Removal, Inspection, and Installation – Complete engine disassembly sequence covering cylinder head, camshaft, piston, connecting rod, crankshaft, CVT drive/driven sheaves, clutch, transmission, bevel gears, oil pump, and starter clutch. Includes service limits for cylinder bore (87.500–87.522 mm), piston diameter, ring grooves, cam height, valve stem deflection, and crankshaft run-out (0.08 mm).
• Carburetor – Removal, inspection, measurement, adjustment, and assembly procedures for the MIKUNI BSR36-89 carburetor with jet specifications.
• Front Wheel, Brake, Suspension, and Steering – Hub and disc service, brake caliper overhaul, suspension component checks, steering stem torque values, and constant velocity drive shaft inspection.
• Rear Wheel, Rear Brake, and Suspension – Rear wheel hub removal, brake system adjustment, shock absorber service, and troubleshooting for wobble or poor braking.
• Front/Rear Axle – Lubrication intervals, tightening torque tables for axle bolts, differential bolts, and retainer nuts.
• Battery and Charging System – AC magneto resistance (0.2–0.3 Ω), rectifier/regulator testing, battery capacity (12V 18Ah), and charging system troubleshooting flow chart.
• Ignition System – Pickup coil resistance (110–140 Ω), ignition coil primary/secondary resistance, CDI unit checks, and starting motor relay diagnostics.
• Lights, Instruments, and Switches – Bulb replacement specifications (headlight 12V-35W/35W, brake/tail 12V-21/5W, turn signals 12V-10W), switch continuity tests, and dashboard indicator LED details.
• Troubleshooting – Comprehensive diagnostic tables for starting failure, unstable idle, poor high-speed performance, engine overheating, abnormal noises, clutch slip, and carburetor issues.

Sample Pages from This Manual

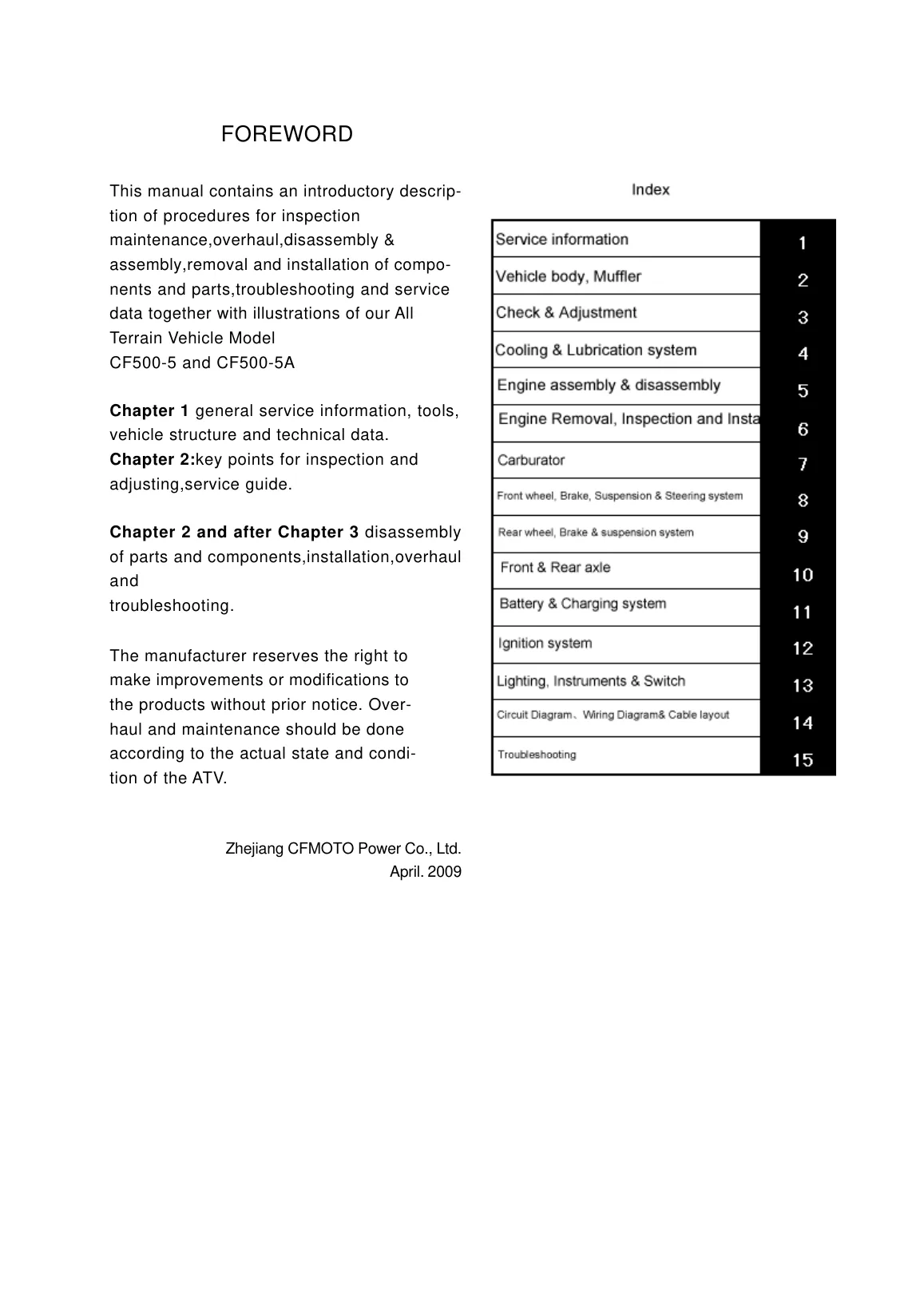

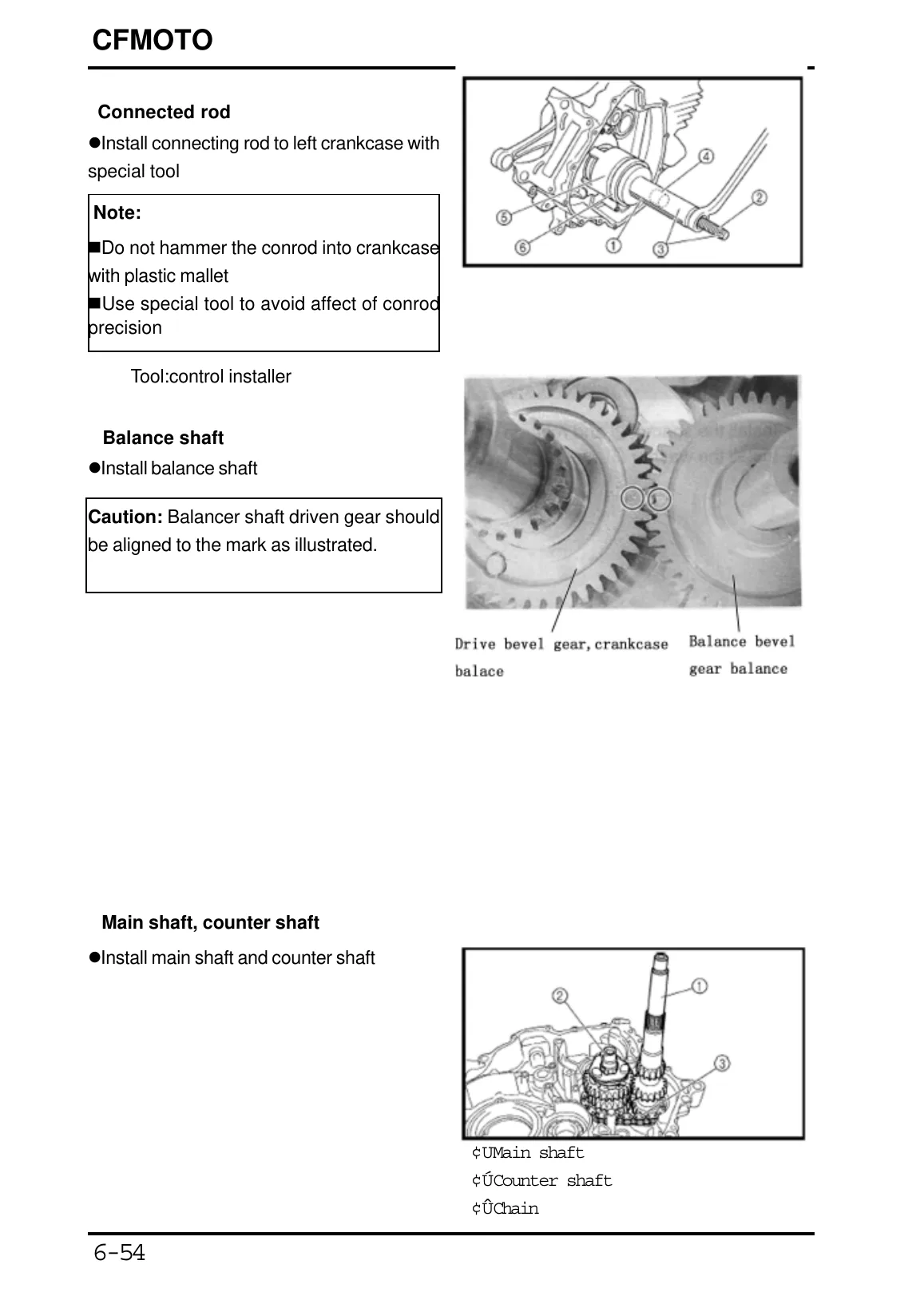

These preview images show sample pages from the CFMOTO CF500-5 / CF500-5A ATV Technical Service Manual PDF Download, including the cover and selected internal pages, so you can check the manual layout, diagrams, and technical information style before downloading.

Why This PDF Manual Is Useful

Having a complete service manual on hand means you can diagnose problems accurately the first time. Instead of guessing or searching fragmented online forums, you get step-by-step disassembly and assembly instructions, precise torque values, and wear limits that help you decide whether to repair or replace components. The CVT drive belt service limit (33.5 mm width), valve clearance specs, and oil pressure checks are just a few examples of the critical data that keeps your CFMOTO running reliably.

For workshop owners, this manual reduces diagnostic time on common issues like hard starting, poor acceleration, or cooling system faults. The troubleshooting chapter alone covers engine, carburetor, cooling, and ignition systems with symptom-based tables that point directly to the likely cause and remedy.

Download Information

This is a digital PDF file containing 254 pages of technical service information. After purchase, you will receive an instant download link. The PDF is fully searchable and printable, allowing you to take specific pages into the workshop or view them on your tablet, phone, or computer. No shipping costs, no waiting.

Professional Repair Confidence

Whether you are rebuilding the CF188 engine, adjusting the bevel gear backlash, or tracing a charging system fault, this manual gives you the specifications and procedures used by trained technicians. The engine section alone includes detailed inspection data for the cylinder head, valve train, piston, connecting rod, crankshaft, and oil pump—everything needed for a complete overhaul.

Invest in this CFMOTO CF500-5 / CF500-5A Technical Service Manual and keep your ATV in top condition. Instant PDF access means you can start your repair or maintenance project immediately, with the confidence that comes from having the right information at your fingertips.
