Deutz-Fahr Agrotron K90 K100 K110 K120 Profiline Repair Time Schedule Manual

Description

Deutz-Fahr Agrotron K90 K100 K110 K120 Profiline Repair Time Schedule Manual

This Deutz-Fahr Agrotron K90 K100 K110 K120 Profiline Repair Time Schedule Manual is the workshop labor time reference (document 307.6055.3.6) covering the Agrotron K 90 Profiline, K 100 Profiline, K 110 Profiline and K 120 Profiline tractors. Instead of step-by-step disassembly instructions, this publication gives you the time it should take a trained mechanic to complete each job on the tractor — from pulling the engine and splitting the gearbox, to replacing a hydraulic lift cylinder, a cab suspension spring or an instrument cluster. It is the reference used to quote a job, plan workshop hours and invoice a repair fairly, and it now ships as an instantly downloadable PDF.

File Details

• Manual type: Repair Time Schedule — workshop labor times / flat-rate reference
• Brand: Deutz-Fahr
• Models covered: Agrotron K 90 Profiline, K 100 Profiline, K 110 Profiline, K 120 Profiline
• Language: Multilingual — Italian, Spanish, Portuguese, English
• Document number: 307.6055.3.6
• Page count: 671
• File format: PDF (instant download, no shipping)

Chapters Covered

The repair time schedule is organised by tractor assembly, each with its own reference number, and the general index maps them as follows:

• Motore (Engine) — reference 1 — oil filler pipe, monobloc breather, oil sump, flywheel, counter-rotating masses, crankshaft, connecting rod, piston, valve cover, cylinder head, timing gear housing, camshaft, oil cooler housing, injectors, fuel filter, injection pump, turbocharger, exhaust manifold, alternator, temperature sensors
• Telaio (Chassis / Transmission) — reference 107 — flexible couplings, clutch control, gear shift command, Super Creeper reducer controls, primary and secondary shafts, reducers with 24F+8R and 36F+12R gearboxes, bevel gear pairs, gearbox housings, front transmission, oil supply, splitter, clutch, gearbox ECU, hydraulic control, rear axle, rear gearbox housing
• Rear Differential and Half Shafts — reference 151 — differential and half shafts, service brakes, brake controls, independent handbrake, handbrake
• Front Axle — references 163 to 185 — 4WD front support, 4WD support with suspension, front cover without front hitch, front support suspension system, front axle with front suspension, front axle with electro-hydraulic / self-locking differential locks, steering cylinder, bevel gear pair, differential lock, double joint, wheel hub, planetary reducer, front differential pipes, drive shafts
• PTO and Steering — references 196 to 215 — PTO control, economy PTO (540–1000), rear PTO protection, steering wheel, steering column, hydrostatic steering
• Hydraulic System and Oil Cooler — references 216 to 221 — oil cooler, oil supply filter, oil tank, oil supply
• Bodywork (Carrozzeria) — references 222 to 301 — bonnet / hood panels, hood supports, hood-to-cabin connecting frames, identification plates, cooling system, dashboard, pedal support, battery support, tool box, rear lift control, accelerator control, front and rear mudguards, mudguard protections and extensions, access steps, fuel tank, air filter, second operator seat, seat belts, driver’s seat with air suspension, bonnet front sections, work lights, direction lights, side lights, roof work lights, rotating beacon preparation
• Electrical System (Impianto Elettrico) — references 300 to 343 — multi-function handle, instrument panel, steering column switch, fuse box, ECU and controls, ECU support, pre-heating relay, ISO sockets, battery cables, alternator cables, mudguard electrical systems, work light electrical systems, engine electrical, gearbox electrical, roof electrical, automatic climate control temperature sensor, trailer pneumatic brake cable harness, radar
• Wheels and Fixings — references 344 to 394 — wheel fixings and the complete range of front and rear tyre / rim combinations listed by size (16.9R-24, 420/65R24, 420/70×24, 480/65R-24, 480/70R24, 540/65R24, 360/70R28, 440/65R-28, 540/65R30, 16.9R-34, 18.4R-34, 480/70R34, 520/70×34, 540/65R34, 600/65R34, 16.9R38, 18.4R-38, 480/70R-38, 520/70XR38, 540/65R-38, 600/65R38)
• Cabina (Cabin) — references 395 to 443 — metal structures, fixed and opening windscreen with wiper, lower windows, cabin doors, side windows, rear window and rear door with wiper, cable passage bulkhead, rear-view mirrors (heated and non-heated), floor lining, interior trim, rear hitch control trim, cabin trim, handbrake console, control consoles, connector console, climate control panels, radio panel, sub-roof, roof, roof hatch, washer water tank, ventilation and air conditioning, air compressor, manual and automatic climate control, climate control pipes
• S.A.C. and Hydraulics — references 451/4 to 481 — lift cylinder Ø 80 mm, sensitive elements with electronic control, 4-way and 8-way hydraulic distributors, hydraulic trailer braking (Italy and Export F), connection plate, rear free return, oil return pipe, 8-way quick couplings with Power Beyond, oil recovery for 4-way and 8-way distributors
• Trailer Braking — references 456 to 473 — 2-way pneumatic braking, pneumatic trailer braking for Italy and Export D, pneumatic braking Export D, pressure gauge
• Accessories (Accessori) — references 482 to 516 — quick couplings, 3-point hitch, adjustable tie rods, manual and automatic side stabilizers, ball joint support, oscillating drawbar with Piton-Fix, oscillating rear hitch, drawbar hitch supports, rear drawbar categories C / D3 / D2, mechanical and automatic drawbar hitches, front drawbar hitch, front hitch, pick-up-hitch, front ballast 100 kg and 330 kg
• Componentistica (Components) — references 522 to 605 — oil tank details, hydraulic cylinders (Ognibene), accumulator, cardan shafts, steering column, hydraulic pump, gear pump, oil filter, pump details, control valve, air filter, seat details, light details, compressor details, heating and ventilation, cylinder details, distributor details, trailer brake valve, couplings, compressor details, pressure regulator, pump details, trailer control valve, tie rods, hitches, automatic side stabilizers, drawbars and hitch supports

Taken as a whole, the document is a complete time-book for the Agrotron K Profiline series: for every assembly on the tractor it lists the operation, the time for a single operation, the time for the operation when it is combined with the previous operations in the same job, and a detail column showing which preceding operations have to be carried out first. That structure is what turns a repair into a planned, priced job rather than a guess.

How the Repair Times Are Built

All times in this Deutz-Fahr Agrotron K Profiline repair time schedule are expressed in hours with one decimal, where 0.1 = 6 minutes. Every figure is quoted as the complete operation, from start to finish, and reflects the average time a properly trained mechanic of normal ability needs when working in a normal workshop with the standard tools and the special tools recommended in the Deutz-Fahr workshop manual.

The published values already allow for the additional difficulty of working on a used tractor rather than a new one, and they do not include travel to or from the farm or the job site. Each row also carries an operation code, so a job can be looked up either from the general index at the front of the file or from the numeric code index at the back — handy when you already know the code and just need the time.

What a Repair Time Schedule Actually Gives You

• Realistic quotes: a job such as removing the engine from the clutch housing, splitting the gearbox, or replacing a brake support is assigned a clear time so a workshop can quote it without guesswork.
• Job sequencing: the “detail of previous operations” columns tell you which steps must be done first — for example, removing the engine, transmission shaft, rear wheels and platform before the rear gearbox can come out.
• Repeatable pricing: when two similar Agrotron K Profiline tractors come in, the same flat-rate figure applies, so the invoice is consistent from job to job.
• Tool and labour planning: knowing how many hours each operation is expected to take makes it possible to schedule a bay, a mechanic and the right special tools in advance.
• Model-specific figures: because Agrotron K 90, K 100, K 110 and K 120 Profiline each appear separately in the component lists, the correct times can be picked for the exact tractor on the ramp.

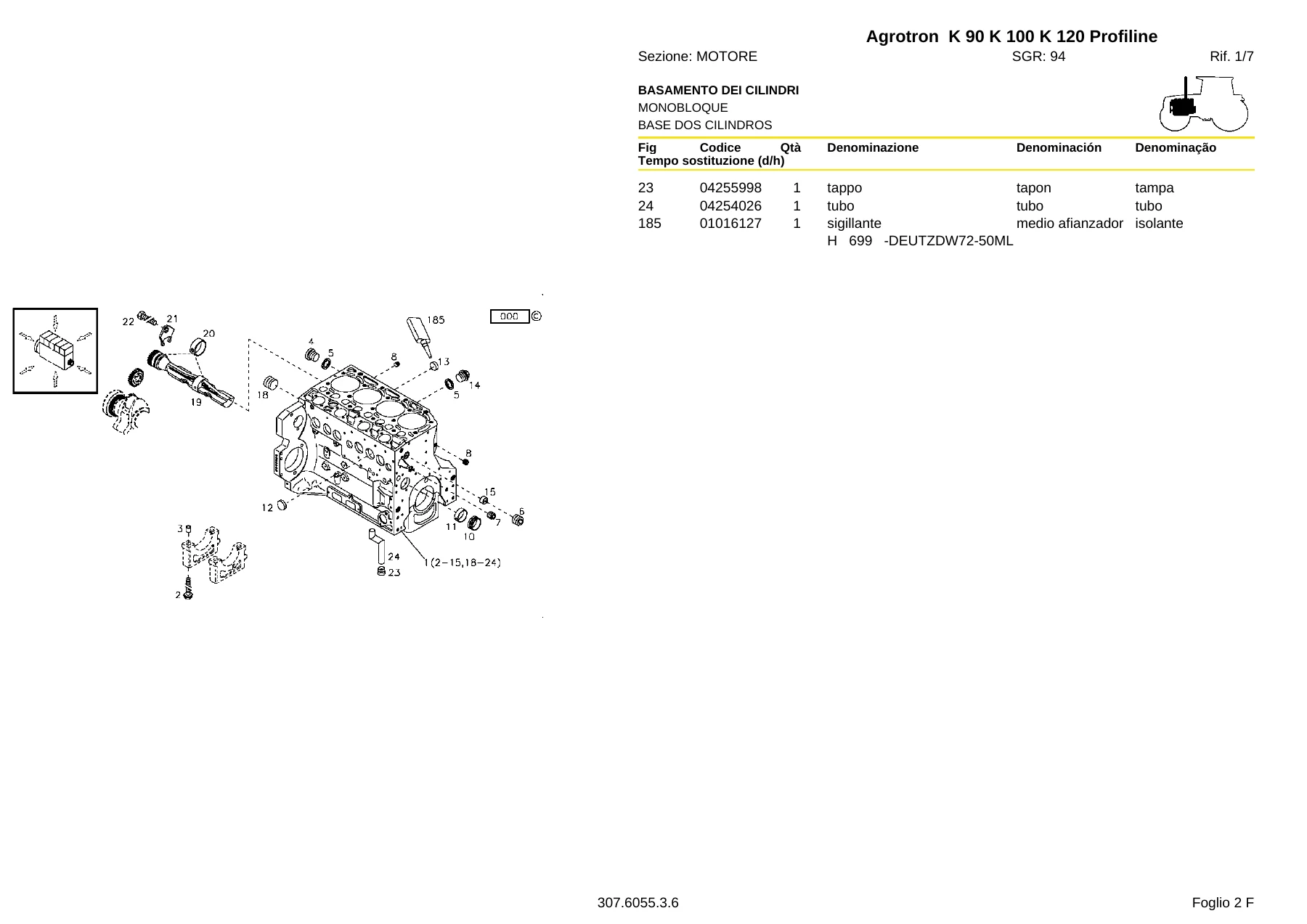

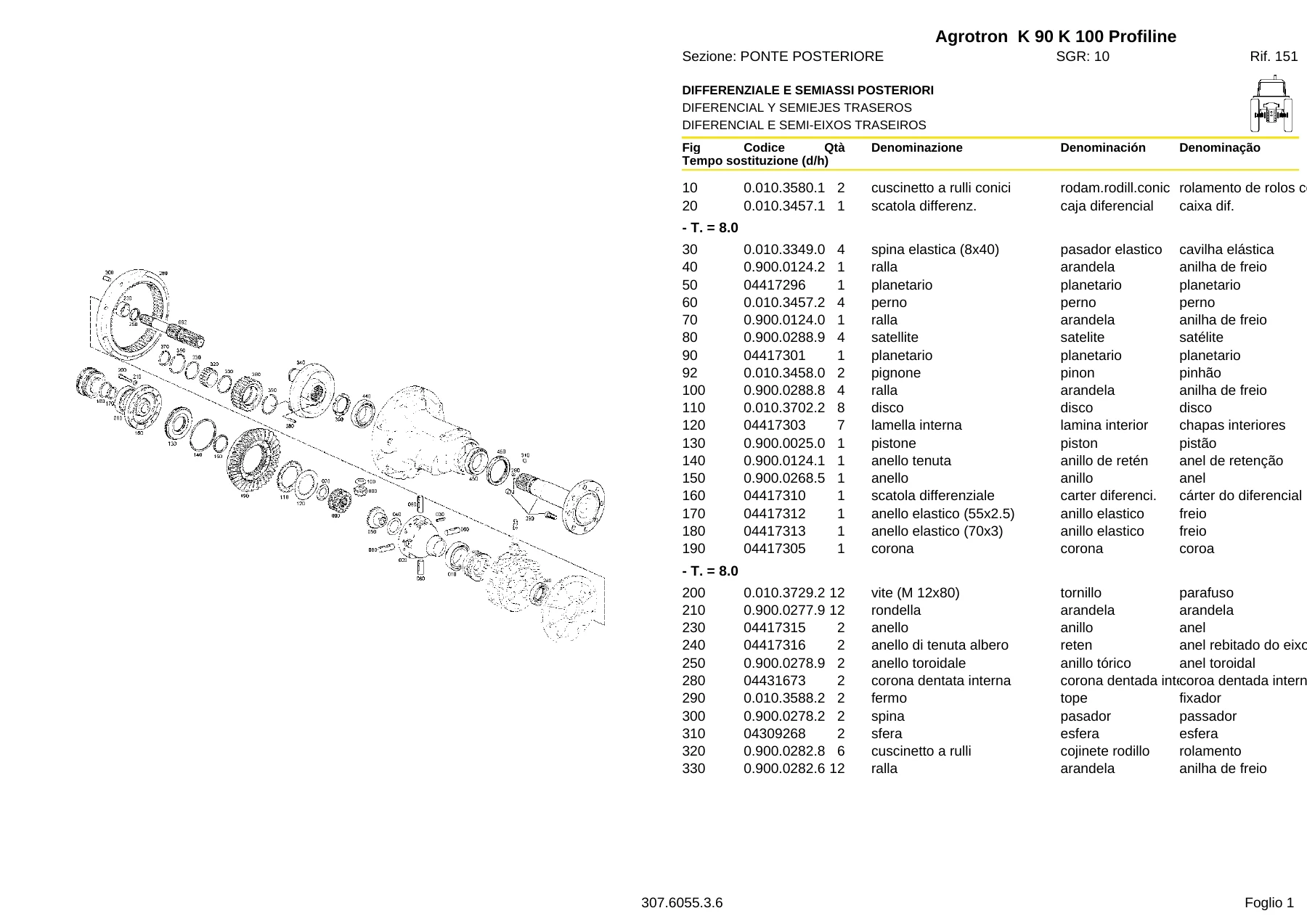

The file also includes the complete parts lists that sit behind the time rows — fastener sizes, seal part numbers, special-tool references and explosion illustrations — so the same document doubles as a component lookup while you plan a job.

IMAGES PREVIEW

Instant Access — Download the Deutz-Fahr Agrotron K Profiline Repair Time Schedule Today

With this Deutz-Fahr Agrotron K90 K100 K110 K120 Profiline Repair Time Schedule Manual on your workshop computer, tablet or phone, you can price and plan any job on an Agrotron K 90, K 100, K 110 or K 120 Profiline without waiting for a quote book to arrive. The manual lets you quote engine removals, gearbox splits, differential and brake work, PTO and steering jobs, hydraulic cylinder changes, cab suspension and trim work, electrical and lighting jobs, wheel and tyre swaps, trailer braking installations, 3-point hitch and drawbar work, and much more — each backed by a documented flat-rate time rather than an estimate.

Correct times matter because they protect both sides of the job: the customer sees an honest, manufacturer-derived figure, and the workshop knows it will not under-charge on a long operation. As a PDF, this repair time schedule is delivered instantly after checkout with no shipping and no waiting — print the pages you need for the bay, or read them straight from any device. Download the Deutz-Fahr Agrotron K 90 K 100 K 110 K 120 Profiline labor times reference and put a real number on your next repair.
