BCS 715 725 735 745 Workshop Manual – Two-Wheel Tractor Repair Guide PDF

Description

BCS 715 725 735 745 Workshop Manual – Instant PDF Download

This is the full workshop manual for the BCS 715, 725, 735 and 745 two-wheel tractors, together with the implements that hang off them. It is written for the person who actually takes the machine apart – dealer technicians and owners who maintain their own equipment – and it walks through removal, overhaul and reassembly of every major assembly on the tractor, then does the same for the rotary hoes, cutter bar, lawn mowers and snow throwers. The BCS 715 725 735 745 Workshop Manual PDF is the reference you keep on the bench, not on a shelf.

File Details

• Manual type: Workshop / service and repair manual
• Brand: BCS (BCS S.p.A., Abbiategrasso, Milano, Italia)
• Models covered: BCS 715, 725, 735, 745 two-wheel tractors and their implements
• Document code: COD. 900.48978.5
• Date shown: 1986
• Language: English
• Page count: 138 pages
• File format: PDF

Chapters Covered

The contents of this BCS 715 725 735 745 Workshop Manual are laid out in three parts, plus an appendix of reference tables:

• 0. Specifications and Maintenance
  • 0.1 Technical features – engine data, and technical features for the 715, 725, 735 and 745
  • 0.2 Maintenance – maintenance program, fuel and oil specifications, shop tools, special storage instructions, troubleshooting
• 1. Tractor

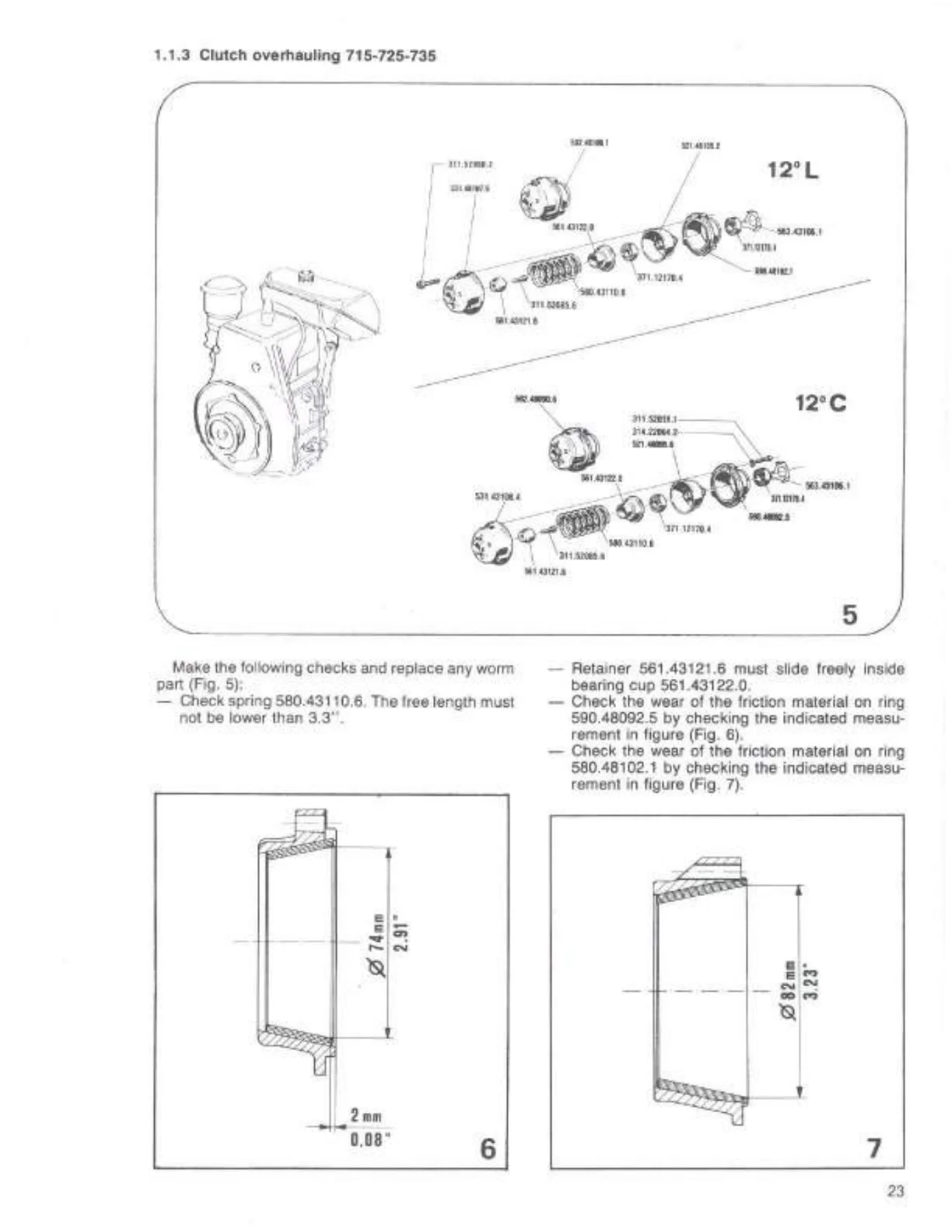

  • 1.1 Clutch – engine removal, clutch removal, overhauling and assembly (715-725-735 and 745)
  • 1.2 Handlebar and controls – removal, overhauling, assembly, control adjustment
  • 1.3 Gearbox 715 – removal, overhauling, assembly
  • 1.4 Gearbox 725-735 – removal, overhauling, assembly
  • 1.5 Gearbox 745 – removal, overhauling, assembly
  • 1.6 Final transmission 715-725 – removal, overhauling, assembly
  • 1.7 Final transmission 735 – brake removal, final transmission removal, overhauling, assembly
  • 1.8 Final transmission 745 – removal, overhauling, assembly
  • 1.9 Synchronized PTO 735-745 – removal, overhauling, assembly
• 2. Implements
  • 2.1 Rotary hoes 21″ – 26″ – 30″
  • 2.2 Rotary hoes 33″ – 38″
  • 2.3 Cutter bar – blade control removal, overhauling, assembly, cutter bar adjustment, blade sharpening
  • 2.4 Lawn mower – removal, overhauling, assembly
  • 2.5 Lawn mower with front grass catcher
  • 2.6 Snow thrower 24″

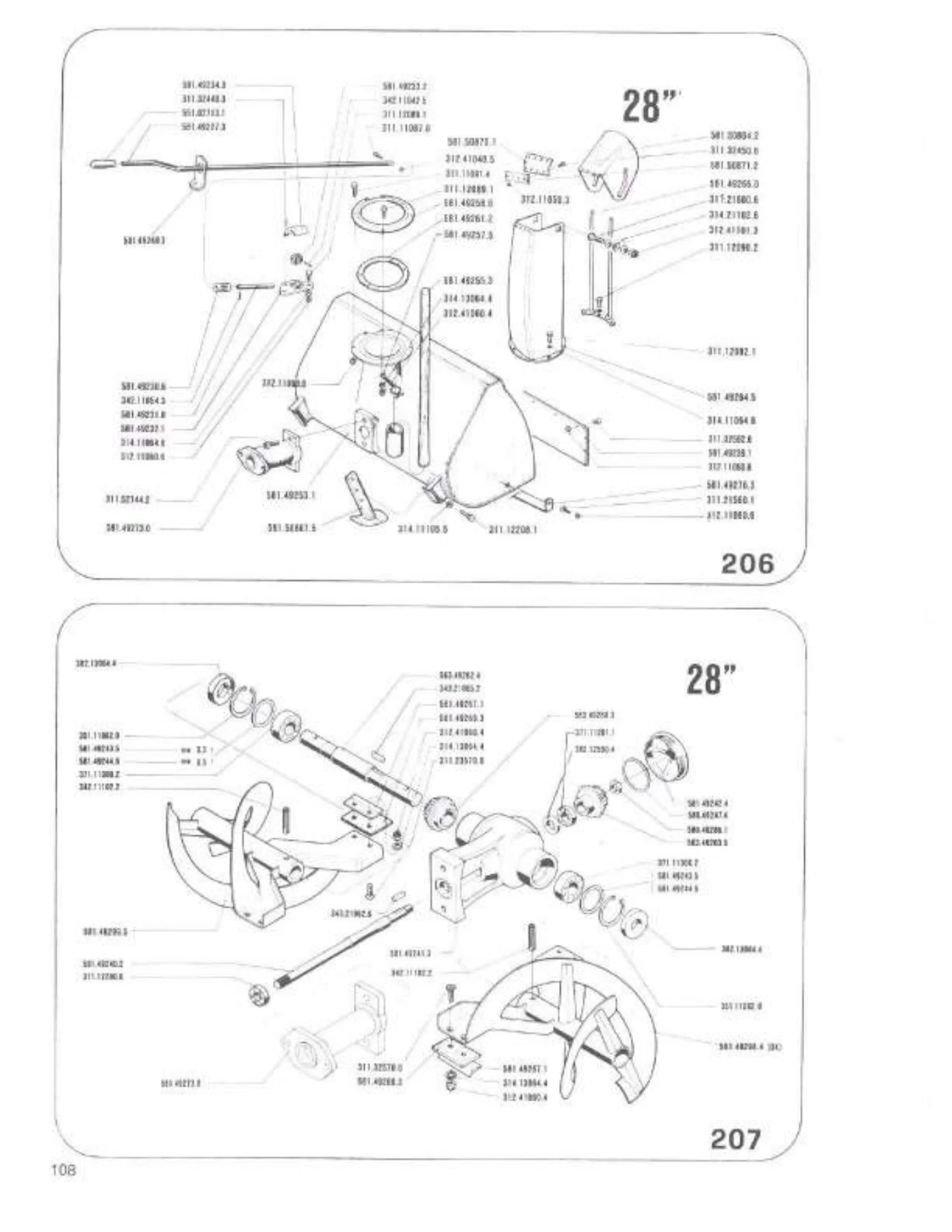

  • 2.7 Snow thrower 28″
  • 2.8 Three blade lawn mower
  • 2.9 2-blade lawn mower with grass catcher
• Appendix
  • Tightening torques of bolts and nuts
  • Bearing size tables
  • Oil seals and O-ring size tables
  • Circlip size tables
  • Spring roll pin size tables

Read as a whole, this manual is a complete strip-and-rebuild guide to the BCS two-wheel tractor family. Each assembly gets the same treatment: how to get it off the machine, what to measure and inspect once it is on the bench, which parts to replace as a matter of course, and how to put it back together with the correct torque values, new gaskets, new oil seals and new O-rings. The exploded parts views that accompany the overhaul sections are the fastest way to see how a gear cluster, differential, clutch pack or blade control actually goes together before you start pulling it apart.

What This Manual Lets You Do

The BCS 715 725 735 745 Workshop Manual PDF supports real repair work, not just scheduled servicing. On the tractor side that means engine removal, dry cone and dual cone clutch overhaul, handlebar and control adjustment, full gearbox teardown on all four models, final transmission and worm screw work, brake removal on the 735, and synchronized PTO overhaul on the 735 and 745. On the implement side it covers rotary hoe gearcases and knife assemblies, cutter bar blade control and cutter bar adjustment, lawn mower gearcase overhaul, the front grass catcher mower, and both the 24-inch and 28-inch snow throwers.

Just as important, the manual tells you what to throw away. Springs have published free-length limits, friction rings have wear dimensions, splines, broachings, teeth, circlips and pressed rings all get called out as items to inspect and replace before reassembly. That is the difference between a repair that lasts and one that comes back – you replace the worn part now instead of chasing a failure six months later.

Engines Referenced

The engine technical features section covers the ACME ALN 290 WB (287 cc, 8 HP), the ACME ALN 330 WB (327 cc, 10 HP) and the ACME VT 88 WB (480 cc, 14 HP), each with compression ratio, maximum power, maximum RPM and idle RPM. The identification pages also show the engine and tractor serial number plates. For engine-specific service beyond the specifications given here, the manual directs you to the literature of the respective engine manufacturer.

Specifications, Fluids and Torque Data

Machine-side data you will actually reach for while working: forward and reverse speeds in mph for each model at rated engine RPM, transmission and total reduction ratios, power take-off speed, operating weights with and without implements, and overall dimensions. Fluid recommendations are given per component – SAE 80W/90 EP for the gearbox and transmission, rotary hoe and snow thrower casings filled almost to the top, lawn mower casings filled to a set distance below the filler hole, GR MU2 grease for the 745 final transmission reducer boxes, and SAE 20 or 30 for the engine air filter. The appendix tightening torque tables give values in both Kg/m, Nm and lb/ft so you can work with whichever wrench scale you have.

IMAGES PREVIEW

Instant PDF Delivery

This BCS 715 725 735 745 Workshop Manual is delivered as a PDF download immediately after purchase – no shipping, no waiting, no physical book to keep clean in a workshop. Load it on a laptop, tablet or phone and take it right to the machine, or print only the pages for the job in front of you. Whether you are adjusting a clutch cable, rebuilding a gearbox, sharpening cutter bar blades or overhauling a snow thrower gearcase, the correct procedure and the correct specification are on the page in front of you.
