DEUTZ TCD 2013 2V Diesel Engine Workshop Manual – L4 & L6 Repair Service PDF

Description

DEUTZ TCD 2013 2V Diesel Engine Workshop Manual

The DEUTZ TCD 2013 2V Diesel Engine Workshop Manual (Order No. 0312 2904 en) is the complete repair and service documentation for the TCD 2013 2V series diesel engines in 4-cylinder (L4) and 6-cylinder (L6) configurations. Published by DEUTZ AG in November 2005 (1st Edition), this 431-page PDF delivers the same job-card based procedures used by professional technicians to maintain, diagnose, and rebuild these four-stroke common rail engines.

Whether you are servicing a single engine or running a fleet, this TCD 2013 2V workshop manual provides the structured, step-by-step guidance needed for every major repair task — from setting valve clearance and removing the cylinder head to replacing the crankshaft, injectors, high-pressure pump, turbocharger, and all associated components.

File Details

• Manual Type: Workshop Manual (W and I job cards)
• Brand: DEUTZ AG
• Engine Series: TCD 2013 2V
• Configurations: L4 (4-cylinder) and L6 (6-cylinder)
• Order Number: 0312 2904 en
• Edition: 1st Edition, 11/2005
• Language: English
• Page Count: 431
• File Format: PDF

Chapters Covered

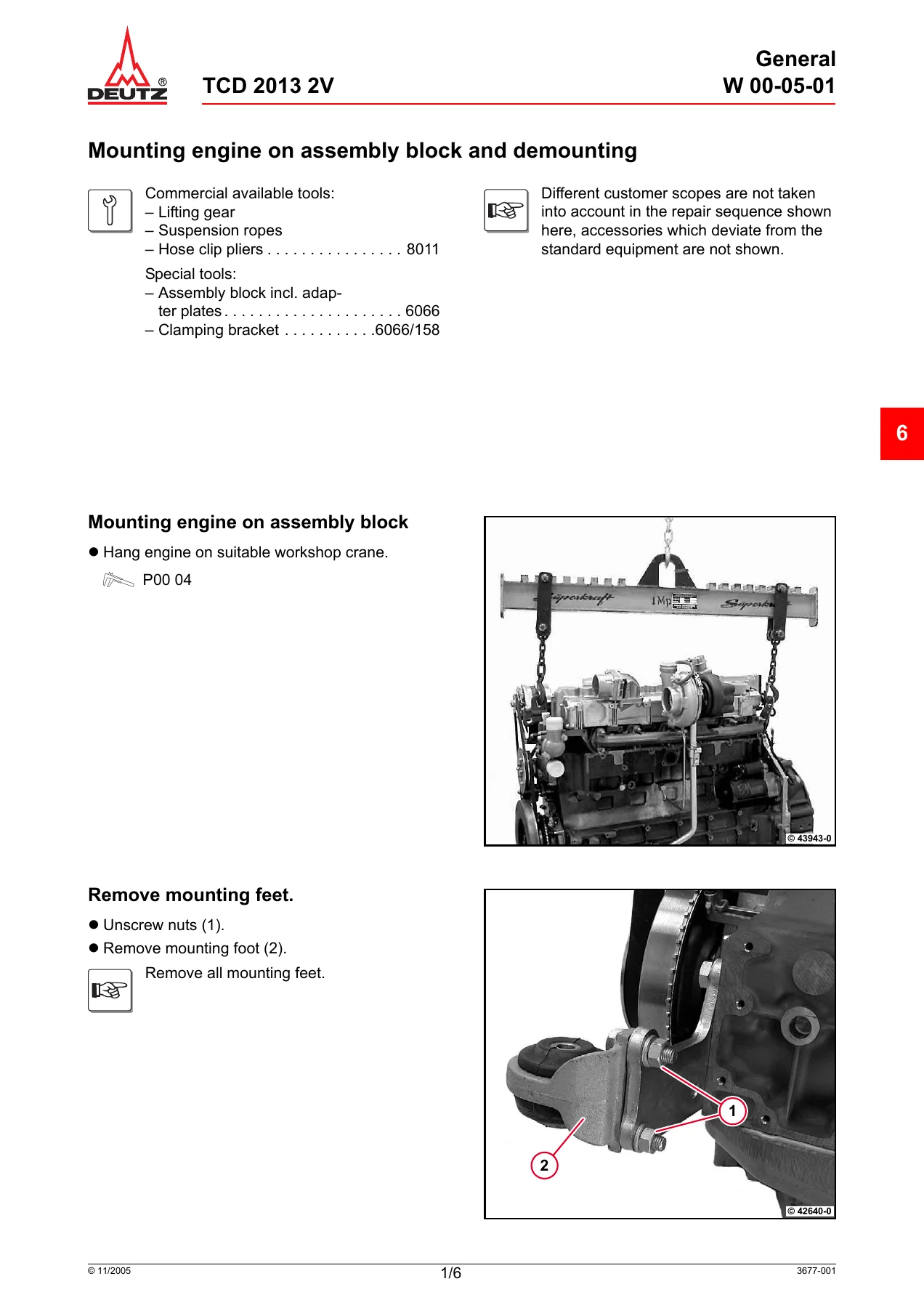

• General (00) — Checking compression pressure; Mounting and dismounting the engine on the assembly block
• Cylinder Head (01) — Setting valve clearance (with and without exhaust return module); Removing and installing rocker arm and rocker arm bracket; Disassembling, assembling and checking the rocker arm and rocker arm bracket; Removing and installing cylinder head; Removing and installing valves; Checking valves; Checking valve guide; Checking valve lag
• Drive System (02) — Checking axial clearance of crankshaft; Checking crankshaft; Renewing crankshaft sealing ring (flywheel side and opposite side); Checking con rod; Removing and installing crankshaft; Removing and installing piston and con rod; Checking piston; Checking piston rings and piston ring grooves; Removing and installing piston cooling nozzles
• Crankcase (03) — Removing and installing crankcase bleeding; Testing cylinder liner; Removing and installing cylinder liner; Checking overhang of cylinder liner; Removing and installing front cover; Removing and installing connection housing
• Engine Control (04) — Removing and installing gearcase cover; Removing and installing camshaft; Checking camshaft
• Speed Governing (05) — Removing and installing impulse transmitter (crankshaft); Removing and installing impulse transmitter (camshaft)
• Exhaust System / Charging (06) — Removing and installing exhaust manifold; Removing and installing turbocharger; Removing and installing charge air line; Removing and installing exhaust return module; Removing and installing solenoid valve (exhaust return line)
• Fuel System (07) — Removing and installing fuel filter console; Removing and installing fuel supply pump; Removing and installing control block; Removing and installing high-pressure pump (installation position A and B); Removing and installing rail; Removing and installing injector; Removing and installing pressure limiting valve; Removing and installing rail pressure sensor; Removing and installing fuel pressure sensor
• Lube Oil System (08) — Removing and installing oil suction pipe; Removing and installing lube oil tray; Removing and installing oil cooler; Removing and installing oil cooler housing; Removing and installing oil pressure switch; Removing and installing pressure holding valve
• Cooling System (09) — Removing and installing coolant pump (V-belt drive); Checking coolant thermostat when uninstalled; Removing and installing coolant thermostat; Removing and installing coolant thermostat housing; Removing and installing coolant temperature sensor
• Other Components (12) — Removing and installing torsional vibration damper; Removing and installing V-belt and V-belt pulley; Removing and installing flywheel
• Electrical System (13) — Removing and installing cable harness; Removing and installing generator; Removing and installing starter; Removing and installing pressure/temperature sensor (charge air)

This DEUTZ TCD 2013 2V repair manual is organised into individual job cards (W and I cards) that document standard repairs, required tools, special tooling, work sequences, and technical specifications. The job card numbering system follows a logical maintenance group structure, making it straightforward to locate the exact procedure for any component on the engine. Each job card includes references to related procedures, tightening specifications, and testing values.

What This Workshop Manual Enables

With this DEUTZ TCD 2013 2V service manual at hand, a qualified technician can perform the full range of engine repairs — from routine valve clearance adjustment and compression testing to complete engine disassembly, crankshaft replacement, piston and con rod servicing, and cylinder liner renewal. The manual covers both installation positions for the high-pressure pump, provides detailed guidance on the DEUTZ Common Rail fuel system, and includes the specific cleanliness and safety measures required when working on high-precision fuel components.

The job card structure means each procedure is self-contained, specifying the tools needed, the exact sequence of operations, relevant tightening torques and rotation angles, and cross-references to other job cards that must be performed in conjunction with the main task. This makes the manual suitable for both workshop environments and experienced owner-technicians who need factory-level repair information.

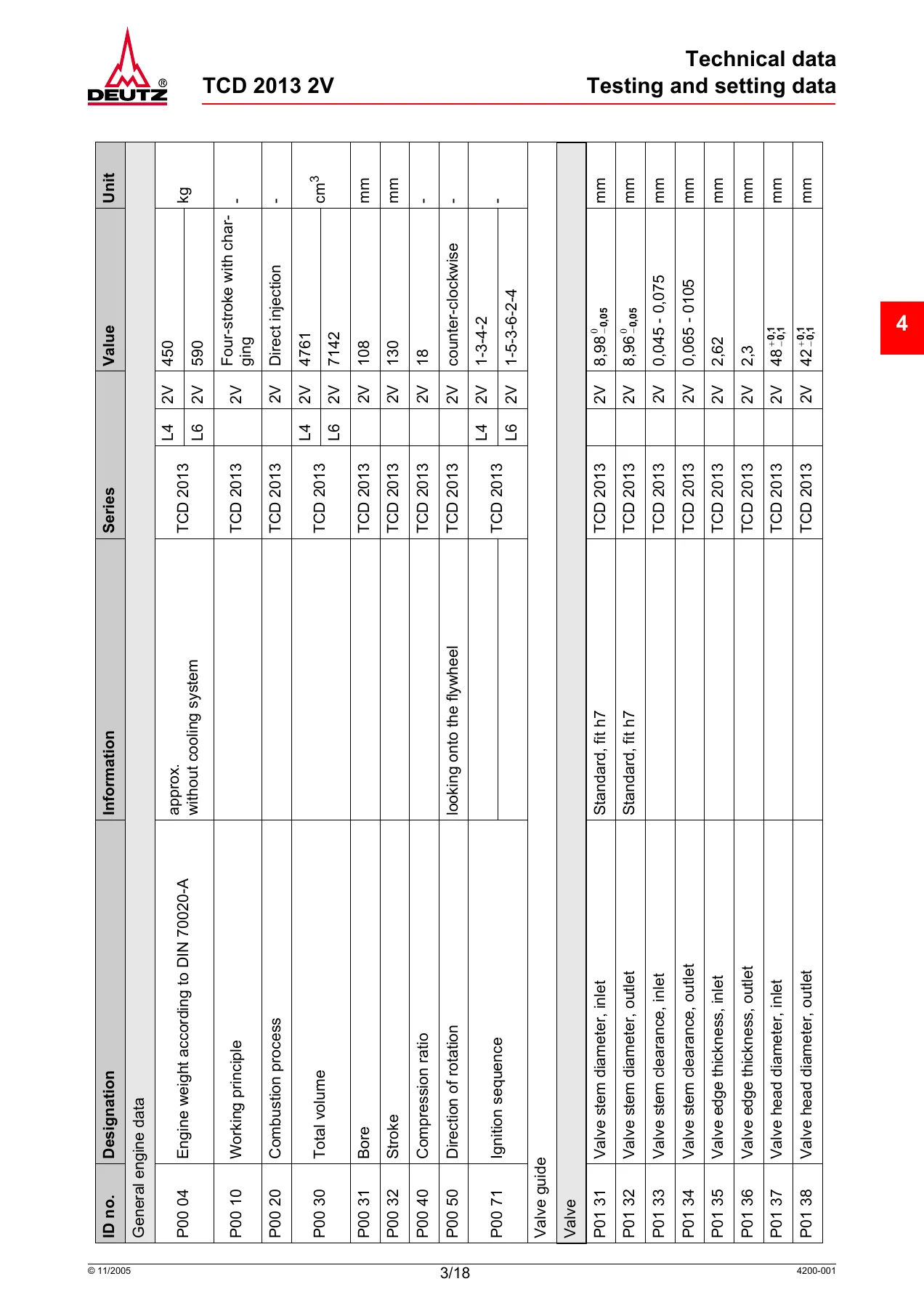

Technical Data Highlights

The manual includes comprehensive testing and setting data for the TCD 2013 2V engine series. Key technical specifications covered include:

• Engine Type: TCD 2013 2V — four-stroke diesel with charging and direct injection
• Total Volume: 4,761 cm³ (L4) / 7,142 cm³ (L6)
• Bore x Stroke: 108 mm x 130 mm
• Compression Ratio: 18:1
• Direction of Rotation: Counter-clockwise, looking onto the flywheel
• Ignition Sequence: 1-3-4-2 (L4) / 1-5-3-6-2-4 (L6)
• Engine Weight: 450 kg (L4) / 590 kg (L6) approx. without cooling system

The testing and setting data chapter provides valve seat dimensions, valve spring specifications, valve clearance values, crankshaft bearing pin measurements, con rod bearing data, piston ring clearances, cylinder liner dimensions, and much more — all with the precise tolerances and wear limits needed for accurate assessment and repair.

Working with the DEUTZ Common Rail System

A significant portion of this TCD 2013 2V workshop manual addresses the DEUTZ Common Rail fuel system, which consists of high-precision components exposed to extreme stress. The manual includes detailed cleanliness instructions and handling measures that must be observed before and during work on the fuel system, including requirements for a clean workshop environment, proper use of lint-free cloths, correct handling of removed components, and the use of suitable stoppers and caps. These measures are essential for preventing contamination that could damage injectors, high-pressure pumps, and rail components.

Safety regulations are also covered comprehensively, including the critical 30-second waiting period after switching off the engine before working on the fuel system, the prohibition on working near high-pressure fuel leaks, and the requirement to bleed the fuel system after all work. The manual emphasises that the fuel system is under high pressure and that improper handling can lead to severe injury.

Job Card Structure

Each job card in this DEUTZ TCD 2013 2V engine manual follows a consistent structure that identifies the engine type, maintenance group, job card number, and title. The cards include references to other job cards, necessary conventional and special tools, auxiliary materials, safety and warning notes, the work sequence itself, and where applicable, test and setting data or tightening specifications. This structured approach ensures that no step is overlooked and that all required preparatory and follow-up work is completed correctly.

Complete Repair Coverage for the TCD 2013 2V

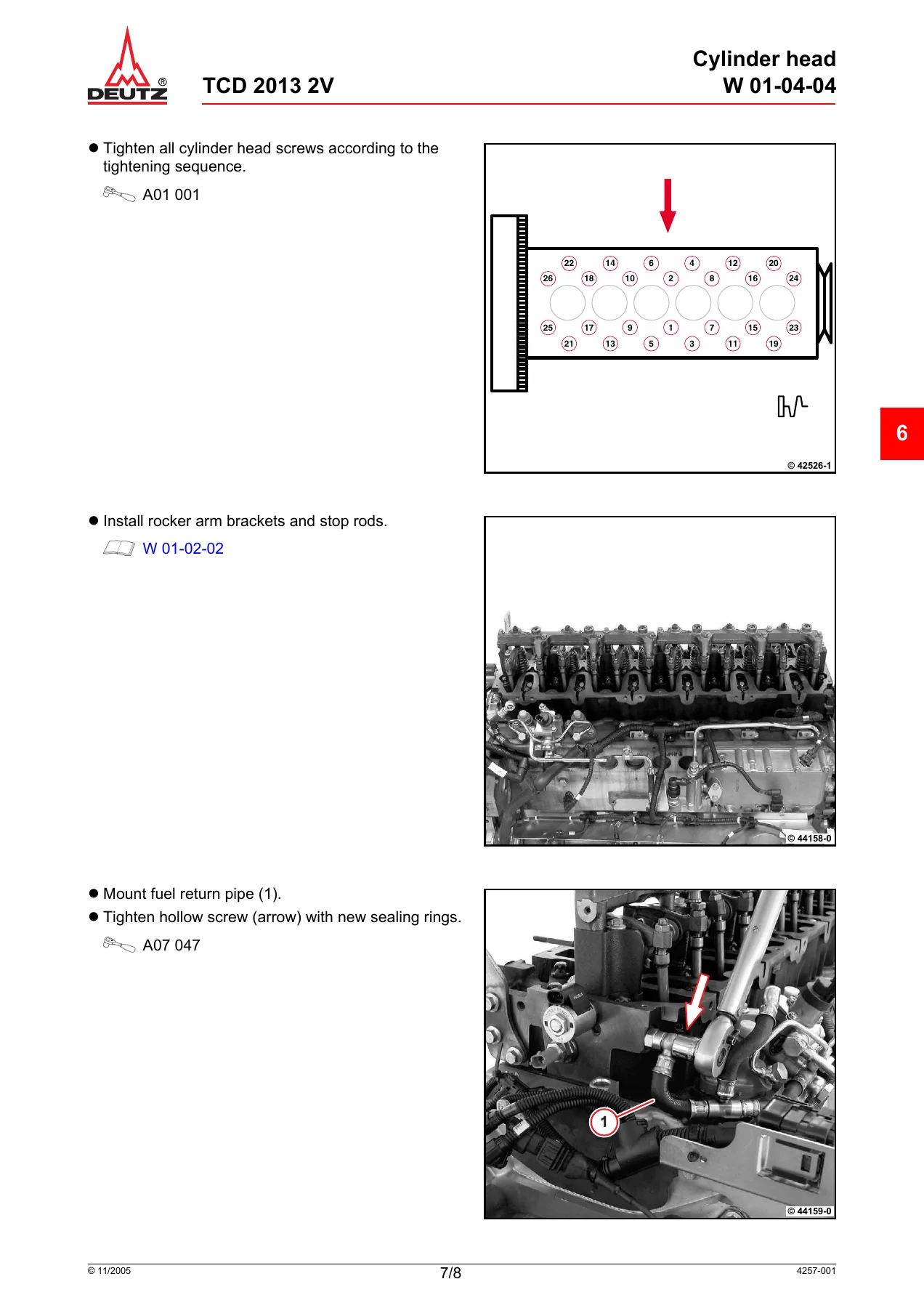

This DEUTZ TCD 2013 2V PDF manual covers every major system and component group on the engine. The cylinder head section alone includes valve clearance setting (both with and without the exhaust return module installed), rocker arm and bracket service, cylinder head removal and installation with the correct tightening sequence, valve removal and installation, valve checking, valve guide inspection, and valve lag measurement. The drive system section covers crankshaft axial clearance, crankshaft inspection including hardness testing and bearing pin measurement, sealing ring renewal on both sides, con rod checking including small end bush and bearing bore measurement, crankshaft removal and installation, piston and con rod removal and installation, piston checking, piston ring and groove inspection, and piston cooling nozzle service.

The crankcase section provides procedures for crankcase bleeding, cylinder liner testing including wear measurement and collar rest inspection, cylinder liner removal and installation with the correct O-rings and fitting compound, cylinder liner overhang checking, front cover removal and installation including oil pump priming, and connection housing service. The engine control section covers gearcase cover removal and installation with the correct sealing compound application, camshaft removal and installation with tappet handling, and camshaft checking.

The fuel system section is particularly comprehensive, covering the fuel filter console, fuel supply pump with V-belt tensioning, control block, high-pressure pump in both installation positions A and B with roller tappet and O-ring handling, rail, injector removal and installation including tightly fixed injector extraction and sealing ring replacement, pressure limiting valve, rail pressure sensor, and fuel pressure sensor. The lube oil system section covers the oil suction pipe, lube oil tray with tightening sequences for both 4-cylinder and 6-cylinder engines, oil cooler, oil cooler housing, oil pressure switch, and pressure holding valve.

Cooling system coverage includes the coolant pump with V-belt drive and tension checking, coolant thermostat testing when uninstalled, coolant thermostat removal and installation, coolant thermostat housing, and coolant temperature sensor. The exhaust and charging section covers the exhaust manifold, turbocharger with lubrication oil line and oil return line, charge air line, exhaust return module, and exhaust return solenoid valve. Electrical system coverage includes the cable harness, generator with V-belt tension checking, starter, and pressure/temperature sensor for charge air.

Why This Manual Matters

Correct procedures and accurate specifications are critical when servicing the DEUTZ TCD 2013 2V engine. Incorrect tightening torques can lead to component failure, improper valve clearance can affect engine performance and emissions, and contaminated fuel system components can cause costly damage to the common rail system. This DEUTZ TCD 2013 2V workshop manual PDF provides the exact values, sequences, and procedures needed to complete repairs correctly the first time. The manual also includes specific tightening specifications with pre-clamping and post-clamping values, rotation angle specifications for torque-to-yield fasteners, and detailed measurement procedures for assessing wear and determining when components must be replaced.

The job card references throughout the manual ensure that related procedures are identified and completed in the correct order, preventing rework and reducing the risk of missing critical steps. For example, the cylinder head removal procedure references the rocker arm removal, exhaust manifold removal, rail removal, injector removal, and charge air pipe removal job cards that must be performed first, along with the cylinder liner overhang checking and piston projection measurement that must be completed before installation.

IMAGES PREVIEW

Instant PDF Delivery

This DEUTZ TCD 2013 2V Diesel Engine Workshop Manual is available as an instant PDF download. No shipping, no waiting — you get immediate access to the complete 431-page manual after purchase. The PDF can be viewed on any device, including computers, tablets, and smartphones, and can be printed for use in the workshop. Whether you need to reference a single job card during a repair or study the complete engine system before a major rebuild, this manual provides the information you need in a convenient, searchable, and printable format.

For technicians, workshop owners, and operators who maintain DEUTZ TCD 2013 2V engines, this manual is an essential reference that covers the full scope of repair and service work. From routine maintenance to complete engine overhaul, the job cards in this manual give you the confidence that every procedure is performed correctly and to the manufacturer’s specifications.
