Iveco Cursor C9 F2C Diesel Engine Technical and Repair Manual – PDF Download

Description

Iveco Cursor C9 F2C Diesel Engine Technical and Repair Manual

This Iveco Cursor C9 Technical and Repair Manual is the workshop-level reference for the F2C Cursor 9 diesel engine family, published under document number P2D32C004E (1st Edition, 2006). It covers the six-cylinder inline 8.71-litre Cursor engine as fitted across a wide range of IVECO industrial and commercial applications, and it spans general specifications, fuel and Common Rail systems, electrical/electronic equipment, industrial application procedures, and complete overhaul and technical specifications.

Whether you are rebuilding a C9 engine, diagnosing an EDC 7 fault, or simply looking for the correct cylinder head torque sequence, this Iveco Cursor C9 repair manual delivers the manufacturer-prescribed procedures, clearances, and tightening torques needed to do the job correctly.

File Details

• Manual type: Technical and Repair Manual (workshop / service)
• Brand: IVECO (Iveco Motors / Iveco PowerTrain)
• Engine family: Cursor 9 / F2C Cursor
• Document number: P2D32C004E
• Edition: 1st Edition, 2006
• Language: English
• Page count: 162 pages
• File format: PDF

Models and Technical Codes Covered

The manual is issued for the following F2C Cursor 9 technical codes, each with its own output and torque rating tables in the clearance-data section:

• F2CE9684AE004 – 260 kW (314 HP), 1600 Nm
• F2CE9684BE001 – 240 kW (318 HP), 1477 Nm
• F2CE9684CE001 – 220 kW (299 HP), 1355 Nm
• F2CE9684DE001 – 210 kW (286 HP), 1293 Nm
• F2CE9684CE002 – 220 kW (299 HP), 1355 Nm
• F2CE9684EE002 – 200 kW (272 HP), 1232 Nm
• F2CE9684HE003 – 260 kW (364 HP), 1600 Nm
• F2CE9684LE005 – 279 kW (353 HP), 1600 Nm

Chapters Covered

Section I – General Specifications

• Technical code and engine identification

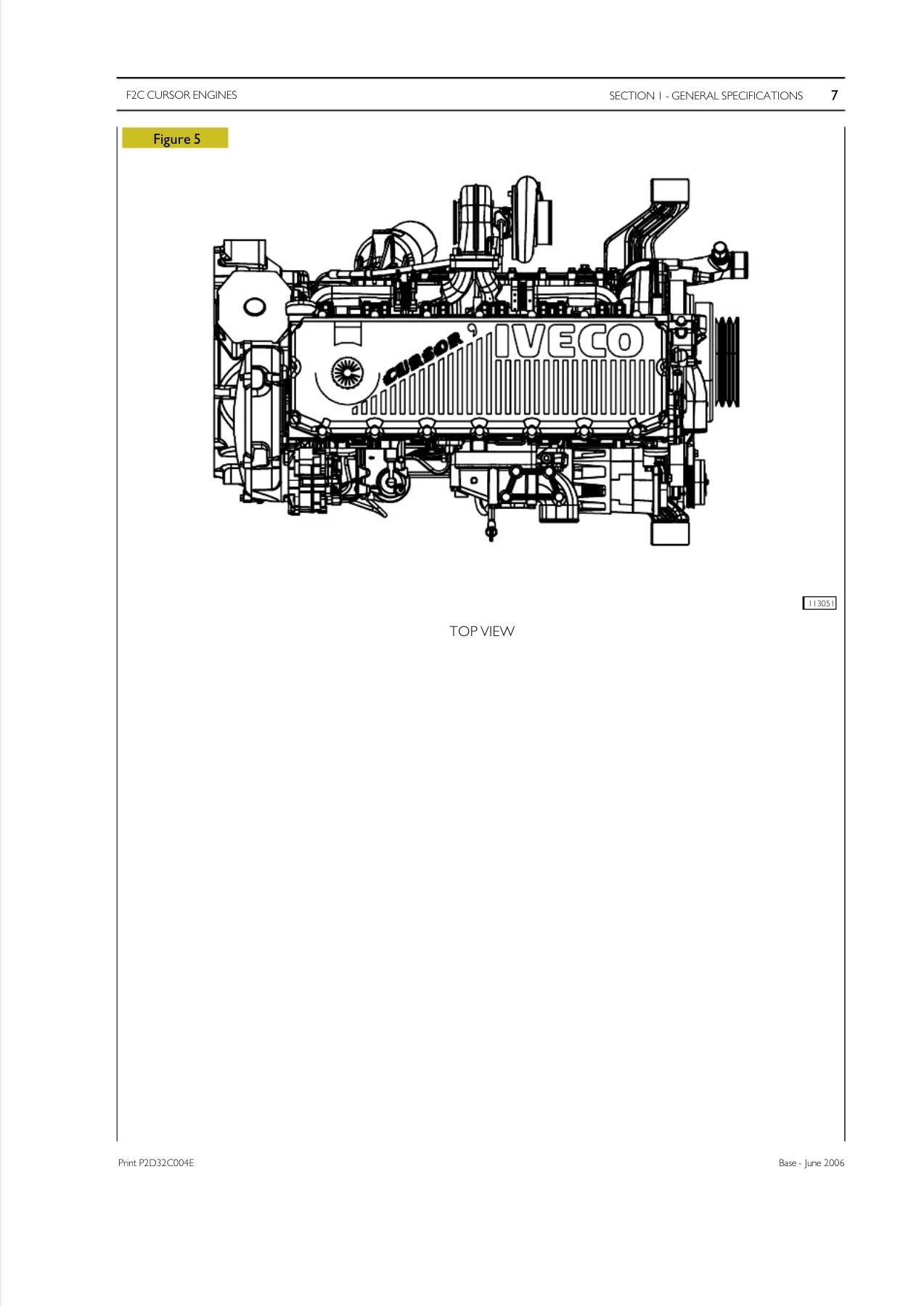

• Engine views (top, right-hand, left-hand, front, rear) for F2CE9684A/B/C/D/E and for F2CE9684L
• Lubrication diagram, oil pump, overpressure valve, oil pressure control valve, heat exchanger
• Engine oil filter, filter by-pass valve, oil fume recycle (Blow-by)
• Cooling system description, operation, water pump, thermostat
• Turbocharging (Wastegate turbocharger)
• EGR exhaust gas recycle system and internal EGR operating on suction valves

Section 2 – Fuel

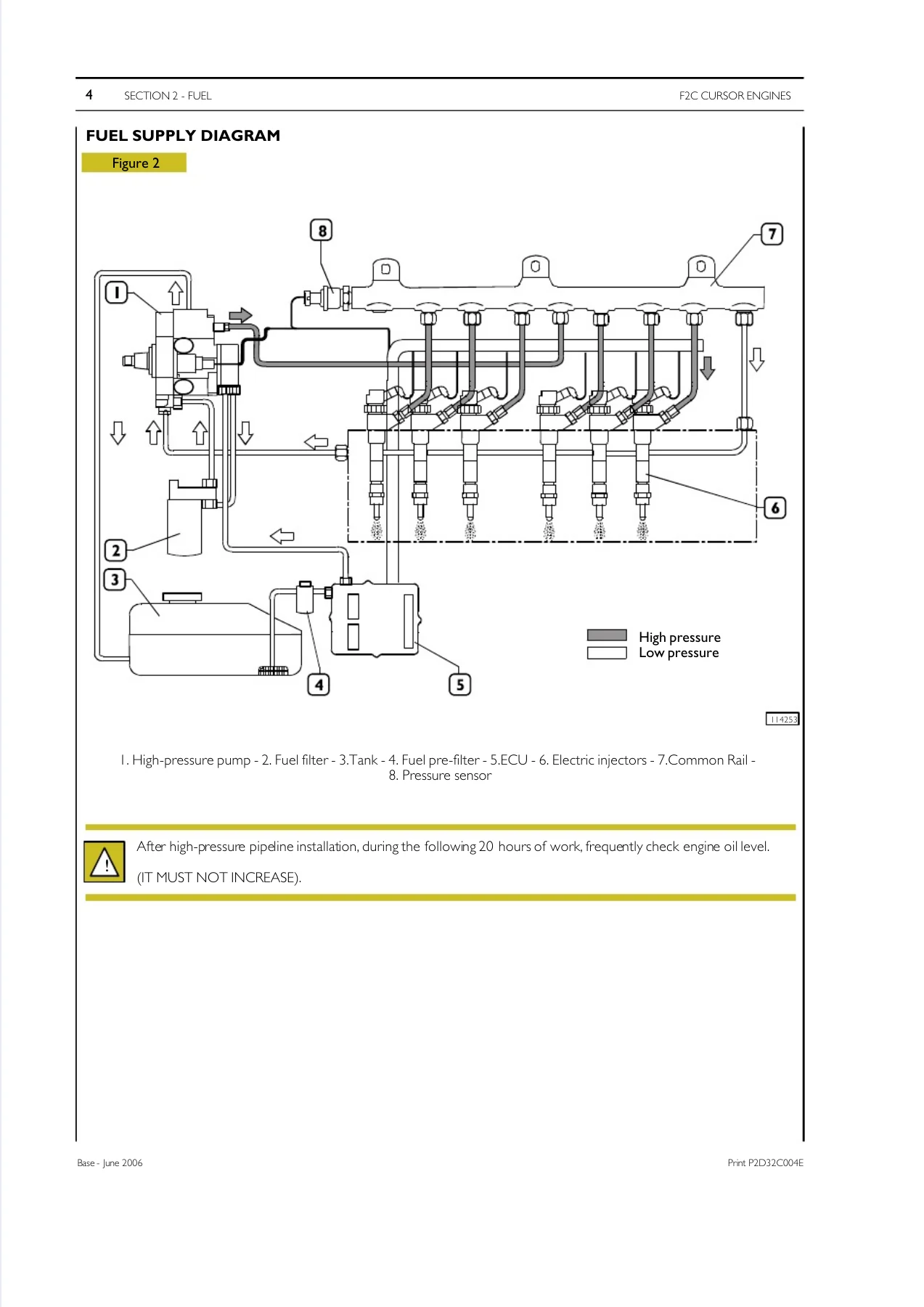

• Common Rail supply system overview
• Mechanical supply pump (normal, drain and overpressure conditions)
• CP3 high-pressure pump with three radial pistons – operating principle, low-pressure fuel paths, lubrication ducts, pressure regulator
• Rail (pressure accumulator) and overpressure valve
• Electroinjector construction and injection start / end of injection

Section 3 – Industrial Application

• Clearance data tables
• Part One – Mechanical components: engine disassembly on bench, assembly, high-pressure pump installation, engine flywheel, camshaft installation, camshaft timing, tune wheel timing, intake and exhaust rocker arm clearance adjustment
• Part Two – Electrical equipment: components on the F2C engine, EDC 7 UC31 electronic control unit, EDC control unit pin-out (sensor and chassis connectors), electroinjectors, engine coolant temperature sensor, fuel temperature sensor, high-pressure pump pressure regulator, flywheel pulse transmitter, distribution pulse transmitter, fuel pressure sensor on rail, oil temperature/pressure sensor, air pressure/temperature sensor, alternator, starting motor, pre/post-heating resistance
• Part Three – Troubleshooting: fault code tables for sensors, actuators, injectors, CAN bus, ECU internal checks, boost system
• Part Four – Maintenance planning: maintenance services chart, checks and/or maintenance work intervals (every 150 / 300 / 600 / 1000 / 1500 hours)

Section 4 – Overhaul and Technical Specifications

• General characteristics and assembly clearance data
• Engine overhaul and engine removal at the bench
• Cylinder block checks and measurements
• Cylinder liners – replacing, removal, fitting, protrusion check
• Crankshaft – measuring main journals and crank pins, selection of main and big end bearing shells, replacing timing control gear and oil pump, main journal installation clearance, crankshaft end float
• Piston-connecting rod assembly – removal, piston diameter measurement, gudgeon pin-piston coupling, piston rings
• Connecting rod – alignment, torsion and bending checks, mounting piston rings, fitting into liners, piston protrusion, big end clearance
• Cylinder head – valve dismounting, planarity check
• Valve – removing deposits, checking, valve guides, valve seats
• Replacing injector holder cases and checking injector protrusion
• Timing gear – camshaft drive, intermediate gear pin, idler gear, twin idler gear, bushings, camshaft, cam lift and pin alignment, bushes
• Valve springs, fitting valves and oil seal ring
• Rocker shaft and rockers
• Tightening torques tables

Section 5 – Tools

• Complete list of special tools with IVECO tool numbers and descriptions

Appendix

• Safety prescriptions – standard safety, injury prevention, during maintenance, respect of the environment

Across its 162 pages, this Cursor 9 manual moves from high-level engine identification down to individual measuring and selection procedures. You get the clearance data tables needed to decide whether a component can be re-used, the bearing-shell selection charts that map crankcase and crankshaft class markings to the correct colour-coded shells, and the multi-stage torque-and-angle sequences for the cylinder head, main journals, flywheel and connecting rod caps. On the electronics side, the EDC 7 UC31 pin-out tables give every sensor and actuator pin, while the fault-code tables map each code to its warning-lamp behaviour so troubleshooting can be directed rather than guessed at.

What This Manual Enables You To Do

With the full F2C Cursor 9 technical and repair manual on hand, a technician or workshop can:

• Identify the exact engine variant and its factory output, torque and governed speeds
• Remove and refit the engine on a rotary stand using the prescribed bracket and tool references
• Overhaul the cylinder block, liners, crankshaft, pistons, connecting rods, cylinder head and valve train with measured clearances and selection classes
• Diagnose and repair the CP3 high-pressure pump, rail, pressure regulator and electroinjectors
• Read and interpret EDC 7 UC31 fault codes and pin-out data for sensor and actuator testing
• Time the camshaft and tune wheel using the documented pin and gauge method
• Adjust intake and exhaust rocker arm clearances following the ignition order and balance-valve table
• Apply every listed tightening torque and angular value – including the multi-stage cylinder head and main journal sequences
• Follow the maintenance planner for oil, filter, blow-by filter, fuel filter and belt intervals

Correct clearances and torque sequences are the difference between an engine that runs for its full service life and one that returns with a failure. This manual gives you the numbers IVECO specifies rather than generic values, which matters most on a high-pressure Common Rail engine where injector protrusion, rail pressure regulation and rocker clearance directly affect combustion, emissions and reliability.

Delivery

IMAGES PREVIEW

This Iveco Cursor C9 F2C Technical and Repair Manual is delivered as an instant PDF download – no shipping, no waiting. Once payment is confirmed, the file is available immediately and can be opened on a laptop, tablet, or phone in the workshop. Print the pages you need for the job at hand, or keep the full 162-page document on your device for reference across every Cursor 9 service you take on.
