Hino N04C Diesel Engine Workshop Manual

The Hino N04C Diesel Engine Workshop Manual is a comprehensive technical guide built for technicians and mechanics who service, overhaul, and repair the N04C four-cylinder diesel engine. This engine repair and service guide PDF covers every major system from general specifications and troubleshooting through to complete engine overhaul, fuel delivery, cooling, lubrication, starting, charging, and turbocharger service. Whether you are diagnosing a fault, rebuilding a cylinder head, or setting timing gear backlash, this N04C workshop manual gives you the procedures, measurements, and torque figures you need to do the job correctly.

File Details

• Manual Type: Diesel Engine Workshop Manual
• Engine Model: N04C
• Engine Type: In-line 4-cylinder, 4-cycle diesel, direct injection, OHV gear drive
• Language: English
• File Format: PDF
• Page Count: Approximately 146 pages

Chapters Covered

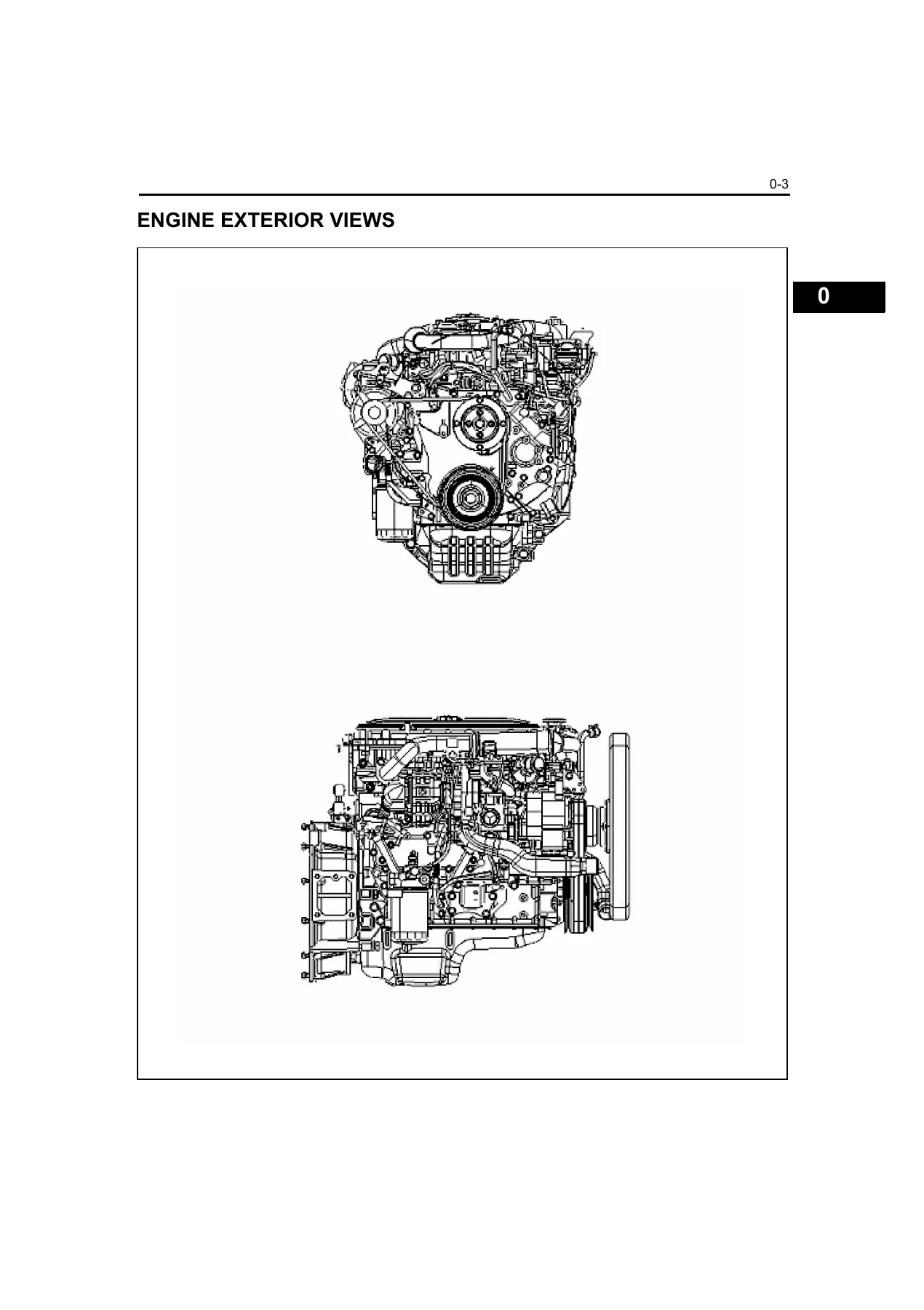

• General – Specifications, engine exterior views, performance curves, how to use the manual, terminology, abbreviations, operating tips, bolt and nut tightening torques, precoated bolts, SI units, handling FIPG
• Troubleshooting – Engine mechanical, alternator, starter, turbocharger diagnostic tables covering overheating, oil consumption, power shortage, faulty start, idling defects, gas leakage, charging faults

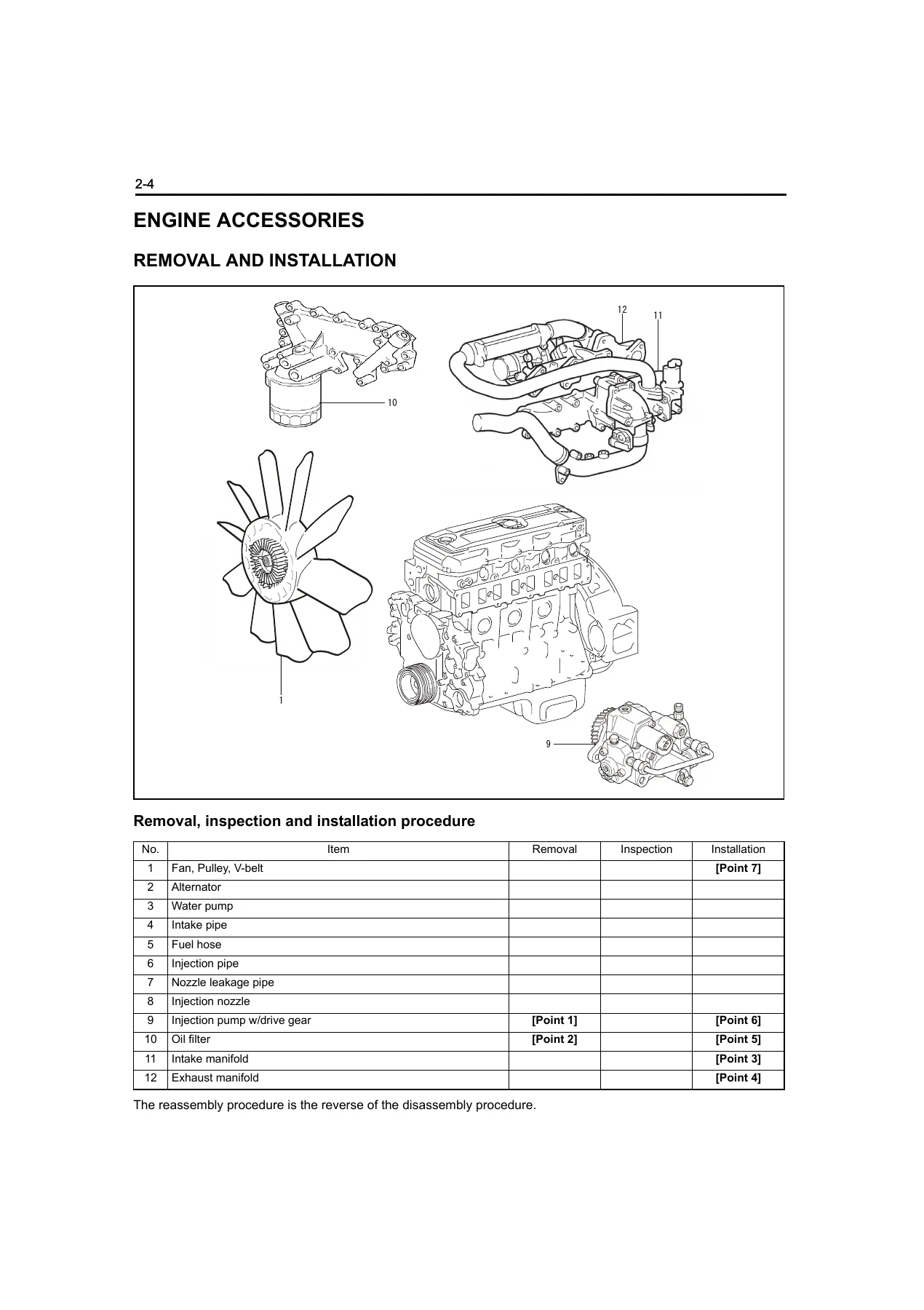

• Engine Overhaul – Used SSTs, engine accessories removal and installation, cylinder head disassembly/inspection/reassembly, timing gear, cylinder block, engine turn-up, coolant inspection, engine oil inspection, battery electrolyte inspection, V-belt inspection and adjustment, idle speed inspection, no-load maximum governed speed inspection, compression pressure inspection, diesel smoke density inspection, valve clearance inspection, EGR valve assembly inspection
• Fuel System – Precaution, fuel filter removal/inspection/installation, injection (supply) pump removal/inspection/installation, common rail removal/inspection/installation, fuel injector removal/inspection/installation, venturi assembly removal/inspection/installation
• Cooling System – Inspection of functions, coolant replacement, water pump assembly removal/installation, thermostat removal/inspection/installation
• Lubrication System – Used SSTs, inspection of functions, oil pump replacement, oil filter replacement, oil cooler assembly replacement
• Starting System – Starter motor assembly removal/inspection/installation, preheating system, inspection of preheating timer, replacement of glow plug, inspection of glow plug
• Charging System – Inspection of functions, alternator assembly removal/installation
• Turbocharger System – Turbocharger assembly removal/installation
• Appendix – SST list, service standards, tightening torque for each part

This Hino N04C diesel engine manual is organised to take a technician from initial fault-finding through to complete mechanical restoration. The troubleshooting section alone covers engine mechanical faults, alternator charging issues, starter problems, and turbocharger conditions in structured diagnostic tables that point directly to the inspection or adjustment area. The engine overhaul chapter provides the full disassembly, inspection, and reassembly sequence for the cylinder head, timing gear, and cylinder block, with point operations for every critical step. The fuel system section addresses the injection supply pump, common rail, fuel injectors, and venturi assembly, including electrical resistance checks and ID code registration details. Cooling, lubrication, starting, charging, and turbocharger chapters round out the mechanical coverage. The appendix consolidates service standards and tightening torques for quick reference during reassembly.

What This Hino N04C Workshop Manual Enables You to Do

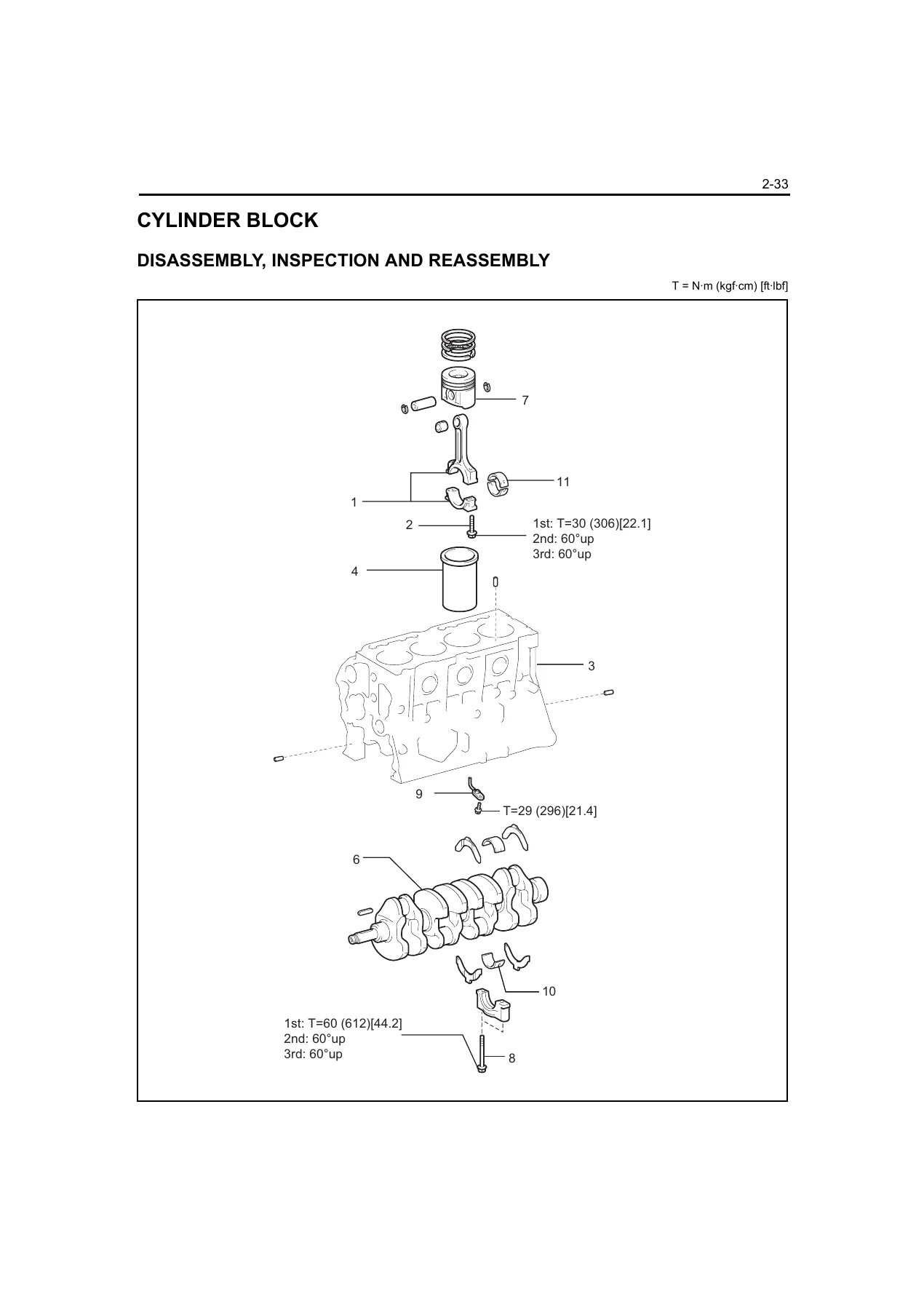

This manual supports the full range of workshop operations on the N04C engine. You can perform a compression pressure inspection, measure valve clearance, set injection timing, and adjust the V-belt to the correct tension. When major work is required, the step-by-step overhaul procedures guide you through removing the cylinder head, measuring head bolt stretch, checking cylinder head distortion, replacing valve guides, cutting valve seats, and reinstalling the head using the plastic region tightening method. The timing gear chapter covers backlash measurement, idle gear inspection, camshaft removal and bearing replacement, crankshaft timing gear installation, and flywheel housing reassembly with seal packing. The cylinder block section details piston and connecting rod disassembly, cylinder liner removal and press-fitting, crankshaft inspection, bearing oil clearance measurement, and crankshaft bearing cap tightening with angular torque. Fuel system procedures cover injection pump removal with timing mark alignment, common rail installation, fuel injector replacement with ID code registration, and electrical resistance checks for the suction control valve, fuel temperature sensor, and fuel pressure sensor. Every procedure includes the applicable tightening torque, service standard, and limit value, so you can work to the manufacturer’s tolerances rather than guessing.

Why Correct Specifications Matter

Diesel engine repair demands precision. An incorrect valve clearance, a misaligned injection pump timing mark, or a cylinder head bolt tightened to the wrong torque can lead to poor performance, increased emissions, or catastrophic engine damage. This Hino N04C diesel engine repair guide provides the exact measurements, torque sequences, and inspection limits that the engine was designed around. The manual includes angular tightening procedures for critical fasteners, seal packing application methods for gasket-less surfaces, and inspection criteria for wear limits on pistons, rings, liners, bearings, and valve components. With this level of detail, you can complete a rebuild or repair with confidence that the engine will meet its original performance and durability standards.

IMAGES PREVIEW

Instant PDF Delivery

This Hino N04C Diesel Engine Workshop Manual is delivered as an instant PDF download after payment. There is no physical book to ship and no waiting for delivery. The file can be viewed on any device that supports PDF, including laptops, tablets, and smartphones, and can be printed for use in the workshop. Whether you are a professional mechanic, a fleet maintenance technician, or an owner-operator performing your own repairs, this N04C engine workshop manual puts the complete factory service information at your fingertips.
