IVECO TN60VA TN70VA TN75VA TN95VA Engine Repair Manual – Section 10 Engine Workshop PDF

Description

IVECO TN Series Engine Repair Manual – Section 10, Chapter 1

This IVECO engine repair manual is the complete Section 10, Chapter 1 workshop documentation for the TN60VA, TN70VA, TN70NA, TN75VA, TN75NA, TN95VA and TN95NA tractors. It takes the engine from general specifications and measured data straight through to full strip-down, component overhaul and reassembly using the manufacturer’s own torque figures, tool numbers and step-by-step procedures.

The engines documented in this section are the IVECO 8035.05C.925/929, 8035.25R.925/929, 8035.25.925/929 and 8045.25S.925/929 four-stroke diesels, all running BOSCH rotary injection pumps. If you maintain, rebuild or diagnose one of these engines, this is the reference that tells you how the factory expects the work to be done.

File Details

• Manual type: Engine Repair Manual (Section 10, Chapter 1)
• Brand: IVECO
• Models covered: TN60VA, TN70VA, TN70NA, TN75VA, TN75NA, TN95VA, TN95NA
• Engine types: 8035.05C.925/929; 8035.25R.925/929; 8035.25.925/929; 8045.25S.925/929
• Language: English
• Page count: 112
• File format: PDF
• Document number: 603.54.461.01

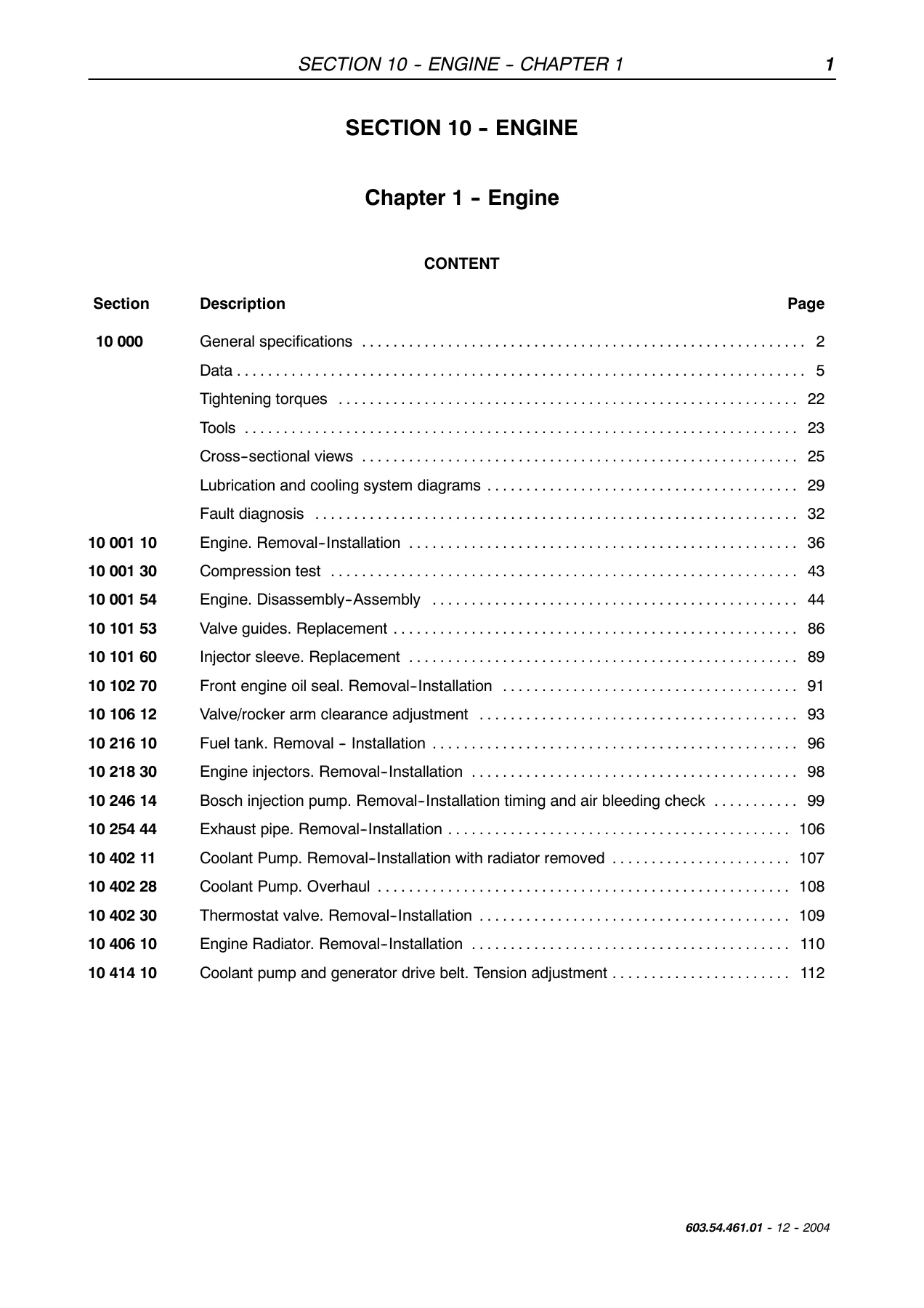

Chapters Covered

• General specifications
• Data
• Tightening torques
• Tools
• Cross-sectional views
• Lubrication and cooling system diagrams
• Fault diagnosis
• Engine. Removal-Installation
• Compression test
• Engine. Disassembly-Assembly
• Valve guides. Replacement
• Injector sleeve. Replacement
• Front engine oil seal. Removal-Installation
• Valve/rocker arm clearance adjustment
• Fuel tank. Removal-Installation
• Engine injectors. Removal-Installation
• Bosch injection pump. Removal-Installation timing and air bleeding check
• Exhaust pipe. Removal-Installation
• Coolant Pump. Removal-Installation with radiator removed
• Coolant Pump. Overhaul
• Thermostat valve. Removal-Installation
• Engine Radiator. Removal-Installation
• Coolant pump and generator drive belt. Tension adjustment

General Specifications, Data and Tightening Torques

The opening chapters lay out the measured baseline for every engine variant. You get piston diameter and stroke, total displacement, compression ratio, maximum power and torque speeds, main bearing counts, oil pressure ranges, coolant temperature bands and valve timing figures. The data tables cover the 8035 and 8045 series separately, so you can look up the exact calibration for the engine in front of you. The tightening torque chapter lists every critical fastener – cylinder head bolts, main bearing caps, big-end caps, flywheel bolts and the angle-tightening stages that follow them – with the thread size and torque value shown for each.

Cross-Sectional Views and System Diagrams

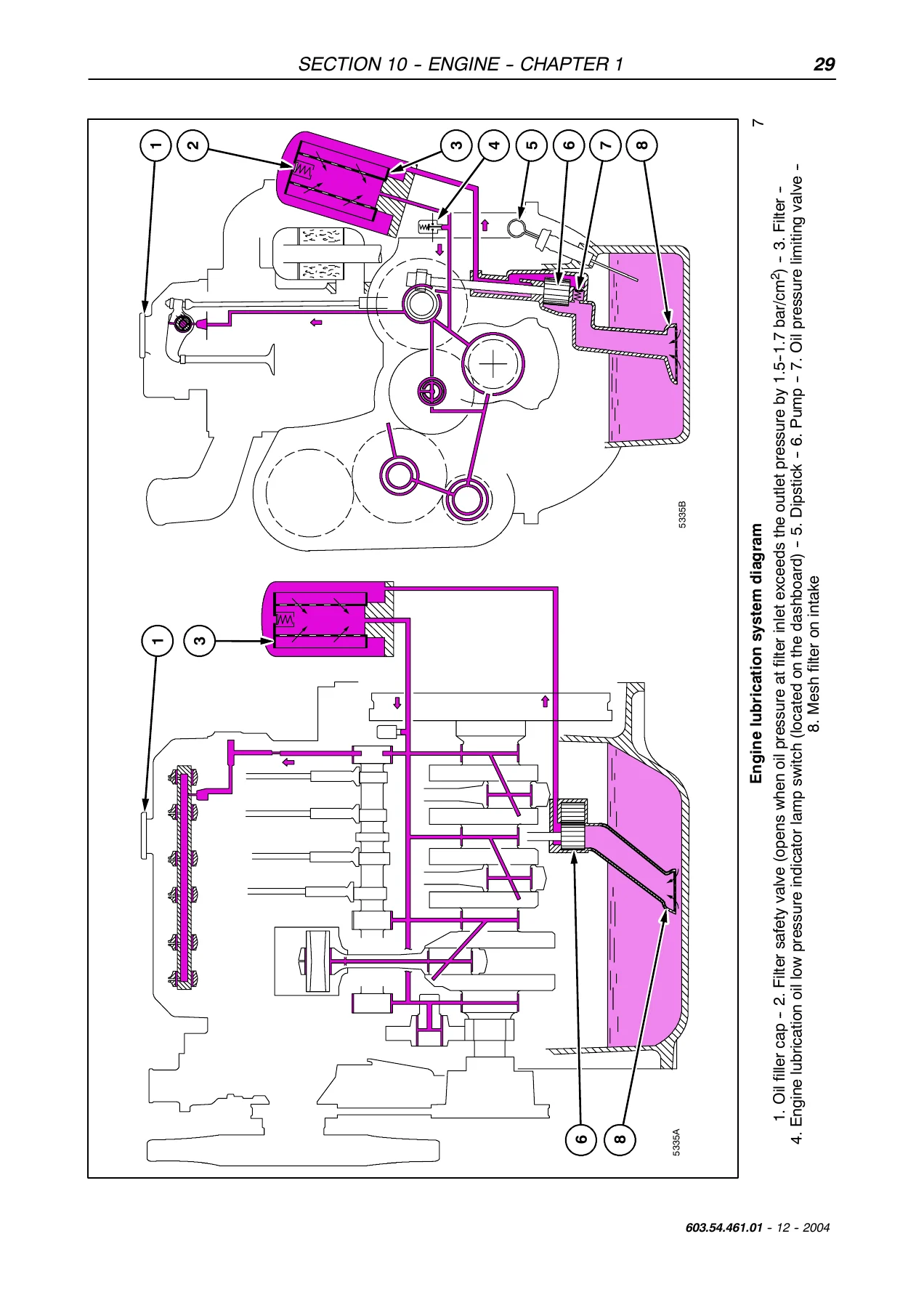

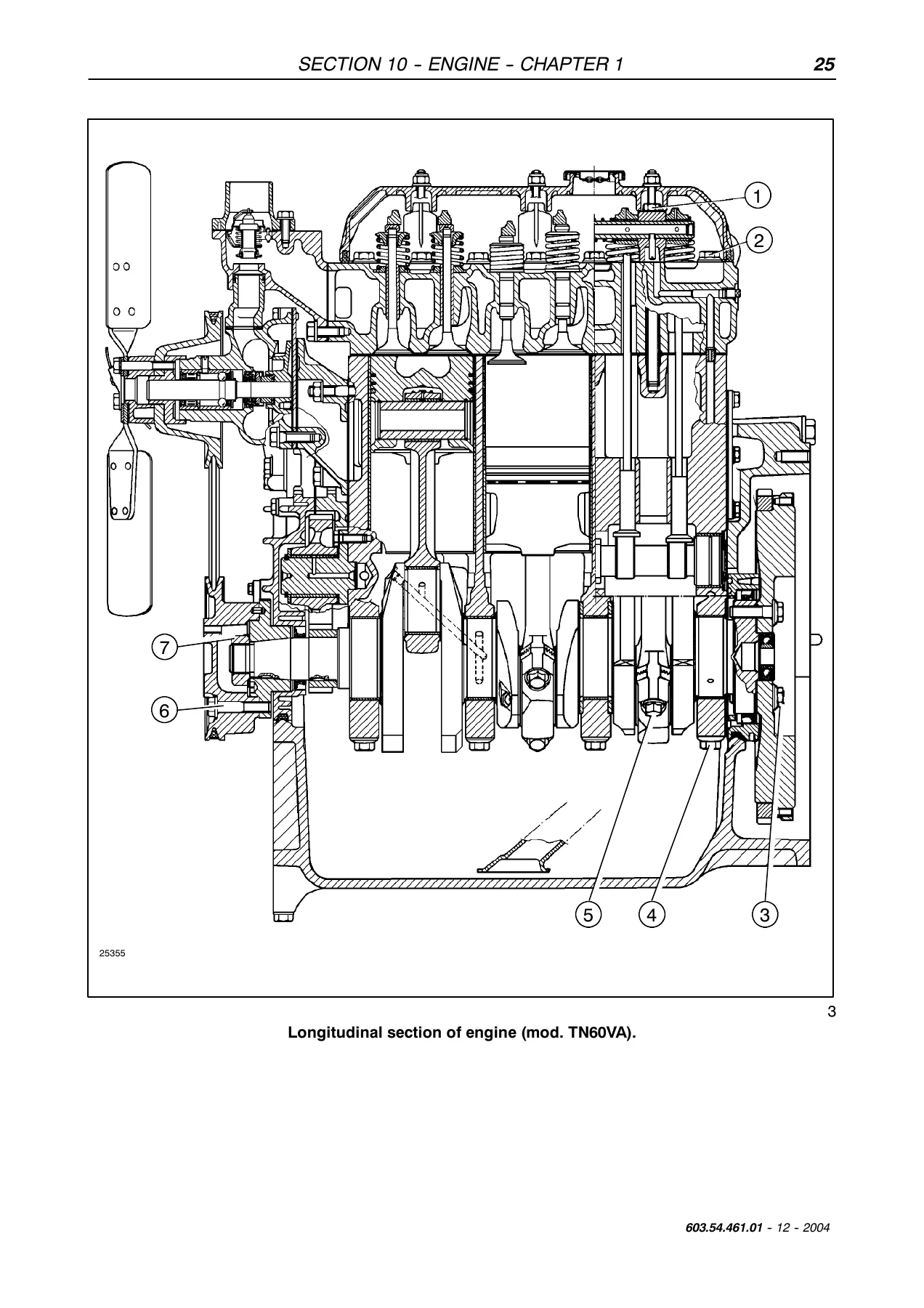

Longitudinal and cross-sectional cutaways show the internal layout of both the 3-cylinder TN60VA and the larger 4-cylinder TN95VA engines. The lubrication system diagram traces the oil circuit from the pickup through the pump, filter and pressure relief valve, while the cooling system circuit shows coolant flow with the thermostat both closed and open. These diagrams are useful for understanding component relationships before a rebuild, and for tracing a fault back to its source.

Fault Diagnosis

A dedicated troubleshooting chapter maps common symptoms – hard starting, stalling, overheating, lack of power, uneven running, abnormal knocking noises and black or dark grey exhaust smoke – to their likely causes and the recommended fix. Each entry points you toward the affected system, whether that is fuel supply, injection timing, compression, valve clearance or the cooling circuit.

Engine Removal, Installation, Disassembly and Assembly

The removal and installation procedure walks through disconnecting the front axle, draining the transmission casing, detaching the hydraulic and steering lines, and separating the engine from the clutch housing. Disassembly and assembly covers the complete strip-down sequence: rocker shaft, cylinder head, sump pan, oil pump, timing cover, camshaft, pistons and crankshaft. The manual also includes the compression test procedure with the dummy injector and compression tester, along with the minimum permissible compression values and the maximum allowable difference between cylinders.

Cylinder Head, Valve Guides and Injector Sleeves

This group of chapters covers valve guide replacement using the twist drill, drift and reamer tooling, the injector sleeve replacement procedure with the extractor, reamer and milling cutter, and the front engine oil seal renewal using the splining tools. The valve and rocker arm clearance adjustment is documented for both 3-cylinder and 4-cylinder firing orders, with the correct feeler gauge values for cold and warm conditions.

Fuel System: Tank, Injectors and BOSCH Injection Pump

The fuel system coverage includes fuel tank removal and installation, injector removal and installation with the correct two-stage nut tightening, and the full BOSCH injection pump removal, installation, timing and air bleeding procedure. The pump timing chapter explains how to set plunger pre-lift using the dial gauge and timing device, and how to verify the correct stroke for each engine variant. Bleeding the fuel circuit after pump work is also covered step by step.

Cooling System: Coolant Pump, Thermostat, Radiator and Drive Belts

Cooling system chapters cover coolant pump removal and installation with the radiator out, full coolant pump overhaul, thermostat valve replacement, engine radiator removal and installation, and drive belt tension adjustment for the coolant pump and generator. The belt tension specification and the correct deflection when a set force is applied at the midpoint between pulleys are given so the belt can be set accurately.

Exhaust Pipe

The exhaust pipe removal and installation procedure covers the retaining bracket and the pipe itself, with the refitting sequence and the relevant torque values referenced from the tightening torque chapter.

Why This Engine Repair Manual Belongs in Your Workshop

Rebuilding or repairing an IVECO 8035 or 8045 diesel without the correct measured values is guesswork. This IVECO engine repair manual removes that guesswork: you get the compression figures, the torque sequences with their angle stages, the plunger pre-lift for BOSCH pump timing, the valve clearance values, the injector protrusion limits and the cooling system temperature bands – all in one place. Whether you are pulling an engine out of a TN75VA, replacing valve guides on a TN60VA or re-timing the injection pump on a TN95VA, the procedure is here with the tooling numbers that match.

Because it is a digital PDF, the manual arrives the moment your order is confirmed. There is no shipping, no waiting for a courier and no shelf space required. Open it on a laptop in the workshop, a tablet next to the engine, or a phone for a quick torque check. Print the pages you need and take them into the bay with you – the rest stays clean on your device. This is a practical, working document built for technicians who need the right answer the first time.

IMAGES PREVIEW
