Toyota 1CD-FTV Diesel Engine Repair Manual (RM927E) – PDF Download

Description

Toyota 1CD-FTV Diesel Engine Repair Manual (RM927E)

This Toyota 1CD-FTV Engine Repair Manual (RM927E) is a complete workshop-style reference built specifically around the 1CD-FTV diesel engine, laid out in the standard step-by-step repair format used across Toyota technical documentation. Every task heading is paired with an illustration and detailed text covering specifications, torque values, and important notices, so a technician can move from diagnosis straight into removal, disassembly, inspection, and reassembly without hunting through unrelated content.

File Details

• Manual type: Engine repair manual
• Engine covered: Toyota 1CD-FTV
• Document number: RM927E
• Language: English
• Page count: 136 pages
• File format: PDF

Chapters Covered

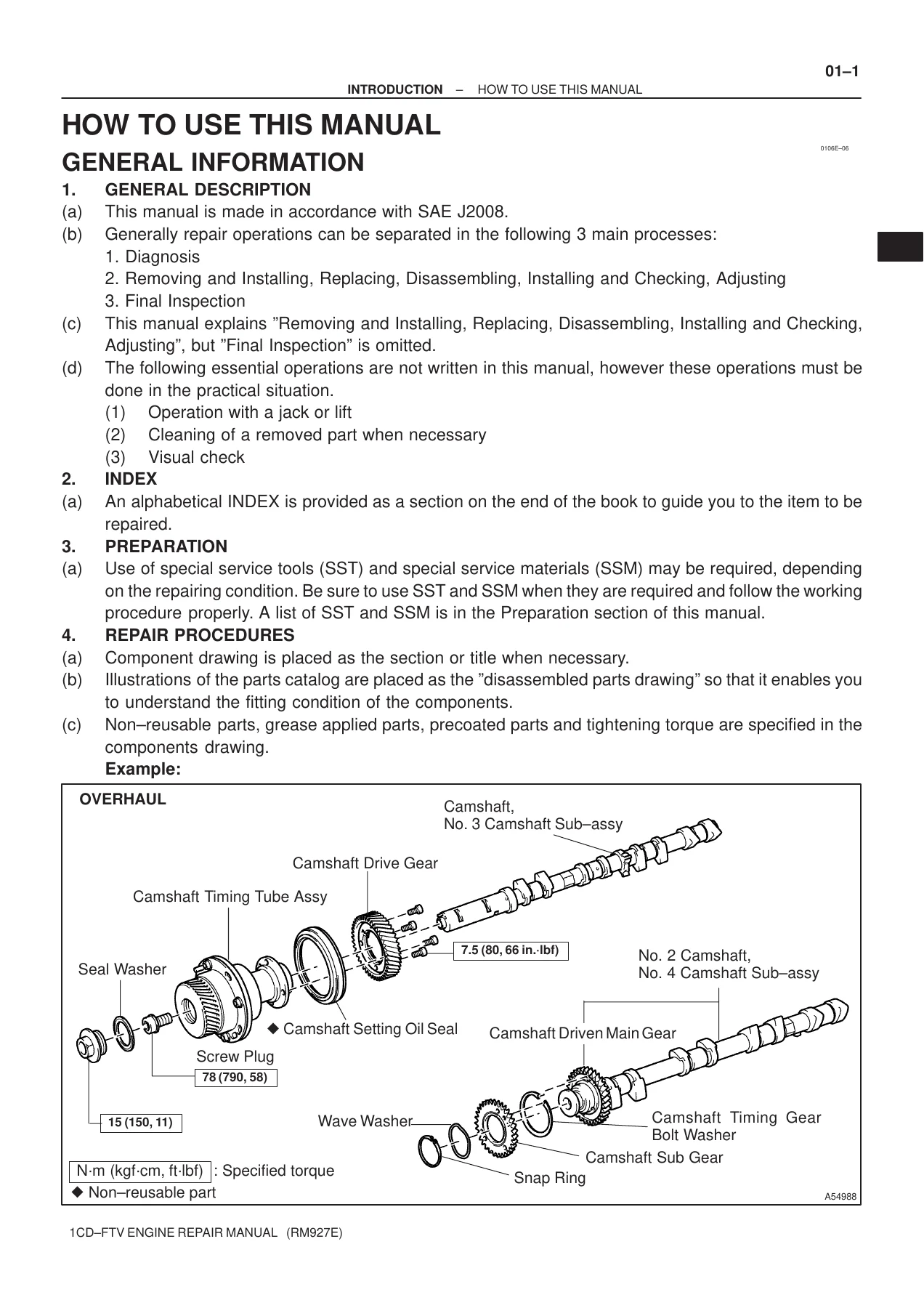

• Introduction – How to Use This Manual, Repair Instruction & Precautions
• Preparation – Special Service Tools (SST) and Special Service Materials (SSM) for Intake, Engine Mechanical, Lubrication, and Starting & Charging work
• Service Specifications – Intake, Engine Mechanical, Lubrication, Starting & Charging service data and torque specifications, plus standard bolt torque tables

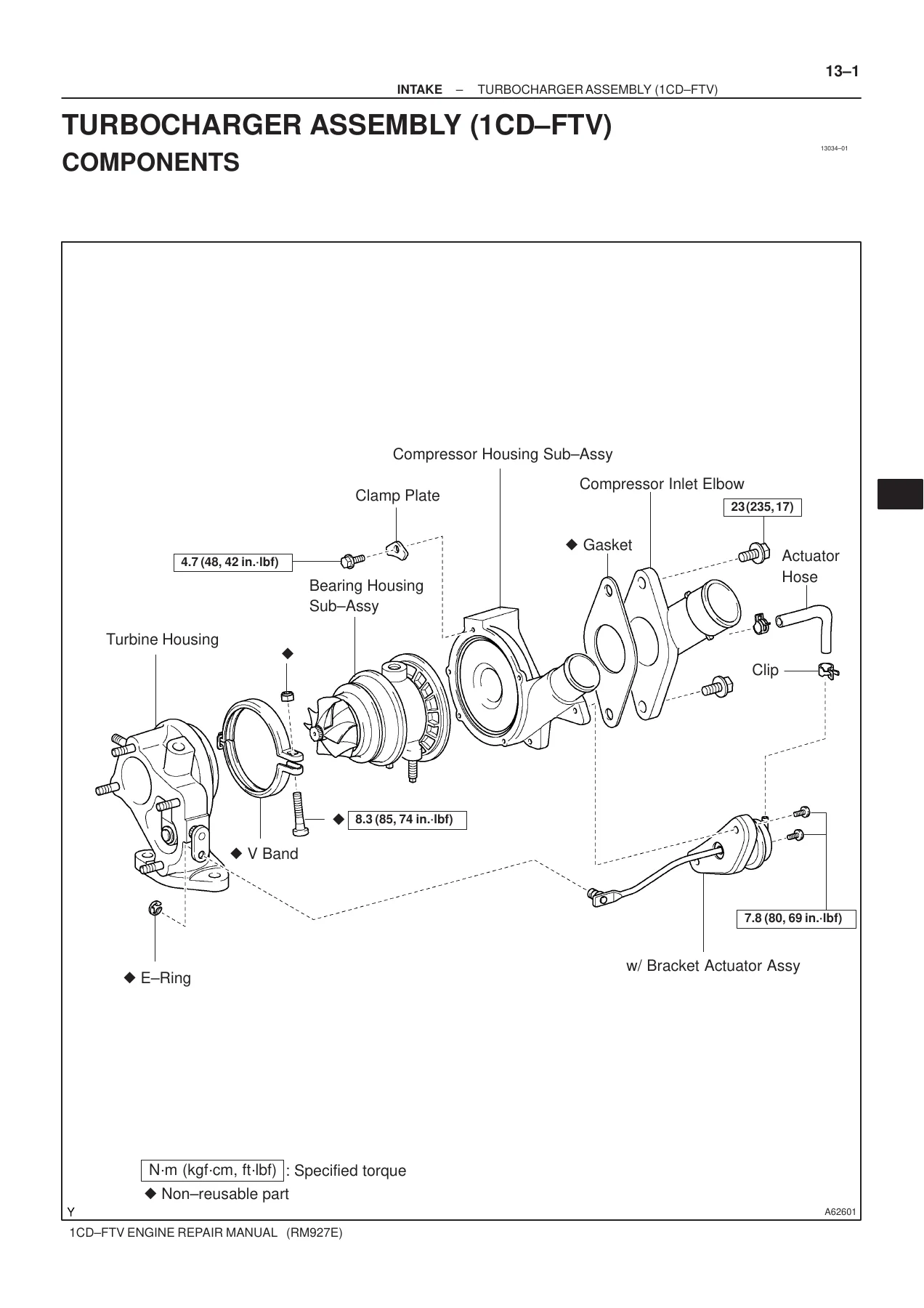

• Intake – Turbocharger Assembly (1CD-FTV): components, inspection, disassembly and reassembly

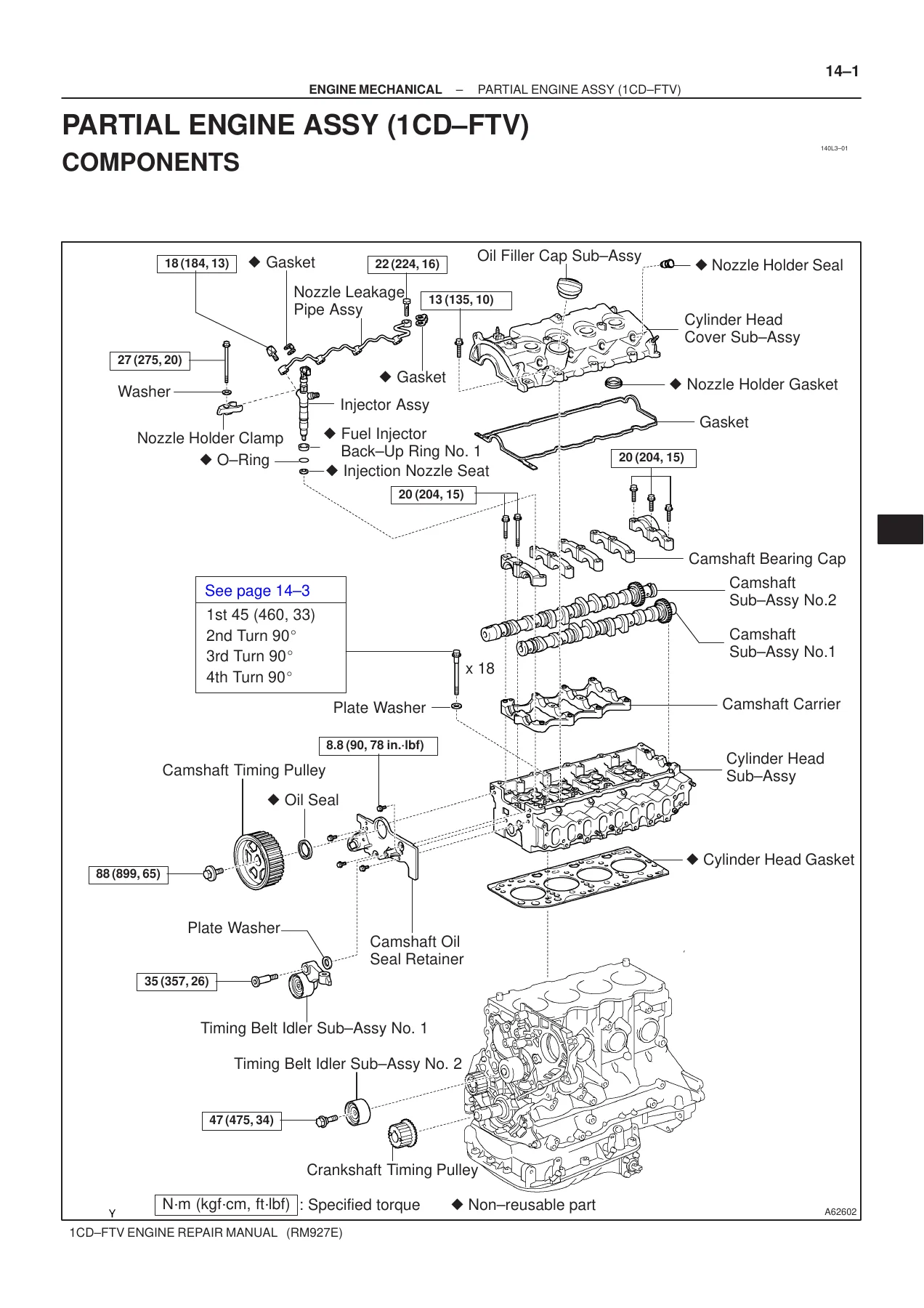

• Engine Mechanical – Partial Engine Assy, Cylinder Head Assy, and Cylinder Block Assy (1CD-FTV): full overhaul procedures
• Cooling – Water Pump Assy (1CD-FTV)
• Lubrication – Oil Pump Assy (1CD-FTV)
• Starting & Charging – Starter Assy (1.4kW, 2.0kW, 2.2kW) and Generator Assy (90A, 130A) (1CD-FTV)

IMAGES PREVIEW

Together these sections give a technician everything needed to work through the 1CD-FTV from the intake side through to the bottom end: turbocharger inspection and rebuild, cylinder head and block overhaul with valve, camshaft, piston, and crankshaft service data, cooling and lubrication component service, and full starter and alternator rebuild procedures for every output variant Toyota fitted to this engine.

What You Can Do With This Manual

• Overhaul the cylinder head and block, including valve guide bushings, camshafts, pistons, connecting rods, and crankshaft bearings, using the exact clearances and wear limits Toyota specifies
• Inspect and rebuild the turbocharger, including actuator pressure testing and turbine wheel axial/radial play checks
• Service the oil pump, water pump, starter motors (1.4kW/2.0kW/2.2kW), and generators (90A/130A) with correct clearances and torque values
• Tighten every fastener on the engine to the correct N·m/kgf·cm/ft·lbf value, including the multi-stage cylinder head bolt and connecting rod cap torque-plus-angle sequences

Why This Toyota 1CD-FTV Repair Manual Is Worth Having

Guessing at torque values or clearance limits on a diesel engine like the 1CD-FTV risks warped cylinder heads, oil leaks, and premature bearing wear. This 1CD-FTV Engine Repair Manual (RM927E) puts Toyota’s own specifications, tightening sequences, and inspection standards directly in front of you, presented in bold type at the point in the procedure where you need them rather than buried in a separate appendix. Whether you’re rebuilding the long block, chasing a turbocharger fault, or replacing a starter or alternator, this manual gives you the correct reference so the job is done to factory tolerances the first time.

The Toyota 1CD-FTV Diesel Engine Repair Manual (RM927E) downloads instantly as a PDF after purchase – no shipping, no waiting. Read it on a laptop, tablet, or phone in the workshop, or print out just the pages you need for the job in front of you.
