Doosan DL250-3 Wheel Loader Shop Manual – Full Service & Repair PDF (S/N 10001 & Up)

Description

Doosan DL250-3 Wheel Loader Shop Manual – Full Service & Repair PDF (S/N 10001 & Up)

The Doosan DL250-3 Wheel Loader Shop Manual is the complete service reference for anyone who maintains, diagnoses or rebuilds this machine. It covers serial number 10001 and up and packs the full workshop documentation into one PDF – the ZF 4WG-190 transmission and torque converter, ZF MT-L 3085 II axles, service and parking brakes, power steering, articulation centre, hydraulic pumps and valves, cooling system, wiring and air conditioning. Whether you run a fleet, work in a repair shop or keep your own loader alive, this DL250-3 shop manual hands you the procedures, torque values, clearances and diagnostic flow needed to do the job properly instead of guessing.

File Details

• Manual type: Shop Manual (Service and Repair)
• Brand / Manufacturer: Doosan
• Model: DL250-3 Wheel Loader
• Serial number range: 10001 and Up
• Language: English
• Format: PDF
• Pages: 810
• Document number: 950106-00985E

Chapters Covered in the DL250-3 Shop Manual

• Safety
• Specifications
• General Maintenance
• Drivetrain
• Brake
• Steering
• Frame
• Tank
• Hydraulics
• Electrical System

Safety (SP002397)

The wheel loader safety section sets the rules before any spanner turns. It walks through the safety decals and signal words, the operator’s daily pre-start inspection, mounting and dismounting, ROPS certification, transporting and towing, working on slopes, digging beneath overhangs, service precautions, PPE, fire prevention, battery hazards and how to work safely with pressurised hydraulic fluid. It is the section every tech reads first on this DL250-3 before touching the machine.

Specifications (SP002778)

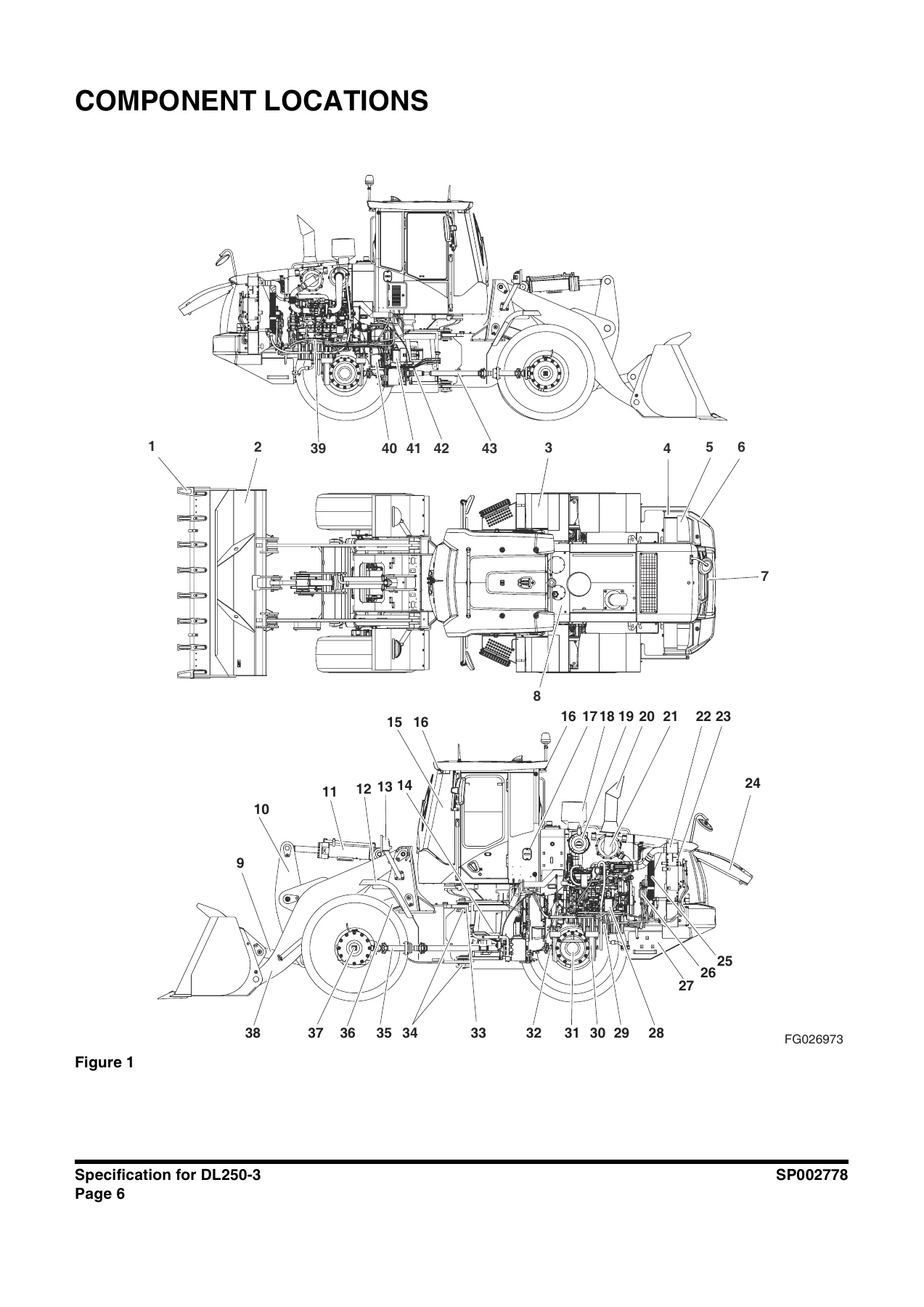

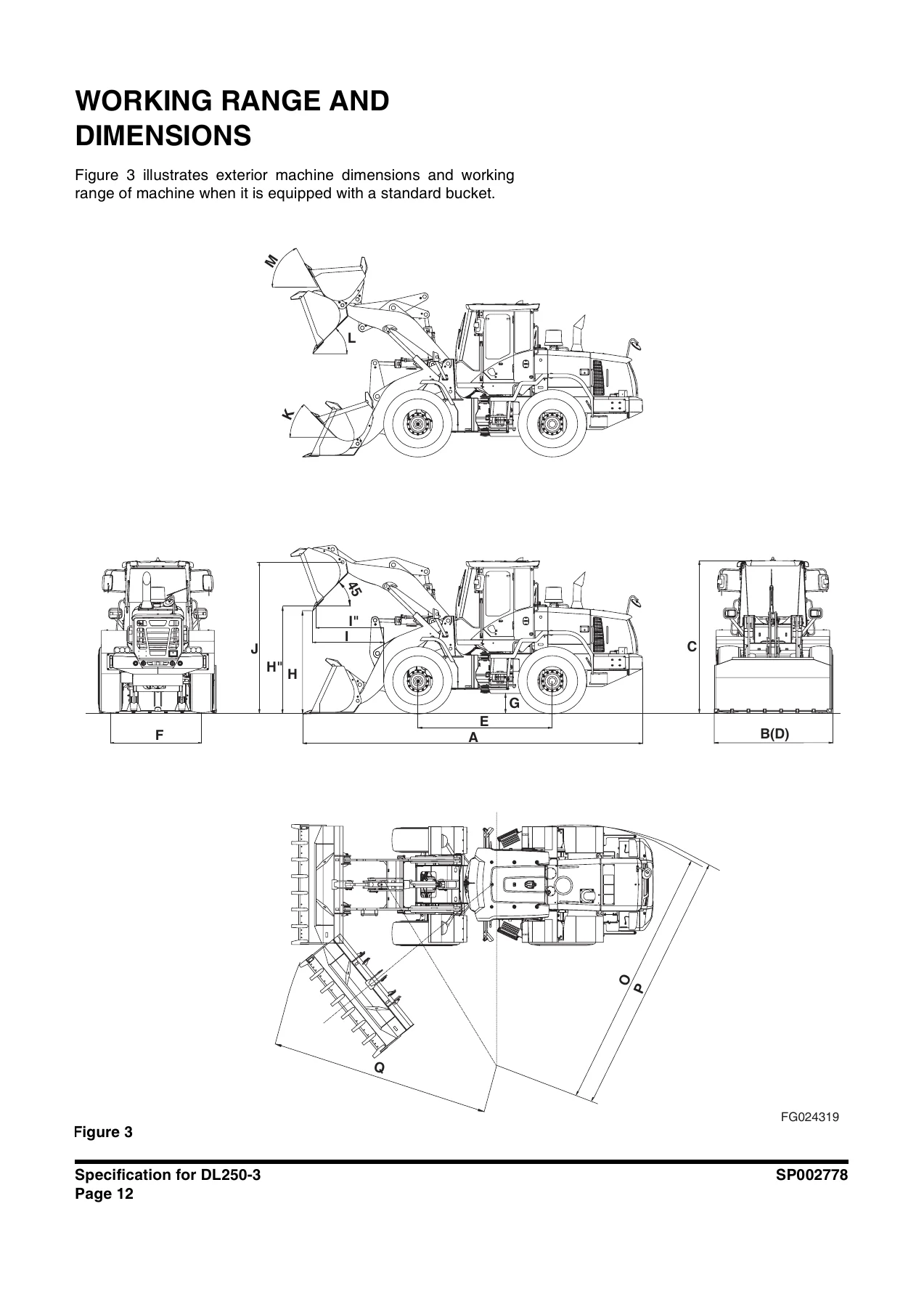

Machine and component specifications for the DL250-3, including engine data, transmission and brake systems, travel speeds, steering angle, rated operating load, bucket breakout force, cycle times, gradeability and standard bucket capacities. Working range dimensions with a standard bucket, stability and tipping load tables, and approximate material weights are also laid out so you can match the machine to the job.

General Maintenance (SP002454) and Standard Torques (SP002404)

The general maintenance chapter explains how to work cleanly and safely on this loader – hydraulic system cleanliness, oil-leak precautions, bearing inspection, cleaning and disassembly discipline. The standard torque section supports it with torque values for metric and US fasteners, phosphate-coated hardware, hose clamps, ORFS swivel nuts, split flanges and torque-wrench extension tools, plus a metric tightening torque chart you will refer to throughout the rebuild.

Drivetrain

The drivetrain section is the heaviest part of the manual and covers the ZF 4WG-190 transmission and torque converter, the ZF MT-L 3085 II axle and the driveshaft in full teardown-to-reassembly detail. Inside you get the transmission layout and clutch identification (KV, KR, K1, K2, K3, K4, AN, AB), measuring points for pressure and flow, oil grades, special tools, output and brake disassembly, axle housing, input pinion and differential rebuild, multi-disc differential lock, shimming and contact pattern setting, output and brake reassembly, plus the ZF transmission error codes with fault-code tables, operating modes and resistance checks.

Brake

Every brake component on the DL250-3 is covered: the service brake system and its hydraulic circuit, the brake supply valve with priority, check, unloading, relief, reducing and solenoid valves, the charging block with parking brake control, the KNOTT spring-applied parking brake in TM 64/97, TM 99/07 and TM 63/97 versions, the brake pedal valve theory of operation and specification, and the accumulators with charge pressure, volumes and inspection procedures. Maintenance and repair instructions for the KNOTT calipers include pad replacement, seal replacement, clearance setting and emergency release.

Steering

Steering coverage includes the full power steering unit disassembly and assembly, the priority valve with its body, spool, spring plug, end plug and orifices, and the emergency steering system with its pump, DC motor, function test and automatic test. Pressure settings and component specs are called out so you can rebuild the steering circuit back to factory behaviour.

Frame and Tank

The frame chapter covers the articulated centre with hinge pin clearances, bearing clearances, shim thicknesses and retainer bolt torques, plus counterweight weights and bolt torque values by model. The tank chapter covers the oil tank (capacity, filters, breather, return filter, suction filter, bypass valve) and the fuel tank with fuel strainer and sender calibration points.

Hydraulics

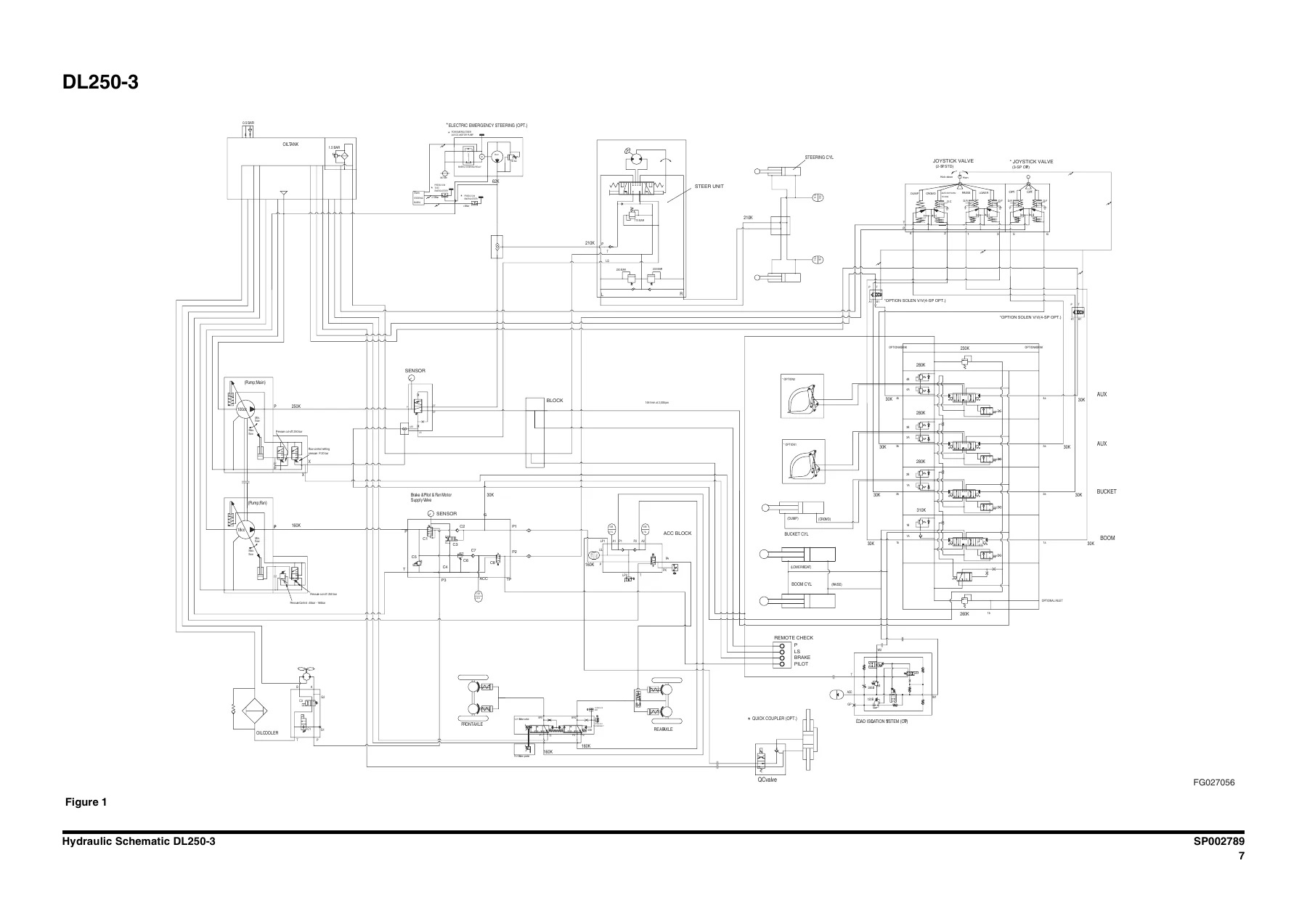

Hydraulics on the DL250-3 is a full sub-system library. You get the main pump specification and sectional view, seal kits, regulator and rotary group disassembly, inspection notes with tolerances, tightening torques and pump assembly. Then comes the main control valve with inlet, boom, bucket, auxiliary and outlet sections, relief valve pressure adjustment, plug and anti-void assemblies. Load isolation system, cooling system (fan motor, fan control valve, fan and brake pump), pilot system with fingertip joystick specs and parts, and the full hydraulic schematic for the DL250-3 round out the section.

Electrical System

Electrical coverage begins with the 24 V supply system, engine starting circuit, engine stop system, charging system and monitoring system with the instrument panel, warning lights and multifunction display. The user menu, service menu and failure information screens are documented, along with the windshield wiper circuits, lighting system, power mode control, engine control system, auto idle, electric detent, cooling fan control, and the emergency steering system. Wiring colour codes and wire sizes are listed, and the full electrical schematic for the DL200-3, DL220-3 and DL250-3 is included. The air conditioner section adds the heater/AC unit, sensors, control panel, compressor, receiver dryer and refrigerant handling.

What This Doosan DL250-3 Shop Manual Lets You Do

With this shop manual on hand you can perform scheduled maintenance with the right torque and fluid values, diagnose faults using the ZF transmission error codes and electrical failure information, tear down and rebuild the 4WG-190 transmission, service either axle on the ZF MT-L 3085 II, rebuild the KNOTT parking brake, replace pads and seals, set the articulation hinge clearances, service the main hydraulic pump and control valve, diagnose the monitoring system and instrument panel, and repair or replace components across the brake, steering, cooling and electrical circuits. It is the reference that keeps work inside factory limits instead of guesswork.

IMAGES PREVIEW

Instant PDF Delivery – No Shipping, No Waiting

This Doosan DL250-3 shop manual is delivered as an instant-download PDF. The moment your payment is confirmed you have the whole manual on your device – open it on a laptop in the workshop, a tablet on the machine, or a phone at the parts counter. No postage, no delay, no losing a bound book in the workshop. Print the pages you need for the job in front of you and keep the rest of the manual intact for the next one.
