Gehl V270 & Mustang 2700V Skid-Steer Loader Service Manual PDF – Form 917435 Rev A Download

Description

Gehl V270 & Mustang 2700V Skid-Steer Loader Service Manual — Form 917435 Revision A

This is the complete Gehl V270 and Mustang 2700V skid-steer loader service manual, published under Form Number 917435, Revision A, dated 02/10. It is the same document a technician uses in the shop to tear down, rebuild, test and adjust the machine — covering the Yanmar 4TNV98T-ZNMS turbocharged diesel engine, the hydrostatic tandem pump and drive motors, the lift/tilt hydraulic system, the electrical harness and control modules, the chaincase and axle assemblies, and the ROPS/FOPS cab structures. At 188 pages it is a genuinely thorough workshop reference for the Gehl V270 and its rebadged twin, the Mustang 2700V.

File Details

• Manual Type: Service / Repair Manual
• Brand: Gehl / Mustang
• Models Covered: Gehl V270, Mustang 2700V
• Engine: Yanmar 4TNV98T-ZNMS turbocharged diesel (202 CID / 3.31 L)
• Language: English
• File Format: PDF
• Page Count: 188 pages
• Document Number: 917435
• Revision: A
• Publication Date: 02/10

Chapters Covered

• Specifications
• Safety
• Lubrication
• Mainframe
• Wheel Drives
• Controls
• Hydrostatic System
• Hydraulic System
• Electrical System
• Engine
• Index

Specifications

Hard numbers for the V270 and 2700V, including net engine output, peak torque, rated operating capacity, operating and shipping weights, fluid capacities for engine oil, fuel, chaincases, hydraulic reservoir and coolant, plus electrical system ratings for battery, starter and alternator. Dimensional specifications cover overall operating height, hinge pin height, dump angle, dump reach, rollback, wheelbase, overall width and clearance circles. Tire options and bucket capacities are also listed.

Safety

The safety chapter lays out the mandatory shutdown procedure, lift arm support device engagement and disengagement, ROPS/FOPS raising and lowering with the manual hydraulic pump, hydraulic pressure relief, and the correct procedure for raising and blocking the loader so all four tires are off the ground. Signal-word definitions (DANGER, WARNING, CAUTION) and additional safety reminders are included for technicians working alone on the machine.

Lubrication

Routine service information for the hydraulic oil reservoir, engine crankcase, chaincases and grease points. The chapter details the hydraulic oil fill and drain locations, the recommended ISO VG46 hydraulic oil, SAE 15W-40 or 10W-30 engine oil, chaincase oil change intervals, the grease-fitting schedule for lift cylinder, tilt cylinder, hitch and rear link pivots, and the radiator drain procedure.

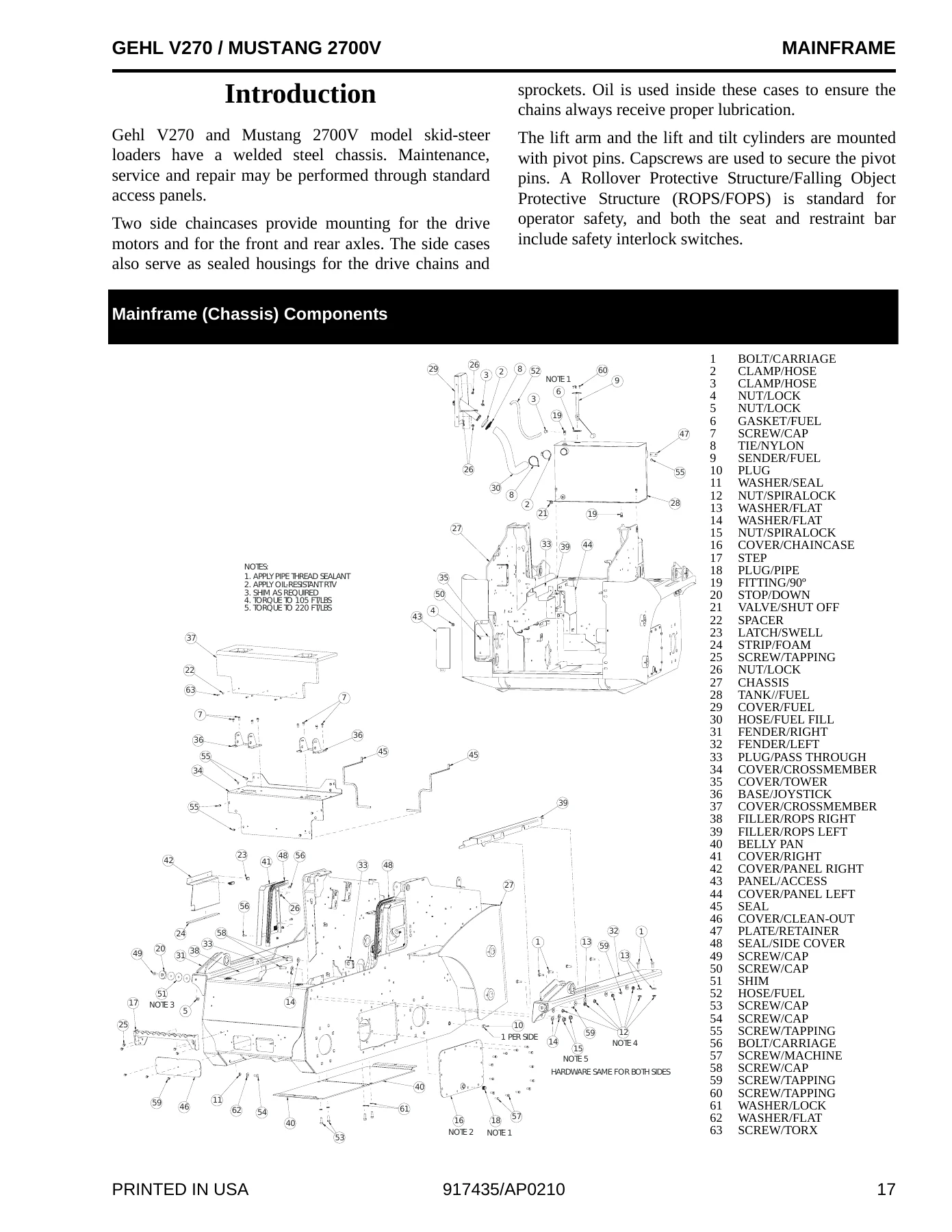

Mainframe (Chassis)

Removal and installation for the rear grille, engine access cover, ROPS/FOPS assembly, seat and seat slides, side consoles, rear window with weatherstrip and ripcord, restraint bar, All-Tach® and Power-A-Tach® hitch, lift arm, lift arm stops, clean-out covers, floor plate, crossmember, fuel tank and fuel sensor. The chapter also covers bushing replacement for the lift arm, rear link and timing link.

Wheel Drives

Drive chain adjustment with the ½" (13 mm) deflection specification at 20 lbs force, axle housing removal and installation, drive chain removal and installation (both accessible and inaccessible connecting link procedures), and axle and wheel bearing disassembly and assembly with the 6000 lbf press forces and allowable end play tolerance called out.

Controls

Dual joystick and hand/foot control layouts are both covered, with control handle removal and installation, electrical auxiliary grip, control handle tracking adjustment on the tandem pump, neutral centering test and adjustment, lift/tilt control removal, and the electrical foot throttle for dual joystick models.

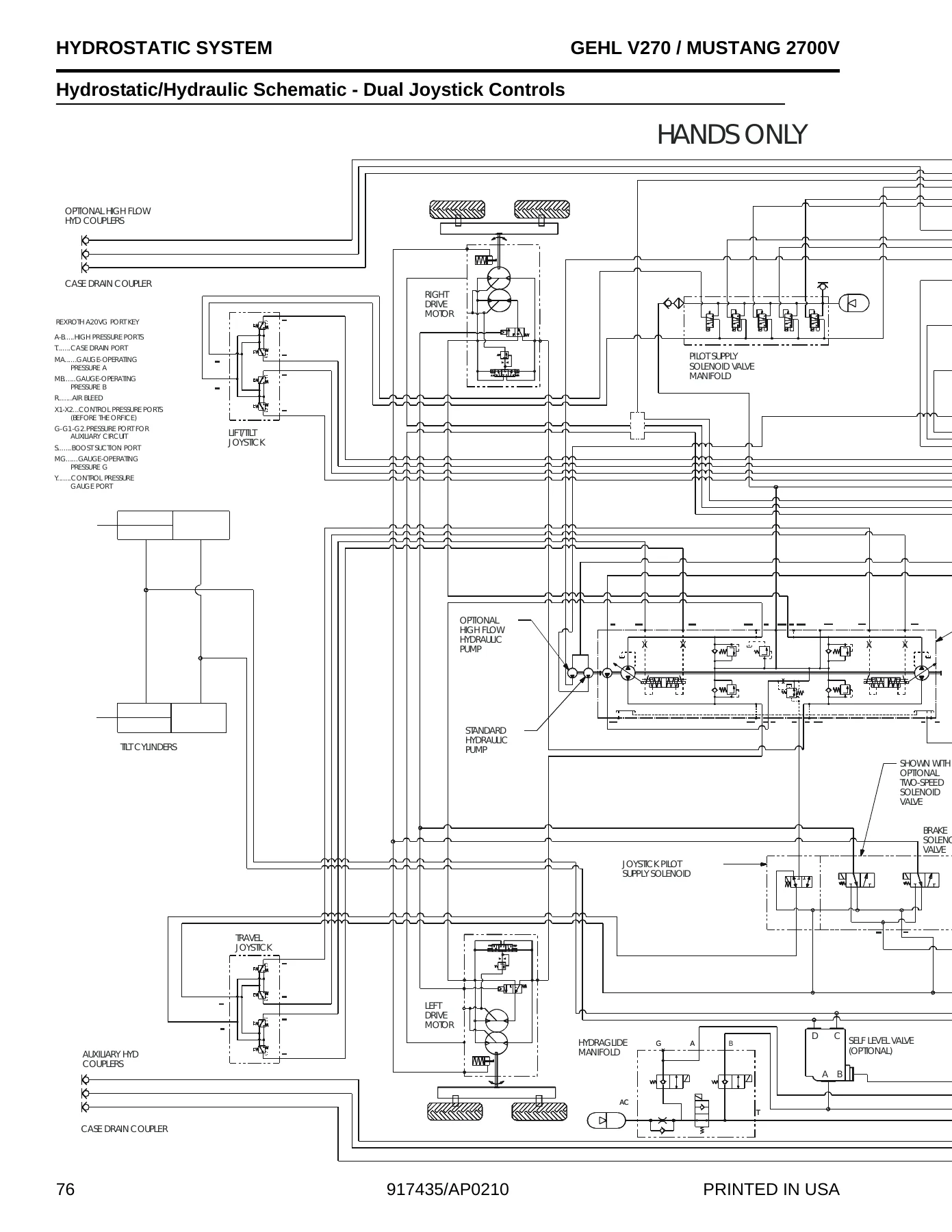

Hydrostatic System

Covers single-speed and two-speed hydrostatic components, charge pressure test and adjustment (250–300 psi for hand/foot, 435 psi for dual joystick), hydrostatic pump relief valves, hydrostatic pump removal and installation, pump drive coupling removal and installation, drive motor removal and installation, and a full troubleshooting guide with symptom, cause and remedy tables.

Hydraulic System

The gear pump, main control valve, self-leveling valve, hydraulic reservoir, hydraulic oil filter element, lift and tilt cylinders, manifold valve and solenoid valves. Testing procedures include control valve pressure tests, tilt cylinder internal leak test, lift cylinder drift test, self-leveling valve test and adjustment, and the Hydraglide™ ride control test. Cylinder disassembly and assembly includes torque values for the locknut at 350 ft-lbs.

Electrical System

Right and left instrument panel descriptions, electrical troubleshooting guide, battery disconnect switch, power distribution panel fuse testing, fuse box panel testing, interlock control module and its truth table, two-speed / ride control / float module, control handle actuation buttons, electrically controlled standard and high-flow auxiliary hydraulics, engine throttle test, pilot oil solenoid valve test, seat and restraint bar switches, master disconnect, lights, and full electrical schematics including the ROPS/FOPS, chassis, heater, HVAC and 14-pin auxiliary wiring diagrams.

Engine

Yanmar 4TNV98 turbocharged diesel troubleshooting guide, air cleaner and exhaust components, radiator and cooler components, remote engine oil filter, air filter elements, battery and battery tray, starter, exhaust assembly, fan belt adjustment, fan shroud and radiator/cooler removal, fan removal, and full engine removal and installation with the hydrostatic pump assembly attached. The Yanmar 4TNV98-ZNMS ECU fault code tables (categories and flash codes) are included.

Why This Manual Belongs in Your Shop

The V270 and 2700V are working machines, and a working machine needs a service manual that actually tells you how the job is done — not just what the part is called. This 917435 Rev A manual gives you the factory disassembly sequence, the torque figures, the pressure and flow values, the cylinder and axle end play limits, the charge pressure window for both control configurations, and the ECU flash code list so you can actually diagnose a fault instead of guessing.

Whether you are replacing a drive chain, resealing a tilt cylinder, adjusting the self-leveling valve, pulling the tandem pump or dropping the engine for a rebuild, the procedure in this book walks you through it step by step with photographs, exploded views, schematics and specification tables. Independent shops, fleet mechanics, farm owners and weekend wrenchers all use the same document — because the V270 and 2700V do not forgive a wrong torque value or an incorrectly adjusted chain.

IMAGES PREVIEW

The manual is delivered as an instant-download PDF immediately after payment. No shipping, no waiting, no physical book to keep track of in a greasy shop. Open it on a laptop, tablet or phone at the machine, print the specific pages you need for the bay, and keep the rest of the file for the next job. Same document, every procedure, the full 188 pages — ready to use the moment your payment clears.
