Grove TMS750B Parts Manual – Serial 84743, Rev 03 June 2006 PDF

Description

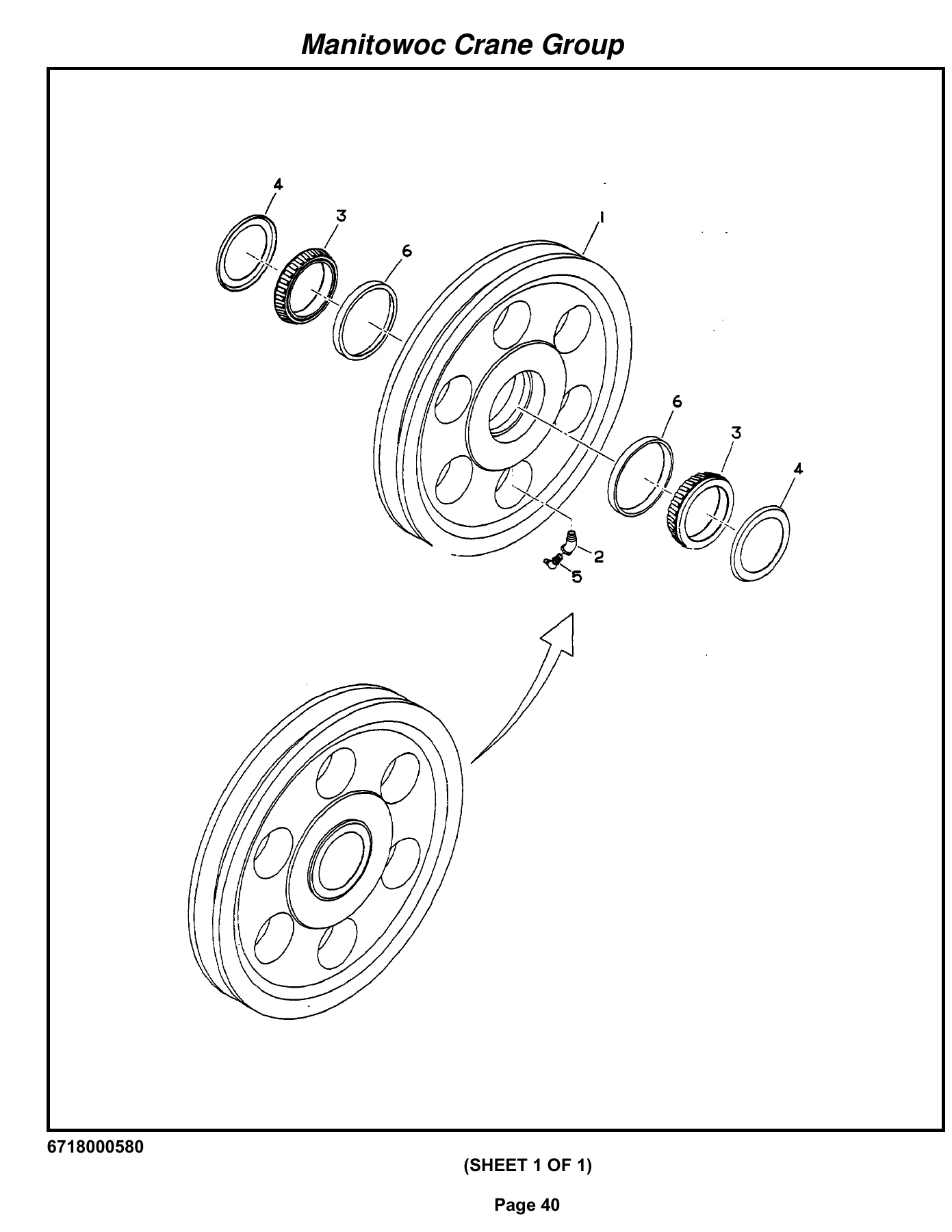

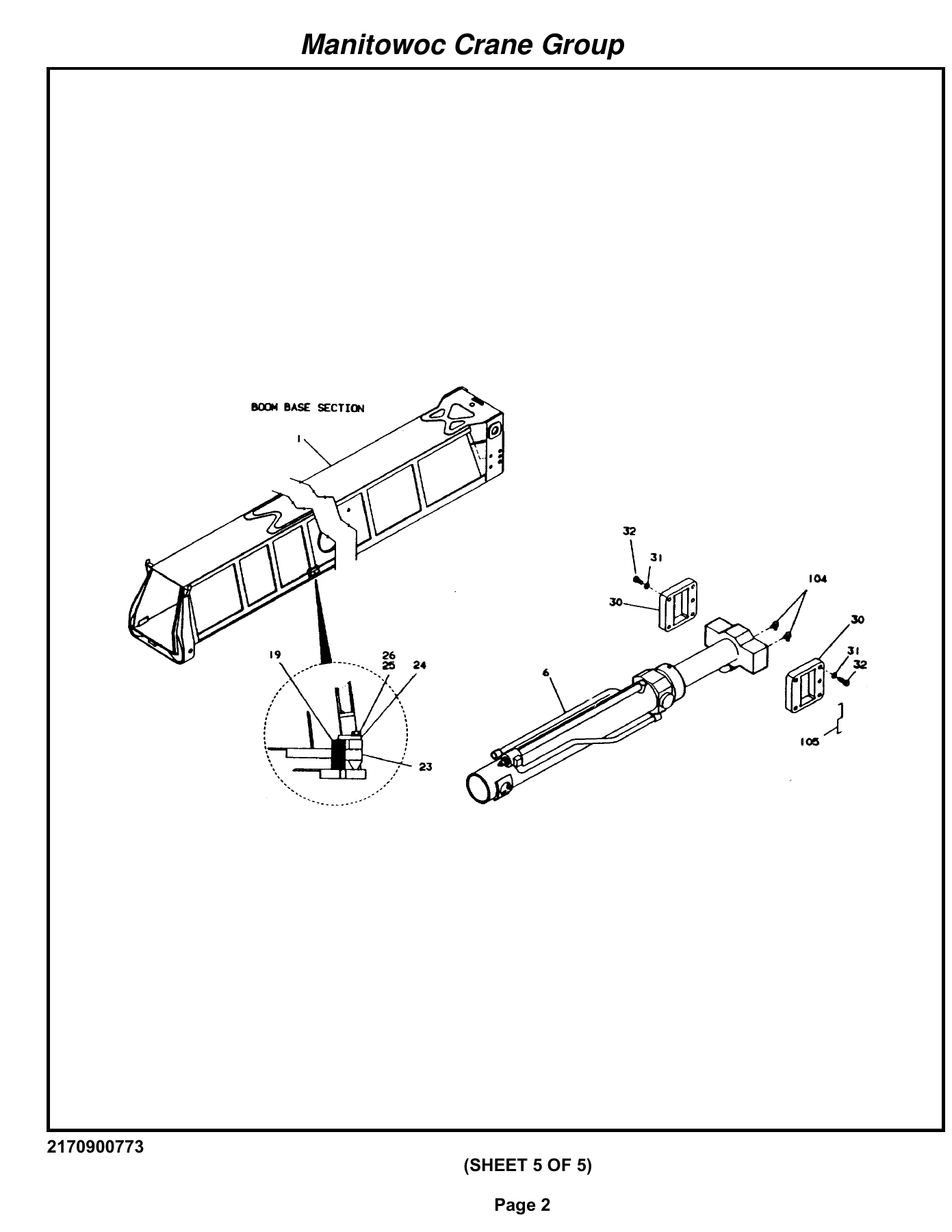

This Grove TMS750B Parts Manual is the full illustrated parts catalog published by Manitowoc Crane Group for machine serial number 84743, Revision 03, dated June 19, 2006. It is the reference document a parts counter, workshop or field technician uses to identify the exact component on a TMS750B carrier or superstructure by illustration callout, part number, description and quantity. Every major assembly on the crane is broken down into exploded view drawings with numbered callouts that key directly into the parts lists on the facing pages.

File Details

• Manual type: Illustrated Parts Manual (Parts Catalog)
• Brand: Grove (Manitowoc Crane Group)
• Model: TMS750B
• Serial number: 84743
• Revision: Rev 03
• Publication date: June 19, 2006
• Language: English
• File format: PDF
• Page count: approximately 1,223 pages

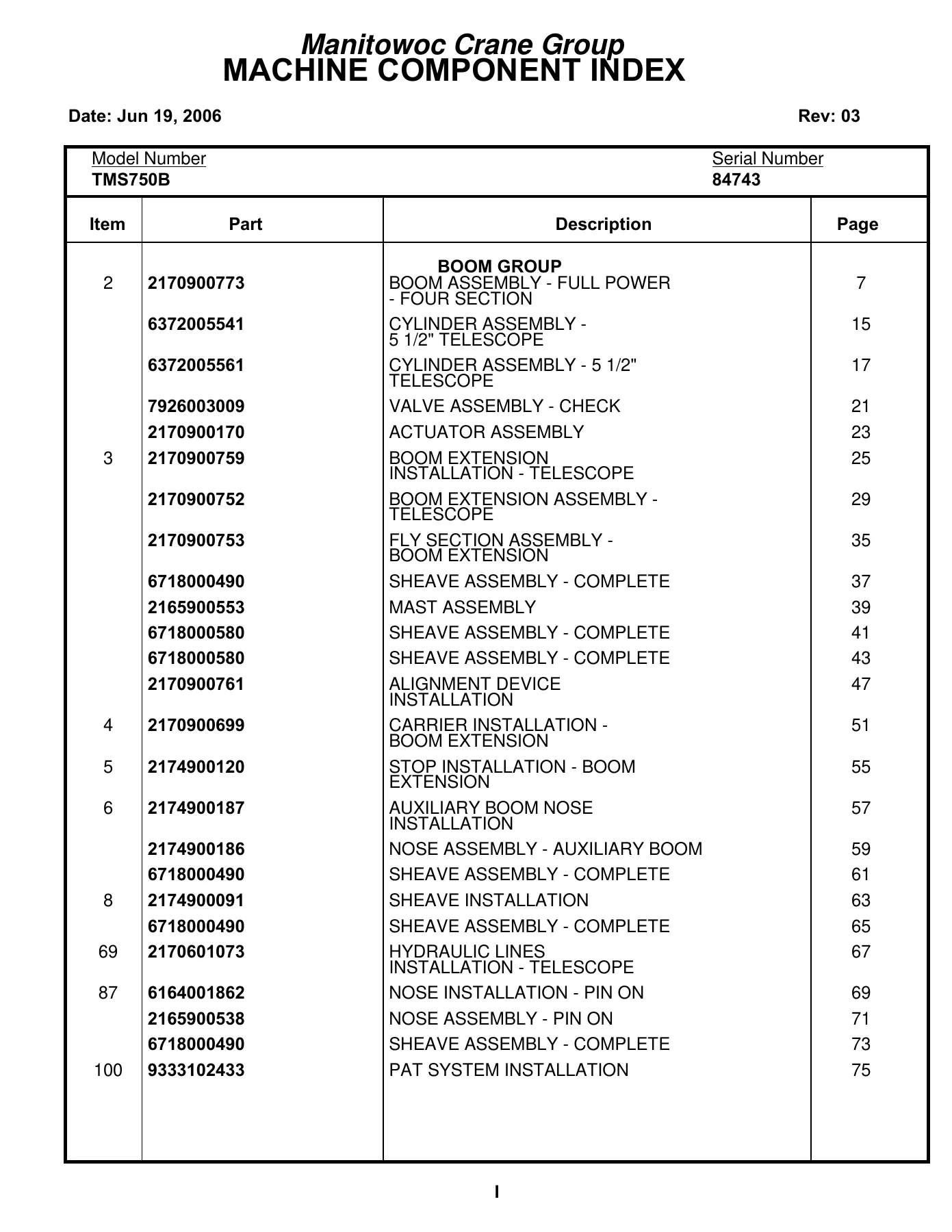

• Contents: Exploded view illustrations with item numbers, part numbers, descriptions and quantities, plus appendix indexes

Chapters Covered

• Boom Group — Boom Assembly – Full Power – Four Section, 5 1/2″ Telescope Cylinder Assemblies, Boom Extension and Fly Section Assemblies, Mast and Sheave Assemblies, Alignment Device, Auxiliary Boom Nose and Pin-On Nose Installations
• PAT System Installation (LMI) — Basic Components, Cable Reel Assembly, DS350G Console Assembly, Central Unit Assembly, Pressure Transducer Mounting, 32′-56′ Tele Offset Extension, 32′ Offset Extension, Anti 2-Block Weight Assembly, Counterweight Switch Installation, Wiring Diagrams
• Cab Group — Electrical System Installation – S/S, Harness Assemblies, Cab Installation and Cab Assembly, Cab Section, Door and Window Assemblies, Console Assembly, Skylight Wiper, Telescope Pedal and Valve, Seat Installation – Single Axis Control, Controller Assembly, Windshield Washer
• Cab Comfort and Heating — Cab Circulating Fan, Heater and Defroster Installation, Propane Heater Assembly (circuit board, fuel and ignition systems, remote control, control panel, motor and blower, case and exchanger, regulator and exhaust parts), Propane Tank and Exhaust Installation, Tank Mounting Kit
• Control Valve Group — Upper Hydraulic Lines Installation, Counterweight Removal Lines, 5-Stack Valve Assembly, 4-Stack Outrigger Solenoid Valve, Integrated Outrigger Valve, Relief Valve, Residual Check Valve
• Hydraulic Lines Installations — Swing, Lift, Main and Auxiliary Hoist, Telescope, Pressure Check Panel, Hydraulic Return Manifold, Oil Cooler, Hydraulic Reservoir and Filter
• Hoist Group — Main and Auxiliary Hoist Installation, Hoist Assembly, Right Hand / Left Hand / Center Group Assemblies, Drum Assembly, Hydraulic Vane Motor Assembly, Brake Assembly, Cable Follower and Idler Drum Assembly, Hoist Rotation Indicator, Hoist Mirror
• Turntable Group — Turntable Bearing and Drive Installation, Swing Box Assembly, Swing Brake Assembly, Orbit Motor, Swing Lock Assembly, Lower Shaft and Lift Cylinder, 10.00″ Cylinder, Upper Shaft and Boom Pivot, Removable Counterweight Installation, Lockout Cylinder, Electric/Hydraulic Swivel, Slip Ring Assembly, Bearing Bolt Installation, Lock Pin Installation, Positive Swing Lock
• Drive Train Group — Drive Line Installation, Drive Line Assemblies, Transmission Shift Installation, Master Unit Control Assembly
• Axle Group — Front Axle/Steering Installation, Drag Link Assemblies, Power Steering Gear Assembly, Double U-Joint Shaft Assembly, Torque Arm Assembly, Axle Assemblies, Wheel and Drum Assembly, Hub Cap Assembly, 2″ Steer Cylinder, Rear Axle Installation, Equalizer Beam Assembly, Rear Axle Bearing, Adapter Assembly, Rear Axle Air Lines, Tire and Wheel Assembly, Tire Valve Extension
• Outrigger Group — Fifth Outrigger Jack Cylinder Installation, Outrigger Beam Installation and Beam Assembly, 4.50″ Jack and 2 1/2″ Outrigger Extension Cylinders, Outrigger Float Stowage and Float Assembly, Outrigger Control Valve Installation, Valve Assemblies, Outrigger Hydraulic Lines
• Frame Group — Frame Assembly, Weld Stud Installation, Suspension Assembly, Fenders and Decking Installation, Fender Assemblies, Front Tray, Sling Box, Fuel Tank and Ladder, 90-Gallon Fuel Tank, Battery Installation, Exterior Lights and Horn, Light Assemblies, Back-Up Alarm, Rear View Mirror, Boom Rest, Air Tank and Valve Installation, Air Dryer, Spring Brake Valve, Tire Inflation Kit, Electrical System, Hydraulic Reservoir, Decal Installation
• Carrier Cab Group — Cab Installation and Cab Assembly, Cab Section, Door Assembly, Ventilator Assembly, Heater Plenum, Steering Column Assembly, Dual Brake Valve Assembly, Air Throttle Pedal Assembly, Dome Light, Steering Wheel Assembly, Seat Assembly, Cab Fan, Cab Air Lines, Front Console Installation, Carrier Console Assembly, Console Harness, Console Air Lines, Fire Extinguisher, Acoustical and Floor Mat Installations
• Engine Installation — Engine Assembly – Cummins 6CTA8.3, Transmission Assembly, Steer Pump Assembly, Slave Unit Assembly, Throttle Cylinder, Fuel Filter Assembly, Cummins 6CTA8.3 Harness Installation, Clutch Installation, Clutch Assembly, Clutch Release Assembly, Engine Components, Radiator and Oil Cooler, Radiator and Charge Air Cooler, Pump and Manifold, Pump Drive Assembly, Drive Line and Couplings, Clutch Control Rod, Air Cleaner, Exhaust System, Quick Start, Engine Hood, Hood Weatherstrip

How the Grove TMS750B Parts Catalog Is Organized

The catalog follows the crane’s own structure rather than an alphabetical or generic grouping. The Boom Group opens with the four-section full power boom assembly and works outward through the telescope cylinders, extension sections, sheave and mast assemblies, the alignment device and the auxiliary and pin-on noses. The PAT System Installation section then documents the load moment indicator in complete sub-assemblies — the cable reel, the DS350G console, the central unit, the pressure transducer mount, both offset extensions, the anti two-block weight, the counterweight switch and the wiring diagrams that tie the system together. From there the manual moves through the carrier cab, the hydraulic control and line installations, the hoist group with its drum, motor and brake assemblies, and the turntable group covering the swing box, swing brake, orbit motor, lift cylinder, boom pivot, counterweight and swivel. The axle, outrigger, frame and carrier cab groups follow, and the book closes with the Cummins 6CTA8.3 engine installation and the subsystems that support it. Throughout, exploded views face their own item-by-item parts listings, so a technician can read the drawing and the part numbers on the same spread.

What This Parts Manual Lets You Do

With the correct illustration callout and matching part number, ordering the right component the first time stops being a guess. This Grove TMS750B parts manual supports ordering replacement parts for the boom telescoping cylinders, sheave and mast assemblies, boom extension and fly section, auxiliary and pin-on noses, the full PAT/LMI system, cab electrical harnesses, cab and door assemblies, heater and defroster components, control valve stacks, every hydraulic hose and adapter in the swing, lift, hoist, telescope and pressure check circuits, the hydraulic return manifold, oil cooler, reservoir and filters, the main and auxiliary hoist assemblies, hydraulic vane motors, brakes and cable followers, the turntable bearing, swing box, swing brake, orbit motor, swing lock, lift cylinder, boom pivot shaft, removable counterweight, lockout cylinder and electric/hydraulic swivel, drive lines, transmission shift linkage, front and rear axles, steering components, drag links, power steering gear, u-joint shafts, torque arms, wheel and drum assemblies, hub caps, steer cylinders, equalizer beams, outrigger beams, jack cylinders, float assemblies and outrigger control valves, frame, suspension, fenders, decking, fuel tank, battery, exterior lighting, air tank and valve installations, the carrier cab, front console and console harness, and every component of the Cummins 6CTA8.3 engine installation including transmission, steer pump, slave unit, throttle cylinder, fuel filter, harness, clutch, radiator and charge air cooler, pump and manifold, drive line, air cleaner, exhaust, hood and weatherstrip.

Who This Manual Is Written For

Anyone maintaining or repairing a Grove TMS750B with serial number 84743 — whether that is a fleet shop, an independent crane mechanic, a parts counter, a rebuilder restoring the machine, or an owner keeping a copy of the parts catalog on hand. The exploded views make it equally useful for identifying a failed component in the field, confirming the exact part before placing an order, matching quantities when several fasteners or seals are used in one assembly, and tracing how a hose or fitting routes through a circuit.

IMAGES PREVIEW

Instant PDF Delivery

This Grove TMS750B Parts Manual for serial 84743 is delivered as an instant PDF download the moment checkout completes — no shipping, no waiting for a printed book. The file opens on any computer, tablet or smartphone and can be printed page by page or section by section for the shop, so the pages you need stay at the machine while the rest of the catalog stays safe. Keep it on the service truck, drop it onto the workshop terminal, or print the assemblies you are working on and mark them up. Because the catalog is organized by assembly, you can pull only the group you need — the boom, the hoist, the outriggers, the turntable, the engine installation — and work from there without flipping through unrelated sections.
