HAMM HD 10 & HD 12 Tandem Roller Instruction Manual – Operation & Maintenance PDF

Description

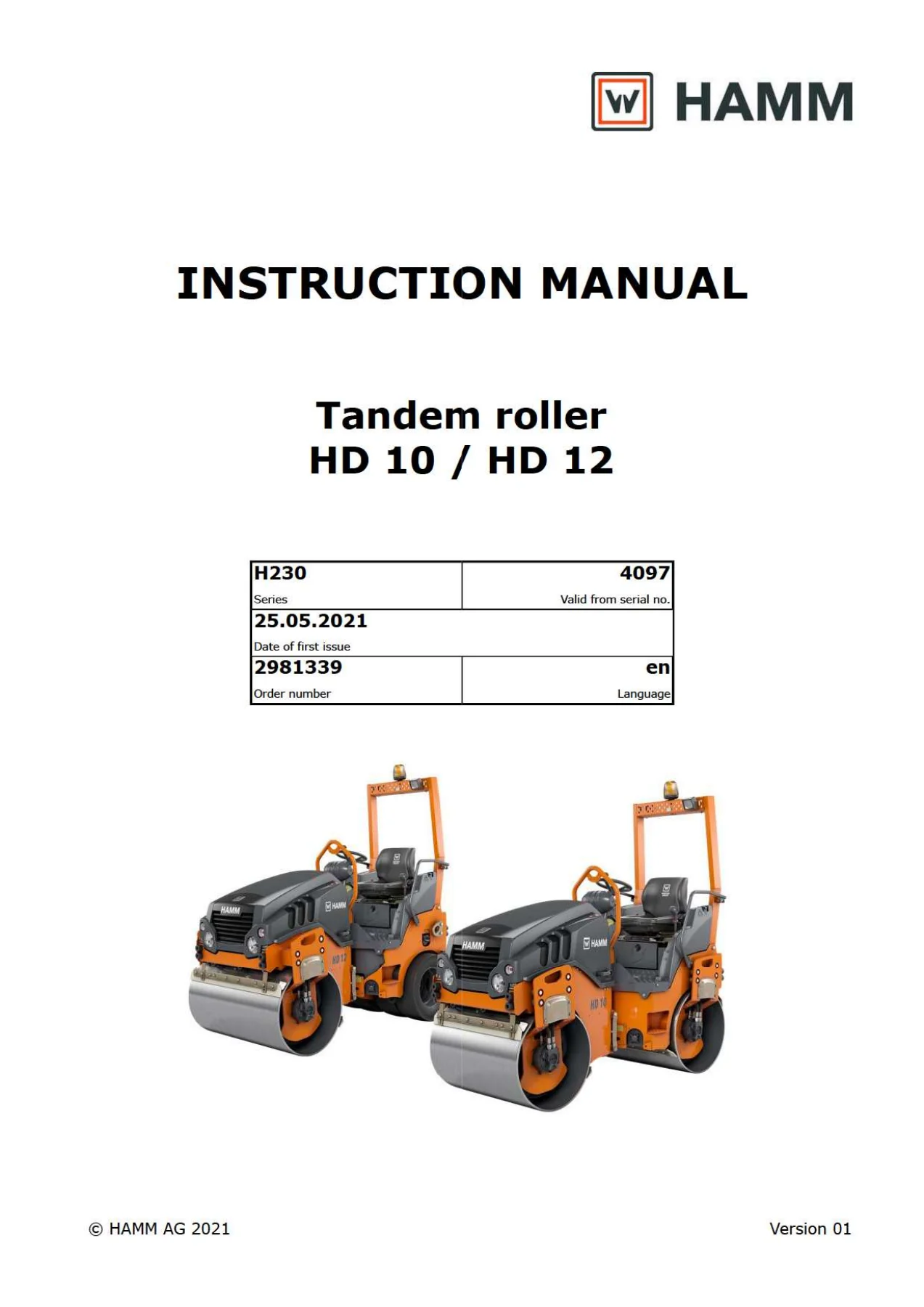

HAMM HD 10 & HD 12 Tandem Roller Instruction Manual

This is the full English instruction manual for the HAMM HD 10 and HAMM HD 12 tandem rollers, issued under order number 2981339 for series H230 and valid from serial no. 25.05.2021. It is the working document that ships with the machine – the one the operator, the fitter and the workshop foreman are expected to read, follow and keep on the roller at all times. Everything in it is written around these two compact tandem rollers and their six build variants, from the first walk-around before start-up through to long-term shutdown and disposal.

If you run an HD 10 VV, HD 10 VO, HD 10 VT, HD 12 VV, HD 12 VO or HD 12 VT, this manual answers the questions that actually come up on site: how the drive lever and seat contact switch behave, when the parking brake releases, what the STOP symbol means, how the dynamic compaction system is switched on for a single drum or both, how to set track offset along a kerb, and how to read the error codes the control panel throws at you.

File Details

• Manual type: Instruction manual (operation and maintenance)
• Brand: HAMM AG, Tirschenreuth, Germany
• Models covered: HD 10 VV, HD 10 VO, HD 10 VT, HD 12 VV, HD 12 VO, HD 12 VT
• Document name: 2981339_01_BAL_HD10_HD12_H230_en
• Order number: 2981339
• Series: H230 – valid from serial no. 25.05.2021
• Date of first issue: 25.05.2021 (change date 23.08.2021)
• Language: English
• Page count: 203 pages
• File format: PDF

Chapters Covered

• 1 General – preface, product information, guarantee, packaging and storage, signs and symbols, abbreviations, warning notes, documentation, intended use and abnormal use, residual risks, climatic conditions, environmental protection, disposal, EC conformity, type plate, noise and vibration requirements, personnel qualification and duties, general safety instructions, driving on public roads, danger zone

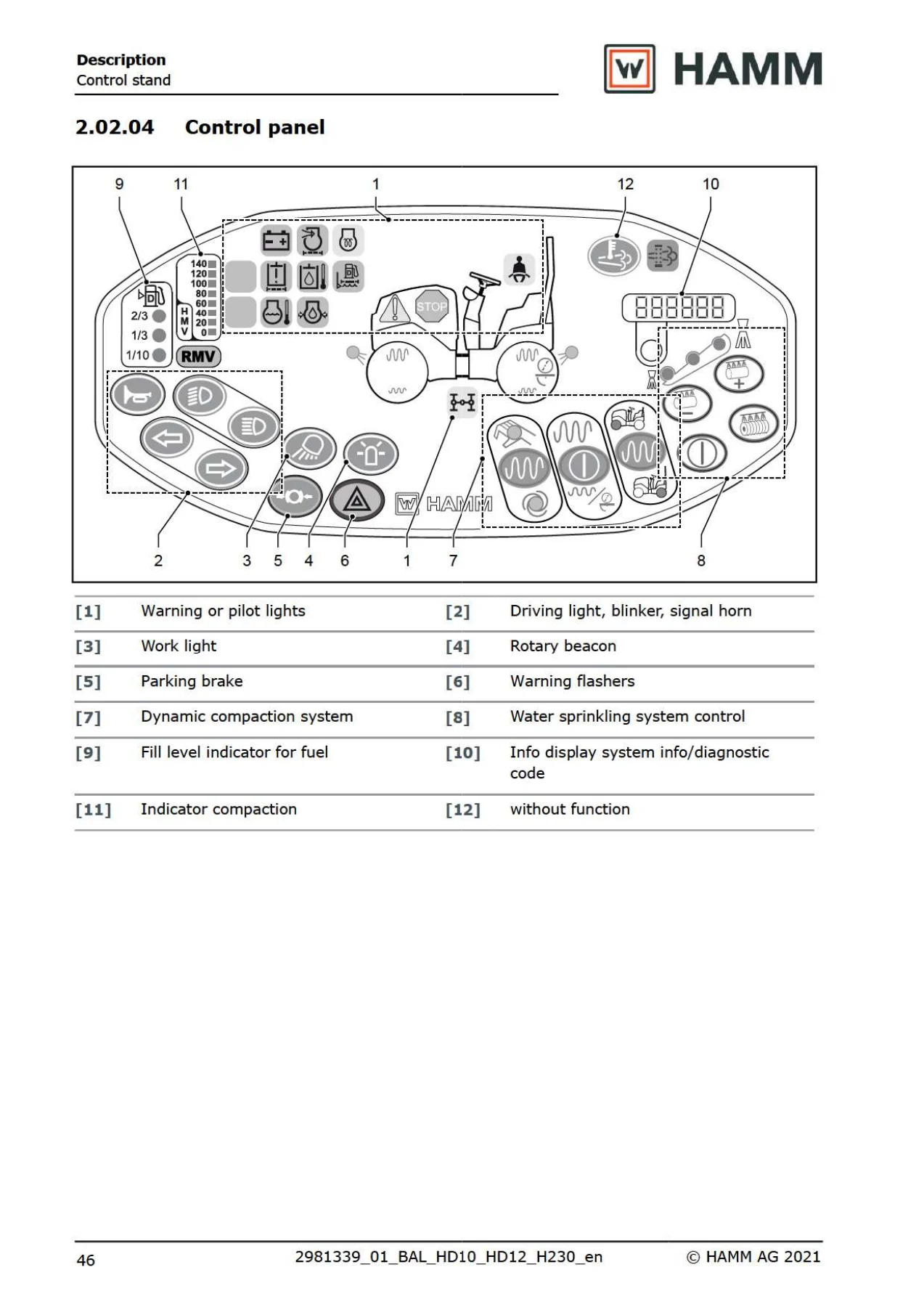

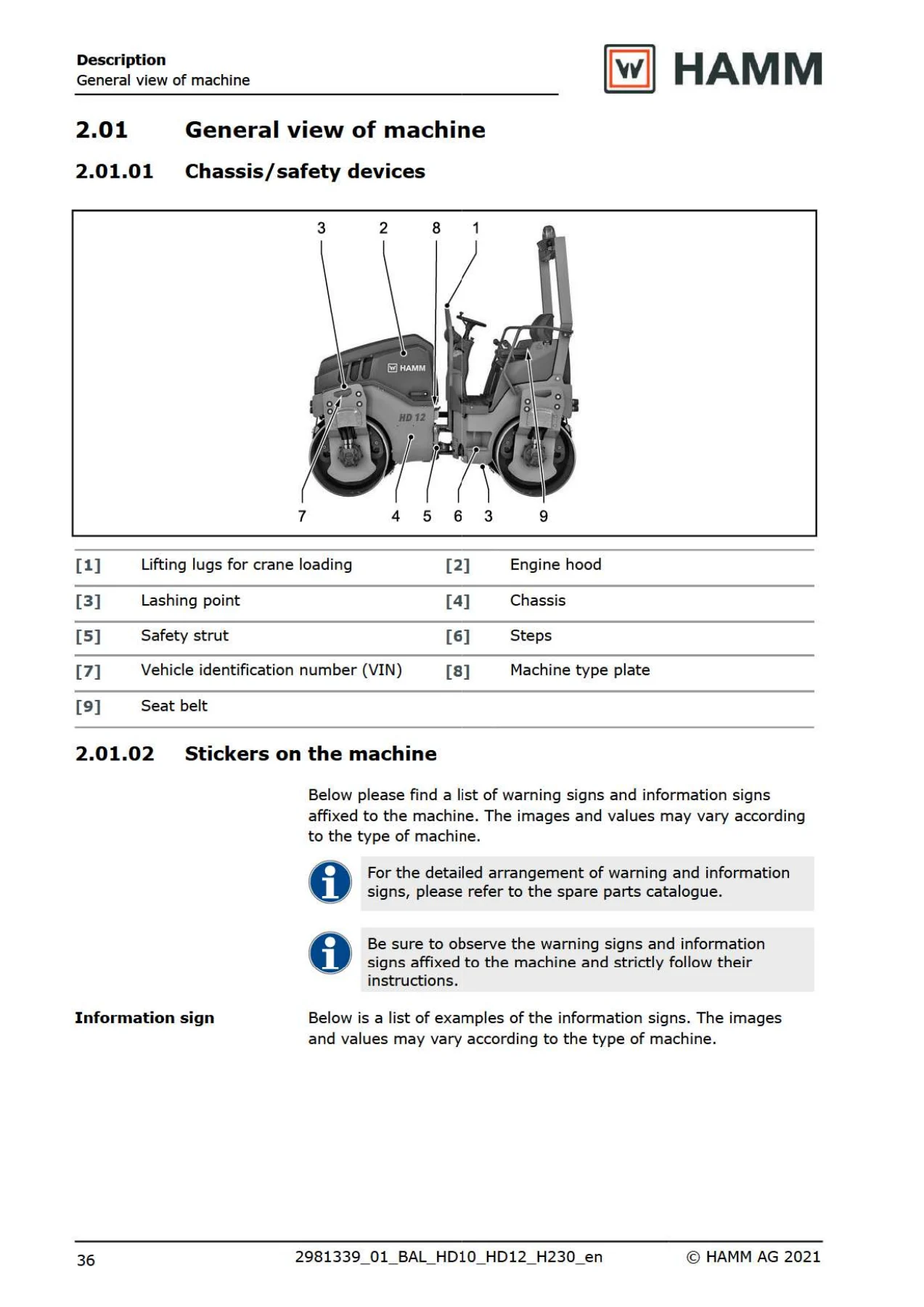

• 2 Description – technical characteristics, auxiliary equipment list, general view of machine, chassis and safety devices, stickers on the machine, ROPS, consumable fill holes, control stand, seat console, operating station controls, steering column, control panel, drive lever, drive unit/diesel engine, hydraulic oil supply, electrical system, transmission, steering system, water sprinkling system, additive sprinkling, dynamic compaction system
• 3 Operation – before loading/transporting/commissioning, safety strut, loading and transporting, functional tests before starting work, access to the operator’s platform, adjusting the driver’s seat, using the safety belt, opening and closing the engine hood, on-board electrical system and battery isolation switch, switching the electrical system on and off, signal horn and lighting, starting the machine, driving, seat contact switch, adjusting engine speed, driving in normal operation, stopping the machine, EMERGENCY STOP state, stopping because of a fault, driving with the dynamic compaction system, water sprinkling, additive sprinkling, track offset, adjusting scrapers, operation monitoring, switching the diesel engine off, shutting down and leaving the machine safely, towing, jump starting, temporary and permanent shutdown
• 4 Maintenance – general maintenance instructions, running-in instructions, maintenance overview, required maintenance parts, welding work on the machine, chassis and safety devices, control stand, drive unit/diesel engine, hydraulic oil supply, electrical system, transmission, steering system, water sprinkling, dynamic compaction system
• 5 Tables – engine oil, fuel, coolant, mineral and biological hydraulic oil, Wirtgen Group Asphalt Anti Stick, lubricant overview, starting torques, Wirtgen Group lubricants, technical data for each model, dimension sheets, fuses, diagnostic codes
• 6 Auxiliary equipment – ROPS, FOPS, rotating beacon, anti-freeze filling system for water sprinkling

What makes this document useful is that it never separates the procedure from the machine. The maintenance chapter is organised by assembly – chassis, control stand, diesel engine, hydraulics, electrical, transmission, steering, water system, compaction system – so a fitter working on one area gets the whole job in one place, including the interval, the tool, the tightening torque and the check that has to follow. The operation chapter runs in the order a shift actually happens: walk-around and functional tests, seat and belt, start-up, driving, compaction, sprinkling, stopping, parking. It also carries the fault-handling path in full, from the STOP warning light and the acoustic signal through to the displayed diagnostic code and what to do about it.

Machine Coverage and Variants

The manual covers the tandem rollers HD 10 VV, HD 10 VO, HD 12 VV and HD 12 VO, plus the combination rollers HD 10 VT and HD 12 VT. Drum configuration is explained directly in the front matter: VV is vibration on both front and rear drums, VO is vibration at the front with oscillation at the rear, and VT is vibration at the front with tyres at the rear. Every chapter that behaves differently across those variants says so – the compaction system controls, the scraper sections, the tyre maintenance and the technical data tables are all split accordingly.

Power comes from a Kubota D1703 three-cylinder diesel rated at 18.5 kW at 2200 rpm, EU/USA V and EPA Tier 4. Because the vibration and oscillation frequency is coupled to engine speed, the manual is explicit about the relationship between the preselected engine speed and the compaction output you actually get on the mat.

Operation, Safety and Daily Checks

The functional test list before starting work is one of the most practical parts of the document. It runs through safe access to the platform, driver’s seat adjustment, seat belt condition, battery isolation switch position, turn signals and hazard lights, signal horn, lights, reversing warning, rotating beacon, parking brake, EMERGENCY STOP function, and then the fill levels for fuel, coolant, hydraulic oil, water tank and additive tank, plus tyre air pressure and scraper condition.

Safety content is not bolted on at the end. The danger zone is defined with distances for both the inactive and the moving machine, the ROPS and FOPS rules explain what deformation and corrosion are not acceptable, and the safety strut procedure is given in full because it must be applied before crane loading, transport and any maintenance or repair work on an articulated machine.

Loading and transport has its own dedicated treatment: lashing variants, lashing point capacities, friction requirements, ramp slope limits, the special notes for crane loading, and the loading chart with the machine’s centre of gravity range. For anyone who moves rollers on a low loader regularly, that section alone justifies keeping the manual in the cab.

Maintenance, Service Intervals and Specifications

The maintenance overview is built on operating hours with a 10 h daily tier, a 250 h tier, a 500 h tier and a 2000 h tier, and it is backed by a required maintenance parts table that lists the actual part numbers and quantities for the HD 10 and HD 12 with the D1703 engine – engine oil, hydraulic oil, coolant, V-belt, air filter cartridge, safety cartridge, lubricating oil filter, fuel filter, fuel prefilter, hydraulic pressure filter insert, ventilation filters, water filter insert, valve cover seal and drum suspension damping elements.

Procedures are written as numbered steps with the machine state spelled out first, which matters on a roller where the engine, the electrical system and the hydraulic pressure all have to be in a defined condition before a filter or a hose is opened. Covered jobs include draining the water sump on the fuel prefilter, checking and replacing the air filter and safety cartridge, cleaning the radiator, checking and changing coolant, changing hydraulic oil and the ventilation filter, replacing the hydraulic pressure filter insert, battery maintenance and external charging, checking and adjusting the roller drum and tyre scrapers, checking wheel nut torque and tyre pressure, changing tyres, lubricating the pivoted bearing and steering cylinder bolts, and the full water sprinkling and additive sprinkling cleaning routines.

The tables chapter carries the reference values a workshop needs: engine oil, fuel and coolant specifications, mineral and biological hydraulic oil selection with viscosity grades against ambient temperature, the lubricant overview, starting torques for standard and fine threads, fuse assignments for the engine compartment, steering column and dashboard, and the complete diagnostic code list with the component and the possible cause behind each code.

Why This Manual Matters on Site

Compact tandem rollers are worked hard and maintained between jobs, and the difference between a machine that holds its compaction quality and one that keeps throwing faults usually comes down to whether the operator knows the correct sequence. This HAMM HD 10 and HD 12 instruction manual gives you that sequence in the manufacturer’s own words, with the values attached – fill levels, tyre pressures, tightening torques, sprinkling stages, engine speed settings, and the temperature and pressure limits that trigger the warning lights.

It also covers the areas that are easy to get wrong and expensive to fix: releasing and applying the spring-operated brake for towing, depressurising the hydraulic system before a machine is moved, restoring traction afterwards, welding work on the machine and the precautions around electronic components, and the correct procedure for jump starting a discharged battery.

IMAGES PREVIEW

Instant PDF Delivery

The manual is supplied as a PDF download, available immediately after payment with no shipping and no waiting. It opens on a laptop, tablet or phone in the workshop or on site, pages can be printed for the machine file, and individual sections can be printed for the job at hand. Whether you are running an HD 10 VO on a small paving contract or keeping a fleet of HD 12 VV rollers on the road, this is the reference document that keeps operation, service and fault-finding aligned with how the machine was designed to be used.
