Hangcha 5t-10t A Series Forklift Parts Catalogue 2015 – CPCD50/60/70/80/100 PDF

Description

This Hangcha 5t-10t A Series forklift parts catalogue is the illustrated spare parts book for the CPCD50, CPCD60, CPCD70, CPCD80 and CPCD100 A Series internal combustion counterbalanced forklift trucks. Every assembly is broken down into an exploded drawing paired with a numbered item list, so a component can be traced from the picture directly to its part code, description and required quantity.

File Details

• Manual type: Illustrated parts catalogue (spare parts catalog)
• Brand: Hangcha
• Model family: 5t-10t A Series internal combustion counterbalanced forklift truck
• Truck models covered: CPCD50/60/70-AG16, CPCD50/60/70-AG16Z, CPCD50/60/70-AG42, CPCD50/60/70-AG42Z, CPCD50/60/70-AG41, CPCD50/60/70-AG36, CPCD50/60/70-AG55, CPCD80/100-AG41, CPCD80/100-AG17, CPCD80/100-AG36, CPCD80/100-AG55
• Language: English and Chinese (bilingual throughout)
• Pages: 306
• Format: PDF
• Dated revision markers: Part-change cut-offs are printed in the catalogue, for example “—2015.10” for a part used up to October 2015 and “2015.10—” for a part introduced from October 2015

Chapters Covered

• Part I Driving System — driving system layouts, drive axle assembly, drive axle, hub drive axle assembly, final drive assembly, wheel brake assembly, parking brake, hydraulic transmission gearbox, gearbox, operating valve assembly, pump assemblies, forward and reverse clutches, gearbox housing, torque converter, gearbox output shaft assembly, oil pump drive gear, oil pump and filter, shift valve, control valve, torque converter cooling circuits
• Part II Steering System — steering device, steering pipe device, steering axle, steering cylinder
• Part III Power System — power system layouts, air intake system, exhaust system, cooling system, fuel system, engine mount
• Part IV Body System — counterbalance weight assembly, nameplates and decals, seat assembly, truck body system, hood and floor board assembly, lock assembly, overhead guard
• Part V Controlling System — brake and inching control, throttle control, extinguishment control, hand brake control, shift control
• Part VI Hydraulic System — oil pump assembly, tilting oil pipe, steering oil pipe, brake oil pipe, multi-way valve control, multi-way valve assembly, hydraulic tank accessories
• Part VII Electrical System — instrument panel assemblies, front lamps, rear lamps, fuse boxes, electric board assemblies, fault detection switch, emergency power switch, complete electrical system layouts
• Part VIII Cab — cab overall views, frame systems, left and right door systems, rear window system, for both the 5t-7t and 8t-10t cab variants

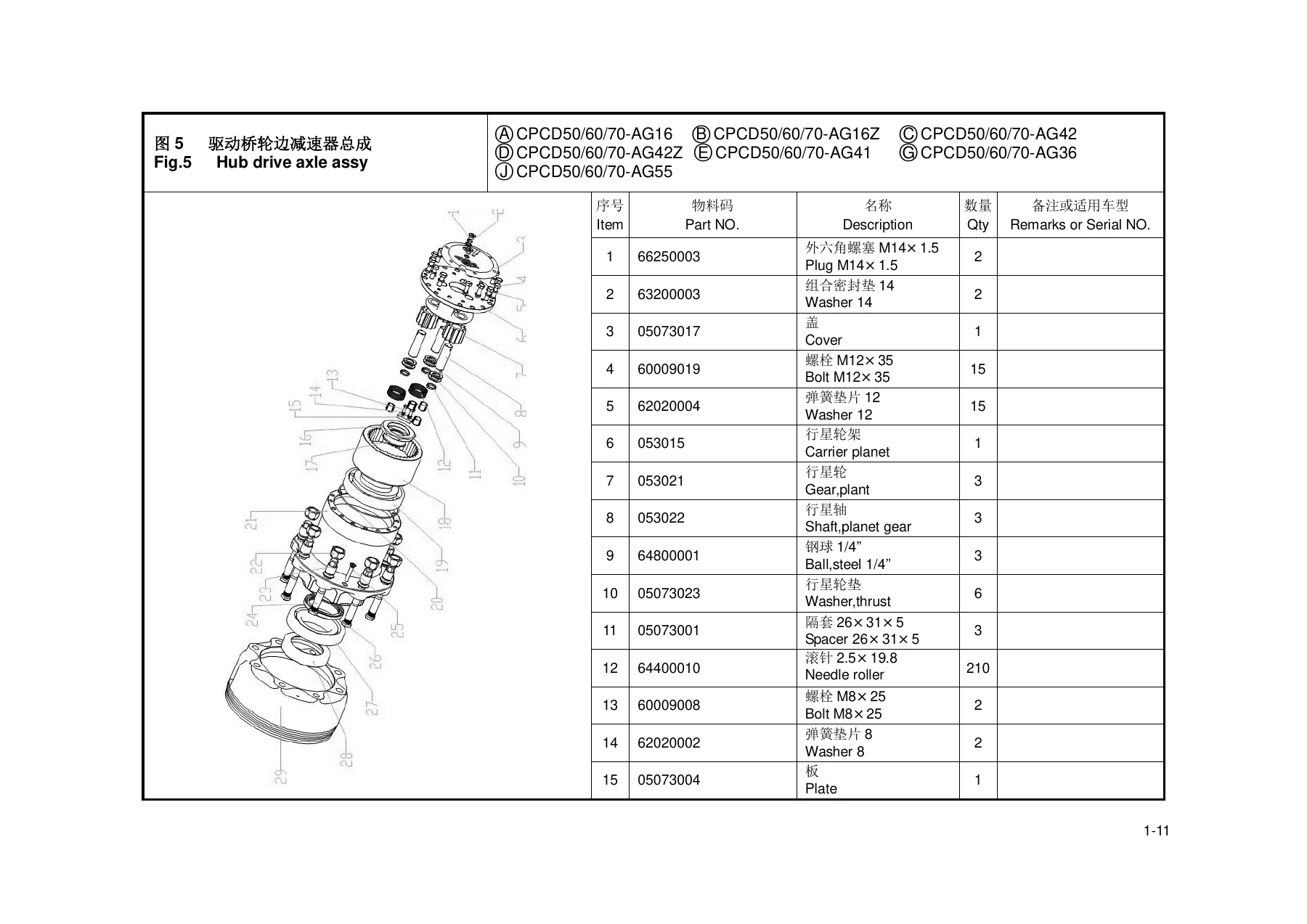

Eight sections carry the whole truck. Within each one the catalogue works the same way: an exploded illustration with ballooned item numbers, and beside it a table listing the item number, the part code, the part name in English and Chinese, the quantity required, and a remarks column that tells you which truck variant the part fits when it is not common to all of them. The fasteners are listed too, down to bolt sizes and washer part codes, which is what makes this catalogue usable for a full rebuild rather than just for the large components.

How the Model Lettering Works

The truck variants are abbreviated with letters A through K at the top of each parts table, and the key is printed at the head of every section. Letter A is CPCD50/60/70-AG16, B is CPCD50/60/70-AG16Z, C is CPCD50/60/70-AG42, D is CPCD50/60/70-AG42Z, E is CPCD50/60/70-AG41, F is CPCD80/100-AG41, G is CPCD50/60/70-AG36, H is CPCD80/100-AG17, I is CPCD80/100-AG36, J is CPCD50/60/70-AG55 and K is CPCD80/100-AG55. A letter shown against a row means that row applies to that truck; where a part is shared by everything, the row carries no letter at all. That single convention means you can be looking at a CPCD80-AG55 differential and immediately see which internal components are specific to your machine.

Date Change Notes

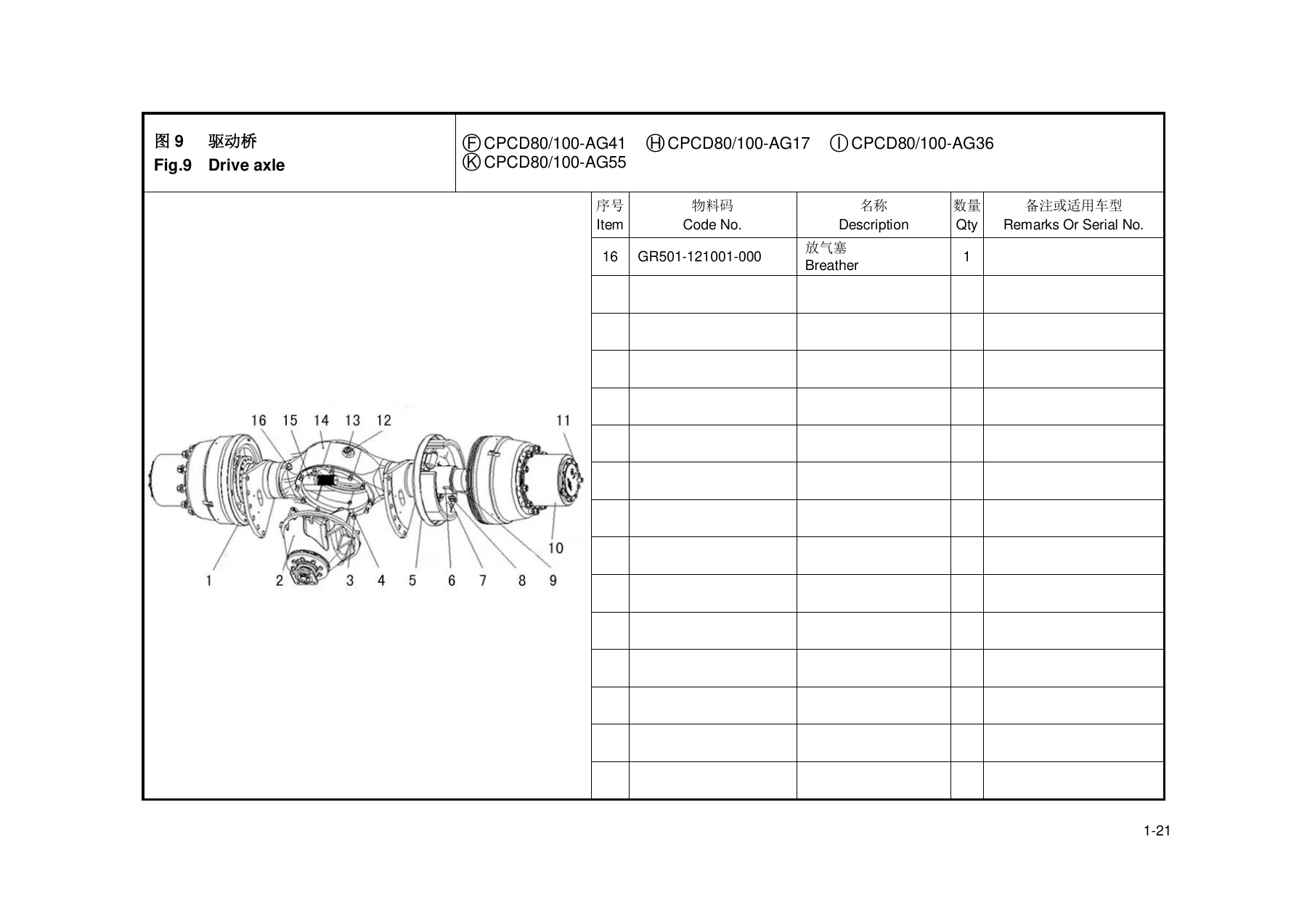

The catalogue is a 2015 issue and it carries its own change history inline. Entries such as “—2014.5.18” and “2014.5.18—” appear against pipes and extension tubes in the drive axle section, and the same convention runs through the hydraulics and body chapters. Before ordering, it is worth checking the cut-off date against the machine in front of you, because two identical-looking forklifts built either side of a change date can take different parts.

Scope Notes

Two boundaries are stated in the front matter and matter for ordering. The mast is not in this book — lifting system parts are published separately in the 5t-10t R/H/A Series internal combustion counterbalanced forklift truck mast parts catalogue. Container forklift trucks (the X designation) share everything with the standard truck apart from the mast. The front matter also notes that the company reserves the right to change construction without notice, so where a detail looks different from the truck in the workshop, the printed part code should be confirmed.

What This Catalogue Lets You Do

This is a working book for anyone who orders, stocks or fits parts on a 5 to 10 tonne Hangcha. It supports rebuilding a drive axle or hub reduction unit with the correct bearings, seals, spacer sleeves and lock nuts rather than a guessed equivalent; replacing brake shoes, wheel cylinders, master cylinder and booster components on the right variant; chasing hydraulic faults through the multi-way valve, tilting pipes, steering pipes and brake pipes; and putting the electrical system back together with the right fuse ratings, relays, flashers and instrument panel components for a specific truck letter.

Getting it right matters more than usual on these trucks because the same family spans 5, 6, 7, 8 and 10 tonne capacities and several transmission and hydraulic configurations. A bearing or oil seal that fits a CPCD50-AG16 will not necessarily fit a CPCD100-AG41. Having the variant letter, the part code, the description and the quantity on one line removes that risk and stops a second order for the part you should have fitted the first time.

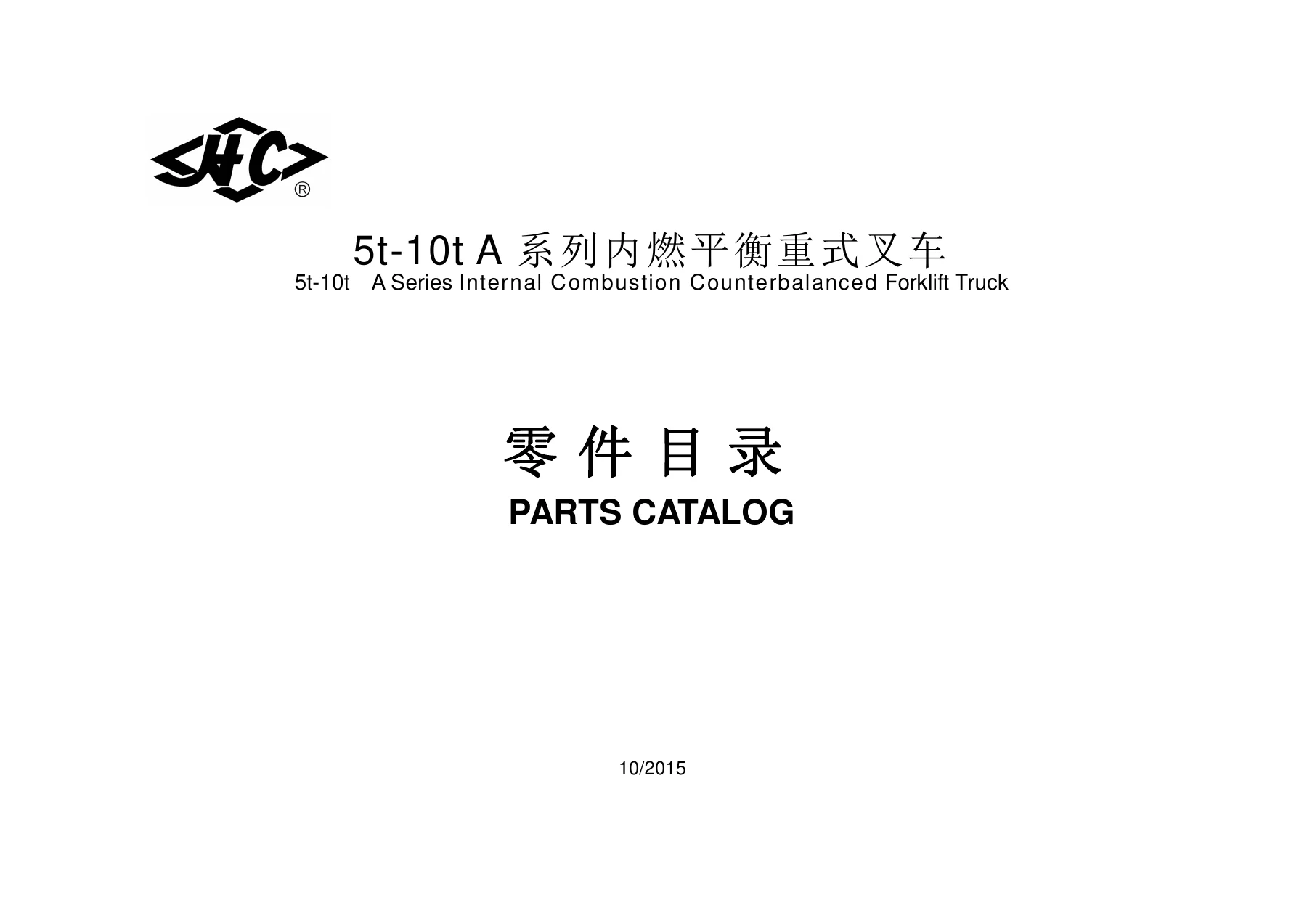

IMAGES PREVIEW

Delivery is instant. The moment payment clears, the PDF is available to download — nothing is shipped, nothing waits on a courier. Read it on a laptop in the office, a tablet on the shop floor, or a phone beside the machine, and print whichever pages you want to take under the truck. A 306-page parts catalogue with exploded views across eight systems, priced for a single purchase rather than a subscription.
