Hitachi EX5600-6 Hydraulic Excavator Principles of Operation Manual PDF

Description

Hitachi EX5600-6 Hydraulic Excavator Principles of Operation Manual

The Hitachi EX5600-6 Hydraulic Excavator Principles of Operation Manual is the technical manual that explains how the machine actually works — the control logic, the hydraulic circuits, the electrical architecture and the operating principles behind each major component. Issued under document number ToKCA-E-00, this volume covers the EX5600-6 in both its loader front (loading shovel) and backhoe configurations and carries the full depth of Sections 1, 2 and 3: General, System and Component Operation.

A workshop manual tells you what to unbolt. This Principles of Operation manual tells you why the machine behaves the way it does — how the main controller exchanges data with the engine control modules, how pilot pressure reaches a control valve spool through the EHC and DQR valves, why travel speed changes when the travel mode solenoid energises, and what happens inside a pump regulator when engine speed falls below 1650 min-1. For anyone diagnosing a fault on an EX5600-6 rather than simply swapping parts, this is the reference that makes the difference.

File Details

• Manual type: Technical Manual — Principles of Operation (Operation Principle volume)
• Brand: Hitachi
• Model: EX5600-6 Hydraulic Excavator — Loader Front and Backhoe
• Document number: ToKCA-E-00
• Language: English
• File format: PDF
• Length: 333 pages across three sections

Chapters Covered

The Hitachi EX5600-6 Principles of Operation Manual PDF is organised into three sections, each divided into numbered groups:

• Section 1 — General
  • Group 1 Specifications: machine specifications and working range
  • Group 2 Component Specifications: engine, engine accessories, hydraulic components, electrical components, filters, others
  • Group 3 Component Layout: main components, left frame, cab, relay panel, control box, relay box, pilot piping, pump rooms, engine rooms, folding stairway, center frame, control valve, hydraulic oil tank, fuel tank, travel alarm and fast-filling device, oil cooler room, auto-lubrication device, engine oil reserve tanks, undercarriage
• Section 2 — System
  • Group 1 Controller: main controller (MC), electric lever control unit (ELU), information display unit (IDU), engine control module (ECM), data logging unit (DLU), contamination sensing unit (CSU), hydraulic system monitoring unit (HMU), engine heat balance control unit (EHU)
  • Group 2 Control System: engine control, pump control, fast-filling panel lower control, folding stairway control, auto-lubrication control, oil cooler fan motor speed control, wiper control, travel mode control
  • Group 3 ELU System: pilot shut-off control, pump control, cushion cylinder end travel regulation control, swing stop control
  • Group 4 Hydraulic System: pilot circuit, operation control circuit, main circuit, oil cooler fan motor circuit, air conditioner compressor motor circuit, pump transmission oil cooling circuit, travel shock damper and travel stop circuit
  • Group 5 Electrical System: electrical power circuit, accessory circuit, engine start circuit, charging circuit, engine stop circuit, surge voltage prevention circuit
• Section 3 — Component Operation
  • Group 1 Pump Device: main pump construction, regulator (torque constant control, flow rate control, power decrease and increase control, minimum flow rate signal priority control), 4-unit pump, contamination sensor
  • Group 2 Swing Device: swing motor, swing parking brake, swing reduction gear, valve unit (relief and make-up valves)
  • Group 3 Control Valve: valve and valve section layout, pilot port layout, main relief valve, make-up valve, hydraulic circuit
  • Group 4 Control Equipment: electric lever, EHC valve for electric lever control
  • Group 5 DQR Valve: port location, construction, operation
  • Group 6 Travel Device: travel motor, travel mode selection, brake valve, parking brake, travel reduction gear
  • Group 7 Others (Upperstructure): fast-filling system, air conditioning system, auto-lubrication device, oil cooler fan motor, accumulator, EHC valve
  • Group 8 Others (Undercarriage): swing bearing, cushion cylinder, accumulator, center joint

Machine Data Documented in the Manual

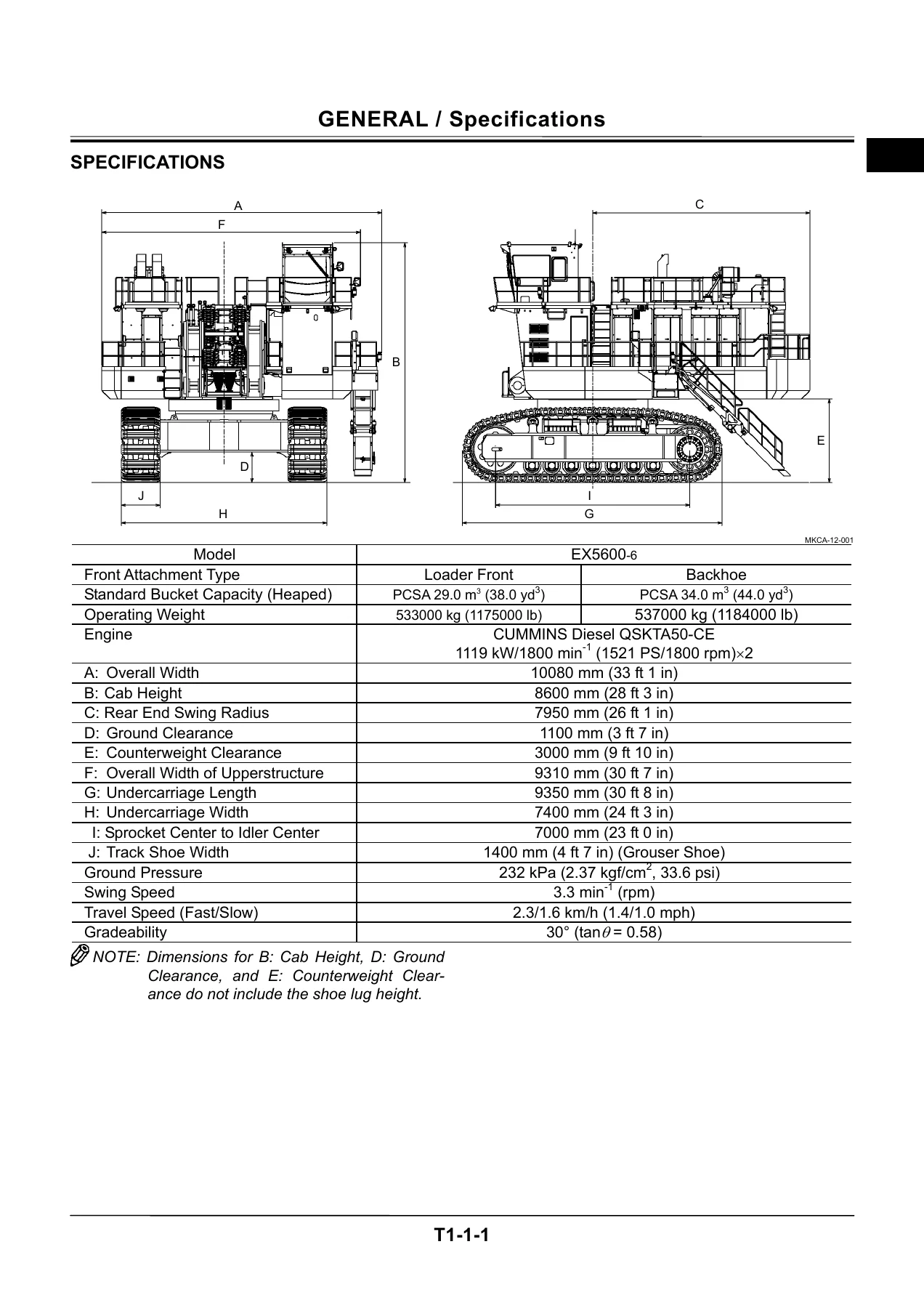

Section 1 of the Hitachi EX5600-6 Principles of Operation Manual PDF carries the machine specification set for both front attachment types, including the CUMMINS QSKTA50-CE diesel engine rated at 1119 kW / 1800 min-1 (1521 PS / 1800 rpm) in twin installation, operating weights, ground pressure, swing speed, travel speeds, gradeability and the full working range charts for the loading shovel and backhoe. It also lists the ratings for the hydraulic and electrical components that make up the machine — main pumps, 4-unit pumps, oil cooler, pump transmission cooler, control valve, swing device, radiator assemblies, fuel cooler, batteries, sensors, switches, control levers and filters — so the operating principles in later sections can be read against real component data.

What This Manual Explains

The control architecture chapter walks through the eight controllers on the machine and how they are linked, showing what each unit monitors, what it commands and how failure information travels to the display. From there the manual works through the actual behaviour of the systems: auto-idle, power increase and power decrease control, pump displacement angle control, the fast-filling panel interlock, the folding stairway sequence, automatic lubrication intervals, oil cooler fan speed staged against hydraulic oil temperature, travel mode selection, and the swing stop logic that prevents swing while the fast-filling panel is down or the stairway is deployed.

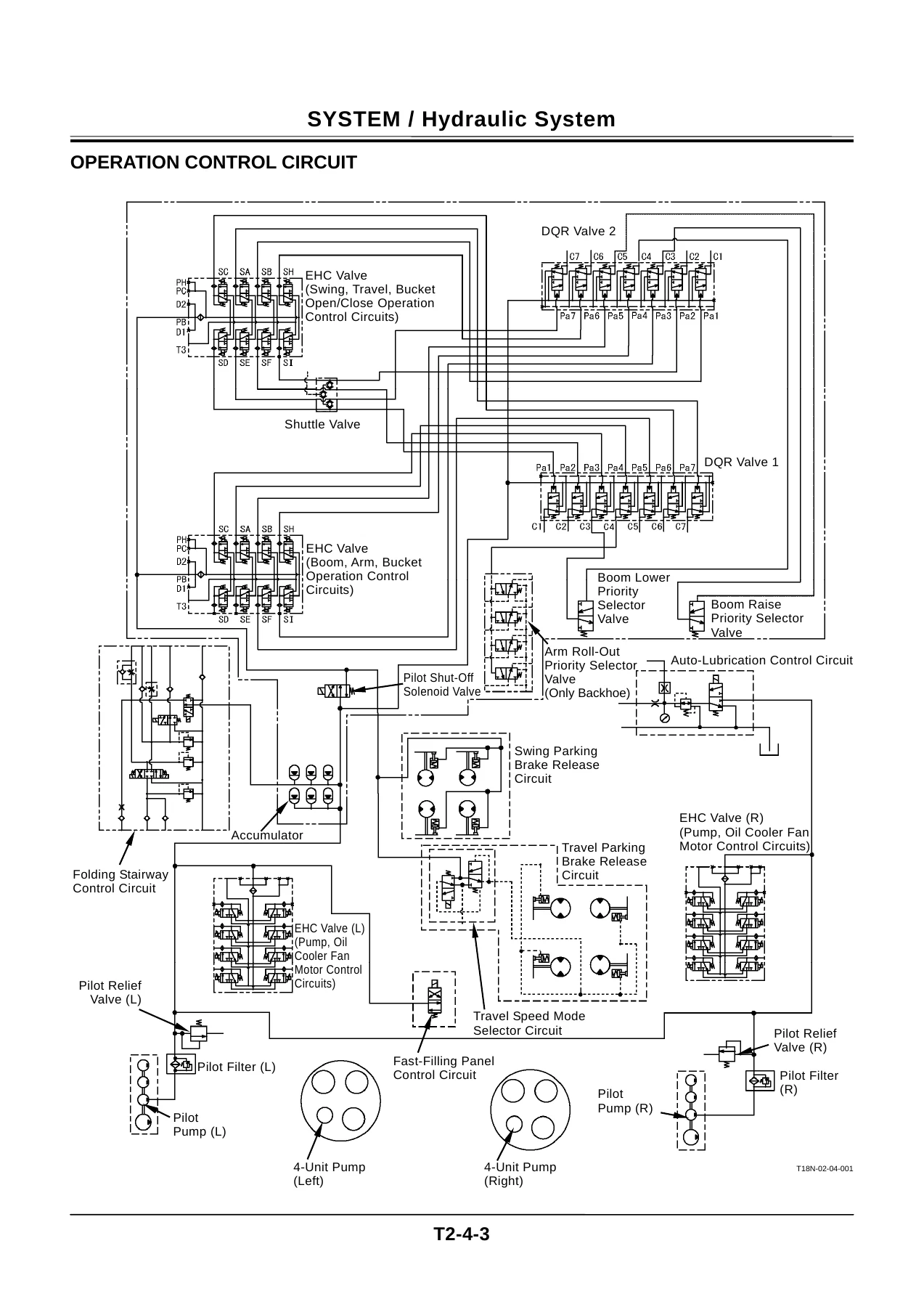

The hydraulic section explains the pilot circuit, the operation control circuit through the EHC and DQR valves, the main circuit split across twelve main pumps and six control valves, combined operation circuits for both loading shovel and backhoe, the oil cooler fan and air conditioner compressor circuits, the pump transmission cooling circuit, and the travel shock damper and travel stop circuit that protects the front idlers.

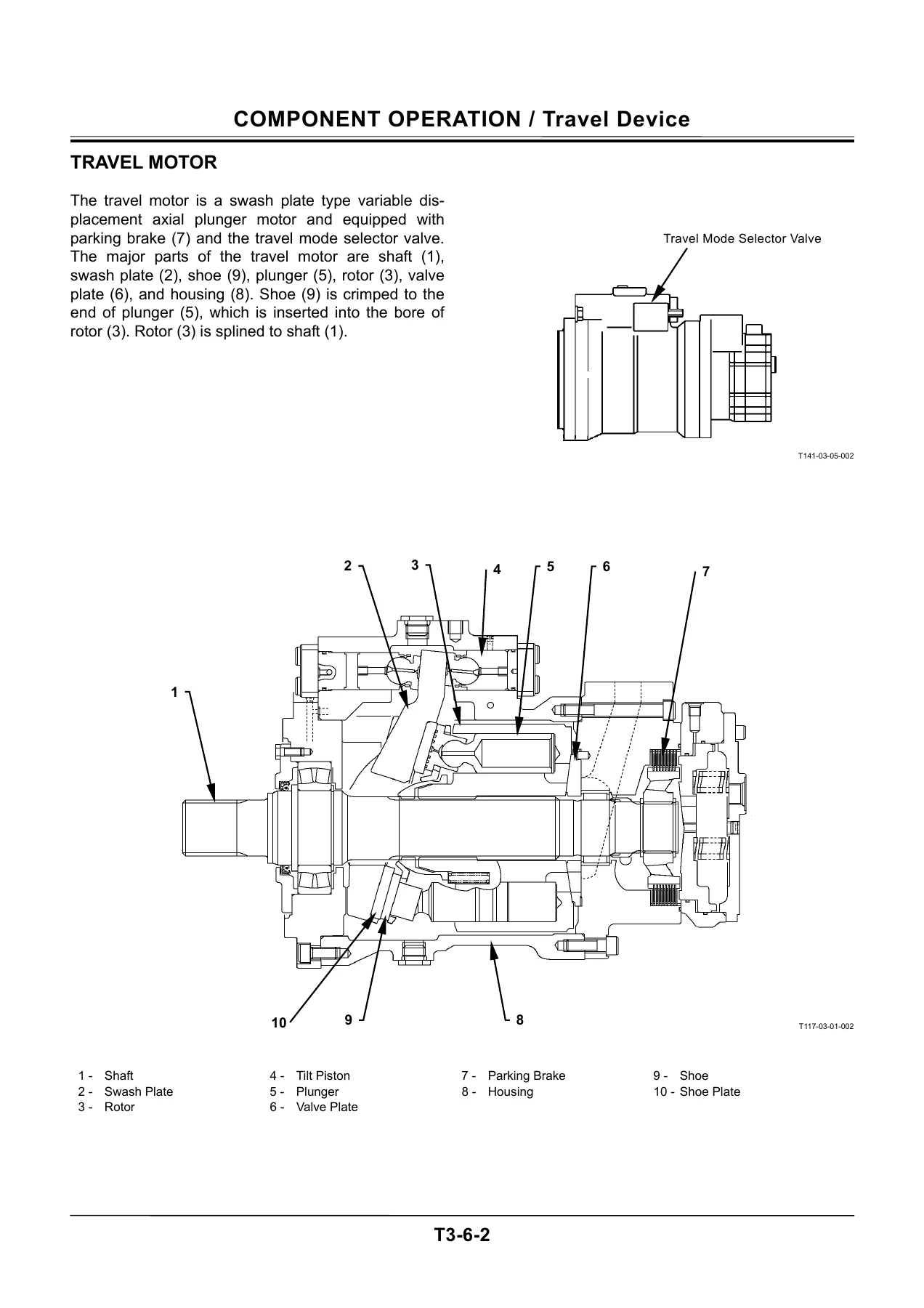

Component operation goes inside the hardware: swash plate pump construction and flow rate change, the regulator link mechanism and feedback lever operation, the 4-unit pump arrangement, contamination sensing, swing motor and parking brake release, control valve relief and make-up valves, the proportional solenoid valves used in the EHC valve, DQR valve spool balance, travel motor displacement change, brake valve counterbalance action, and the swing bearing, cushion cylinder, accumulator and center joint in the undercarriage.

Who This Manual Suits

This Hitachi EX5600-6 Principles of Operation Manual is written for the experienced technician. It suits field service engineers, mine maintenance planners, hydraulic and electrical specialists, and technical trainers who need to understand the machine’s behaviour before adjusting, testing or repairing it. It is also the natural companion volume to the EX5600-6 workshop manual — this book supplies the theory and circuit logic, the workshop volume supplies the removal, installation and assembly procedures.

Get the Hitachi EX5600-6 Principles of Operation Manual

With this Hitachi EX5600-6 Hydraulic Excavator Principles of Operation Manual on hand you can trace a control signal from lever to spool, follow pilot oil through the EHC and DQR valves into a control valve, work out which controller owns a given function, read a fault back to the system that produced it, and understand exactly what the machine is doing and why before you touch a single fitting. Correct understanding of the operating principles is what separates a repair that holds from a repeat failure, and it is what turns a fault code into a diagnosis.

IMAGES PREVIEW

Delivered as an instant PDF download after payment — no shipping, no waiting. Read it on a laptop, tablet or phone in the workshop or on site, print the circuit and layout pages you need for the job, and keep the full 333-page reference on hand for the next one.
