Hitachi ZAXIS450-3 470H-3 500LC-3 520LCH-3 Excavator Service Manual – Workshop, Technical & Troubleshooting PDF

Description

Hitachi ZAXIS450-3 470H-3 500LC-3 520LCH-3 Excavator Service Manual

This complete PDF service manual covers the Hitachi ZAXIS-3 series hydraulic excavators — ZAXIS450-3, ZAXIS450LC-3, ZAXIS470H-3, ZAXIS470LCH-3, ZAXIS500LC-3 and ZAXIS520LCH-3. It combines the Workshop Manual (W1J1-E), Technical Manual (Operational Principle) (TO1J1-E) and Technical Manual (Troubleshooting) (TT1J1-E) into a single, well-structured document. Whether you are performing routine maintenance, component overhaul, hydraulic diagnostics, or electrical troubleshooting, this manual supplies the procedures, specifications and technical data required to work on these machines correctly.

File Details

• Manual Type: Complete Service Manual — Workshop Manual, Technical Manual (Operational Principle) and Technical Manual (Troubleshooting)
• Brand: Hitachi
• Models Covered: ZAXIS450-3, ZAXIS450LC-3, ZAXIS470H-3, ZAXIS470LCH-3, ZAXIS500LC-3, ZAXIS520LCH-3 (also referenced as ZX450-3, ZX450LC-3, ZX470H-3, ZX470LCH-3, ZX500LC-3, ZX520LCH-3)
• Publication Numbers: Workshop Manual W1J1-E, Technical Manual (Operational Principle) TO1J1-E, Technical Manual (Troubleshooting) TT1J1-E
• Language: English
• File Format: PDF
• Page Count: Approximately 1535 pages
• Copyright: 2006 Hitachi Construction Machinery Co., Ltd.

Chapters Covered

Workshop Manual

• Section 1 General Information: Precautions for Disassembling and Assembling, Tightening Torque, Painting, Bleeding Air from Hydraulic Oil Tank
• Section 2 Upperstructure: Cab, Counterweight, Main Frame, Pump Device, Control Valve, Swing Device, Pilot Valve, Pilot Shut-Off Solenoid Valve, Solenoid Valve, Signal Control Valve, Shockless Valve, Fan Valve, Fan Motor, Engine
• Section 3 Undercarriage: Swing Bearing, Travel Device, Center Joint, Track Adjuster, Front Idler, Upper and Lower Roller, Track
• Section 4 Front Attachment: Front Attachment, Cylinder

Technical Manual (Operational Principle)

• Section 1 General: Specifications, Component Layout, Component Specifications
• Section 2 System: Controller, Control System, ECM System, Hydraulic System, Electrical System
• Section 3 Component Operation: Pump Device, Swing Device, Control Valve, Pilot Valve, Travel Device, Signal Control Valve, Others (Upperstructure), Others (Undercarriage)

Technical Manual (Troubleshooting)

• Section 4 Operational Performance Test: Introduction, Standard, Engine Test, Excavator Test, Component Test, Adjustment
• Section 5 Troubleshooting: Diagnosing Procedure, Monitor Unit, Dr. ZX, ICF, Component Layout, Troubleshooting A, Troubleshooting B, Electrical System Inspection

What This Manual Enables You to Do

Having the complete Hitachi ZAXIS450-3 470H-3 500LC-3 520LCH-3 service manual on hand means you can tackle everything from routine fluid and filter services through to full component overhauls. The Workshop Manual walks you through removal and installation of every major assembly — cab, counterweight, main frame, pump device, control valve, swing device, travel device and all front attachment cylinders. Torque specifications, tightening sequences and assembly precautions are given for each procedure, so you can work confidently without guessing at critical values.

For machine performance evaluation, the Technical Manual (Operational Principle) provides complete system descriptions covering the controller, control system, ECM system, hydraulic system and electrical system. It explains how each component operates within the overall machine architecture — from pump regulators and control valves to travel motors and swing devices. This knowledge is invaluable when diagnosing subtle performance issues or verifying that a repair has restored full function.

The Technical Manual (Troubleshooting) gives you a structured diagnostic path. It includes operational performance test procedures for engine, excavator and components, complete with standard values and adjustment methods. The troubleshooting section covers MC fault codes, ECM fault codes, ICF fault codes, monitor unit diagnostics, CAN harness checks, and system-by-system diagnostics for the engine, all actuators, front attachment, swing, travel and other systems. Electrical system inspection procedures, including fuse and fusible link testing, continuity and voltage checks, and alternator troubleshooting, are also included.

Comprehensive Coverage for the ZAXIS-3 Series

This manual covers all six models in the range — ZX450-3, ZX450LC-3, ZX470H-3, ZX470LCH-3, ZX500LC-3 and ZX520LCH-3. It addresses the specific differences between standard and long-crawler (LC) variants and between the H and LCH front attachment configurations. Where procedures differ between models — particularly in the travel device, track adjuster, front idler and lower roller sections — separate specifications and step-by-step instructions are provided so you can be sure you are following the correct procedure for your exact machine.

The engine covered in this manual is the ISUZU AH-6WG1X, a six-cylinder diesel producing 260 kW (353 PS) at 1800 rpm. Detailed engine specifications, accessory data, cooling system, lubrication system, starting system, preheat system and EGR system information are all provided. The manual also covers the engine controller (ECM), including fuel injection control, fuel injection amount correction, preheating control, EGR control and engine stop control.

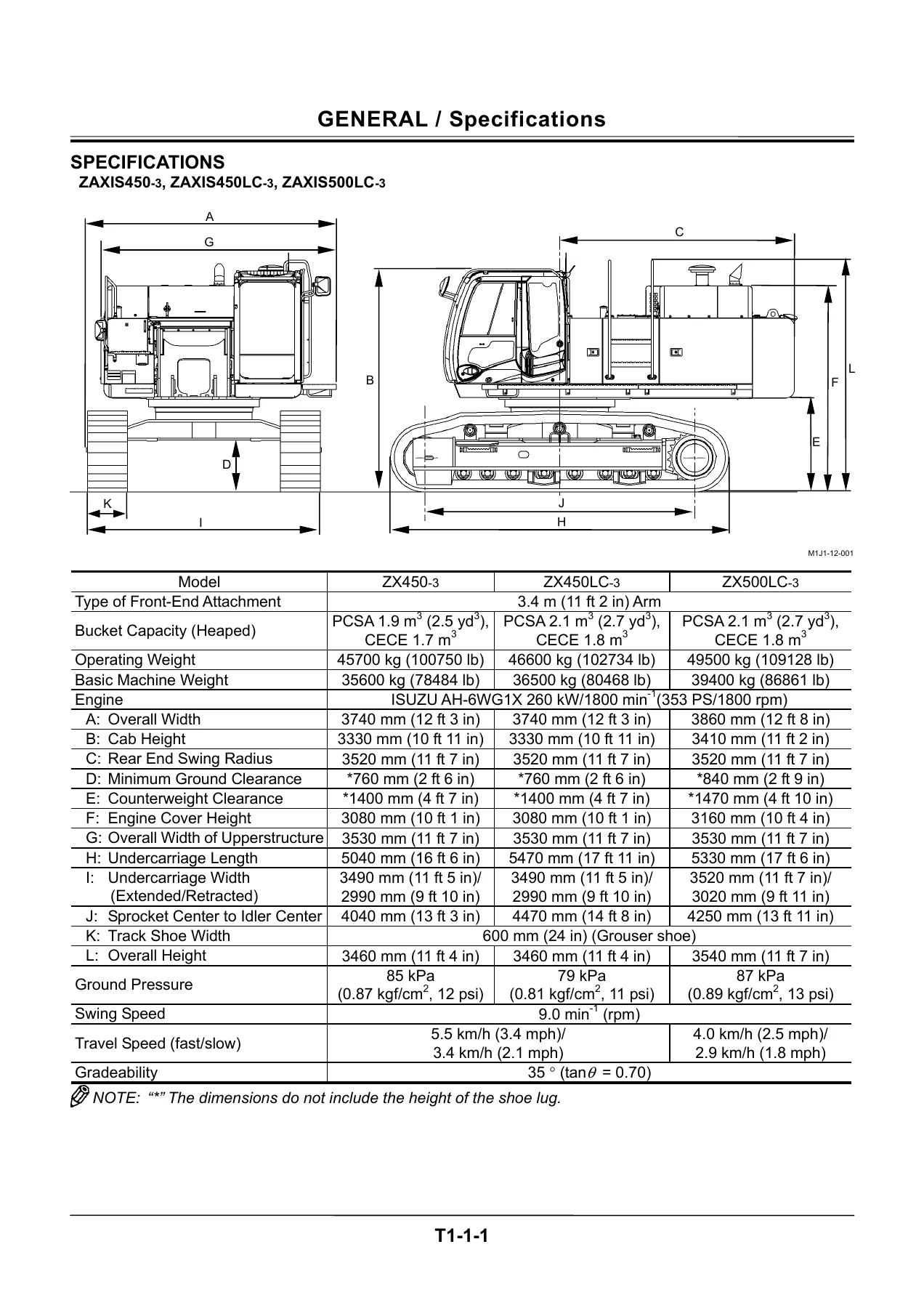

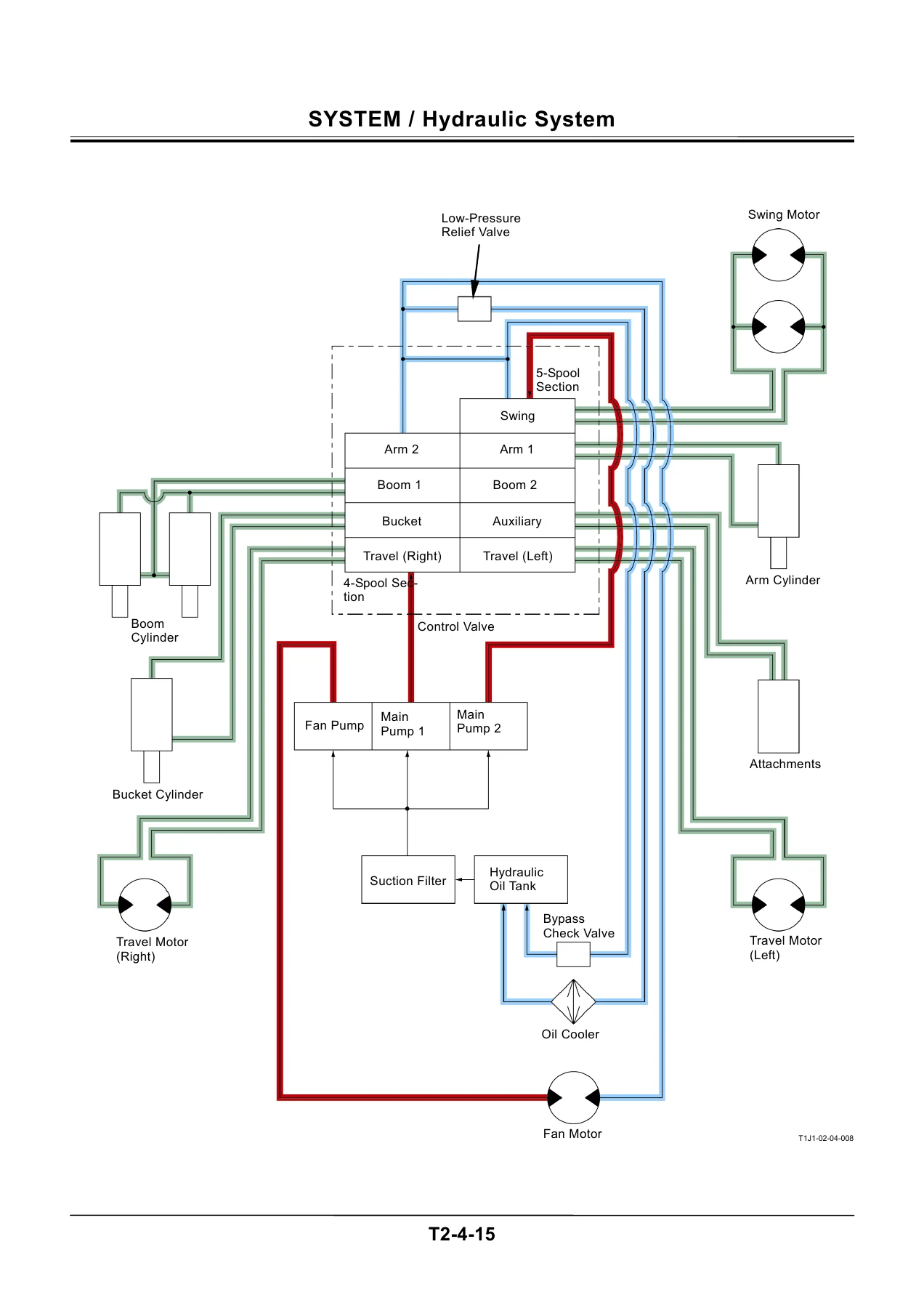

IMAGES PREVIEW

Hydraulic and Electrical Systems

The hydraulic system documentation is extensive. It covers the pilot circuit, main circuit, pump device (main pump, fan pump, pilot pump and regulators), control valve (main relief valve, overload relief valves, flow combiner valve, anti-drift valves, regenerative valves, flow rate control valves and bypass shut-out valve), swing device, travel device and signal control valve. Each component’s operation is explained with clear descriptions and illustrations, so you can understand exactly how pressure oil is routed and controlled during every machine function.

On the electrical side, the manual covers the main circuit, electric power circuit, starting circuit, charging circuit, surge voltage prevention circuit, pilot shut-off circuit, security lock circuit, engine stop circuit, security horn circuit, working light circuit and wiper/washer circuit. The ECM system is covered in detail, including fuel injection control, preheating control, EGR control and engine stop control. The monitor unit and Dr. ZX diagnostic tool are also documented, giving you the ability to read fault codes, monitor sensor values and perform pump learning and torque adjustments.

Who This Manual Is For

This Hitachi ZAXIS450-3 470H-3 500LC-3 520LCH-3 service manual is written for experienced technicians and mechanics who maintain, repair and diagnose these hydraulic excavators. It assumes familiarity with heavy equipment systems and standard workshop practices. The level of detail — from complete disassembly and assembly procedures to electrical circuit inspection and hydraulic component operation — makes it suitable for both routine service work and major component rebuilds.

If you own or operate a ZAXIS450-3, ZAXIS450LC-3, ZAXIS470H-3, ZAXIS470LCH-3, ZAXIS500LC-3 or ZAXIS520LCH-3, having this manual on hand means you can perform repairs and adjustments to the correct specifications, reducing the risk of premature failure or costly rework. It is equally valuable for fleet maintenance operations that need a single authoritative reference covering the entire ZAXIS-3 series.

Get Instant Access

The complete Hitachi ZAXIS450-3 470H-3 500LC-3 520LCH-3 hydraulic excavator service manual is delivered as an instant PDF download. There is no shipping, no waiting and no physical media to lose or damage. Once your order is complete, you can download the manual immediately and access it on any device — desktop, laptop, tablet or smartphone. The PDF format allows you to print only the pages you need for the workshop, keeping your master copy clean and readable. Whether you are in the shop, in the field or on the road, the information you need is always within reach.
