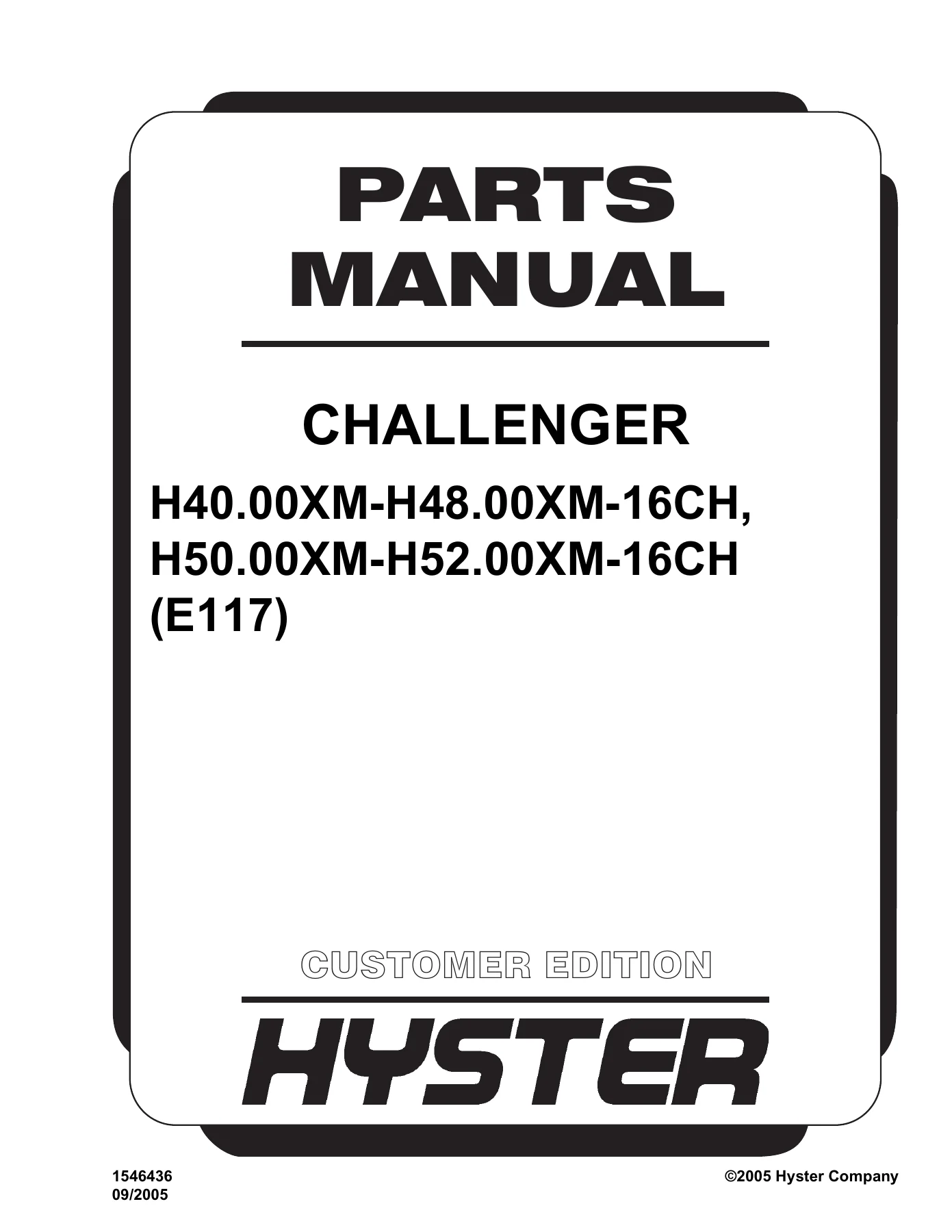

Hyster H40.00XM to H52.00XM-16CH (E117) Parts Manual – 1546436

This is the complete illustrated parts manual for the Hyster H40.00XM, H44.00XM, H48.00XM, H50.00XM and H52.00XM-16CH empty container handlers built on the E117 unit code. Publication number 1546436, dated September 2005. Every assembly, sub-assembly and detail part for service replacement is broken out with part numbers, descriptions, quantities and serial-number or date breaks so the correct component is ordered the first time.

At well over five hundred pages the manual is organised into fourteen numbered sections, and the entire document is presented in one clean PDF you can open on a laptop, tablet or phone in the workshop. It is the same style of exploded-view parts book that Hyster dealers use to identify replacement components for the 40, 44, 48, 50 and 52 tonne class empty container handlers.

What This Hyster E117 Parts Manual Covers

The layout follows the standard Hyster major-section structure, and every one of those sections is fully populated with callout diagrams and part tables:

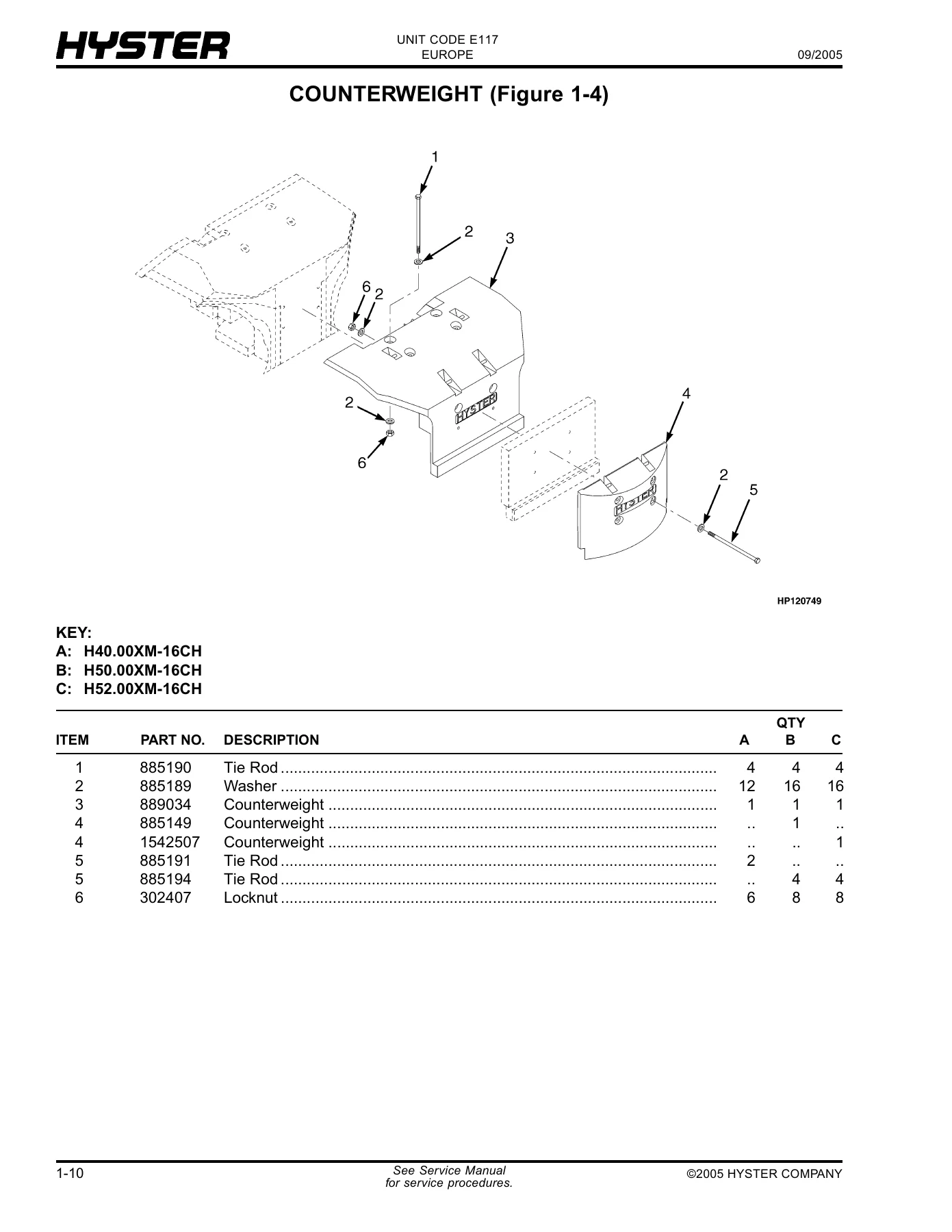

• Section 1 – Frame: covers, floorplates, steps and rails, counterweight (including fabricated type), cab mount, cab attaching parts, cab panels, cab sound reduction, underfloor cover mount, seats (mechanical, air, training seat), pivot arm assembly, armrest assembly, heater and air-conditioning assembly and mount, condenser, cab floormats, mirrors, windows, wiper systems, doors and labels.

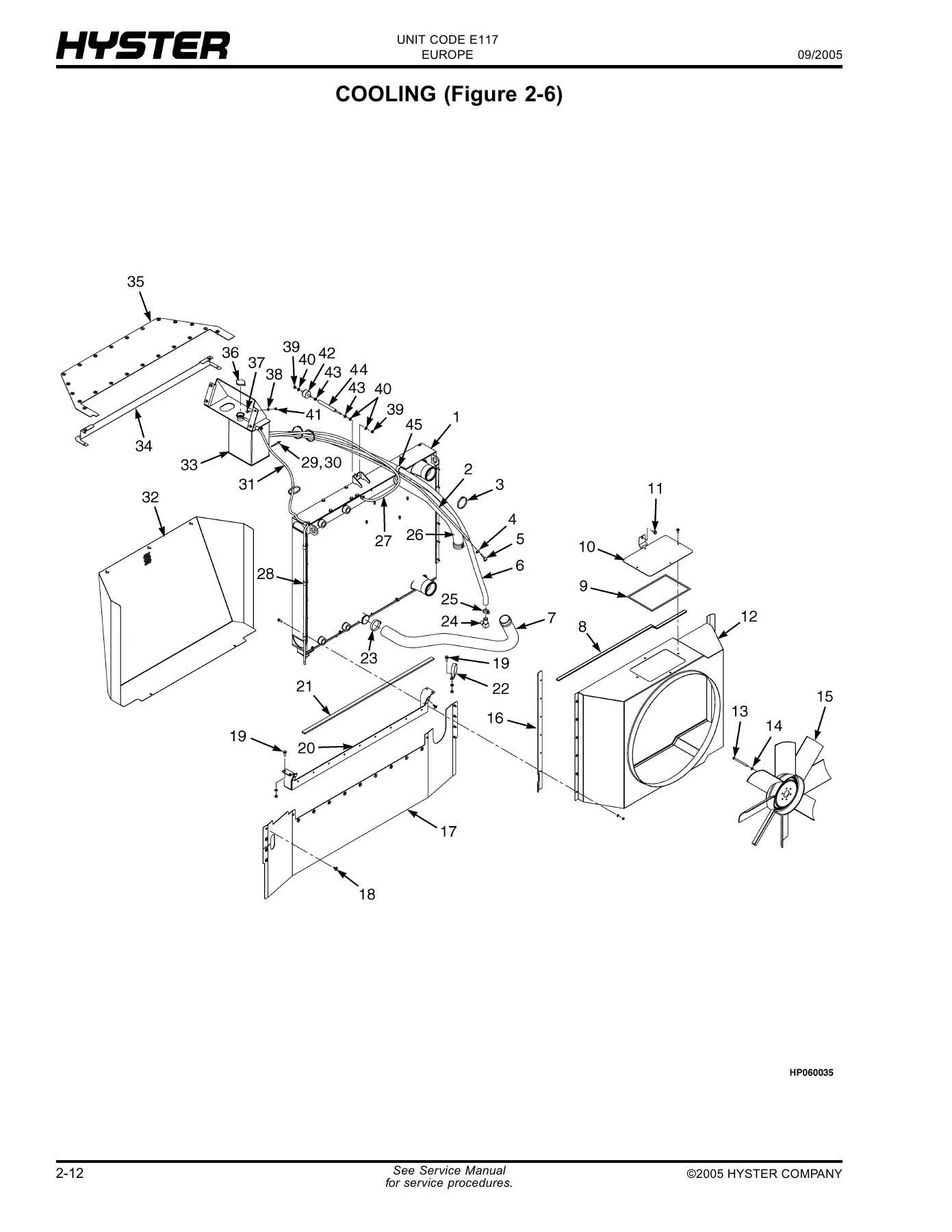

• Section 2 – Engines: 290 HP and 330 HP engine assemblies, cylinder block, cylinder head, cylinder liner, camshaft, cam follower levers, crankshaft, crankshaft main bearings, piston and connecting rod, piston cooling nozzle, gear housing, front gear cover, flywheel, flywheel housing, exhaust and exhaust manifold, intake manifold, turbocharger and plumbing, thermostat and housing, water pump, oil pump, oil pan, oil filter and cooler head, vibration damper, engine mount, front engine support, fan and fan drive, drive pulleys, breather plumbing, lifting bracket, air inlet/outlet connections, engine control system, electronic control module and electrical accessories.
• Section 3 – Fuel System: fuel system layout, injectors, fuel pump assembly, fuel pump coupling, fuel pump drive, fuel pump plumbing, fuel filter plumbing, water separator, throttle pedal linkage.
• Section 4 – Electrical System: complete electrical system, transmission controller and shift lever, indicator display assembly, control panel (heater and air conditioner panels), DC-DC converter, radio console, armrest switches, light bar and mount, horn, alternator and mounting, fuses and relays, sealed fuse box, and every wire harness including chassis, transmission T36000 and T40000 series, rear, wash pumps, switches, rotating beacon, stair light, lubrication pump, light switch sheets, closed cab, rear wiper, cab light, jumper, steering column, under floor, armrest, joystick, front lights and side console.
• Section 5 – Transmission: transmission lines and attaching parts, universal shaft, transmission case and rear cover, clutches (forward, fourth speed, low speed, reverse and 2nd shaft, third speed), pump drive and shaft, converter housing attachment, wheel and drive plate, regulating pressure valve and charge pump, electronic and hydraulic inching control valves, and the full C330/40000 series transmission assemblies including torque converter and drive plate, turbine shaft, stator support and oil baffle, input drive gears, forward/reverse/second/fourth clutch shafts, first/third/fourth speed clutches and gears, output shaft gears, output flange and shaft, electric control valve and modulator valve.
• Section 6 – Drive Axle: differential carrier (wet brake), axle housing and hub and shaft assemblies.
• Section 7 – Steering System: steering column and attaching parts, steering column assembly, steering axle and attaching parts, steering axle assembly, steering cylinder and steering control valve.
• Section 8 – Brake System: complete brake system, brake and inching pedal linkage, disc wet brake assembly, wet brake assembly and brake valve assembly.
• Section 9 – Hydraulic System: hydraulic supply and return sheets 1 and 2, hydraulic valve and attaching parts, control valve assemblies (auxiliary, lift, lift and tilt, cap and support kit), hydraulic tank and attaching parts, lift accumulator and attaching parts, piston-type accumulator, flow amplifier, main and steering hydraulic pumps, cab/lift and tilt/main manifolds, joystick installation and pilot valve assembly, handlever installation, tilt cylinder and attaching parts, and mast installation.
• Section 10 – Mast with Empty Container Handler: complete mast assemblies for 7010 mm, 9754 mm and 12650 mm lift heights, with serial break at E117E01520C / E117E01521C, plus lift cylinders for the corresponding lift heights.
• Section 11 – Container Handler Attachment: hanger assembly, stop kit, hydraulic stop assembly, main frame, wear pads, pendular twist lock, side-shift cylinder, slewing cylinder, extension cylinder and attaching parts, extension-cylinder valve, valve assemblies, electrical system and hydraulic system for both Series 813 and Series 818 attachments.
• Section 12 – Attachments: header hose assemblies with dedicated and gantry carriage variants, dedicated carriage and gantry carriage with mechanical or power pile slope.
• Section 13 – Options: front, brake/back-up and rear work lights, rotating beacon, stair light, alarm, drive tyres and wheels (18.00 x 25, 18.00 x 33 x 36 ply) and steer tyres and wheels.
• Section 14 – Numerical Index: a full numeric part number index cross-referencing every part in the book to the page and item number where it appears.

How the Parts Book Is Structured

Every section opens with its own contents table, then presents each assembly as an exploded-view illustration with a callout key that links each numbered item to a part table. The table columns give the item number, Hyster part number, description and quantity required. Where several variants exist (for example a 290 HP versus a 330 HP engine, or a dedicated carriage versus a gantry carriage) the book uses lettered keys (A, B, C, D) so you match your exact machine before ordering.

Serial-number and date breaks are shown with arrows. A break shown as ⇒ S/N E117E01520C means the part applies to machines built up to and including that serial, while S/N E117E01521C ⇒ means the first serial the new part applies to. Mast, carriage and attachment identification is also explained at the front of the book so you can read the stamped data on the frame, mast, carriage or cylinder and select the correct group.

Part numbers that are not serviced separately, or that are superseded by another figure, are flagged with dots in the PART NO. column, and a pointing hand in the DESCRIPTION column sends you to the correct illustration.

Who This Hyster 1546436 Parts Manual Is For

This is a working reference for anyone maintaining or rebuilding an E117-series empty container handler. Fleet workshops, port and terminal maintenance teams, independent heavy-equipment mechanics and parts departments all use a book like this when a component needs replacing. It is equally useful for a single owner-operator who wants to look up the correct part number before calling a dealer, or for a rebuilder working through a transmission, a wet-brake drive axle or a mast overhaul.

Because every part is cross-referenced to an illustration, you can see how the assembly comes apart before you take it apart, which reduces the risk of ordering the wrong seal, shim, bearing or clip. The numerical index at the back means that if you already have the Hyster part number in hand, you can jump straight to the correct page and item.

Why the Hyster E117 Empty Container Handler Parts Manual Matters

Container handlers in the 40 to 52 tonne class run hard, and a wrong part costs money in downtime and freight. The manual eliminates guesswork. It shows which shim thickness belongs in a differential pinion stack, which seal kit covers a lift cylinder at a given lift height, which style of disc spring is used in the forward clutch, and which harness supersedes another on a serial break. That level of detail is not available in a generic parts catalogue.

Section 11 is particularly valuable because the empty container handler attachment is mechanically complex. The pendular twist lock, the slewing cylinder, the side-shift cylinder and the extension cylinder each have their own exploded views and kits, and the manual spells out wear pads, retainers and bracket kits individually. The same is true for the mast section, where the three lift heights (7010 mm, 9754 mm and 12650 mm) each draw from their own outer mast, inner mast, chain and lift cylinder part families.
